Midea KMFAE-12N8-C1H 3.5 kW Chest-type Warmer
Chest unit Midea Warmer KMFAE-12N8-C1H MFA2U-12HRFNX(GA) / X2-12N8D6-OH 3.5 kW

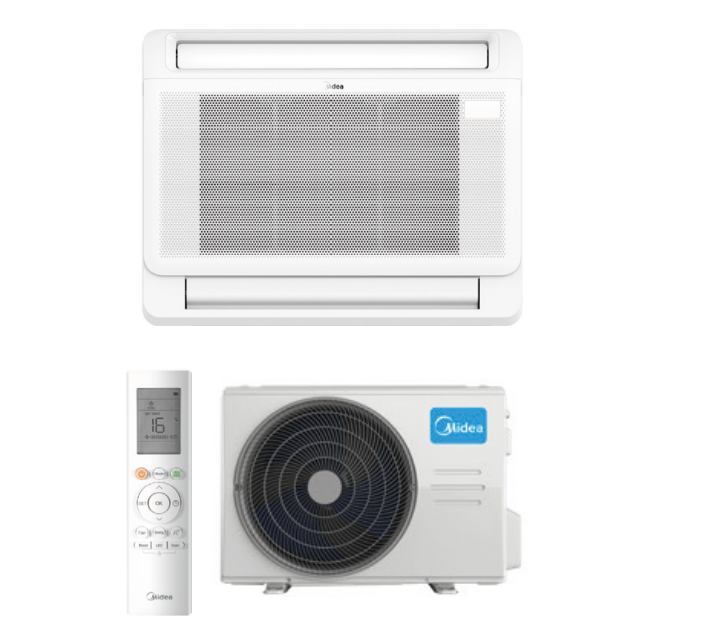

Included in the delivery:

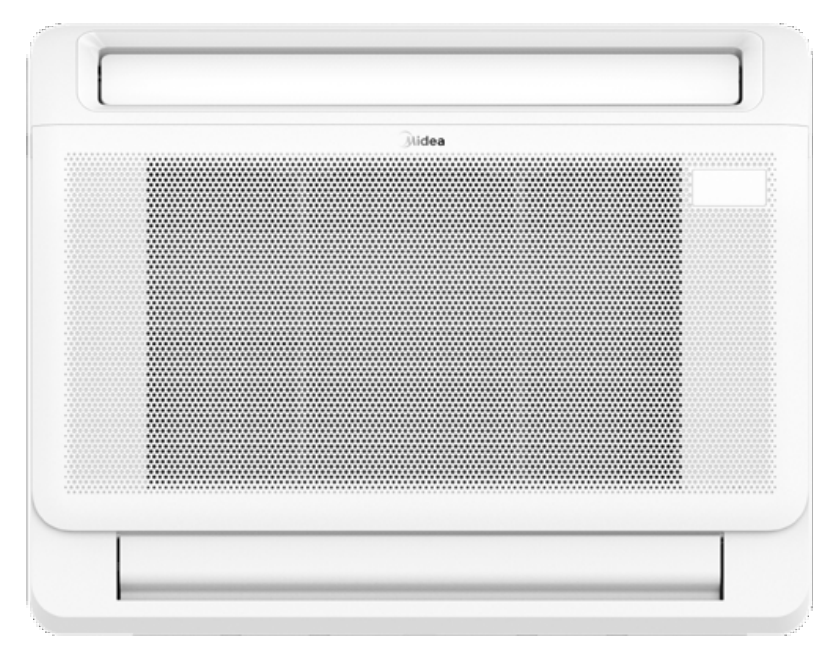

- one indoor unit MFA2U-12HRFNX(GA)
- one outdoor unit X2-12N8D6-OH
- a remote control
High-performance cooling and heating
High airflow for fast cooling and heating all year round
All-round thermal comfort
Thanks to the large double air outlets, the console ensures optimal air circulation in the room and thus maximum comfort.
Quiet operation
A specially optimized fan ensures high energy efficiency with a minimum noise level of 20.9 dB(A).
Comprehensive compatibility
The console is suitable for both mono and multi-split systems.
Diverse control options
Midea consoles enable seamless integration into control systems and thus cover the requirements of a wide variety of projects.
Easy maintenance
An improved mounting plate and easy access to filters and fans thanks to a removable front panel.
Fan speed control
The console offers precise fan speed control from 1 to 100% – not just high, medium, and low. More comfort, more flexibility, and more energy efficiency.
- Crankcase heater for compressor
- drip tray heater
- ECO function
- Turbo mode
- Sleep mode
- timer
- Follow-Me function
- humidity sensor
- Vertical and horizontal swivel function
- Self-cleaning
- Air Magic+ Ionizer: The positive and negative ion generator integrated into the Midea console produces powerful ions that bind and neutralize air pollutants, thus ensuring a cleaner environment.
- Silent mode
- Monoplayer and multiplayer modes
- Vehicle position storage
- Wired remote control (optional)
- Wi-Fi (optional)
Specifications:
| Cooling capacity | [kW] | 3.5 (1.38~4.31) |
| Heating output | [kW] | 3.8 (1.07~4.38) |
| power supply | [V~,Hz,Ph] | 220-240, 50, 1 |
| SEER / SCOP | - | 8.5 / 4.6 |
| Energy efficiency class cooling / heating | A+++ / A++ | |
| Nominal power consumption in cooling mode | [kW] | 1.01 |
| Nominal power consumption in heating mode | [W] | 0.98 |
| Sound pressure level indoor unit | [dB(A)] | 23/27/34/37 |
| Sound pressure level of outdoor unit: | [dB(A)] | 54.5 |
| Dimensions of indoor unit (W x D x H) | [mm] | 794×200×621 |
| Dimensions of outdoor unit (W x D x H) | [mm] | 765×303×555 |
| Weight of indoor unit | [kg] | 14.9 |
| Weight of outdoor unit | [kg] | 26.4 |
| Refrigerant type/quantity: | [-/kg] | R32/0.62 |
| Factory filling | [kg] | 0.78 |
| Pipe connections (diameter) liquid / gas | [mm (inches)] | Ø6.35(1/4)/Ø9.52(3/8) |
| Operating conditions of the outdoor unit (outdoor temperature) Cooling / Heating | [°C] | -25~50 / -30~30 |
*Important NOTE
Dear Customer, please be aware that by purchasing this product, the buyer/user confirms compliance with Regulation (EU) No 517/2014 of the European Parliament and of the Council of 16 April 2014 on fluorinated greenhouse gases and Regulation (EU) No 573/2024 of the European Parliament and of the Council of March 2024 on fluorinated greenhouse gases, which stipulates that: the person acquiring the split air conditioner/user confirms that it will be professionally installed by certified professionals.
https://www.gesetze-im-internet.de/chemklimaschutzv/__9.html
