The AMC-xxP series portable air conditioners use R290 refrigerant. They can be operated in dehumidifying, cooling, or heating modes. The product is equipped with a rotary compressor. It also features a replaceable air filter and a 24-hour timer.

Technical data:

Cooling/heating capacity:
AMC-11P: 3.0 / 3.0 kW
AMC-14P: 4.0 / 4.0 kW
Voltage / Frequency: 230 / 50 V / Hz
Nominal power consumption cooling / heating:
AMC-11P: 1150 / 965 W
AMC-14P: 1535 / 1290 W
Rated current consumption:
AMC-11P: 5.5 A
AMC-14P: 6.8 A
EER / COP: 2.6 / 3.1
Energy efficiency class in cooling/heating mode (medium): A / A++
Compressor type: ON / OFF
Optimal room area:
AMC-11P: 15 – 25 m²
AMC-14P: 25 - 35 m²
Airflow: 450 m³/h
Warm air exhaust pipe:
Maximum length: 1.5 m
Pipe diameter: 150 Ø
Sound pressure level (H/M/L): 56 / 53 / 50 dB(A)
Sound power level: 65 dB(A)
Dehumidification capacity:
AMC-11P: 2.1 l/h
AMC-14P: 2.9 l/h
Refrigerant:
Refrigerant type: R290
Refrigerant charge quantity:
AMC-11P: 0.3 kg
AMC-14P: 0.4 kg
CO2 equivalent:
AMC-11P: 0.0009 t
AMC-14P: 0.0012 t
Operating temperature range:
Heating: 7–25 °C
Cooling: 17–32 °C
Dimensions (length x height x width):
AMC-11P: 300 x 760 x 532 mm
AMC-14P: 300 x 760 x 532 mm
Net weight:
AMC-11P: 28.6 kg
AMC-14P: 30.6 kg

STANDARD EQUIPMENT:
remote control
150 cm warm air exhaust pipe
AMC-WINK Window Kit

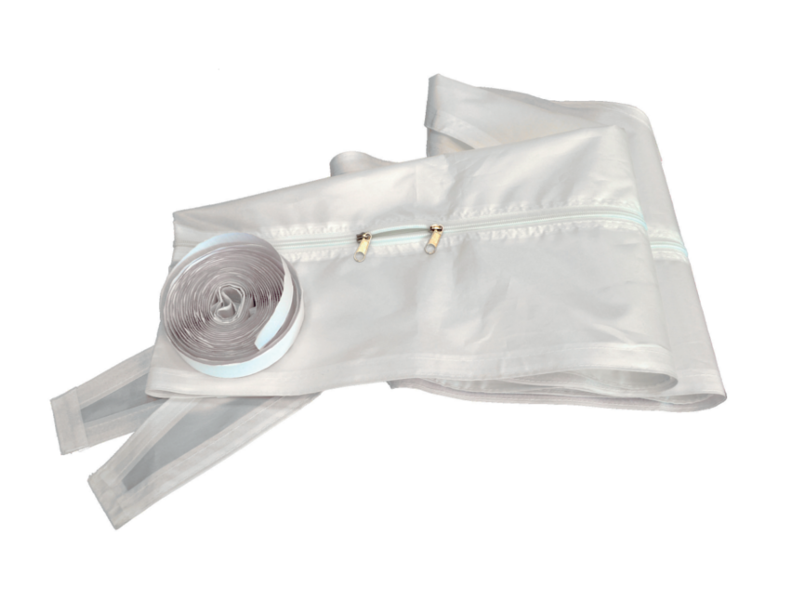

Optional WK-400A window set

Description:

WK-400A window set for all mobile Sinclair air conditioners.

– For mounting on an open window

– Prevents warm air from flowing back into the room

– Attached to the exhaust pipe

– Total length: 4 m

– Velcro fastener

Washable up to 30°C

– Do not tumble dry
