Panasonic
Panasonic Multi Split Air Conditioner 9.0 kW with 4x 2.0 kW & 1x 7.1 kW Etherea Indoor Unit White
Panasonic Multi Split Air Conditioner 9.0 kW with 4x 2.0 kW & 1x 7.1 kW Etherea Indoor Unit White
incl. VAT + shipping costs
Crowd
Description
Description
Multi Split Air Conditioner Panasonic

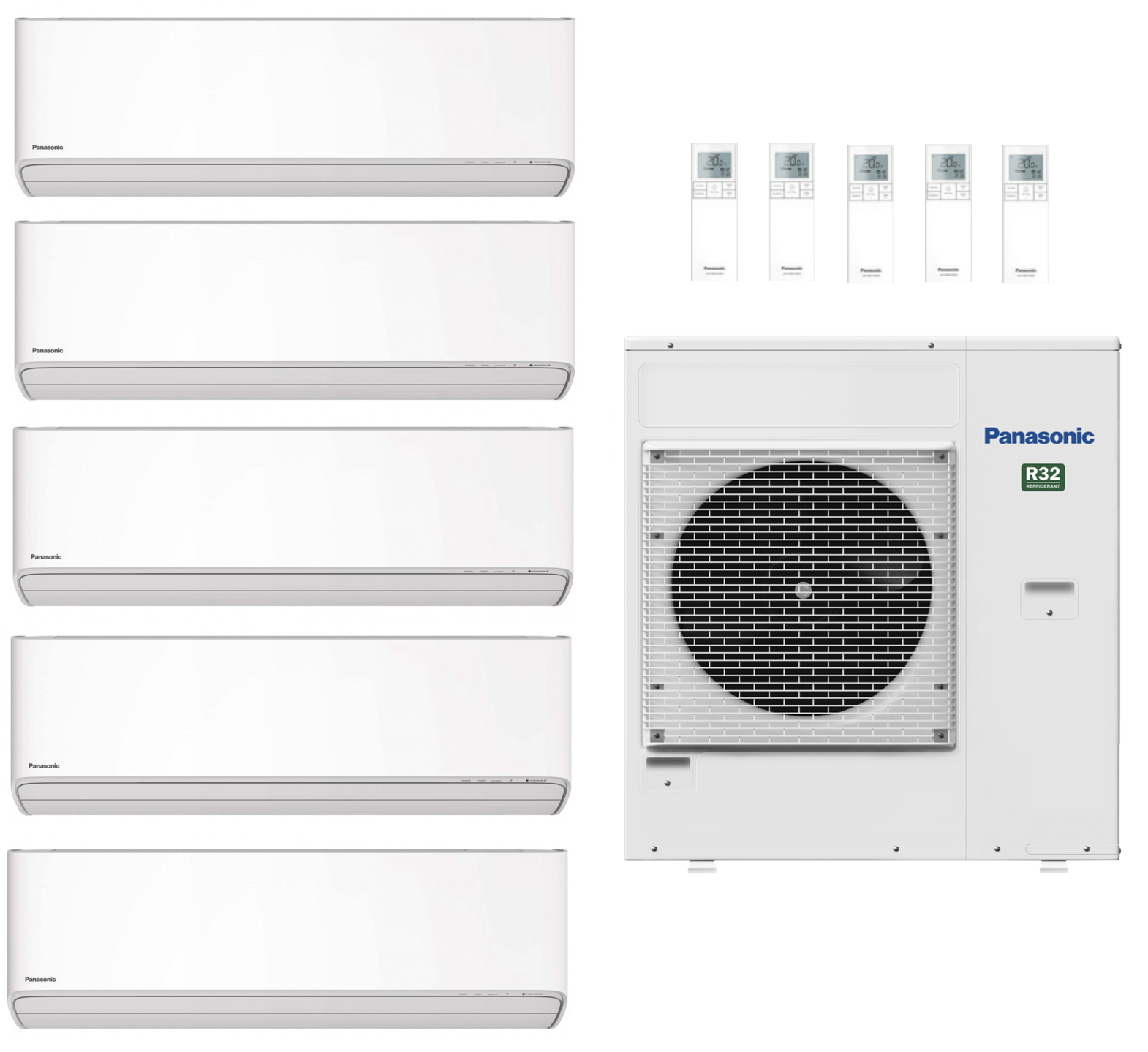

Included in delivery:

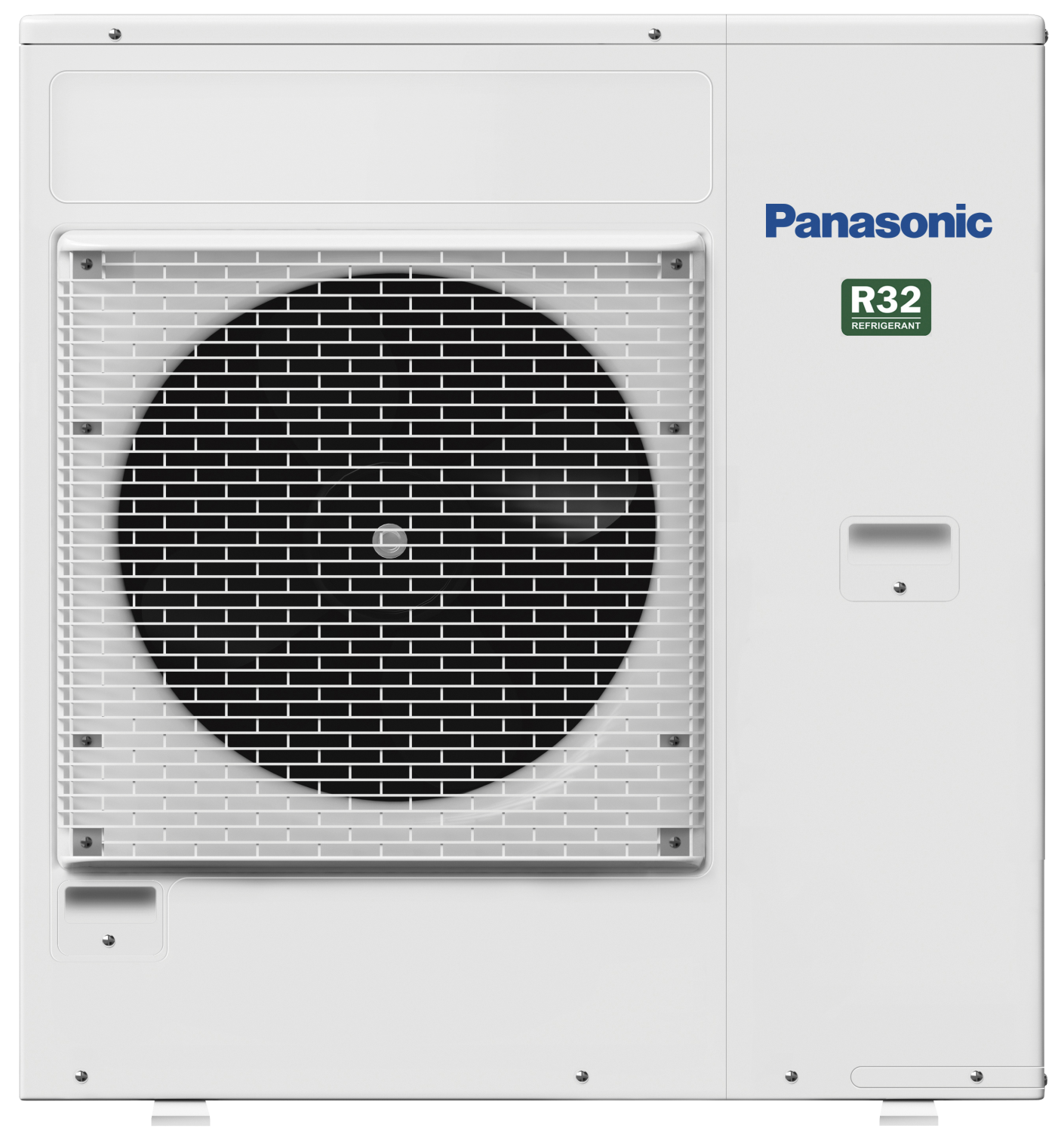

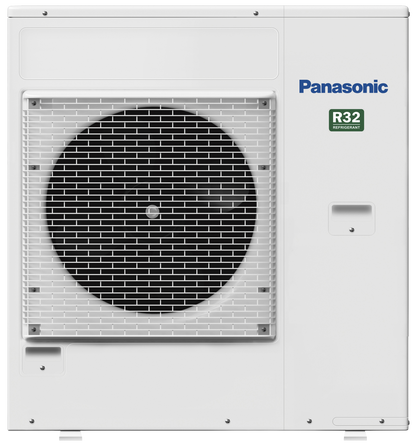

- 1x outdoor unit CU-5Z90TBE 9.0 kW

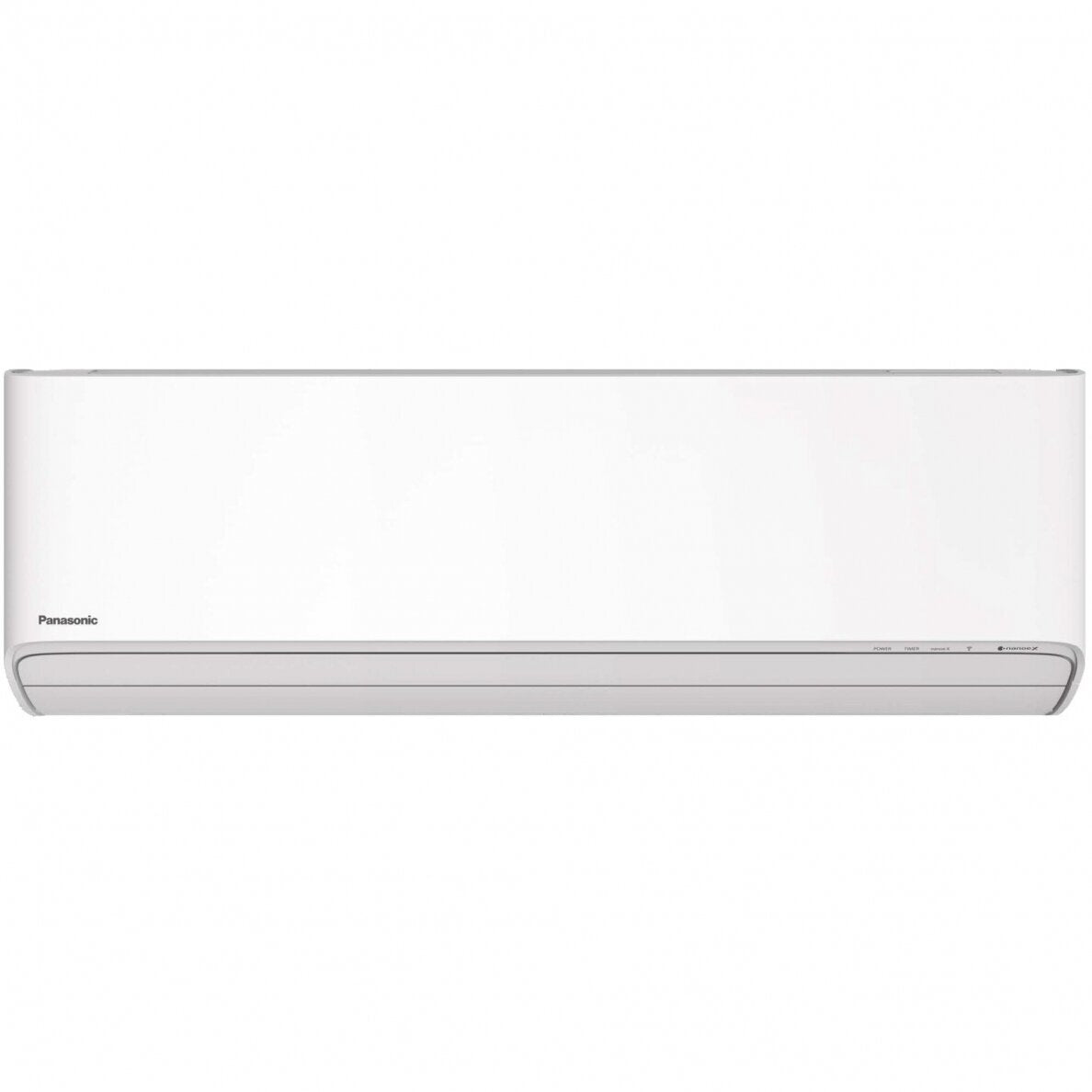

- Indoor units ETHEREA 4x 2.0 kW White CS-Z20ZKEW + 1x 7.1 kW White CS-Z71XKEW
- 5x remote control
ETHEREA wall devices:
• Control via app - built-in WiFi module
• nanoe X
• 21 dB(A)
• Aerowings slats
• Compatible with BMS systems
Free Multi Z outdoor units · R32:
• Up to 5 indoor units connected to one outdoor unit
• Up to 5 rooms with individual control
• Even better 24/7 protection with nanoe™ X technology in Etherea units, floor consoles and 4-way cassette units 60x60
• Wide range of indoor units – installation in every room
• High energy efficiency class A+++ SEER
• Flexible installation, compact dimensions and the possibility of a considerable length of the pipeline
• Indoor units compatible with voice control and internet
Specifications:
| Cooling capacity/heating capacity indoor unit: | 2.0: 2.00 kW / 3.20 kW 7.1: 7.10 kW / 8.70 kW |
| Cooling/heating capacity outdoor unit: | 9.00 kW / 10.40 kW |
| Energy efficiency class cooling/heating: | A+++ / A++ |
| SEER/SCOP: | 8.50 / 4.68 |
| Sound pressure level indoor unit cooling - heating (Hi / Lo / S-Lo): | 2.0 kW: 44/39/32 - 46 /39/32 dB(A) 7.1 kW: 49/40/32 - 49 /40/32 dB(A) |
| Sound pressure level outdoor unit cooling / heating (Nom.): | 53/54 dB(A) |
| Indoor unit dimensions (HxWxD): | 2.0kW: 295x870x229mm (10kg) 7.1kW: 295x1040x244mm (14kg) |
| Outdoor unit dimensions (HxWxD): | 999x940x340 mm (81 kg) |
| Power supply [Ø/V/Hz]: | 1 / 220-240 / 50 |
| Operating range Min. - Max.: | Cooling: -10~46 °C Heating: -15~24 °C |
| Refrigerant: | R32 |
| Pipe connections liquid + gas: | Indoor unit 2.0 kW: Ø 6.35 (1/4") + Ø 9.52 (3/8") Indoor unit 7.1 kW: Ø 6.35 (1/4") + Ø15.88 (5/8") Outdoor unit: Ø 6.35 (1/4") + Ø9.52 (3/8") |
*Important NOTE
Dear customer, you should bear in mind that with the purchase the buyer / user confirms compliance with “Regulation (EU) No 517/2014 of the European Parliament and of the Council of 16 April 2014 on fluorinated greenhouse gases and compliance with Regulation (EU) No 573/2024 of the European Parliament and of the Council of March 2024 on fluorinated greenhouse gases, which stipulates that: the person purchasing the split air conditioner / the user confirms that it will be professionally installed by certified professionals.
https://www.gesetze-im-internet.de/chemklimaschutzv/__9.html
Manufacturer information
Manufacturer information
Important NOTE
Important NOTE
Dear Customer, please note that by purchasing this product, the buyer/user confirms compliance with Regulation (EU) No 517/2014 of the European Parliament and of the Council of 16 April 2014 on fluorinated greenhouse gases and Regulation (EU) No 573/2024 of the European Parliament and of the Council of March 2024 on fluorinated greenhouse gases, which stipulates the following: The person who buys/uses the split air conditioner confirms that it will be professionally installed by certified professionals.
F-Gas Regulation Download Declaration
