AUX AUX-12CCW 3.5 kW Split Air Conditioner C-Smart Premium Crystal
Split air conditioning AUX C-Smart Premium Crystal CCW series AUX-12CCW AUX-12CCW/I / AUX-12CCW/O 3.5 kW
Included in the delivery:

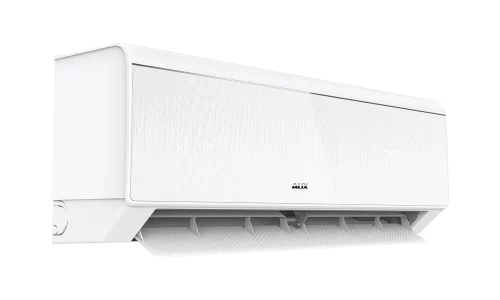

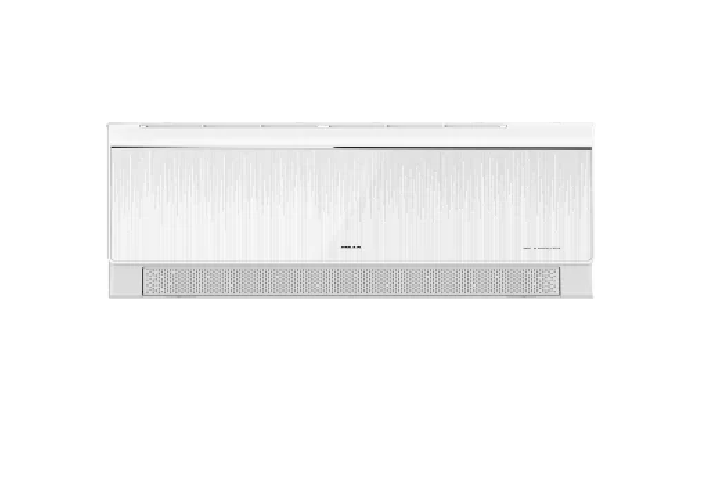

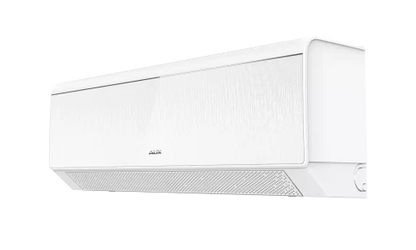

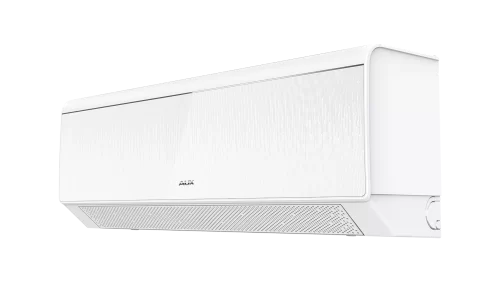

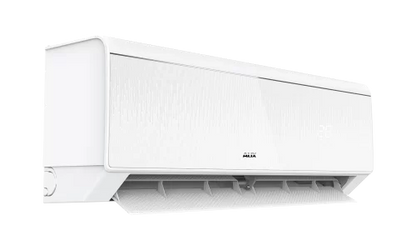

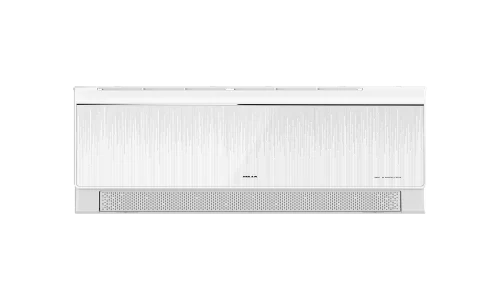

- an indoor unit AUX-12CCW/I

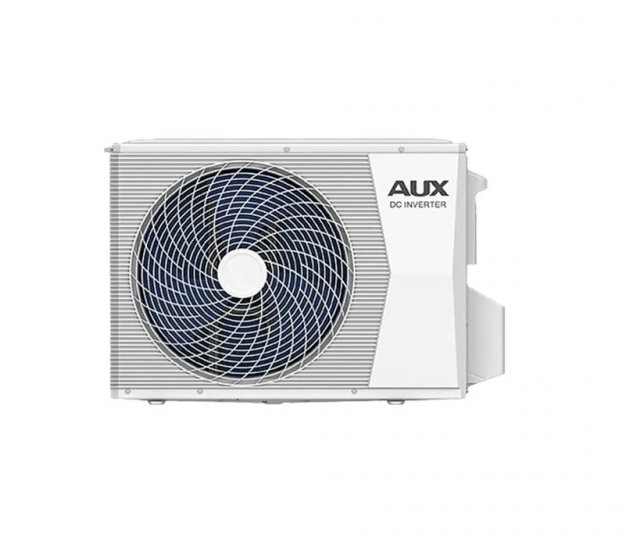

- one outdoor unit AUX-12CCW/O

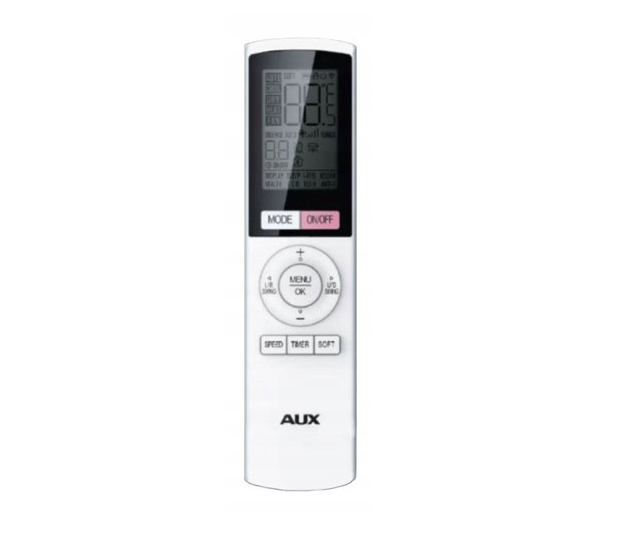

- a remote control
C-Smart Premium Crystal offers a modern design and advanced features for discerning users.
C-Smart Premium Crystal is a harmonious combination of innovative style and technological excellence that underscores the character of contemporary interiors. Its elegant design not only blends perfectly into various arrangements but also serves as a sophisticated decorative element.
- UV sterilization
- Sterilization at 57°C
- Self-cleaning function
- Antibacterial filter
- Setting the temperature range
- PM2.5 filter
- Additional air filters
- Protective function against mold
- Washable air filter
- Refrigerant R32
- Economic operating mode
- Standby mode 0.3W
- Self-diagnostic function
- 24-hour timer
- LED display
- Two-sided condensate drain
- Integrated Wi-Fi module
- Wireless controller
- Heating at -30°C
- 4D airflow
- Vertical air blind movement
- Horizontal air blind movement
- Anti-cold air function
- Night mode
- I FEEL function
- Turbo function
- Automatic mode
- Cooling mode
- Heating mode
- Heating mode 8°C
- Dehumidification mode
- Fan mode
- Silent mode
- Simple and quick installation
- Inverter technology
- Outdoor unit drip tray heating
- Intelligent defrosting
- Corrosion-resistant outdoor unit
- Gold-plated louvers of the outdoor unit
- Gold-plated louvers of the indoor unit
- Slats made of hydrophilic aluminum
- Super EMC
- Automatic restart
Specifications:
| Cooling capacity | [kW] | 3.50 (0.65 - 4.10) |
| Heating output | [kW] | 4.20 (0.93 - 4.20) |
| power supply | [V~,Hz,Ph] | 220-240, 50, 1 |
| Maximum current draw | [A] | 9.0 |
| Maximum power consumption | [W] | 1500 |
| SEER / SCOP | - | 8.50 / 4.60 |
| Energy efficiency class cooling / heating | - | A+++ / A++ |
| Sound pressure level indoor unit | [dB(A)] | 56 20 - 42 |
| Sound pressure level of outdoor unit: | [dB(A)] | 62 / 51 |
| Indoor unit dimensions | [mm] | 834 x 299 x 202 |
| Dimensions of outdoor unit | [mm] | 710 x 280 x 530 |
| Weight of indoor unit | [kg] | 8.5 |
| Weight of outdoor unit | [kg] | 24.5 |
| Refrigerant type: | - | R32 (GWP=675) |
| Factory filling (up to 5 m) | [G] | 600 |
| Additional filling | [g/m] | 20 |
| Operation of the outdoor unit (outdoor temperature) Cooling / Heating | [°C] | -10 / -30 |
| Pipe connections (diameter) liquid + gas | - | 1/4" + 3/8" |
*Important NOTE
Dear Customer, please be aware that by purchasing this product, the buyer/user confirms compliance with Regulation (EU) No 517/2014 of the European Parliament and of the Council of 16 April 2014 on fluorinated greenhouse gases and Regulation (EU) No 573/2024 of the European Parliament and of the Council of March 2024 on fluorinated greenhouse gases, which stipulates that: the person acquiring the split air conditioner/user confirms that it will be professionally installed by certified professionals.
