AUX Multi Split 3x Freedom AUX-09FH/I 2.6 kW + 7.9 kW outdoor unit
Multi split air conditioning AUX 1x AUX-M3-27LCLH 7.9 kW + 3x Freedom FH series AUX-09FH/I 2.64 kW

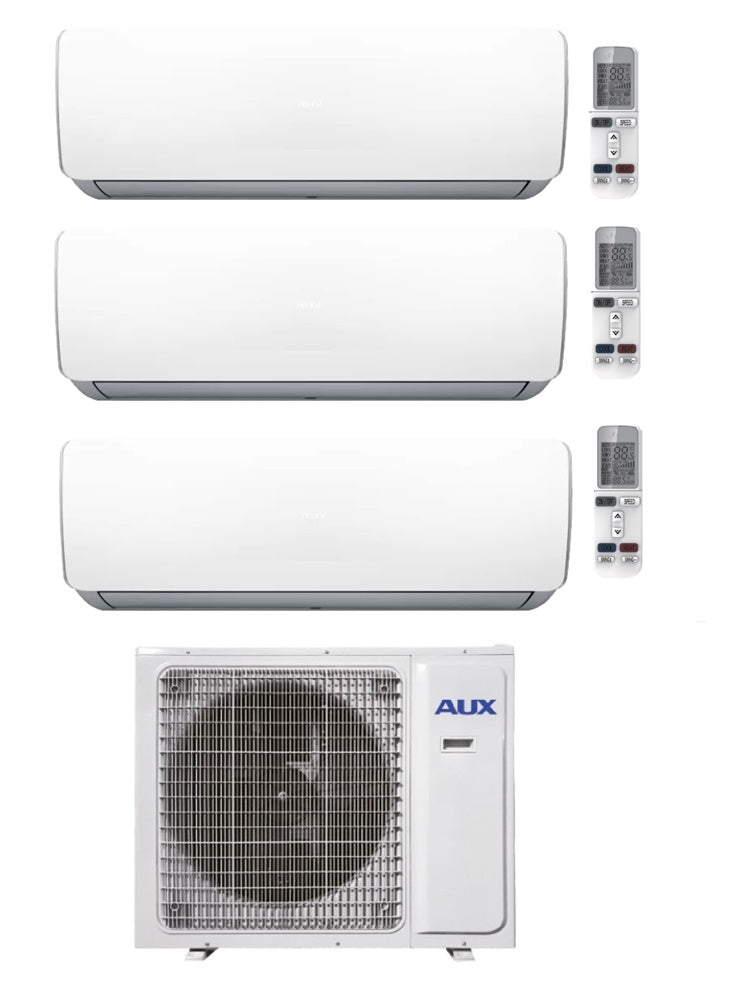

Included in the delivery:

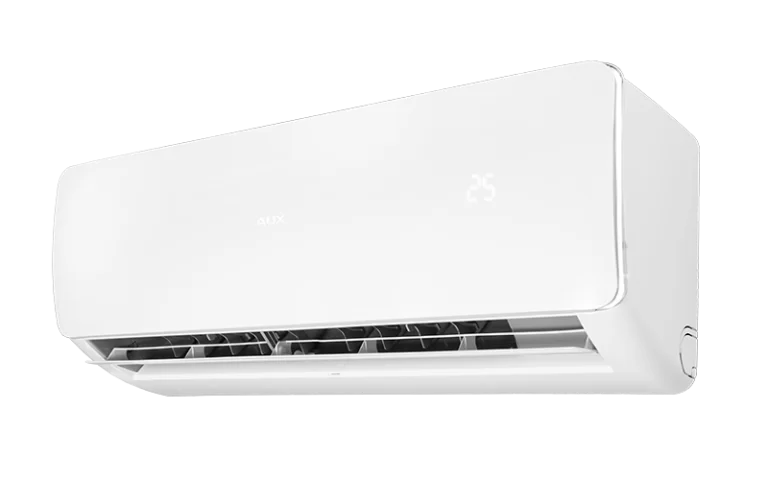

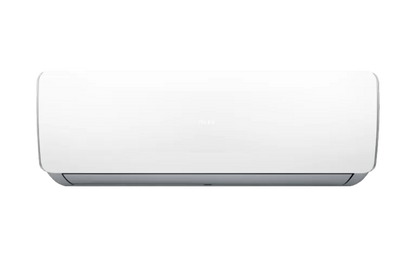

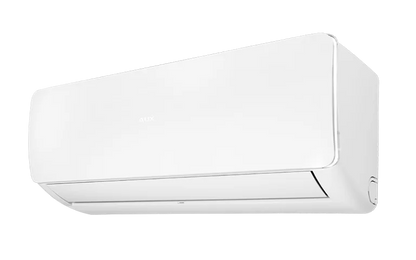

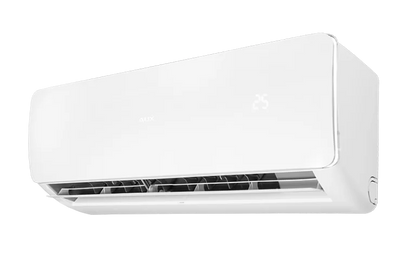

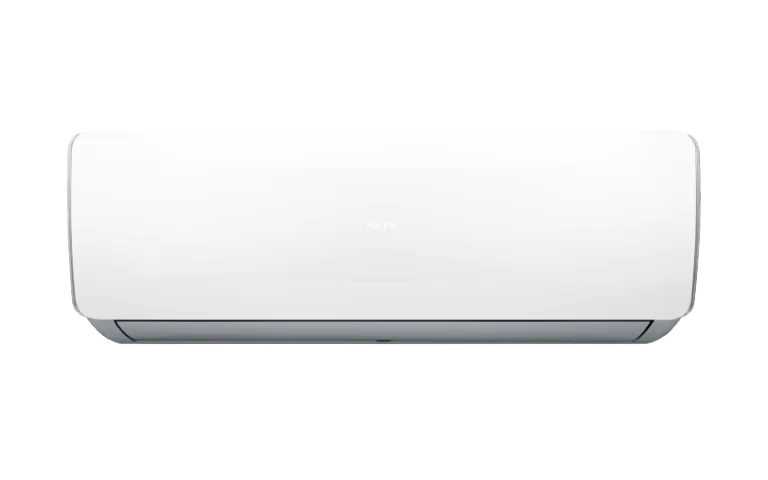

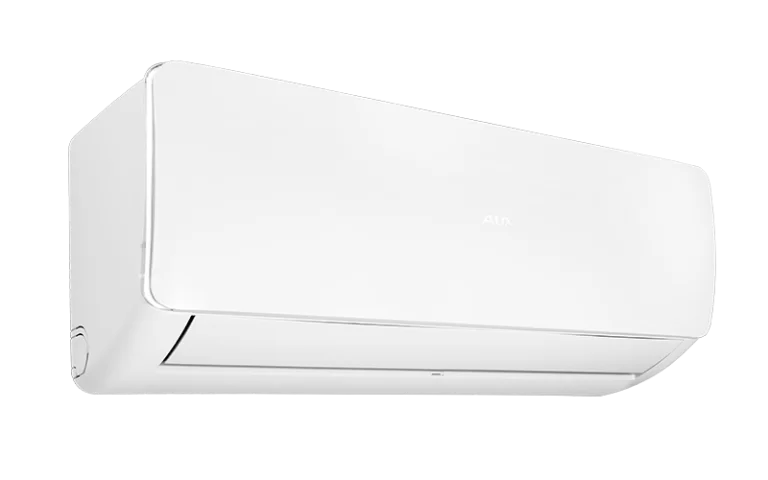

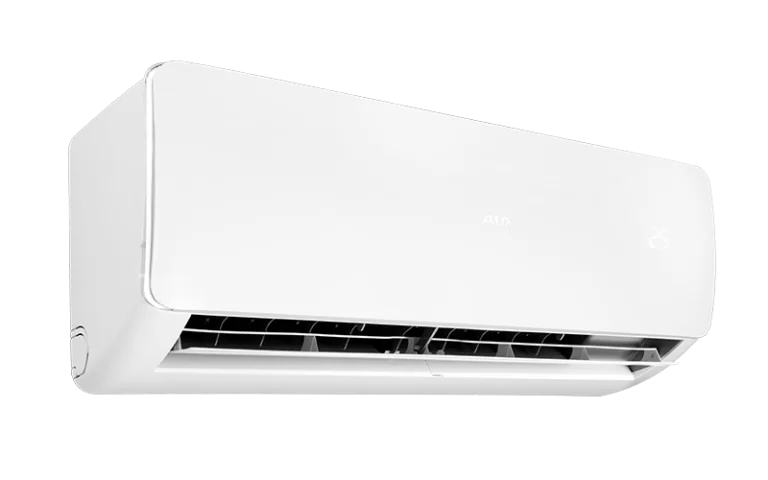

- 3 indoor units Freedom FH series AUX-09FH/I 2.64 kW
- 1 outdoor unit AUX-M3-27LCLH 7.9 kW
- 3 remote controls
The Freedom series comprises economical units with modern design and optimized operating parameters.
The Freedom units surprise with a variety of features – including self-cleaning function, turbo mode, timer, intelligent temperature measurement “I FEEL”, ionizer and Wi-Fi control.
Features:
- Cold Plasma Ionizer
- Washable air filter
- PM2.5 filter
- Antibacterial filter
- Additional air filters
- Protective function against mold
- Inverter technology
- Intelligent defrosting
- Slats made of hydrophilic aluminum
- Super EMC
- Automatic restart
- Self-diagnostic function
- 24-hour timer
- LED display
- Two-sided condensate drain
- Integrated Wi-Fi module
- Wireless controller
- 4D airflow
- Vertical and horizontal air blind movement
- Anti-cold air function
- Night mode
- I FEEL function
- Turbo function
- Automatic mode
- Cooling mode
- Heating mode
- Dehumidification mode
- Fan mode
- Refrigerant R32
- Standby mode 0.3W
Specifications:
| Cooling capacity of indoor unit | [kW] | 2.64 (1.40 - 3.30) |
| Cooling capacity of outdoor unit | [kW] | 7.90 (2.30 - 8.69) |
| Heating output of indoor unit | [kW] | 2.93 (1.20 - 3.00) |
| Heating output of outdoor unit | [kW] | 8.20 (2.45 - 9.02) |
| power supply | [V~,Hz,Ph] | 220-240, 50, 1 |
| Maximum power consumption of outdoor unit | [A] | 16.5 |
| Maximum power consumption of outdoor unit | [W] | 3.8 |
| SEER / SCOP | - | 6.19 / 4.08 |
| EER / COP | - | 3.23 / 3.71 |
| Energy efficiency class cooling / heating | - | A++ / A+ |
| Sound pressure level indoor unit | [dB(A)] | 32/29/26/22/20 41/37/33/29/22 |
| Sound pressure level of outdoor unit: | [dB(A)] | 57 / 67 |
| Indoor unit dimensions | [mm] | 750 x 285 x 200 |
| Dimensions of outdoor unit (W x D x H) | [mm] | 900 x 350 x 700 |
| Weight of indoor unit | [kg] | 7.5 |
| Weight of outdoor unit (net) | [kg] | 44.5 |
| Refrigerant type: | - | R32 (GWP=675) |
| Factory filling (up to 7.5 m) | [G] | 1.45 |
| Additional filling | [g/m] | 25 |
| Operation of the outdoor unit (outdoor temperature) Cooling / Heating | [°C] | -15~52 / -22~24 |
| Pipe connections (diameter) liquid + gas | [mm (inches)] | 3 x 6.35 (1/4) + 3 x 9.52 (3/8) |
*Important NOTE
Dear Customer, please be aware that by purchasing this product, the buyer/user confirms compliance with Regulation (EU) No 517/2014 of the European Parliament and of the Council of 16 April 2014 on fluorinated greenhouse gases and Regulation (EU) No 573/2024 of the European Parliament and of the Council of March 2024 on fluorinated greenhouse gases, which stipulates that: the person acquiring the split air conditioner/user confirms that it will be professionally installed by certified professionals.
