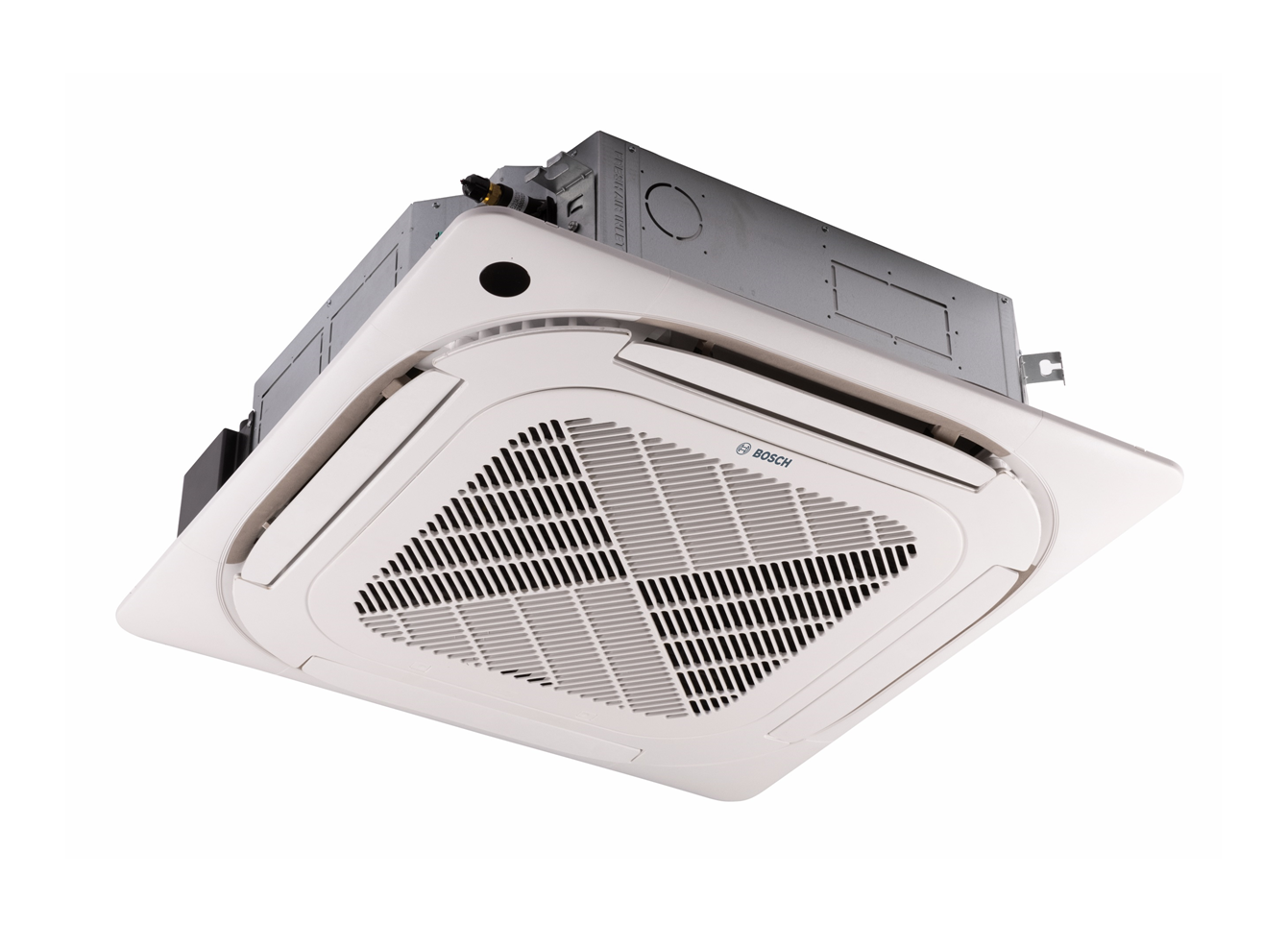

Bosch CL5000iL-Set 70 4CE ceiling cassette 7.0 kW optional with Wi-Fi
Bosch CL5000iL-Set 70 4CE ceiling cassette 7.0 kW optional with Wi-Fi
Bosch CL5000iL-Set 70 4CE 4-way ceiling cassette with 7.0 kW cooling and 7.6 kW heating capacity, suitable for rooms of approximately 54 to 70 m²*. Energy efficiency class A++ for cooling and A+ for heating, on a scale from A+++ to D. CL5000i P 4C panel (950 x 950 mm) and RG 10 N2 remote control included, built-in condensate pump, optional Wi-Fi module.
incl. VAT + Shipping Costs
Crowd
Couldn't load pickup availability
- Brand-name units from a specialist retailerOriginal products from leading manufacturers
- Personal adviceBy phone, email or WhatsApp
- Installation on requestBy specialist installers in your region
- Secure paymentPayPal with Buyer Protection, credit card and more
Description
Description
The Bosch CL5000iL-Set 70 4CE cools with 7.0 kW and heats with 7.6 kW nominal capacity; the CL5000iU 4C 70 E indoor unit is installed as a 4-way cassette in the ceiling, with the CL5000i P 4C grille remaining visible, while the CL5000L 70 E outdoor unit operates outside. SEER 6.2 and SCOP 4.0, energy efficiency class according to the page A++ for cooling and A+ for heating on the scale from A+++ to D. According to the page, a condensate pump with a 1 m lift height is built in; the Wi-Fi control is optional and can be ordered on this page as the "with WiFi" variant (Wi-Fi module G 10 CL-1). The power class is suitable as a guide for rooms of approximately 54 to 70 m²*.
Performance and range of application
Nominal capacity of 7.0 kW for cooling and 7.6 kW for heating, with power consumption of 2,320 (780 to 2,748) W and 1,900 (610 to 2,700) W according to the table, connection to 220 to 240 V, 50 Hz, single-phase. According to the table, it cools between minus 15 and plus 50 °C and heats between minus 15 and plus 24 °C outdoor temperature; the page does not state the operating ranges for the power output. The table states the maximum power consumption of the outdoor unit as 3,700 W.
The stated area of approximately 54 to 70 m²* is a guideline for standard room height and normal insulation standards, not a binding design. Whether the power class is suitable for your room depends on the room height, insulation standards, window areas, shading, and the number of people and devices. We will check the appropriate design for your property upon request.
* Guideline based on the cooling capacity specified by the manufacturer, at a standard room height of approximately 2.5 m, normal insulation standards, and average solar radiation. Different conditions on site, such as large window areas, sloped roofs, or a high number of people, may require a different power class. The binding design is carried out on a property-specific basis. For a professional design of your property, please contact us.
The most important advantages at a glance
- 7.0 kW cooling and 7.6 kW heating capacity, power consumption according to the table 2,320 (780 to 2,748) W for cooling.
- Energy efficiency class A++ for cooling and A+ for heating according to the page, scale A+++ to D, with SEER 6.2 and SCOP 4.0.
- Built-in condensate pump, lift height according to the page 1 m.
- Max. pipe length 50 m, height difference 25 m according to the table.
- 4-way air outlet with 950 x 950 mm grille included, indoor unit 205 mm high.
- Remote control RG 10 N2 included; Wi-Fi control optional, Wi-Fi module G 10 CL-1 available as the "with WiFi" variant.
Detailed functions
Inverter and heat pump operation
Heating is based on the air-to-air heat pump principle, according to the table down to minus 15 °C outdoor temperature. The inverter control operates with a power consumption of 780 to 2,748 W for cooling according to the table. According to the page, the device automatically diagnoses installation errors, and the ECO mode and Gear with three power levels (50, 75, 100%) limit the power according to the page. Seasonal values according to the table: SEER 6.2, SCOP 4.0.
Airflow and filters
The cassette blows out on four sides (360-degree coverage according to the page), the visible CL5000i P 4C grille measures 950 x 950 x 55 mm; according to the page, the louvers move vertically automatically, and the louver position is saved according to the page. Air filter available according to the page, iClean cleans the heat exchanger automatically according to the page; Wind Avoid Me prevents direct airflow according to the page. The page does not provide information on filter efficiency; in TWIN operation, iClean, Wind Avoid Me, ECO, and Gear are not available according to the page.
Operating modes
Control and comfort
- Wireless remote control RG 10 N2 included; wired control with weekly program optional according to the page
- 24-hour timer according to the page
- Wi-Fi control optional: Wi-Fi module G 10 CL-1 according to the page, available on this page as the "with WiFi" variant
- Built-in potential-free contact (dry contact) according to the page
Operational safety
- Operating range according to the table: minus 15 to plus 50 °C for cooling, minus 15 to plus 24 °C for heating
- Built-in condensate pump, lift height 1 m according to the page
- Automatic diagnosis of installation errors according to the page
Scope of delivery
Included in the standard scope (Set CL5000iL-Set 70 4CE):
- 1x Bosch CL5000iU 4C 70 E indoor unit
- 1x Bosch CL5000i P 4C grille
- 1x Bosch CL5000L 70 E outdoor unit
- 1x RG 10 N2 remote control
The Wi-Fi module G 10 CL-1 is optional according to the page and not included in the standard scope; you can add it on this page as the "with WiFi" variant.
What else you need
- Refrigerant lines 9.52 mm (3/8 inch) + 15.9 mm (5/8 inch); maximum length according to the table 50 m, height difference 25 m
- Condensate line and mounting material for installation in a suspended ceiling
- Wall bracket or floor console for the outdoor unit (43.9 kg)
- Electrical supply line and circuit breaker
- Installation and commissioning by a professional company
Technical data
| Set | CL5000iL-Set 70 4CE |
| Indoor unit | Bosch CL5000iU 4C 70 E |
| Outdoor unit | Bosch CL5000L 70 E |
| Nominal cooling capacity | 7.0 kW |
| Nominal heating capacity | 7.6 kW |
| Nominal power consumption for cooling / heating (min. to max.) | 2,320 (780 to 2,748) W / 1,900 (610 to 2,700) W |
| Energy efficiency class for cooling / heating | A++ / A+ according to the page, scale A+++ to D |
| SEER / SCOP according to the table | 6.2 / 4.0 |
| Power supply | 220 to 240 V, 50 Hz, single-phase |
| Max. power consumption of the outdoor unit | 3,700 W |
| Sound pressure level of the indoor unit (max. / medium / min. / Silent) | 50 / 47.5 / 42 / 38 dB(A) |
| Sound pressure level of the outdoor unit | 60 dB(A) |
| Grille | Bosch CL5000i P 4C, 950 x 950 x 55 mm, 6 kg |
| Dimensions of the indoor unit (W x D x H), net weight | 830 x 830 x 205 mm, 21.6 kg |
| Dimensions of the outdoor unit (W x D x H), net weight | 890 x 342 x 673 mm, 43.9 kg |
| Pipe connections for liquid + gas | 9.52 mm (3/8 inch) + 15.9 mm (5/8 inch) |
| Max. pipe length / height difference | 50 m / 25 m |
| Outdoor temperature operating range for cooling / heating | minus 15 to plus 50 °C / minus 15 to plus 24 °C |
| Condensate pump | built-in, lift height 1 m according to the page |
| Air outlet | 4 sides, 360-degree coverage according to the page |
| Filter according to the page | Air filter, iClean self-cleaning |
| Remote control | Remote control RG 10 N2 included |
| Wi-Fi | optional: Wi-Fi module G 10 CL-1, "with WiFi" variant |
| Manufacturer according to the page | Robert Bosch GmbH |
Frequently Asked Questions
What cooling and heating capacity does the Bosch CL5000iL-Set 70 4CE have with 7.0 kW?
According to the table, 7.0 kW for cooling and 7.6 kW for heating (nominal values); the page does not state the operating ranges for the power output, but does state the power consumption of 2,320 (780 to 2,748) W for cooling. SEER 6.2 and SCOP 4.0 according to the table, energy efficiency class according to the page A++ for cooling and A+ for heating on the scale from A+++ to D. We will check which power class is suitable for your room upon request.
What are the dimensions of the cassette and grille?
Cassette 830 x 830 x 205 mm at 21.6 kg and grille CL5000i P 4C 950 x 950 x 55 mm at 6 kg according to the table; the page does not state the ceiling cutout and minimum height of the suspended ceiling, we will provide them upon request. Outdoor unit CL5000L 70 E: 890 x 342 x 673 mm, 43.9 kg.
What exactly is included in the scope of delivery?
The delivery exclusively includes the CL5000iU 4C 70 E indoor unit, the CL5000i P 4C grille, the CL5000L 70 E outdoor unit, and an RG 10 N2 remote control (Set CL5000iL-Set 70 4CE). Also not included: refrigerant lines, condensate line, bracket, and mounting material; there is no mounting set as a variant, but there is the "with WiFi" variant with the Wi-Fi module G 10 CL-1. We will provide suitable accessories upon request.
Does the device have Wi-Fi and a condensate pump?
Condensate pump built-in according to the page (1 m lift height). A Wi-Fi module is not part of the basic unit; according to the page, the device can be controlled via app with the Wi-Fi module G 10 CL-1, available on this page as the "with WiFi" variant.
How long can the cable between the indoor and outdoor unit be?
Maximum 50 m length and 25 m height difference according to the table; connected with 9.52 mm (3/8 inch) + 15.9 mm (5/8 inch). We will check what length your installation situation allows and what the professional company must provide for this upon request.
Can I use the device for heating in winter?
Yes. The heating operation is specified according to the table down to minus 15 °C outdoor temperature; the heating capacity is 7.6 kW, energy efficiency class for heating according to the page A+ on the scale from A+++ to D, SCOP 4.0. The colder it is outside, the less heating capacity is available; the system is therefore suitable as a supplement to the existing heating.
How loud is the device?
According to the table, the indoor unit reaches 50 / 47.5 / 42 / 38 dB(A) on four levels up to Silent; the outdoor unit reaches 60 dB(A).
Can I install the air conditioner myself?
The installation and commissioning of a split air conditioner is carried out by a certified professional company. Self-installation is not intended.
