Bosch
Bosch CL5000iL-Set 88 4CE ceiling cassette 8.8 kW optional with Wi-Fi
Bosch CL5000iL-Set 88 4CE ceiling cassette 8.8 kW optional with Wi-Fi
Bosch CL5000iL-Set 88 4CE 4-way ceiling cassette with 8.8 kW cooling and 9.4 kW heating capacity, suitable for rooms of approximately 68 to 88 m²*. Energy efficiency class A++ for cooling and A+ for heating, on a scale from A+++ to D. CL5000i P 4C grille (950 x 950 mm) and RG 10 N2 remote control included, built-in condensate pump, optional Wi-Fi module.
incl. VAT + Shipping Costs
Crowd
Couldn't load pickup availability
- Brand-name units from a specialist retailerOriginal products from leading manufacturers
- Personal adviceBy phone, email or WhatsApp
- Installation on requestBy specialist installers in your region
- Secure paymentPayPal with Buyer Protection, credit card and more
Description
Description

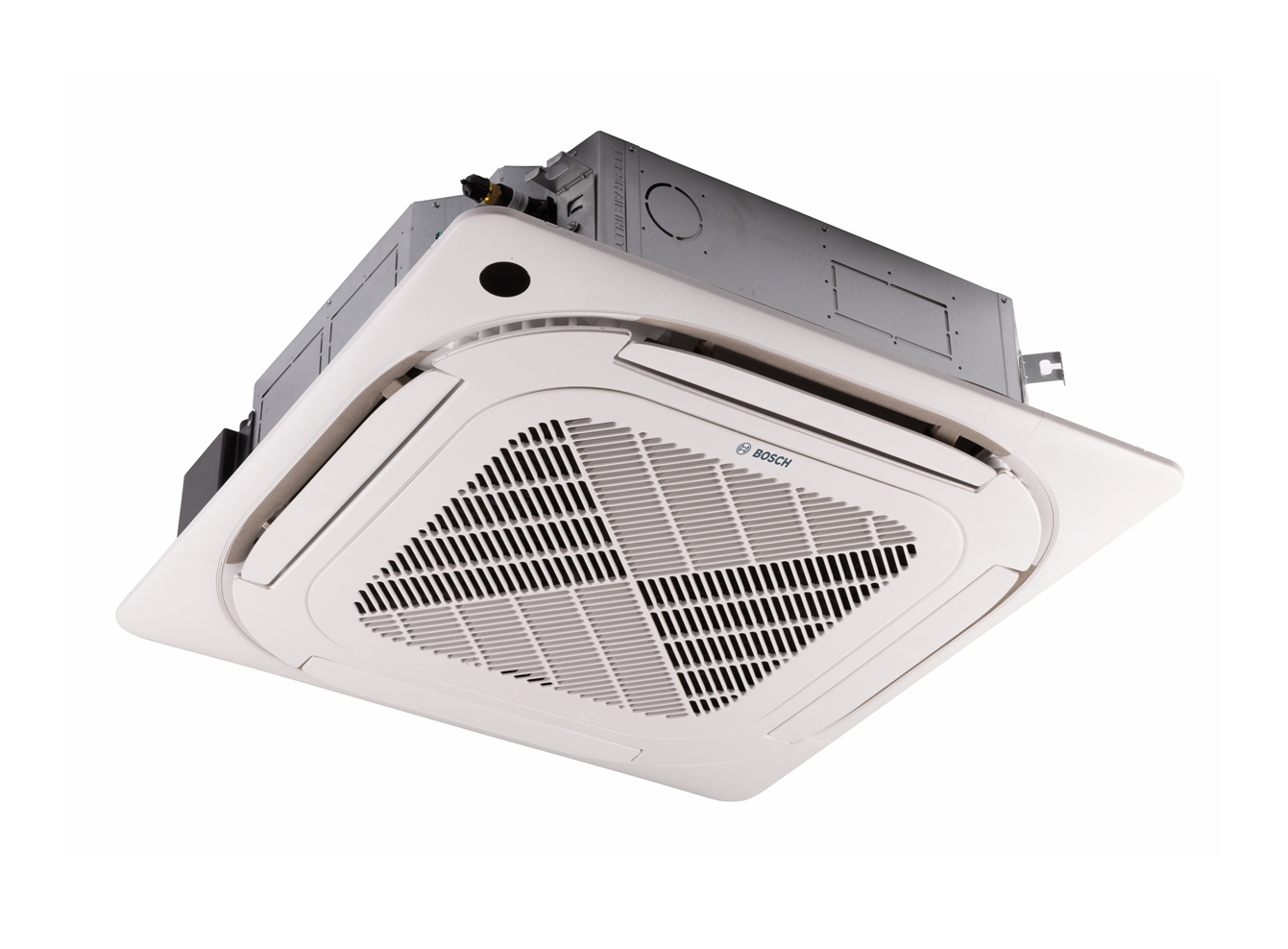

Bosch CL5000iL-Set 88 4CE: 4-way ceiling cassette with 8.8 kW cooling and 9.4 kW heating capacity, indoor unit CL5000iL 4C 88 E with CL5000i P 4C grille and outdoor unit CL5000L 88 E. SEER 6.6 and SCOP 4.2, energy efficiency class according to page A++ for cooling and A+ for heating on the A+++ to D scale. The condensate pump is built-in according to the page (1 m lift height); the G 10 CL-1 WLAN module is optional and can be selected on this page as the "with WiFi" variant. As a guideline, the power class is suitable for rooms of approximately 68 to 88 m²*.
Performance and range of application
The cooling capacity is 8.8 kW, the heating capacity 9.4 kW (nominal values). According to the table, the power consumption is 2,750 (190 to 3,000) W for cooling and 2,450 (430 to 2,550) W for heating, power supply 220 to 240 V, 50 Hz, single-phase. According to the table, the unit operates at outdoor temperatures from minus 15 to plus 50 °C for cooling and from minus 15 to plus 24 °C for heating; the page does not state the operating ranges of the power. The table states the maximum power consumption of the outdoor unit as 4,500 W.
The stated area of approximately 68 to 88 m²* is a guideline for standard room height and normal insulation standards, not a binding design. In shops, offices, and dining areas, internal loads from people, lighting, and equipment are added, which can increase the demand compared to the guideline. We will check the appropriate design for your property upon request.
* Guideline based on the cooling capacity specified by the manufacturer, at a standard room height of approximately 2.5 m, normal insulation standards, and average solar radiation. Different conditions on site, such as large window areas, sloped roofs, or a high number of people, may require a different power class. The binding design is carried out on a property-specific basis. For a professional design of your property, please contact us.
The most important advantages at a glance
- 8.8 kW cooling and 9.4 kW heating capacity, power consumption according to the table 2,750 (190 to 3,000) W for cooling.
- Energy efficiency class A++ for cooling and A+ for heating according to the page, scale A+++ to D, with SEER 6.6 and SCOP 4.2.
- Built-in condensate pump, lift height according to the page 1 m.
- Max. line length 50 m, height difference 25 m according to the table.
- 4-way air outlet with 950 x 950 mm grille included, indoor unit 245 mm high.
- RG 10 N2 remote control included; optional WLAN control, G 10 CL-1 WLAN module available as the "with WiFi" variant.
Detailed functions
Inverter and heat pump operation
The inverter control keeps the power consumption for cooling between 190 and 3,000 W according to the table; as an air-to-air heat pump, the unit heats according to the table down to minus 15 °C outdoor temperature. According to the page, the unit automatically diagnoses installation errors, and the ECO mode and Gear with three power levels (50, 75, 100%) limit the power according to the page. Seasonal values according to the table: SEER 6.6, SCOP 4.2.
Airflow and filter
The air is drawn in through the CL5000i P 4C grille (950 x 950 x 55 mm) and blown out in four directions, according to the page with 360-degree coverage; according to the page, the vertical air direction changes automatically, and the louver position can be saved according to the page. According to the page, an air filter is located in the indoor unit, and the iClean self-cleaning dries the heat exchanger according to the page; Wind Avoid Me avoids direct airflow on people according to the page. The page does not provide information on filter efficiency; in TWIN operation, iClean, Wind Avoid Me, ECO, and Gear are omitted according to the page.
Operating modes
- Cooling: 8.8 kW nominal
- Heating: 9.4 kW nominal, down to minus 15 °C according to the table
- Turbo for fast cooling or heating and Silent Mode according to the page
- Follow Me: temperature measurement at the remote control according to the page
- ECO mode and Gear (50, 75, 100% power) according to the page
- Compatible with Mono and Multi systems according to the page; TWIN operation with 7.0 or 8.8 kW, then without iClean, Wind Avoid Me, ECO, and Gear
Control and comfort
- RG 10 N2 wireless remote control included; wired control with weekly program optional according to the page
- 24-hour timer according to the page
- Optional WLAN control: G 10 CL-1 WLAN module according to the page, available on this page as the "with WiFi" variant
- Built-in potential-free contact (Dry contact) according to the page
Operational safety
- Operating range according to the table: minus 15 to plus 50 °C cooling, minus 15 to plus 24 °C heating
- Built-in condensate pump, lift height 1 m according to the page
- Automatic diagnosis of installation errors according to the page
Scope of delivery
Included in the standard scope (Set CL5000iL-Set 88 4CE):
- 1x Bosch CL5000iL 4C 88 E indoor unit
- 1x Bosch CL5000i P 4C grille

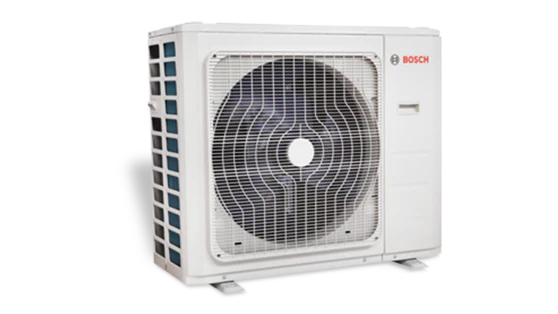

- 1x Bosch CL5000L 88 E outdoor unit
- 1x RG 10 N2 remote control

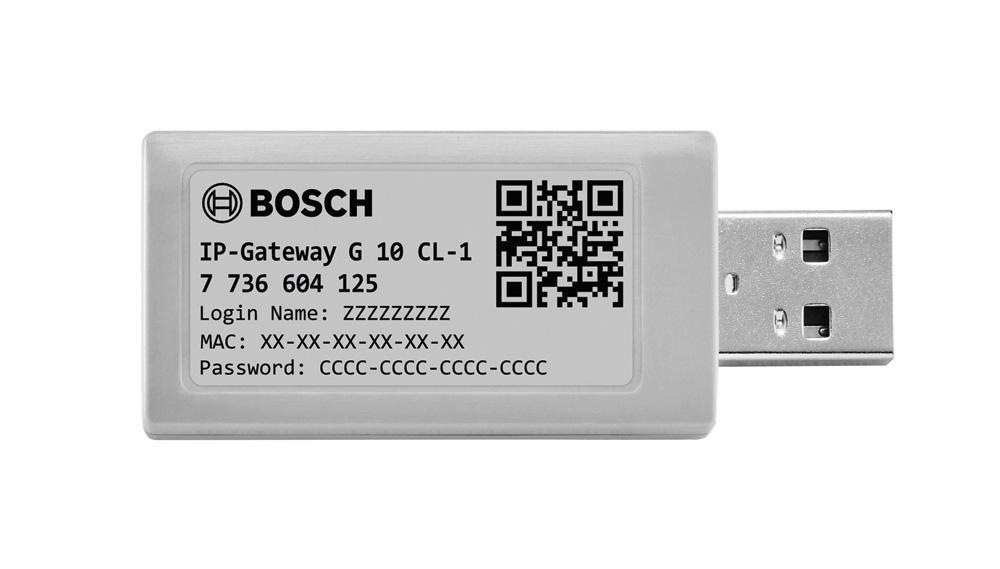

The G 10 CL-1 WLAN module is optional according to the page and not included in the standard scope; you add it on this page as the "with WiFi" variant.
What else you need
- Refrigerant lines 9.52 mm (3/8 inch) + 15.9 mm (5/8 inch); maximum length according to the table 50 m, height difference 25 m
- Condensate line and mounting material for installation in the suspended ceiling
- Wall bracket or floor console for the outdoor unit (52.8 kg)
- Electrical supply line and circuit breaker
- Installation and commissioning by a specialist company
Technical data
| Set | CL5000iL-Set 88 4CE |
| Indoor unit | Bosch CL5000iL 4C 88 E |
| Outdoor unit | Bosch CL5000L 88 E |
| Nominal cooling capacity | 8.8 kW |
| Nominal heating capacity | 9.4 kW |
| Nominal power consumption cooling / heating (min. to max.) | 2,750 (190 to 3,000) W / 2,450 (430 to 2,550) W |
| Energy efficiency class cooling / heating | A++ / A+ according to the page, scale A+++ to D |
| SEER / SCOP according to the table | 6.6 / 4.2 |
| Power supply | 220 to 240 V, 50 Hz, single-phase |
| Max. power consumption outdoor unit | 4,500 W |
| Sound pressure level indoor unit (max. / medium / min. / Silent) | 50.5 / 48 / 46 / 40 dB(A) |
| Sound pressure level outdoor unit | 62 dB(A) |
| Grille | Bosch CL5000i P 4C, 950 x 950 x 55 mm, 6 kg |
| Dimensions indoor unit (W x D x H), net weight | 830 x 830 x 245 mm, 24.6 kg |
| Dimensions outdoor unit (W x D x H), net weight | 946 x 410 x 810 mm, 52.8 kg |
| Pipe connections liquid + gas | 9.52 mm (3/8 inch) + 15.9 mm (5/8 inch) |
| Max. line length / height difference | 50 m / 25 m |
| Operating range outdoor temperature cooling / heating | minus 15 to plus 50 °C / minus 15 to plus 24 °C |
| Condensate pump | built-in, lift height 1 m according to the page |
| Air outlet | 4 sides, 360-degree coverage according to the page |
| Filter according to the page | Air filter, iClean self-cleaning |
| Remote control | RG 10 N2 remote control included |
| WLAN | optional: G 10 CL-1 WLAN module, "with WiFi" variant |
| Manufacturer according to the page | Robert Bosch GmbH |
Frequently Asked Questions
What cooling and heating capacity does the Bosch CL5000iL-Set 88 4CE with 8.8 kW have?
According to the table, 8.8 kW for cooling and 9.4 kW for heating (nominal values); the page does not state the operating ranges of the power, but the power consumption of 2,750 (190 to 3,000) W for cooling. SEER 6.6 and SCOP 4.2 according to the table, energy efficiency class according to the page A++ for cooling and A+ for heating on the A+++ to D scale. We will check which power class is suitable for your room upon request.
What are the dimensions of the cassette and grille?
According to the table, the indoor unit measures 830 x 830 x 245 mm (width x depth x height) and weighs 24.6 kg; it disappears in the suspended ceiling, the CL5000i P 4C grille with 950 x 950 x 55 mm and 6 kg remains visible. The page does not state the required ceiling cutout and the minimum height of the false ceiling, upon request; the CL5000L 88 E outdoor unit measures 946 x 410 x 810 mm and weighs 52.8 kg.
What exactly is included in the scope of delivery?
The delivery includes exclusively the CL5000iL 4C 88 E indoor unit, the CL5000i P 4C grille, the CL5000L 88 E outdoor unit, and an RG 10 N2 remote control (Set CL5000iL-Set 88 4CE). Lines, condensate line, bracket, and mounting material must be ordered separately; a mounting set is not available on this page. You add the G 10 CL-1 WLAN module on this page as the "with WiFi" variant. We will provide you with suitable material upon request.
Does the unit have WLAN and a condensate pump?
The condensate pump is built-in according to the page and lifts the condensate 1 m. WLAN is not built-in from the factory: For control via app, select the "with WiFi" variant on this page, which includes the G 10 CL-1 WLAN module.
How long can the line between the indoor and outdoor unit be?
50 m line length and 25 m height difference are the maximum according to the table, pipe connections 9.52 mm (3/8 inch) + 15.9 mm (5/8 inch). We will check if your line route fits and what needs to be provided upon request.
Can I use the unit for heating in winter?
Yes. The heating operation is specified according to the table down to minus 15 °C outdoor temperature; the heating capacity is 9.4 kW, energy efficiency class for heating according to the page A+ on the A+++ to D scale, SCOP 4.2. At low outdoor temperatures, the available heating capacity decreases, so the system complements the existing heating and does not replace it.
How loud is the unit?
The table states 50.5 / 48 / 46 / 40 dB(A) for the indoor unit (max., medium, min., Silent); the outdoor unit is 62 dB(A) according to the table.
Can I install the air conditioner myself?
The installation and commissioning of a split air conditioner is carried out by a certified specialist company. Self-installation is not intended.
