The Bosch Climate 7000i heats down to minus 30 °C outdoor temperatures and comes equipped with Wi-Fi from the factory. The set combines the CL7000iU W 35 E indoor unit with the CL7000i 35 E outdoor unit. The indoor unit is available in white, silver, and black. With a SEER of 9.7 and SCOP of 5.1, the system achieves energy efficiency class A+++ for cooling and heating on the A+++ to D scale. As a guideline, the power class is suitable for rooms of approximately 26 to 34 m²^*.

Performance and range

The set delivers 3.4 kW cooling and 4.1 kW heating capacity, which corresponds to around 12,000 BTU. Cooling operation is possible from minus 15 to plus 50 °C outdoor temperatures, and heating operation from minus 30 to plus 30 °C. The heating range down to minus 30 °C also makes the system suitable for locations that experience prolonged periods of frost in winter.

The stated area of approximately 26 to 34 m²^* is a guideline for standard room height and normal insulation standards, not a binding design. Which power class is right for your property depends on room height, insulation standards, window areas, shading, as well as the number of people and devices. A system that is too small will run continuously at full load, while one that is too large will cycle and consume electricity unnecessarily. We can check the appropriate design for your property upon request.

* Guideline based on the cooling capacity specified by the manufacturer, with a standard room height of approximately 2.5 m, normal insulation standards, and average sunlight exposure. Different conditions on site, such as large window areas, sloped roofs, or a high number of people, may require a different power class. The binding design is carried out on a property-specific basis. For a professional design of your property, please contact us.

The most important advantages at a glance

• Energy efficiency class A+++ for cooling and heating on the A+++ to D scale, with a SEER of 9.7 and SCOP of 5.1.
• Heating operation down to minus 30 °C outdoor temperatures.
• Wi-Fi built in from the factory: Control via the Bosch HomeCom Easy app, without an additional module.
• Indoor unit in three colors: White, silver, and black.
• 24 dB(A) at the lowest fan speed.
• Ionization technology, BIO filter, HD filter, and cold catalyst filter in the indoor unit.

Detailed functions

Inverter and heat pump operation

The inverter compressor adjusts its speed to the actual demand. At startup, the system runs at high power, then reduces to the required power and maintains the temperature without noticeable fluctuations. In heating mode, the device operates as an air-to-air heat pump and uses the heat from the outdoor air down to minus 30 °C. The three-stage energy management, the Gear function, limits the power consumption as desired.

Air quality and purification

The ionization technology cleans the room air during operation. In addition, there are three filter stages: HD filter, cold catalyst filter, and BIO filter. The iClean self-cleaning freezes the heat exchanger and then quickly thaws it again, which releases adhering dust, mold, and grease. The humidity can be controlled between 35 and 85 percent.

Control and comfort

The Wi-Fi module is built in from the factory. Control is via the Bosch HomeCom Easy app; a separate module or gateway is not required. The system can also be operated via voice assistants.

• 3D mode: the louvers move vertically and horizontally and distribute the air throughout the room
• Presence sensor: concealed and built into the indoor unit, detects whether people are in the room
• Wind-Avoid-me mode: directs the airflow so that it does not hit people directly
• Follow-Me function: the temperature is controlled according to the location of the remote control, not the installation location of the device
• Silent Mode and Turbo mode: reduced noise level at night, fast temperature attainment at startup
• ECO mode and Gear function: power consumption control in three stages

Operational safety

• Operating range from minus 15 to plus 50 °C in cooling mode
• Operating range from minus 30 to plus 30 °C in heating mode

Scope of delivery

Included in the standard scope:

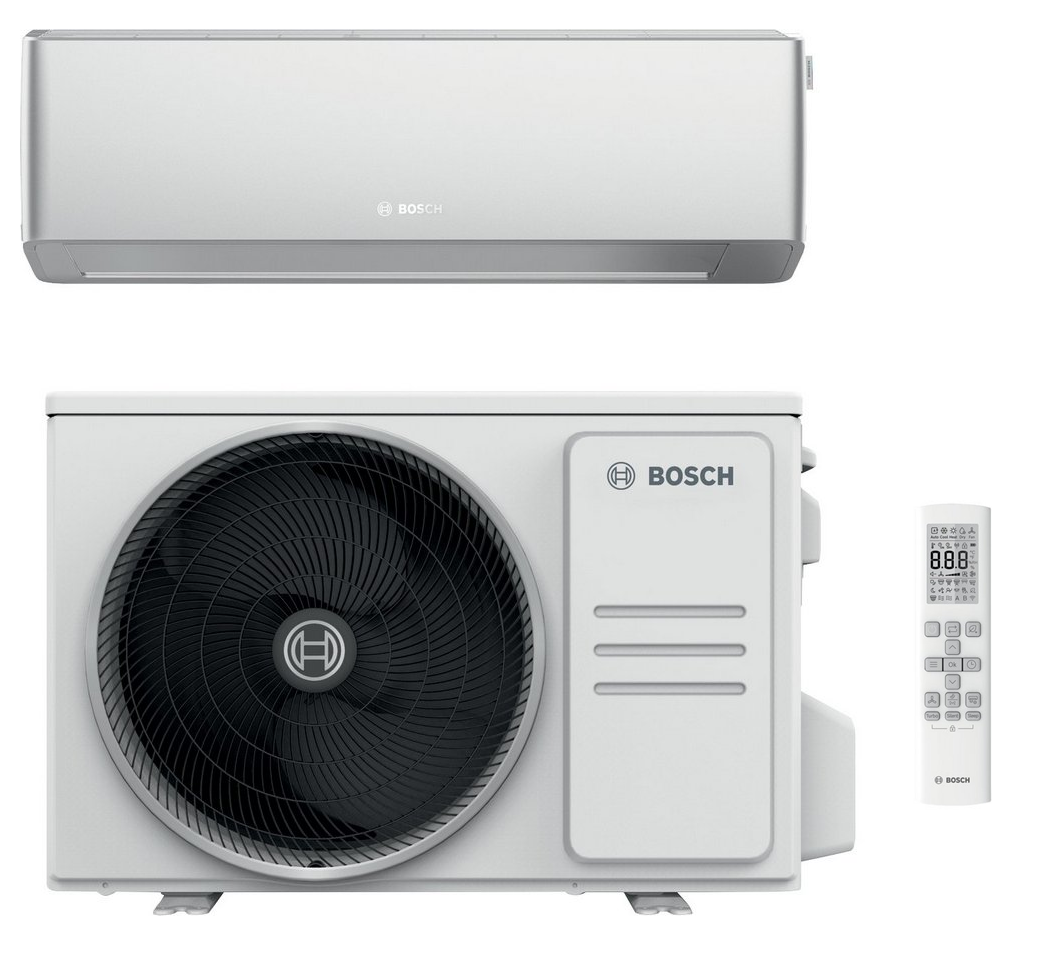

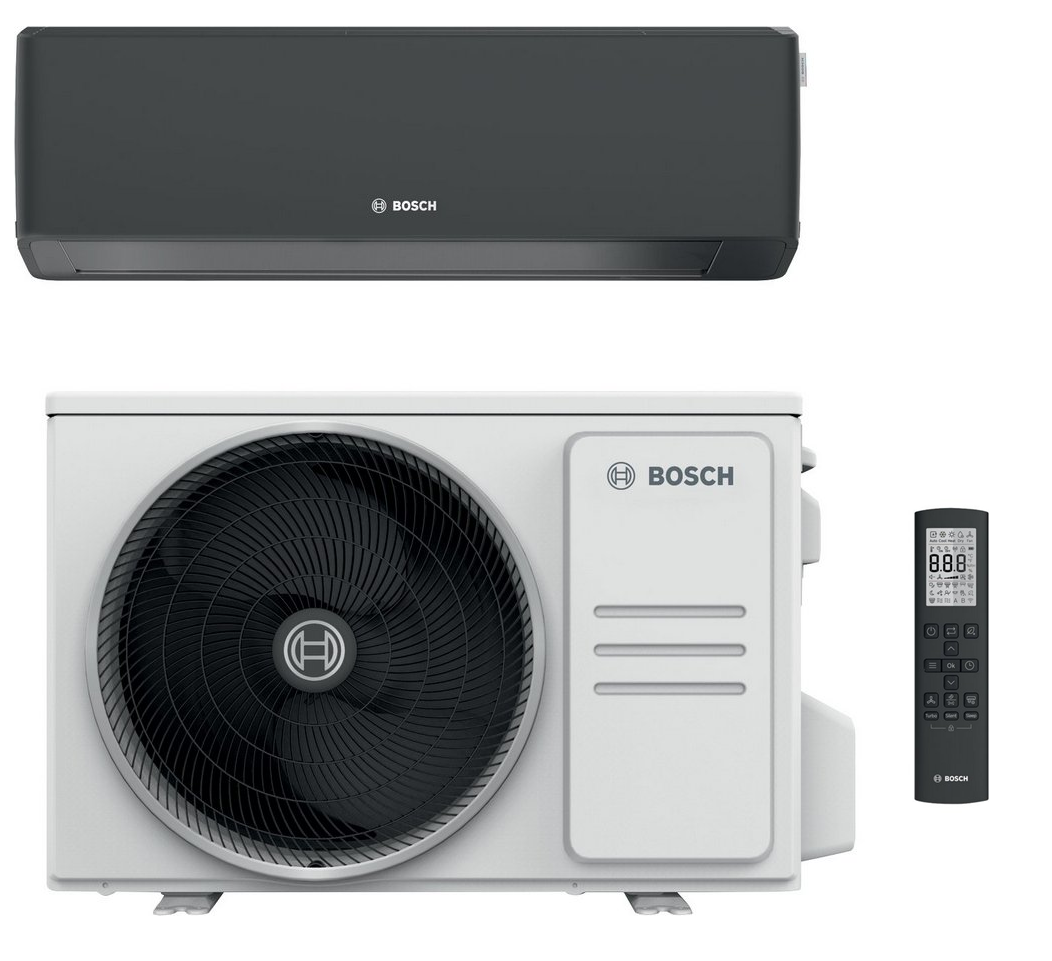

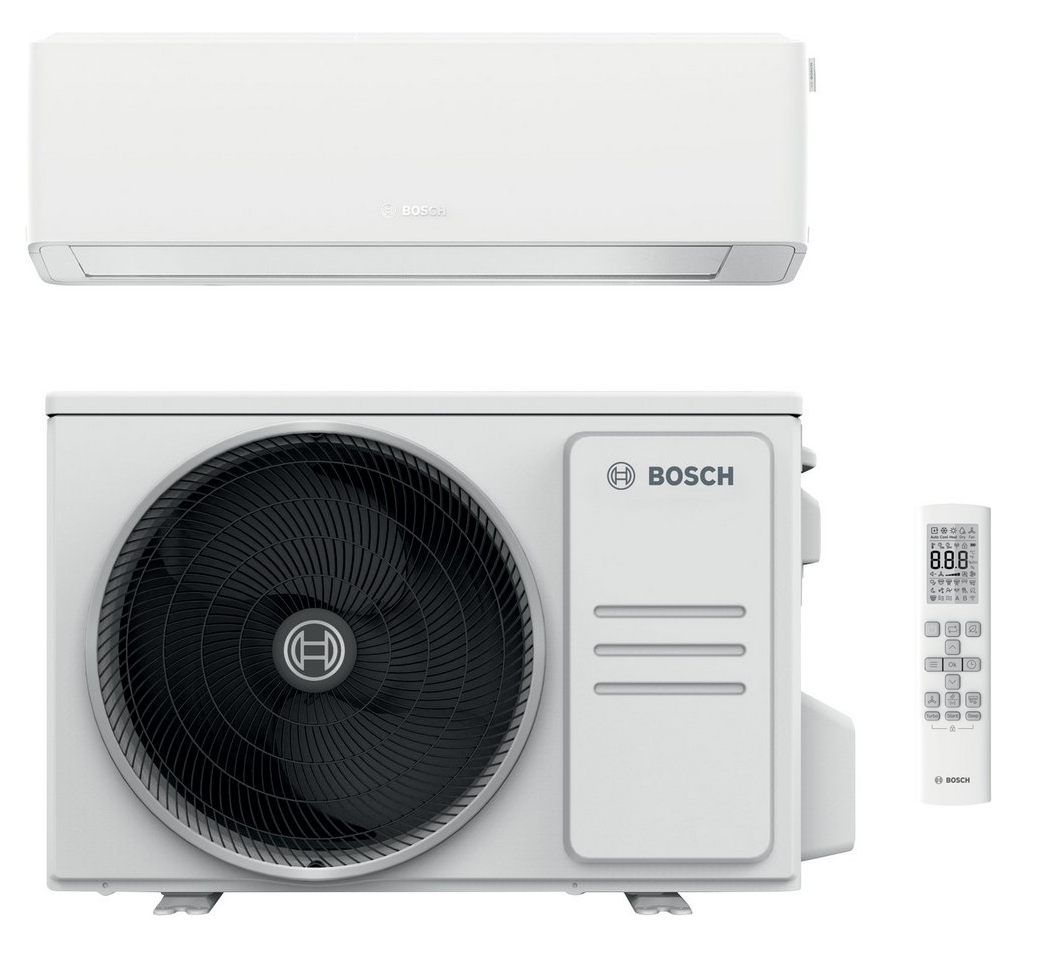

• 1x Bosch Climate 7000i indoor unit, depending on selection CL7000iU W 35 E in white, CL7000iU W 35 ES in silver, or CL7000iU W 35 EB in black
• 1x Bosch CL7000i 35 E outdoor unit
• 1x infrared remote control
• Wi-Fi module, built into the indoor unit from the factory
• Operating instructions

Optional: Bosch CRC R-2 wired remote control

You can order the system with the Bosch CRC R-2 wired remote control. It is mounted permanently on the wall and is suitable for offices, retail spaces, and properties where an infrared remote control could be lost. Without this option, only the infrared remote control is included.

What else you need

• Pipes and mounting material for connecting the indoor and outdoor units
• Condensate pump, depending on the installation situation
• Electrical supply line and circuit protection
• Installation and commissioning by a specialist company

Technical data

Indoor unit	Bosch Climate 7000i CL7000iU W 35 E, ES, or EB
Outdoor unit	Bosch CL7000i 35 E
Cooling capacity	3.4 kW
Heating capacity	4.1 kW
Energy efficiency class Cooling / Heating	A+++ / A+++, scale A+++ to D
SEER / SCOP	9.7 / 5.1
Sound pressure level indoor unit	43 / 38 / 33 / 24 dB(A)
Sound pressure level outdoor unit	56 dB(A)
Pipe connections Liquid + Gas	6.35 mm (1/4") + 9.52 mm (3/8")
Cooling operating range	-15 °C to +50 °C
Heating operating range	-30 °C to +30 °C
Dimensions indoor unit (WxDxH)	907 x 254 x 306 mm, 12.4 kg
Dimensions outdoor unit (WxDxH)	805 x 330 x 554 mm, 31.4 kg
Power supply	220 to 240 V, 50 Hz, 1 phase
App control	Bosch HomeCom Easy, Wi-Fi built in from the factory

Frequently asked questions

What cooling and heating capacity does the system have?

The cooling capacity is 3.4 kW, the heating capacity 4.1 kW. This corresponds to around 12,000 BTU. We can check which power class is right for your room upon request.

In what colors is the indoor unit available?

The indoor unit is available in white as CL7000iU W 35 E, in silver as CL7000iU W 35 ES, and in black as CL7000iU W 35 EB. You choose the color via the variant selection. Technically, the three versions are identical, and the outdoor unit is the CL7000i 35 E in all cases.

What is included in the scope of delivery?

The delivery includes exclusively the indoor unit, outdoor unit, and infrared remote control. The Wi-Fi module is already built into the indoor unit. A mounting set is not part of the selection for this product; you order the pipes and mounting material separately. The CRC R-2 wired remote control is an optional addition via the variant selection.

Do I need an additional Wi-Fi module for app control?

No. The Wi-Fi module is built into the indoor unit from the factory. Control is via the Bosch HomeCom Easy app; a gateway is not required. You only need a Wi-Fi network at the installation site.

What pipe connections does the device have?

The connections have 6.35 mm for the liquid line, i.e., 1/4 inch, and 9.52 mm for the gas line, i.e., 3/8 inch. We can assemble pipes and mounting material in the appropriate sizes upon request.

Can I heat with the device in winter?

Heating operation is possible down to minus 30 °C outdoor temperatures. The available power decreases as the outdoor temperature falls. This allows it to operate at lower temperatures than the 3000i and 3200i series, which heat down to minus 20 °C.

How loud is the device?

Depending on the fan speed, the indoor unit operates at 24, 33, 38, or 43 dB(A). The manufacturer specifies 56 dB(A) for the outdoor unit.

May I install the air conditioner myself?

The installation and commissioning of a split air conditioner are carried out by a certified specialist company. Self-installation is not intended.
