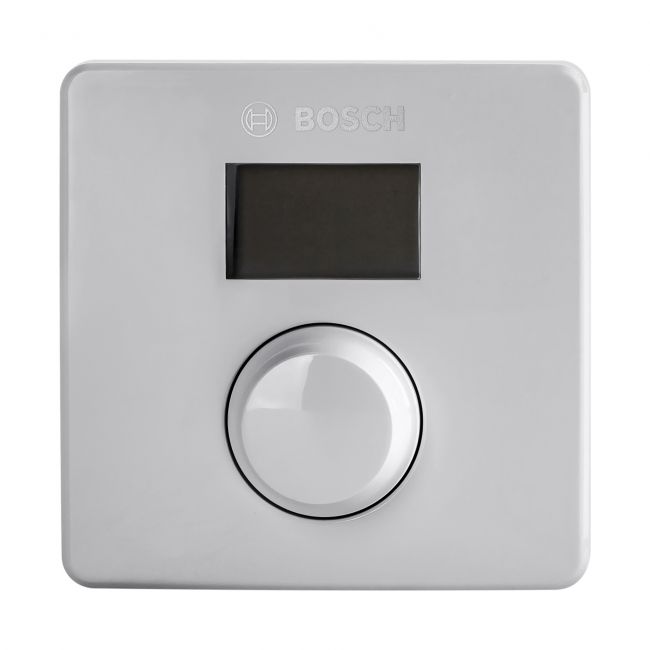

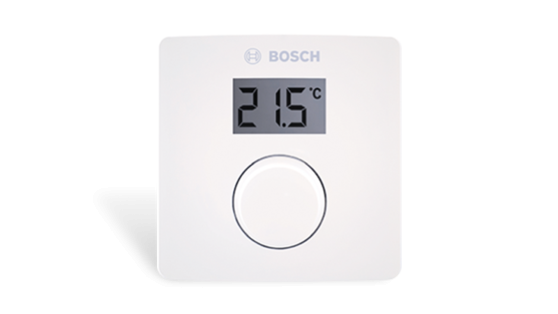

Bosch CR 10 | 7738111105 Remote control room controller for heat pumps

Bosch CR 10 room thermostat without timer programming for wall mounting.

The CR 10 room thermostat is compatible with the Bosch Heatronic® 3, 3.5 and 4 control panels.

The thermostat does not have a timer control.

For a heating circuit without a mixing valve.

The display shows temperature, error codes and service codes.

Suitable for the following boilers: CERACLASS EXCELLENCE, CERAPUR SMART, CERAPUR COMFORT, CERAPUR ACU, CERAPUR MODUL and CERAPUR MODUL SOLAR

Technical data:

Dimensions (W x H x D): 82 x 82 x 23 mm
Nominal voltage: 10 ... 24 V DC
Rated current: 4 mA
Control range: 5 ... 30°C
permissible ambient temperature: 0 ... 60°C
Protection class: III
Protection class: IP20
