Bosch CL5000iL-Set 53 4CCE ceiling cassette 5.3 kW optional with Wi-Fi

Bosch CL5000iL-Set 53 4CCE ceiling cassette 5.3 kW optional with Wi-Fi

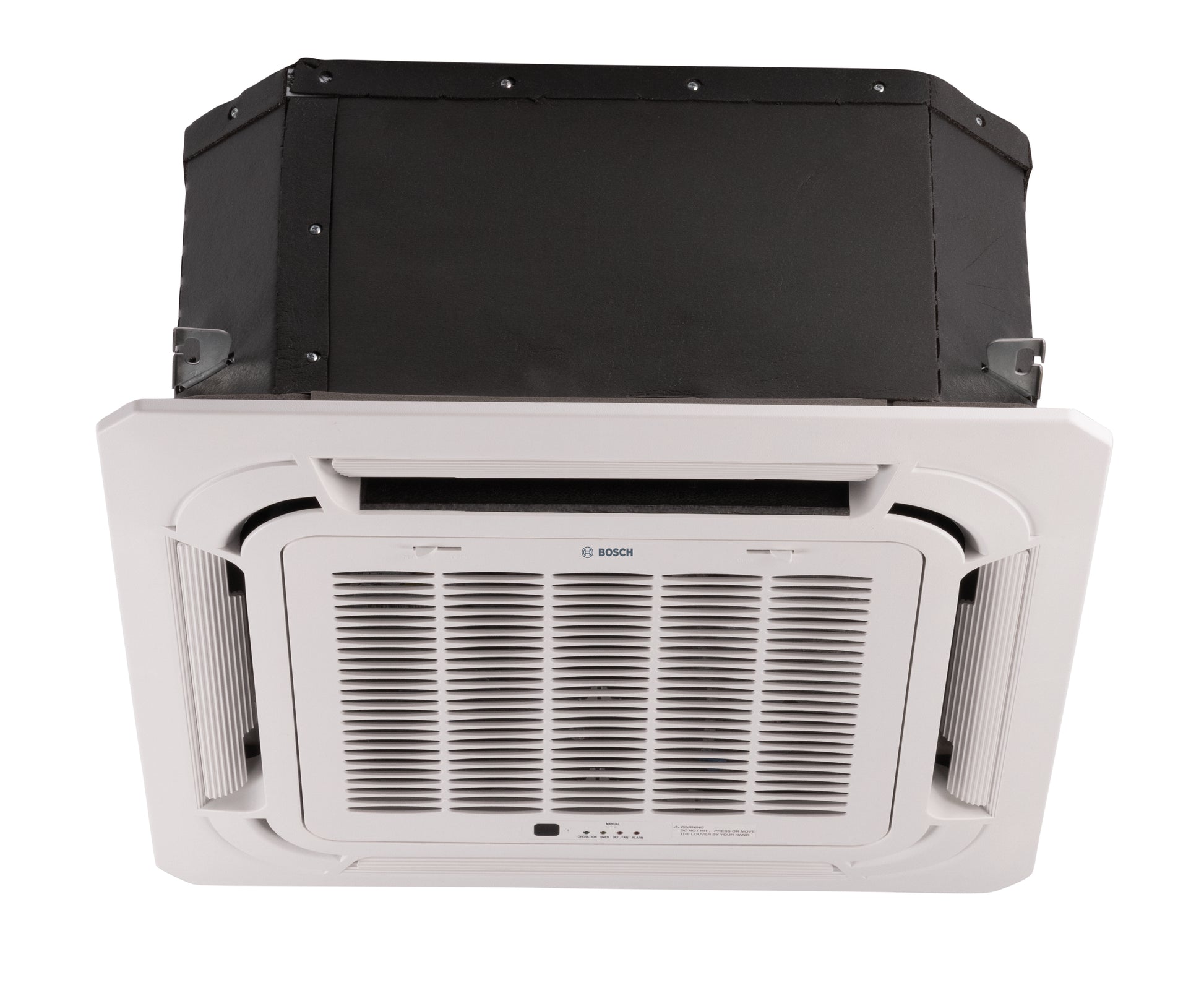

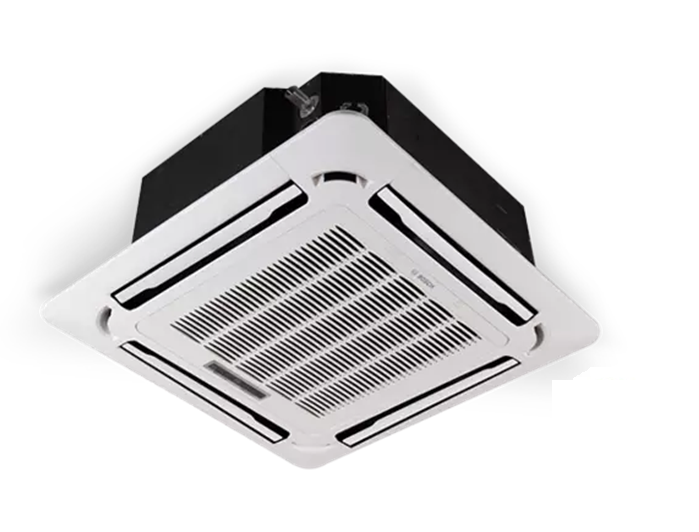

Bosch CL5000iL-Set 53 4CCE 4-way ceiling cassette with 5.3 kW cooling and 5.6 kW heating capacity, suitable for rooms of approximately 41 to 53 m²*. Energy efficiency class A++ for cooling and A+ for heating, on a scale from A+++ to D. CL5000i P 4CC panel (647 x 647 mm) and RG 10A remote control included, built-in condensate pump, optional Wi-Fi module.

Regular price €1.499,00
Regular price Sale price €1.499,00
Sale Sold out

incl. VAT + Shipping Costs

Taxes included. Shipping calculated at checkout.
WiFi G 10 CL-1 with connection module G 10 CLC

Crowd

  • American Express
  • Diners Club
  • Discover
  • Google Pay
  • JCB
  • Mastercard
  • PayPal
  • Visa
  • Brand-name units from a specialist retailerOriginal products from leading manufacturers
  • Personal adviceBy phone, email or WhatsApp
  • Installation on requestBy specialist installers in your region
  • Secure paymentPayPal with Buyer Protection, credit card and more

Description

With a cooling capacity of 5.3 kW and a heating capacity of 5.6 kW (nominal values), the Bosch CL5000iL-Set 53 4CCE operates as a 4-way ceiling cassette in a suspended ceiling; indoor unit CL5000iU 4CC 53 E, grille CL5000i P 4CC, outdoor unit CL5000L 53 E. SEER 6.3 and SCOP 4.0, energy efficiency class according to page A++ in cooling and A+ in heating on the scale from A+++ to D. According to the page, a built-in condensate pump with a lift height of 1 m is included; Wi-Fi is available optionally, on this page as the "with WiFi" variant (Wi-Fi module G 10 CL-1 with connection module G 10 CLC). The power class is suitable as a guide for rooms of approximately 41 to 53 m²*.

Performance and range of application

In cooling mode, the unit delivers 5.3 kW, in heating mode 5.6 kW (nominal values); the table states 1,633 (720 to 2,088) W and 1,540 (700 to 1,930) W power consumption respectively and a power supply of 220 to 240 V, 50 Hz, single-phase. Operating range according to the table: minus 15 to plus 50 °C in cooling, minus 15 to plus 24 °C in heating; the power control ranges are not stated on the page.

The stated area of approximately 41 to 53 m²* is a guideline for standard room height and normal insulation standards, not a binding design. Room height, insulation standards, window areas, shading and the number of people and devices determine which power class is suitable for your property. We will check the appropriate design for your property upon request.

* Guideline based on the cooling capacity specified by the manufacturer, at a standard room height of approximately 2.5 m, normal insulation standards and average solar radiation. Different conditions on site, such as large window areas, sloped roofs or a high number of people, may require a different power class. The binding design is carried out on a property-specific basis. For a professional design of your property, please contact us.

The most important advantages at a glance

  • 5.3 kW cooling and 5.6 kW heating capacity, power consumption according to the table 1,633 (720 to 2,088) W in cooling.
  • Energy efficiency class A++ in cooling and A+ in heating according to the page, scale A+++ to D, with SEER 6.3 and SCOP 4.0.
  • Built-in condensate pump, lift height according to the page 1 m.
  • Max. pipe length 30 m, height difference 20 m according to the table.
  • 4-way air outlet with grille 647 x 647 mm included, indoor unit 260 mm high.
  • Remote control RG 10A included; Wi-Fi control optional, Wi-Fi module G 10 CL-1 with connection module G 10 CLC available as the "with WiFi" variant.

Detailed functions

Inverter and heat pump operation

In heating mode, the unit uses the outdoor air down to minus 15 °C as an air-to-air heat pump according to the table. The inverter regulates the power according to demand; the power consumption ranges between 720 and 2,088 W in cooling according to the table. According to the page, the unit automatically diagnoses installation errors, and the ECO mode and Gear with three power levels (50, 75, 100%) limit the power according to the page. Seasonal values according to the table: SEER 6.3, SCOP 4.0.

Airflow and filters

Four air outlet sides behind the grille CL5000i P 4CC (647 x 647 x 50 mm) with 360-degree supply air according to the page, plus automatic vertical airflow change. According to the page, an air filter and the iClean self-cleaning function are included; the Wind Avoid Me function diverts the airflow away from people according to the page. The page does not provide information on filter efficiency.

Operating modes

  • Cooling: 5.3 kW nominal
  • Heating: 5.6 kW nominal, down to minus 15 °C according to the table
  • Turbo for fast cooling or heating and Silent Mode according to the page
  • Follow Me: temperature measurement at the remote control according to the page
  • ECO mode and Gear (50, 75, 100% power) according to the page
  • Compatible with mono and multi-systems according to the page (new MS generation)

Control and comfort

  • Wireless remote control RG 10A included; wired control with weekly program optional according to the page
  • 24-hour timer according to the page

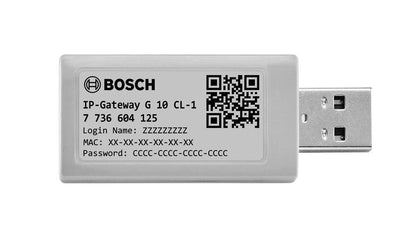

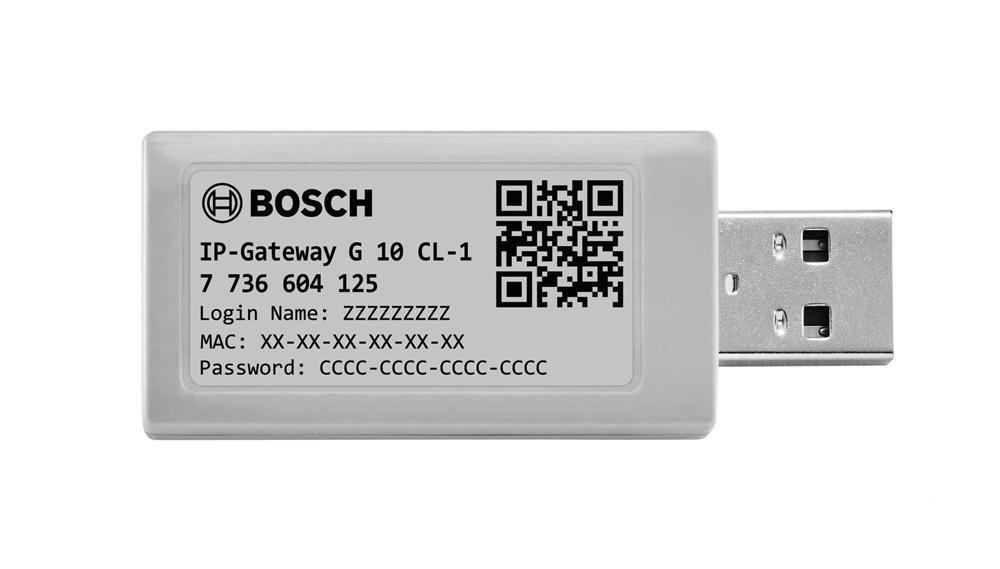

  • Wi-Fi control optional: Wi-Fi module G 10 CL-1 with connection module G 10 CLC according to the page, available on this page as the "with WiFi" variant
  • Built-in potential-free contact (dry contact) according to the page

Operating safety

  • Operating range according to the table: minus 15 to plus 50 °C cooling, minus 15 to plus 24 °C heating
  • Built-in condensate pump, lift height 1 m according to the page
  • Automatic diagnosis of installation errors according to the page

Scope of delivery

Included in the standard scope (Set CL5000iL-Set 53 4CCE):

  • 1x Bosch CL5000iU 4CC 53 E indoor unit
  • 1x Bosch CL5000i P 4CC grille

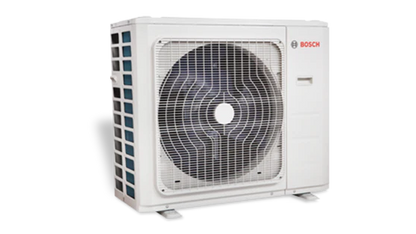

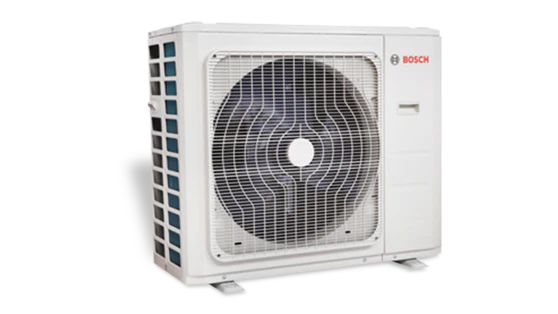

  • 1x Bosch CL5000L 53 E outdoor unit

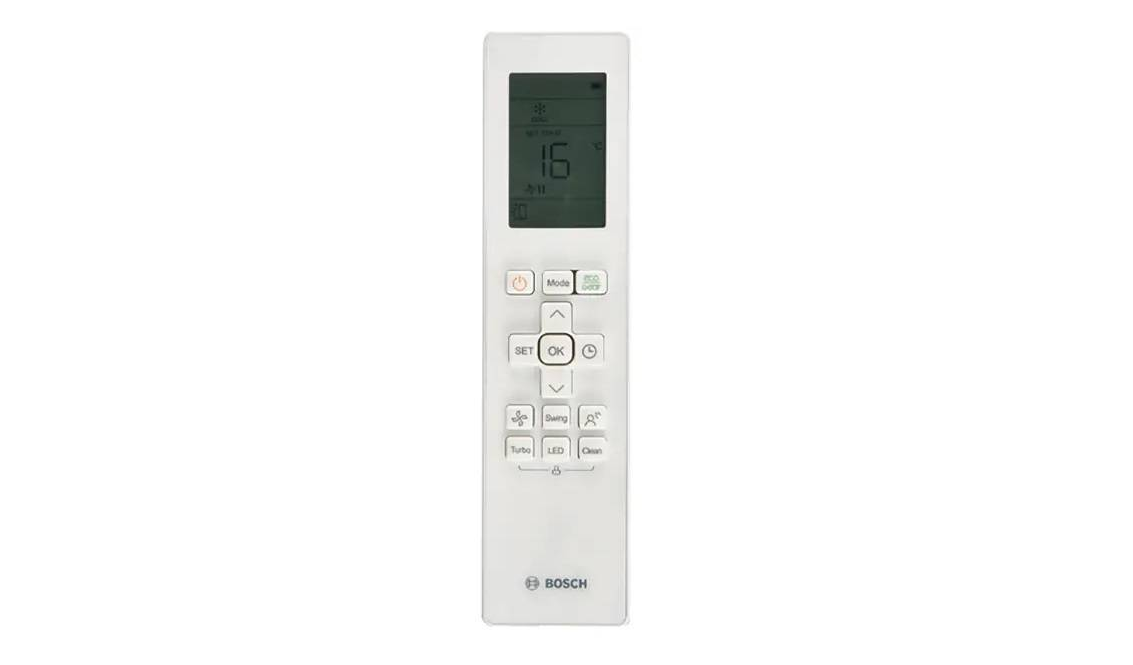

  • 1x RG 10A remote control

The Wi-Fi module G 10 CL-1 with connection module G 10 CLC is optional according to the page and not included in the standard scope; you add it on this page as the "with WiFi" variant.

What else you need

  • Refrigerant lines 6.35 mm (1/4 inch) + 12.7 mm (1/2 inch); maximum length according to the table 30 m, height difference 20 m
  • Condensate line and mounting material for installation in the suspended ceiling
  • Wall bracket or floor console for the outdoor unit (32.5 kg)
  • Electrical supply line and circuit breaker
  • Installation and commissioning by a professional company

Technical data

Set CL5000iL-Set 53 4CCE
Indoor unit Bosch CL5000iU 4CC 53 E
Outdoor unit Bosch CL5000L 53 E
Nominal cooling capacity 5.3 kW
Nominal heating capacity 5.6 kW
Nominal power consumption cooling / heating (min. to max.) 1,633 (720 to 2,088) W / 1,540 (700 to 1,930) W
Energy efficiency class cooling / heating A++ / A+ according to the page, scale A+++ to D
SEER / SCOP according to the table 6.3 / 4.0
Power supply 220 to 240 V, 50 Hz, single-phase
Sound pressure level indoor unit (max. / medium / min. / Silent) 45.4 / 44 / 39 / 31.6 dB(A)
Sound pressure level outdoor unit 56 dB(A)
Grille Bosch CL5000i P 4CC, 647 x 647 x 50 mm, 2.5 kg
Dimensions indoor unit (W x D x H), net weight 570 x 570 x 260 mm, 16 kg
Dimensions outdoor unit (W x D x H), net weight 805 x 330 x 554 mm, 32.5 kg
Pipe connections liquid + gas 6.35 mm (1/4 inch) + 12.7 mm (1/2 inch)
Max. pipe length / height difference 30 m / 20 m
Operating range outdoor temperature cooling / heating minus 15 to plus 50 °C / minus 15 to plus 24 °C
Condensate pump built-in, lift height 1 m according to the page
Air outlet 4 sides, supply air 360 degrees according to the page
Filter according to the page Air filter, iClean self-cleaning
Remote control Remote control RG 10A included
Wi-Fi optional: Wi-Fi module G 10 CL-1 with connection module G 10 CLC, "with WiFi" variant
Manufacturer according to the page Robert Bosch GmbH

Frequently Asked Questions

What cooling and heating capacity does the Bosch CL5000iL-Set 53 4CCE have with 5.3 kW?

According to the table, 5.3 kW in cooling and 5.6 kW in heating (nominal values); the page does not state the power control ranges, but the power consumption of 1,633 (720 to 2,088) W in cooling. SEER 6.3 and SCOP 4.0 according to the table, energy efficiency class according to the page A++ in cooling and A+ in heating on the scale from A+++ to D. We will check which power class is suitable for your room upon request.

What dimensions do the cassette and grille have?

According to the table, 570 x 570 x 260 mm at 16 kg for the cassette and 647 x 647 x 50 mm at 2.5 kg for the grille CL5000i P 4CC. What ceiling cutout and installation height are required is not stated on the page, upon request. For the outdoor unit CL5000L 53 E, 805 x 330 x 554 mm and 32.5 kg are stated on the page.

What exactly is included in the scope of delivery?

The delivery includes exclusively the indoor unit CL5000iU 4CC 53 E, the grille CL5000i P 4CC, the outdoor unit CL5000L 53 E and a remote control RG 10A (Set CL5000iL-Set 53 4CCE). Not included are refrigerant lines, condensate line, wall bracket or console and mounting material; a mounting set is not available on this page. The Wi-Fi module G 10 CL-1 with connection module G 10 CLC is optional and can be selected on this page as the "with WiFi" variant. We will share which material is suitable upon request.

Does the unit have Wi-Fi and a condensate pump?

Yes to the condensate pump: it is built-in from the factory according to the page, lift height 1 m. Wi-Fi is available as a variant: With "with WiFi", you order the Wi-Fi module G 10 CL-1 with connection module G 10 CLC for the app control, with "without WiFi" it remains the basic unit.

How long can the line between the indoor and outdoor unit be?

The table states 30 m maximum pipe length and 20 m height difference; pipe connections 6.35 mm (1/4 inch) + 12.7 mm (1/2 inch). We will clarify the permissible pipe route and the necessary preparation by the professional company for your property upon request.

Can I use the unit to heat in winter?

Yes. The heating mode is stated according to the table down to minus 15 °C outdoor temperature; the heating capacity is 5.6 kW, energy efficiency class in heating according to the page A+ on the scale from A+++ to D, SCOP 4.0. With decreasing outdoor temperature, the available heating capacity decreases; the system is therefore suitable as a supplement to the existing heating system.

How loud is the unit?

Indoor unit according to the table 45.4 / 44 / 39 / 31.6 dB(A) (max. / medium / min. / Silent); for the outdoor unit, 56 dB(A) is stated on the page.

Can I install the air conditioner myself?

The installation and commissioning of a split air conditioner is carried out by a certified professional company. Self-installation is not intended.
