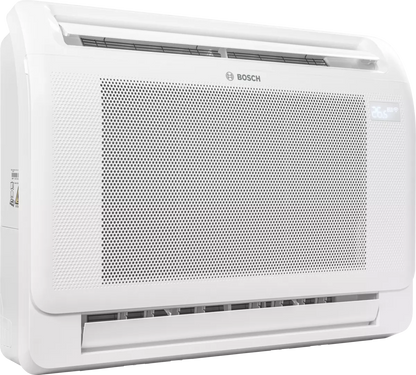

Bosch CL5000iL-Set 35 CN Cabinet Dryer 3.5 kW optional with Wi-Fi

Bosch CL5000iL-Set 35 CN Cabinet Dryer 3.5 kW optional with Wi-Fi

Bosch CL5000iL-Set 35 CN split portable air conditioner with 3.5 kW cooling and 3.8 kW heating capacity, suitable for rooms of approximately 27 to 35 m²*. Energy efficiency class A++ for cooling and A+ for heating, on a scale from A+++ to D. Floor-standing placement against the wall, dual air outlets, BIO filter and iClean self-cleaning function, remote control included, optional Wi-Fi module.

Regular price €1.299,00
Regular price Sale price €1.299,00
Sale Sold out

incl. VAT + Shipping Costs

Taxes included. Shipping calculated at checkout.
WiFi G10-3

Crowd

  • American Express
  • Diners Club
  • Discover
  • Google Pay
  • JCB
  • Mastercard
  • PayPal
  • Visa
  • Brand-name units from a specialist retailerOriginal products from leading manufacturers
  • Personal adviceBy phone, email or WhatsApp
  • Installation on requestBy specialist installers in your region
  • Secure paymentPayPal with Buyer Protection, credit card and more

Description

The Bosch CL5000iL-Set 35 CN is a split floor-standing unit with 3.5 kW cooling and 3.8 kW heating capacity, consisting of indoor unit CL5000iU CN 35 E for wall-mounted installation above the floor and outdoor unit CL5000L 35 E. SEER 7.3 and SCOP 4.0, energy efficiency class according to page A++ in cooling and A+ in heating on the scale from A+++ to D. According to the page, it includes dual air outlets, a BIO filter and iClean self-cleaning; Wi-Fi is optional and can be selected on this page as the "with WiFi G10-3" variant (Bosch G10-3 Wi-Fi module). The power class is suitable as a guide for rooms of approximately 27 to 35 m²*.

Performance and range of application

The cooling capacity is 3.5 kW, the heating capacity 3.8 kW (nominal values), power supply 220 to 240 V, 50 Hz, single-phase. According to the table, the unit operates at outdoor temperatures from minus 15 to plus 50 °C in cooling and from minus 15 to plus 24 °C in heating; the page does not state the power consumption and operating ranges of the power.

The stated area of approximately 27 to 35 m²* is a guideline for standard room height and normal insulation standards, not a binding design. Which power class is right for your property depends on room height, insulation standards, window areas, shading, as well as the number of people and devices. We check the appropriate design for your property upon request.

* Guideline based on the cooling capacity specified by the manufacturer, at a standard room height of approximately 2.5 m, normal insulation standards and average solar radiation. Different conditions on site, such as large window areas, sloped roofs or a high number of people, may require a different power class. The binding design is carried out on a property-specific basis. For a professional design of your property please contact us.

The most important advantages at a glance

  • 3.5 kW cooling and 3.8 kW heating capacity according to the table (nominal values).
  • Energy efficiency class A++ in cooling and A+ in heating according to the page, scale A+++ to D, with SEER 7.3 and SCOP 4.0.
  • Dual air outlets according to the page, automatic horizontal and vertical airflow.
  • BIO filter and iClean self-cleaning according to the page; ECO mode and Gear with three power levels.
  • Indoor unit 206 mm deep, 794 x 621 mm, 14.9 kg according to the table.
  • Remote control included; optional Wi-Fi control, Bosch G10-3 Wi-Fi module available as the "with WiFi G10-3" variant.

Detailed functions

Inverter and heat pump operation

The inverter adjusts the power to the demand; the page does not state the power consumption values. In heating mode, the unit operates as an air-to-air heat pump and uses outdoor air down to minus 15 °C according to the table. According to the page, the unit automatically diagnoses installation errors, and the ECO mode and Gear with three power levels (50, 75, 100%) limit the power. Seasonal values according to the table: SEER 7.3, SCOP 4.0.

Airflow and filter

The floor-standing unit has dual air outlets according to the page; the horizontal and vertical airflow are automatically adjusted according to the page. The indoor unit contains an air filter and a BIO filter according to the page; iClean self-cleaning dries the heat exchanger according to the page; Wind Avoid Me diverts the airflow away from people according to the page. The page does not provide information on filter efficiency or airflow.

Operating modes

  • Cooling: 3.5 kW nominal
  • Heating: 3.8 kW nominal, down to minus 15 °C according to the table
  • Turbo for fast cooling or heating and Silent Mode according to the page
  • Follow Me: temperature measurement at the remote control according to the page
  • ECO mode and Gear (50, 75, 100% power) according to the page

Control and comfort

  • Remote control included; the page does not mention a wired control
  • 24-hour timer according to the page
  • Optional Wi-Fi control: Bosch G10-3 Wi-Fi module according to the page, available on this page as the "with WiFi G10-3" variant
  • Built-in potential-free contact (dry contact) according to the page

Operational safety

  • Operating range according to the table: minus 15 to plus 50 °C cooling, minus 15 to plus 24 °C heating
  • Automatic diagnosis of installation errors according to the page

Scope of delivery

Included in the standard scope (Set CL5000iL-Set 35 CN):

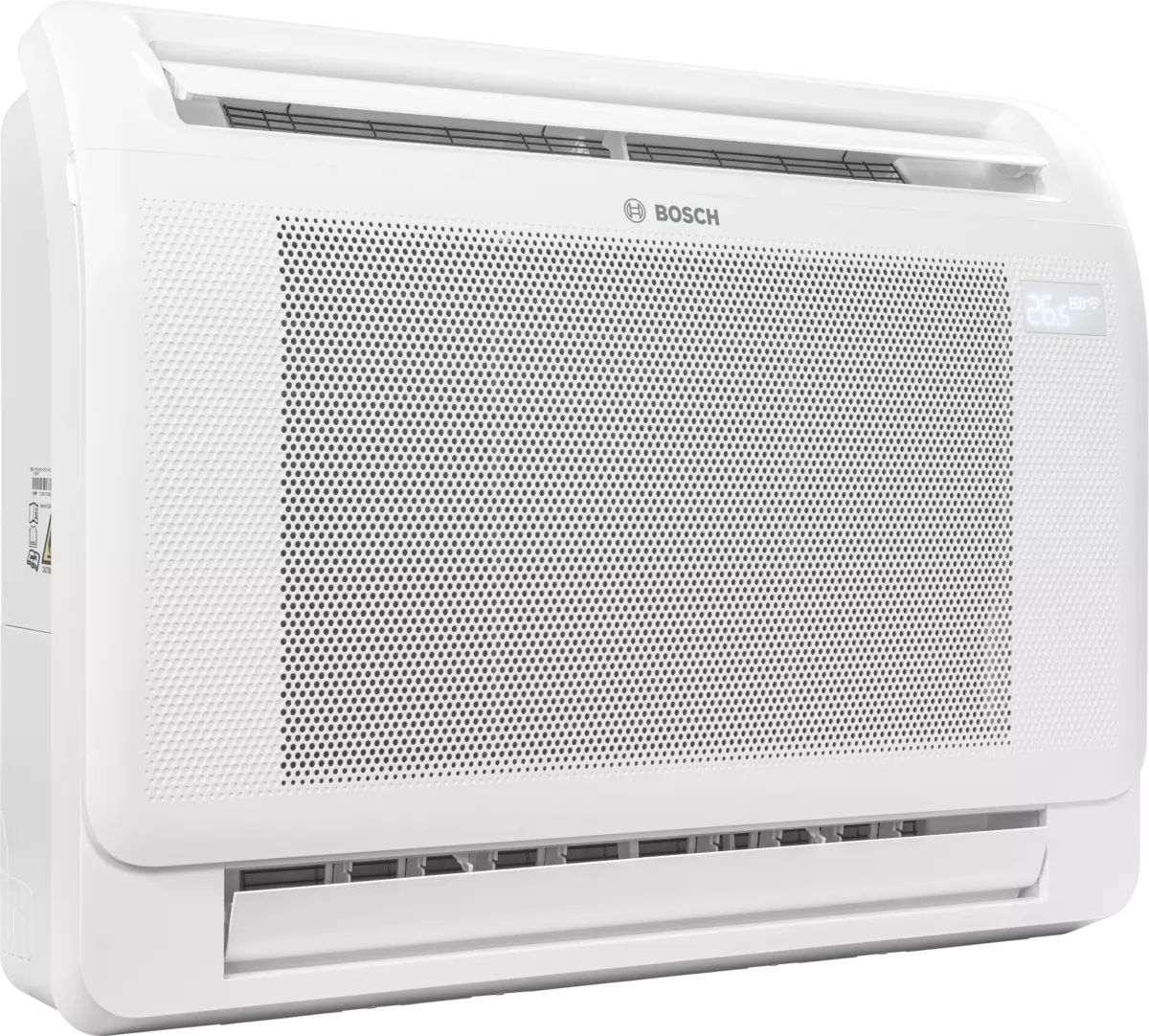

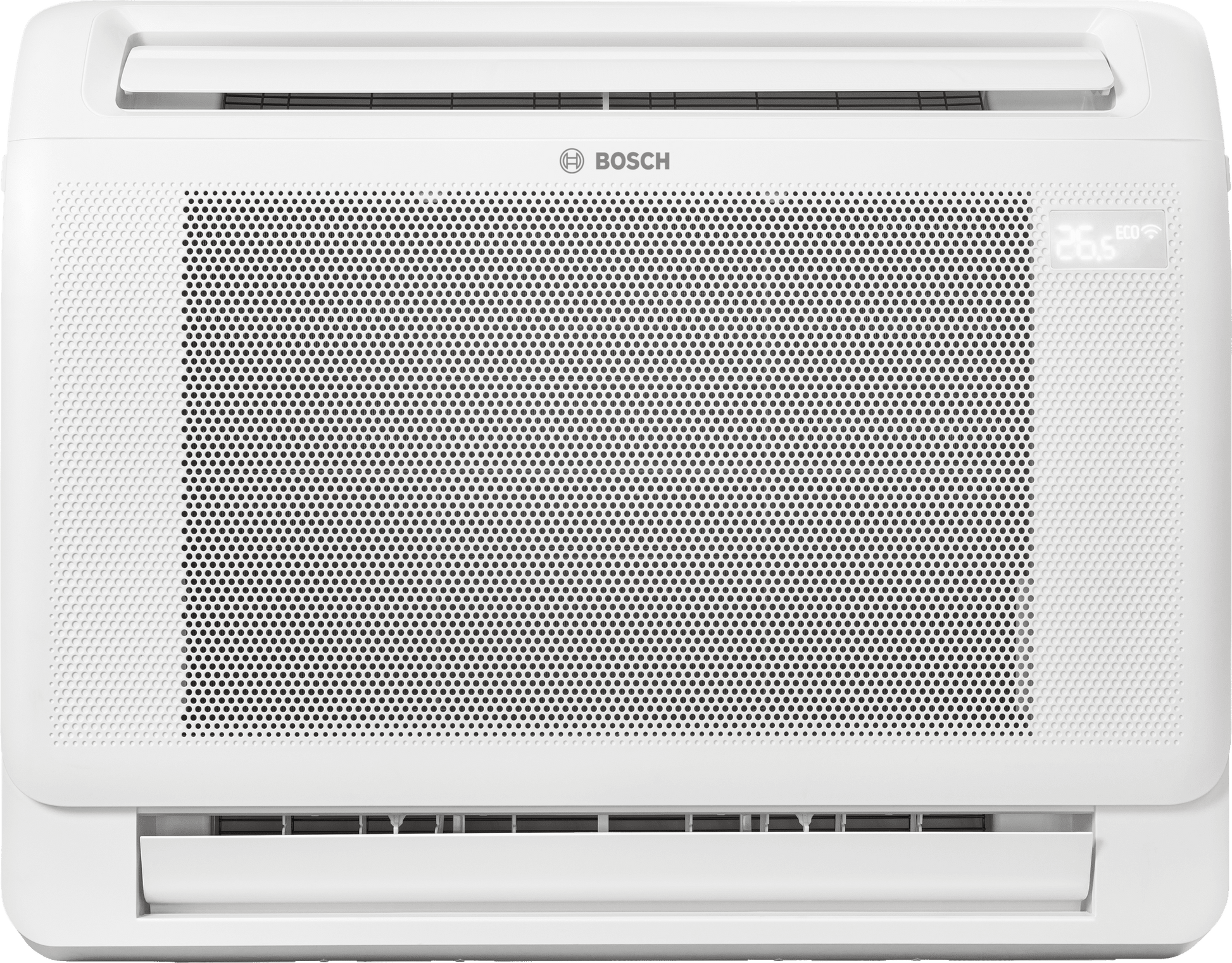

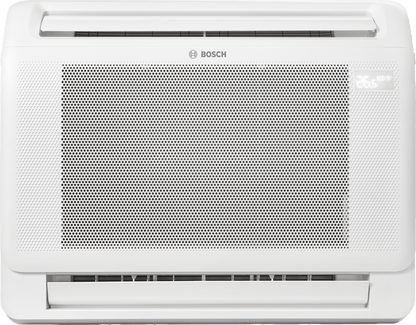

  • 1x Bosch CL5000iU CN 35 E indoor unit

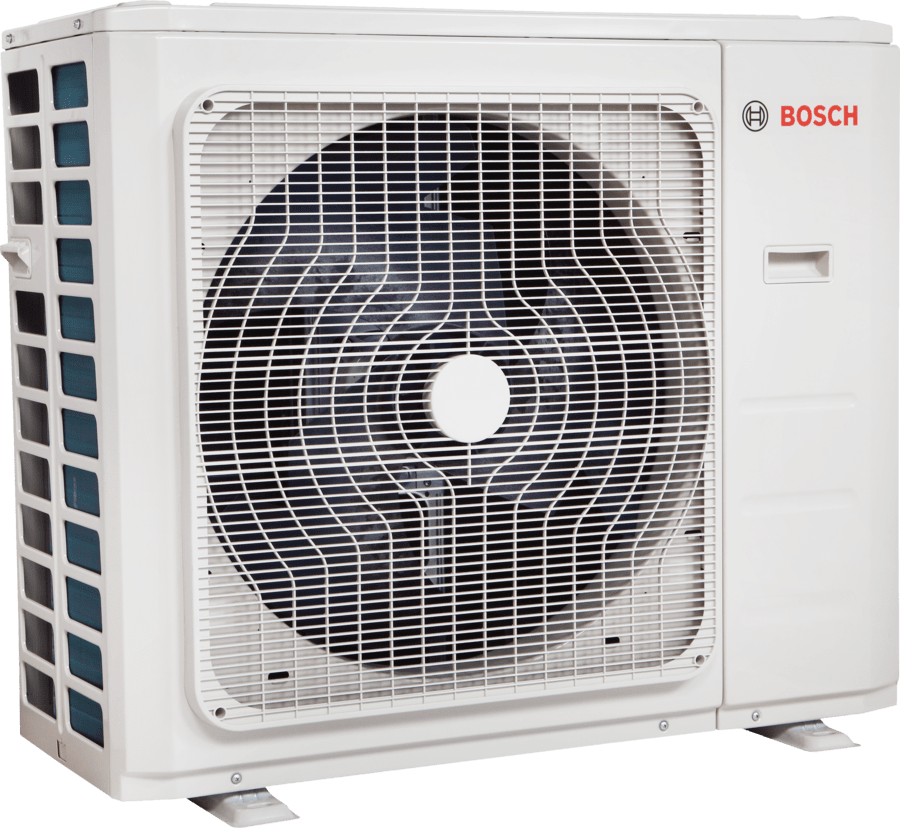

  • 1x Bosch CL5000L 35 E outdoor unit

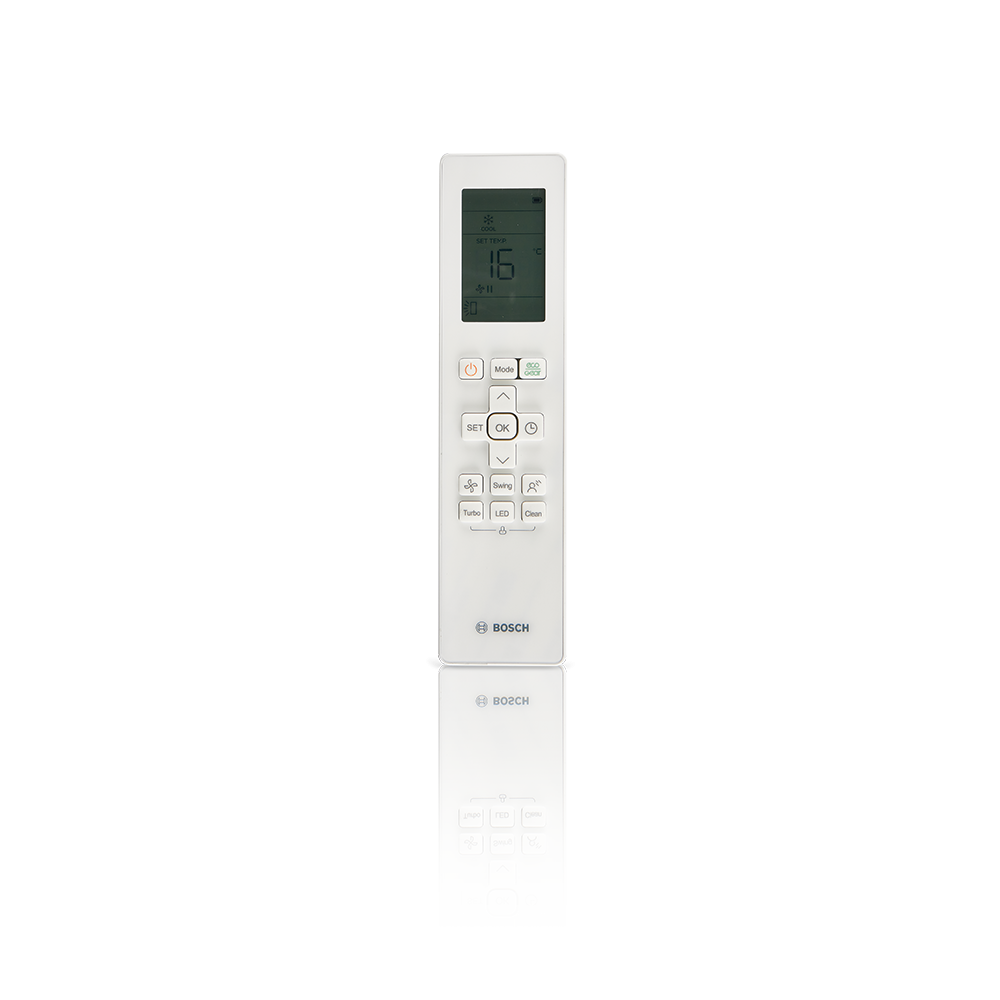

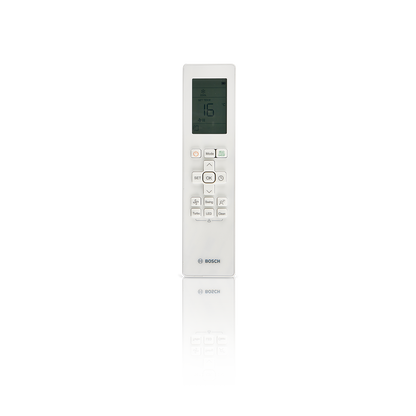

  • 1x remote control

The Bosch G10-3 Wi-Fi module is optional according to the page and not included in the standard scope; you add it on this page as the "with WiFi G10-3" variant.

What else you need

  • Refrigerant lines 6.35 mm (1/4 inch) + 9.52 mm (3/8 inch); maximum length and height difference are not stated on the page, available upon request
  • Condensate line and mounting material for wall mounting above the floor
  • Wall bracket or floor console for the outdoor unit (26.6 kg)
  • Electrical supply line and circuit breaker
  • Installation and commissioning by a professional company

Technical data

Set CL5000iL-Set 35 CN
Indoor unit Bosch CL5000iU CN 35 E
Outdoor unit Bosch CL5000L 35 E
Nominal cooling capacity 3.5 kW
Nominal heating capacity 3.8 kW
Nominal power consumption cooling / heating (min. to max.) not stated on the page
Energy efficiency class cooling / heating A++ / A+ according to the page, scale A+++ to D
SEER / SCOP according to the table 7.3 / 4.0
Power supply 220 to 240 V, 50 Hz, single-phase
Sound pressure level indoor unit (max. / medium / min.) 37 / 34 / 27 dB(A)
Sound pressure level outdoor unit 53.6 dB(A)
Dimensions indoor unit (W x D x H), net weight 794 x 206 x 621 mm, 14.9 kg
Dimensions outdoor unit (W x D x H), net weight 765 x 303 x 555 mm, 26.6 kg
Pipe connections liquid + gas 6.35 mm (1/4 inch) + 9.52 mm (3/8 inch)
Max. line length / height difference not stated on the page
Operating range outdoor temperature cooling / heating minus 15 to plus 50 °C / minus 15 to plus 24 °C
Air outlet dual air outlets according to the page
Filter according to the page Air filter, BIO filter, iClean self-cleaning
Remote control Remote control included
Wi-Fi optional: Bosch G10-3 Wi-Fi module, "with WiFi G10-3" variant
Manufacturer according to the page Robert Bosch GmbH

Frequently Asked Questions

What cooling and heating capacity does the Bosch CL5000iL-Set 35 CN with 3.5 kW have?

According to the table, 3.5 kW in cooling and 3.8 kW in heating (nominal values); the page does not state the power operating ranges or power consumption. SEER 7.3 and SCOP 4.0 according to the table, energy efficiency class according to the page A++ in cooling and A+ in heating on the scale from A+++ to D. We check which power class is right for your room upon request.

Where is the floor-standing unit placed?

The floor-standing unit is mounted on the wall just above the floor, approximately under a window; the air comes out through dual air outlets according to the page. It measures 794 x 206 x 621 mm (width x depth x height) according to the table and weighs 14.9 kg; the outdoor unit CL5000L 35 E measures 765 x 303 x 555 mm and weighs 26.6 kg.

What exactly is included in the scope of delivery?

The delivery includes exclusively the indoor unit CL5000iU CN 35 E, the outdoor unit CL5000L 35 E and a remote control (Set CL5000iL-Set 35 CN). The Bosch G10-3 Wi-Fi module is optional according to the page and is added on this page as the "with WiFi G10-3" variant; refrigerant lines, condensate line, bracket and mounting material are not included, this page does not offer a mounting set. We provide suitable material upon request.

Does the unit have Wi-Fi?

Wi-Fi is not built-in from the factory: For control via app, select the "with WiFi G10-3" variant on this page, which includes the Bosch G10-3 Wi-Fi module. The page does not mention a condensate pump; the condensate is usually drained via the condensate line in the floor-standing unit, which is planned by the professional company on site.

How long can the line between the indoor and outdoor unit be?

The page does not state the maximum line length and the maximum height difference; the pipe connections are stated as 6.35 mm (1/4 inch) + 9.52 mm (3/8 inch). We check which line route is permissible for your property upon request.

Can I heat with the unit in winter?

Yes. The heating mode is stated according to the table down to minus 15 °C outdoor temperature; the heating capacity is 3.8 kW, energy efficiency class in heating according to the page A+ on the scale from A+++ to D, SCOP 4.0. The available power decreases with falling outdoor temperature, which is why the system is suitable as a supplement to the existing heating system.

How loud is the unit?

For the indoor unit, the table states 37 / 34 / 27 dB(A) on three levels (max., medium, min.); a silent level is not numbered. The outdoor unit is stated with a sound pressure level of 53.6 dB(A).

Can I install the air conditioner myself?

The installation and commissioning of a split air conditioner is carried out by a certified professional company. Self-installation is not intended.
