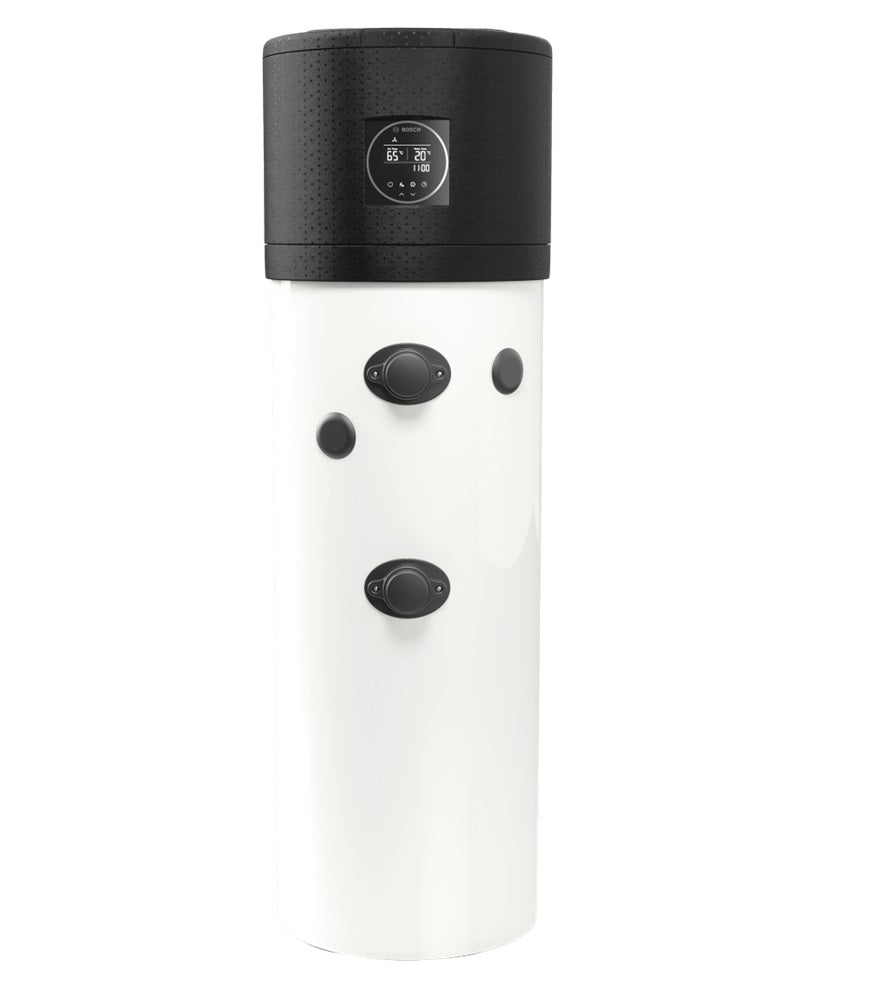

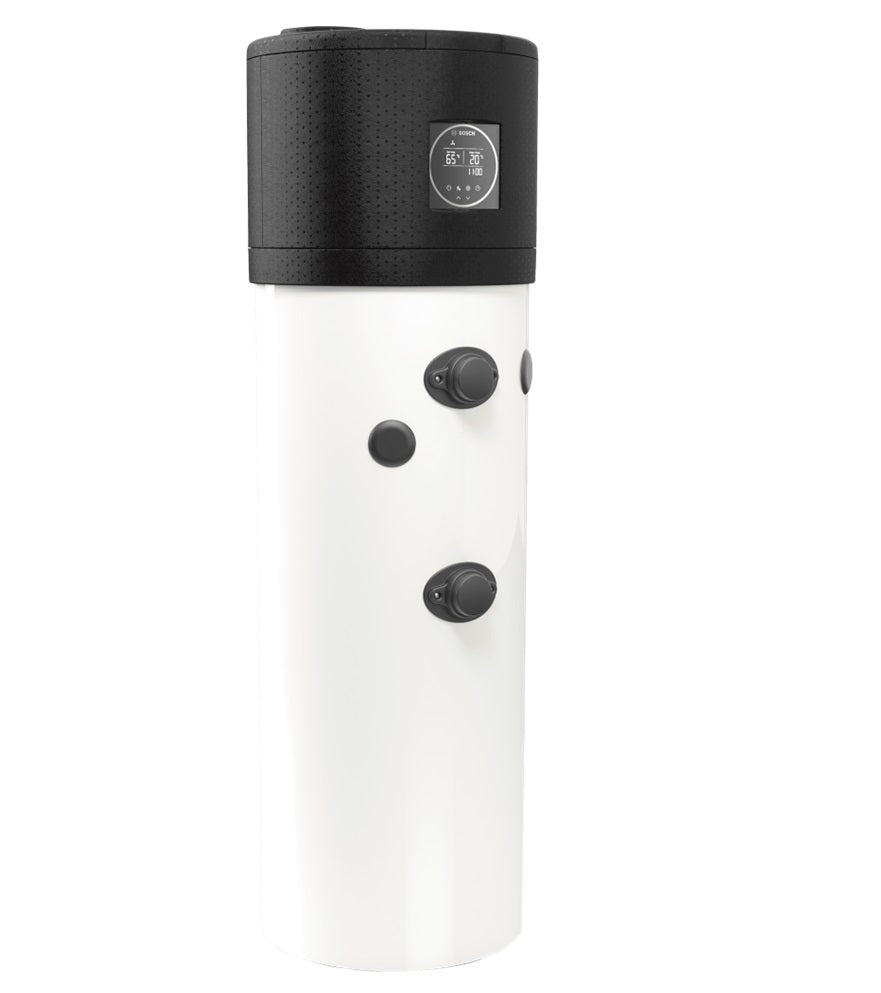

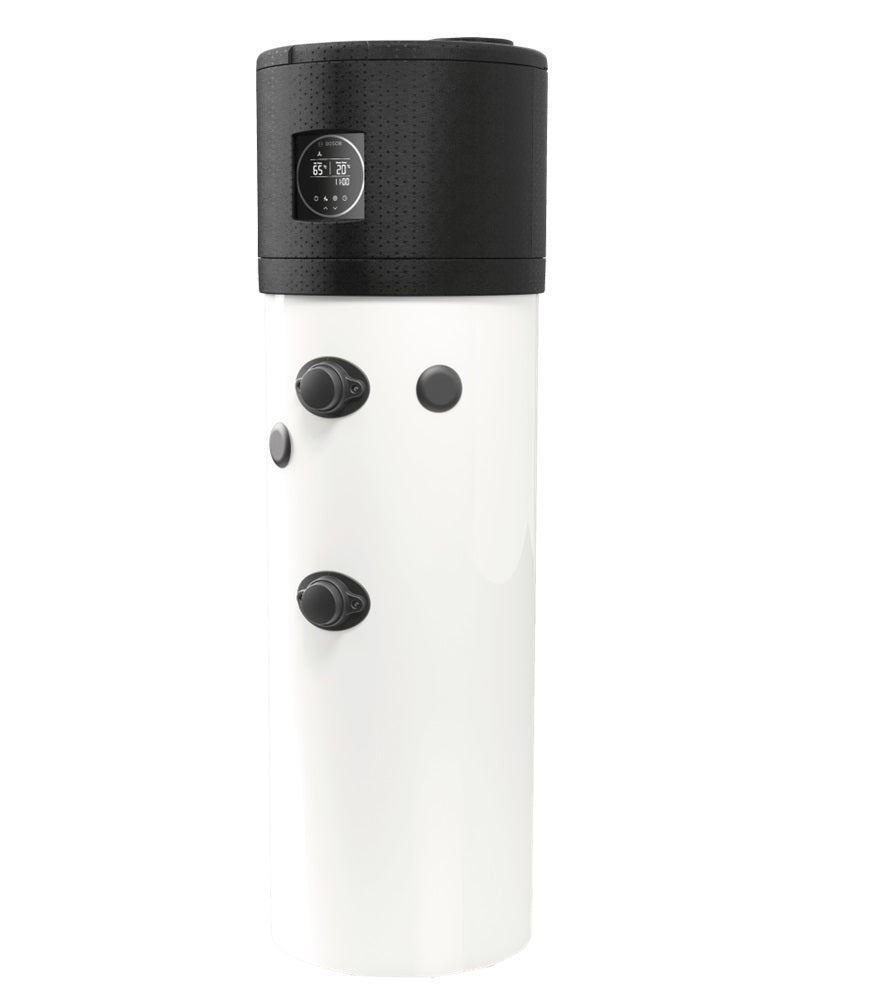

Hot water heat pump Bosch Compress 5000 DW 200 L

(Pump available: without heat exchanger: model CS5001DW 260 or with heat exchanger: model CS5001DW 260 C)

Product description:

▶ High coefficient of thermal efficiency COP up to 3.9;
▶ Built-in enamelled capacitive heaters with different capacities: 251 / 260 / 194 / 202 liters, anode protected;
▶ Operating temperature range: -10°C - 43°C;
▶ It is possible to connect air ducts Ø160 mm with a straight length of not more than 8 m on both the inlet and outlet sides;
▶Maximum water temperature 65°C (with heating support up to 75°C);
▶ Large and readable LCD display;
▶ Built-in accessories allow you to cooperate with PV installation, solar panel installation and any boiler;
▶ Built-in hose (models CS5001DW . . . C) with large surface area for use with boiler/solar system;
▶ Electronic controller with timer, thermal disinfection function, frost protection function;
▶ Built-in electric heating element 1.5 kW

Technical data:

Product type: CS5001DW 260
Article number: 7738340429
ERP: A+ (A+ -> F)
Auxiliary heater output: 1.5 kW
Dimensions (HxWxD): 2010 x 630 x 630 mm
Net weight: 106 kg
Sound power level outside: 63 dB
Sound power level inside: 56 dB
Refrigerant type: R513A
Environmental information: Contains fluorinated greenhouse gases
Refrigerant type: R513A
Global warming potential of the refrigerant (GWP): 631 kgCO2eq
Design of the refrigeration circuit: hermetically sealed
Refrigerant filling quantity: 1.1 kg
CO2 equivalent of the refrigerant charge: 0.693 tCO2eq
Color: white

Product type: CS5001DW 260 C
Article number: 7738340430
ERP: A+ (A+ -> F)
Auxiliary heater output: 1.5 kW
Dimensions (HxWxD): 2010 x 630 x 630 mm
Net weight: 127 kg
Sound power level outside: 63 dB
Sound power level inside: 56 dB
Refrigerant type: R513A
Environmental information: Contains fluorinated greenhouse gases
Refrigerant type: R513A
Global warming potential of the refrigerant (GWP): 631 kgCO2eq
Design of the refrigeration circuit: hermetically sealed
Refrigerant filling quantity: 1.1 kg
CO2 equivalent of the refrigerant charge: 0.693 tCO2eq
Color: white

*IMPORTANT NOTE
The commissioning of split air conditioning systems containing fluorinated greenhouse gases may only be carried out by a specialist company certified in accordance with Article 10 of EU Regulation No. 517/2014 of the European Parliament and of the Council of April 16, 2014, in conjunction with Section 6, Paragraph 1 of the German Chemicals Climate Protection Ordinance. By purchasing this device, you confirm that it will only be installed and commissioned by certified specialists in accordance with the above-mentioned regulations.
