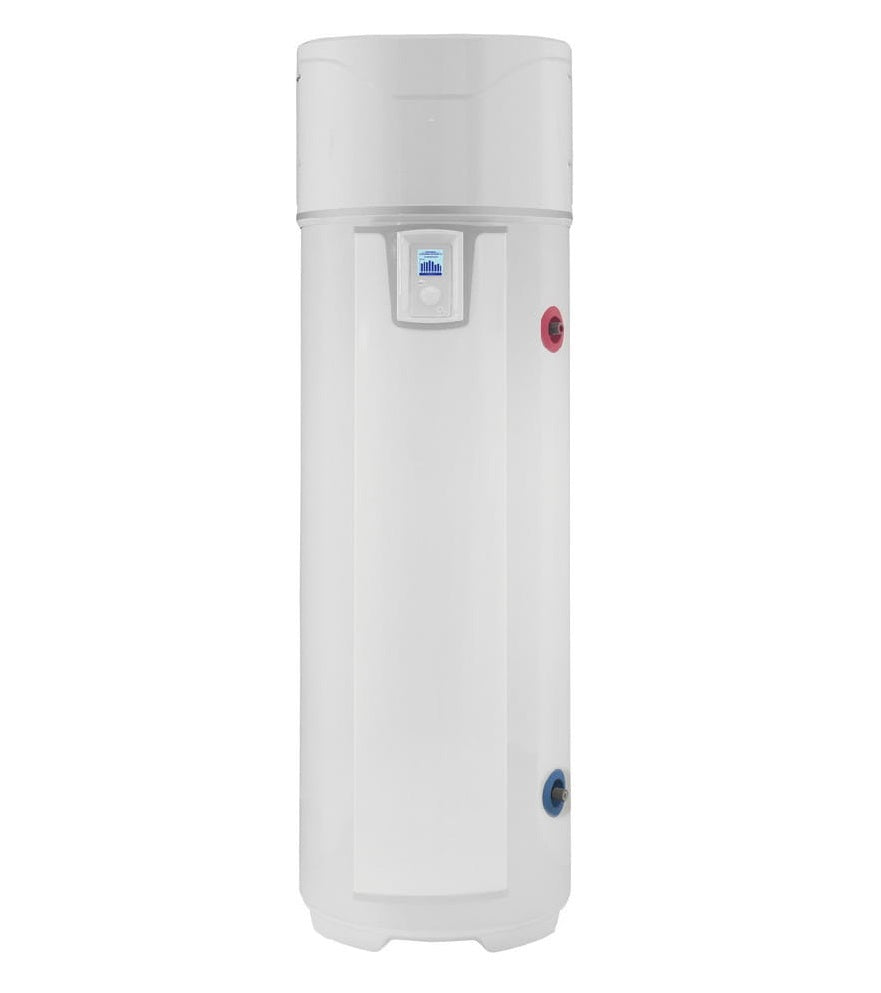

Panasonic PAW-DHW200F domestic hot water heat pump | 200 L | Single-phase | Floor-standing

Heat pumps for efficient domestic hot water production:

• Domestic hot water heat pumps with energy efficiency class A+
• Up to 72% lower energy consumption than directly electrically operated water heaters
• CFC-free, environmentally friendly water heater
• Economical energy consumption
• Digital control unit with energy consumption display
• Integration of a photovoltaic system possible
• Connection of outside air ducts possible
• Bivalence operation with boiler/solar system possible (only PAW-DHW270C1F)

comfort
• Different operating modes tailored to individual needs
• Intelligent automatic operation: Target temperature is automatically determined based on individual hot water consumption
• Additional operating modes for turbo operation, energy saving mode and absence

reliability
• Particularly robust and high-quality enamelling of the inside of the storage tank
• Pressure relief valve for safety in case of malfunctions or pressure increase
• Dielectric pipe fitting to prevent corrosion
• Special sealing lip to prevent rust formation on the flange


Specifications:

Internal dimensions (height): 1617 mm
Internal dimensions (width): 620 mm
Internal dimensions (depth): 665 mm
Empty weight: 80 kg
Hot and cold connection: 3⁄4" M
Corrosion protection system | Anode | Magnesium
Rated water pressure: 0.8 (8) Mpa (bar)
Electrical connection: 230 V
Electrical connection: 50 Hz
Maximum total power: 2300 W
Maximum heat pump power: 700 W
Electric heating element power: 1600 W
Heat pump water temperature range: 50 ~ 62 °C
Heat pump air temperature range : -5 ~ +43 °C
Channel diameter: 160 mm
Air flow (without duct): 310 / 390 m³/h
Sound power level: 53 dB(A)
R134a refrigerant capacity: 0.80 kg
Refrigerant volume in tonnes of CO2 equivalent: 0.50 TCO2 equivalent.
Refrigerant weight per liter: 0.0040 kg/L
Hot water quantity at 40°C: V40td: 265.5 L
Sound power ErP: 53 dB(A)
Energy efficiency class (from A+ to F): A+
