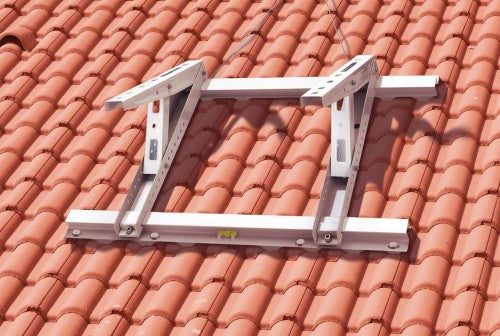

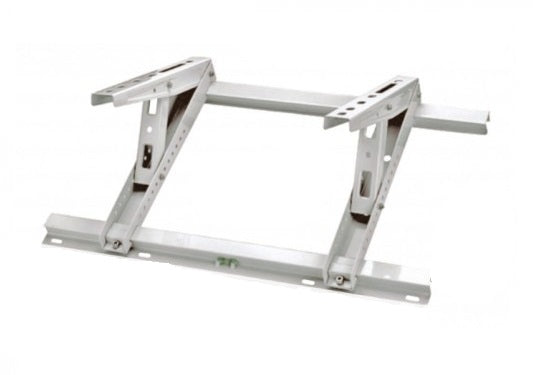

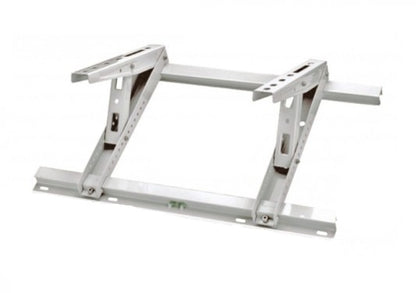

The Rodigas MT650 is a roof bracket for the outdoor unit of an air conditioner or heat pump on a pitched roof, for roof pitches of 9 to 45 degrees. The load capacity is 140 kg. The bracket consists of two mounting beams, one of which has a spirit level, and two arms that slide under the unit. The mounting holes are adjustable. The bracket is TÜV certified.

Scope of delivery

• 2x mounting beams, one of which has a spirit level
• 2x arms for supporting the outdoor unit
• Installation kit with shock-absorbing and leveling rubber pads

What else do you need

• Fastening material suitable for the roof construction and roofing material
• Installation by a specialist company

Technical data

Model	Rodigas MT650
Roof pitch	9 to 45 degrees
Width	800 mm
Depth	450 mm, frame 520 mm
Mounting holes	adjustable
Load capacity	140 kg
Material	Metal frame
Color	RAL 9002
Certificate	TÜV

Frequently asked questions

How much weight can the bracket support?

The manufacturer states a load capacity of 140 kg. You can find the weight of your outdoor unit in its technical data.

For which roof pitch is the bracket suitable?

The manufacturer states a roof pitch of 9 to 45 degrees. The mounting holes are adjustable, and the spirit level on the mounting beam helps to align the unit horizontally.

What is included in the scope of delivery?

Two mounting beams, one of which has a spirit level, two arms, and an installation kit with rubber pads are included. Fastening material for the roof is not included, as it depends on the roof construction.

What is the bracket intended for?

For mounting the outdoor units of an air conditioner or heat pump on the pitched roof of a residential building.

Can I install the bracket myself?

Installation on the roof and commissioning of the unit are carried out by a specialist company, which also assesses the roof construction and the fastening material.
