Daikin Fully Flat FFA25A9 Ceiling Cassette 2.5 kW
Daikin Fully Flat FFA25A9 Ceiling Cassette 2.5 kW
Daikin Fully Flat FFA25A9 split ceiling cassette with 2.5 kW cooling and 3.20 kW heating capacity, suitable for rooms of approximately 19 to 25 m²*. Energy efficiency class A++ for cooling and A+ for heating, on a scale from A+++ to D. Flush-mount installation with an 8 mm lip, individually adjustable louvers, Fully Flat decorative grille BYFQ60CW 620 x 620 mm and infrared remote control included.
incl. VAT + Shipping Costs
Crowd
Couldn't load pickup availability
- Brand-name units from a specialist retailerOriginal products from leading manufacturers
- Personal adviceBy phone, email or WhatsApp
- Installation on requestBy specialist installers in your region
- Secure paymentPayPal with Buyer Protection, credit card and more
Description
Description

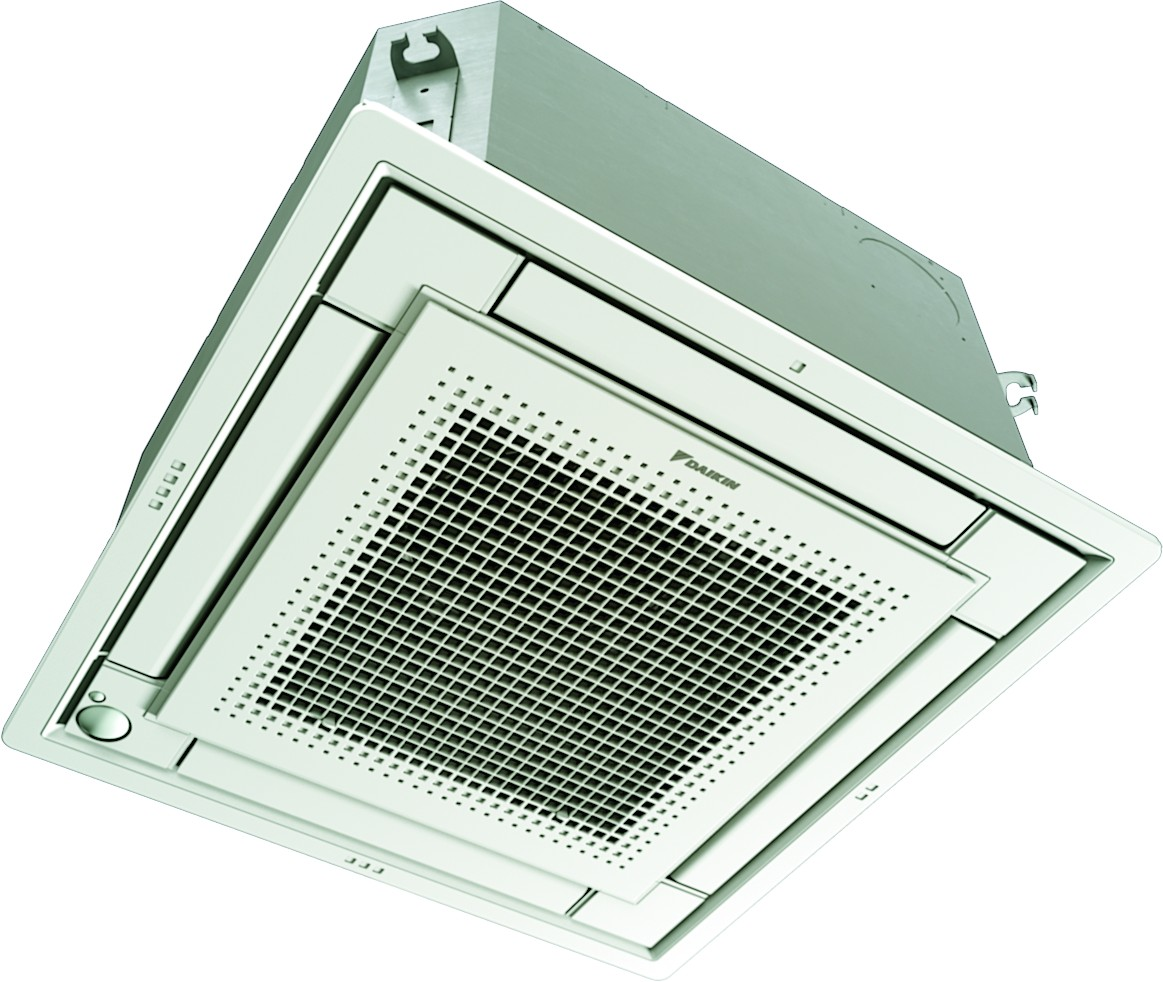

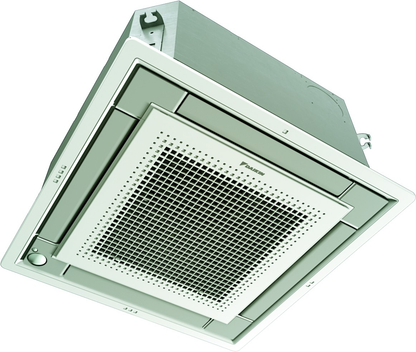

Daikin Fully Flat FFA25A9: Sky Air ceiling cassette with 2.5 kW cooling and 3.20 kW heating capacity, FFA25A9 indoor unit with BYFQ60CW Fully Flat decorative grille and RXM25R outdoor unit. SEER 6.17 and SCOP 4.24, energy efficiency class A++ in cooling and A+ in heating according to the page, on the A+++ to D scale. The decorative grille protrudes by 8 mm according to the page, and the louvres can be controlled individually according to the page. The power class is suitable as a guide for rooms of approximately 19 to 25 m²*.
Performance and range of application
Rated capacity 2.5 kW in cooling and 3.20 kW in heating; the page does not state the operating ranges; connection to 220 to 240 V, 50 Hz, single-phase. According to the table, it cools between minus 10 and plus 50 °C and heats between minus 20 and plus 24 °C outdoor temperature; the annual energy consumption is 142 / 762 kWh (cooling / heating) according to the table. The air volume flow of the indoor unit is 6.5 / 8.0 / 9.0 m³/min in cooling (three stages) according to the table. The page does not state the power consumption.
The stated area of approximately 19 to 25 m²* is a guideline for standard room height and normal insulation standards, not a binding design. For shops, offices, and commercial spaces, additional internal loads from people, lighting, and equipment may increase the requirements compared to the guideline. We can check the appropriate design for your property upon request.
* Guideline based on the cooling capacity specified by the manufacturer, at a standard room height of approximately 2.5 m, normal insulation standards, and average solar radiation. Different conditions on site, such as large window areas, sloped roofs, or a high number of people, may require a different power class. The binding design is carried out on a property-specific basis. For a professional design of your property, please contact us.
The most important advantages at a glance
- 2.5 kW cooling and 3.20 kW heating capacity according to the table.
- Energy efficiency class A++ in cooling and A+ in heating according to the page, on the A+++ to D scale, with SEER 6.17 and SCOP 4.24.
- Flush-mount installation: the grille protrudes by 8 mm from the ceiling according to the page, indoor unit height 260 mm.
- Individually controllable louvres according to the page, Fully Flat decorative grille BYFQ60CW in white (620 x 620 mm) included in the delivery.
- Presence sensor and floor sensor optional according to the page.
- Max. total pipe length 20 m, height difference 15 m according to the table.
- Infrared remote control BRC7F530W included, outdoor unit with swing compressor according to the page.
Detailed functions
Inverter and heat pump operation
The inverter adjusts the capacity to the demand; the page does not state the operating ranges of the capacity. In heating mode, the unit operates as an air-to-air heat pump and uses outdoor air down to minus 20 °C according to the table. The RXM25R outdoor unit has a swing compressor and heat exchanger fins with corrosion protection according to the page. Seasonal values according to the table: SEER 6.17, SCOP 4.24.
Airflow and filters
The Fully Flat decorative grille BYFQ60CW (46 x 620 x 620 mm) has four individually controllable louvres according to the page, the air volume flow in cooling is 6.5 / 8.0 / 9.0 m³/min on three stages according to the table. A presence sensor and a floor sensor are optional according to the page and are configured via the remote control. The page does not mention a filter; information on request.
Operating modes
- Cooling: 2.5 kW nominal
- Heating: 3.20 kW nominal, down to minus 20 °C according to the table
- Individual control of the four louvres according to the page
- The page does not mention other operating modes, timers, or programs
Control and comfort
- Infrared remote control BRC7F530W included; according to the page, multilingual, with configuration of the sensor option and the individual louvre positions
- Wired remote control, WLAN control, or building management system are not mentioned on the page; options on request
Operational safety
- Operating range according to the table: minus 10 to plus 50 °C cooling, minus 20 to plus 24 °C heating
- The page does not mention a condensate pump; available on request

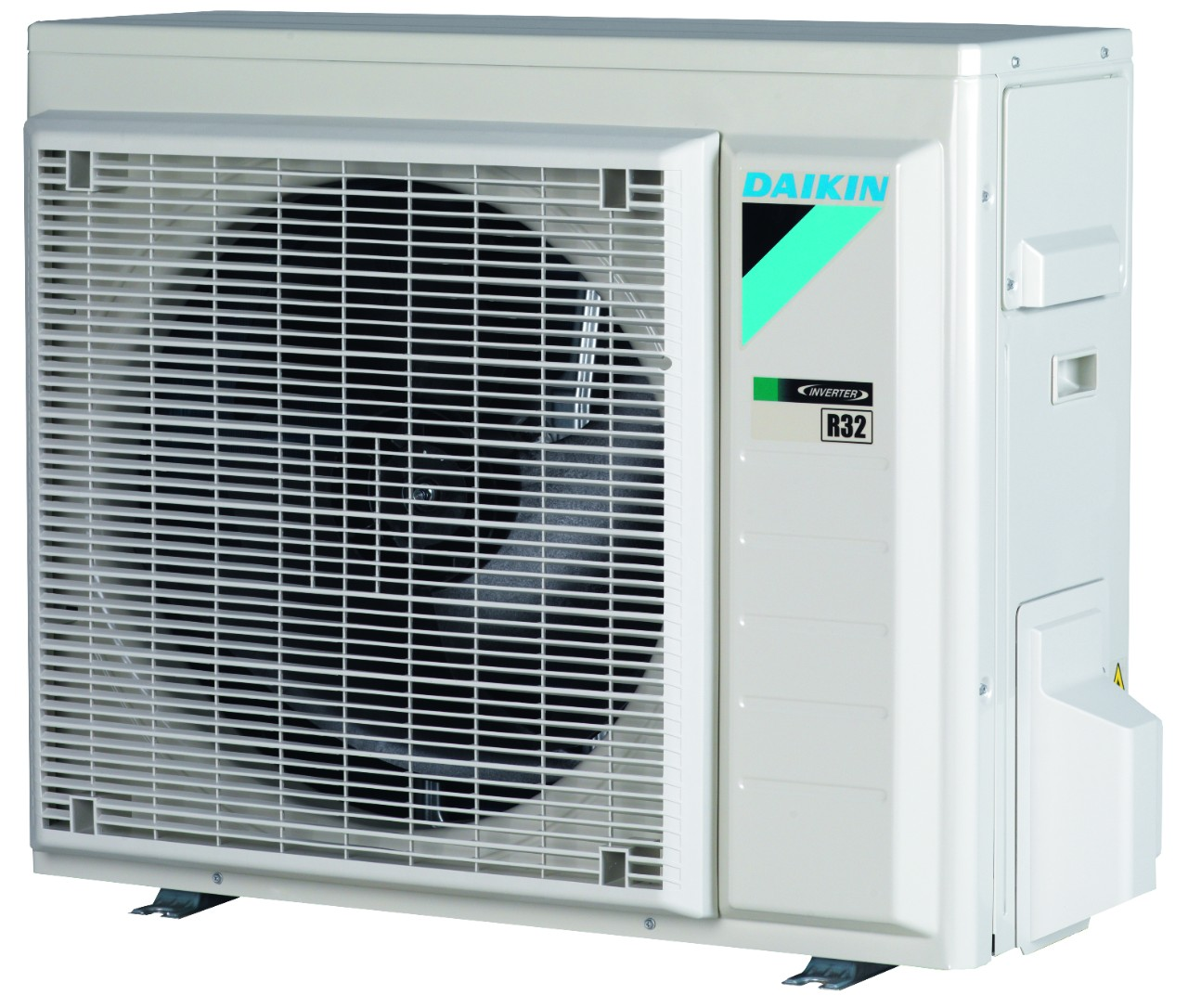

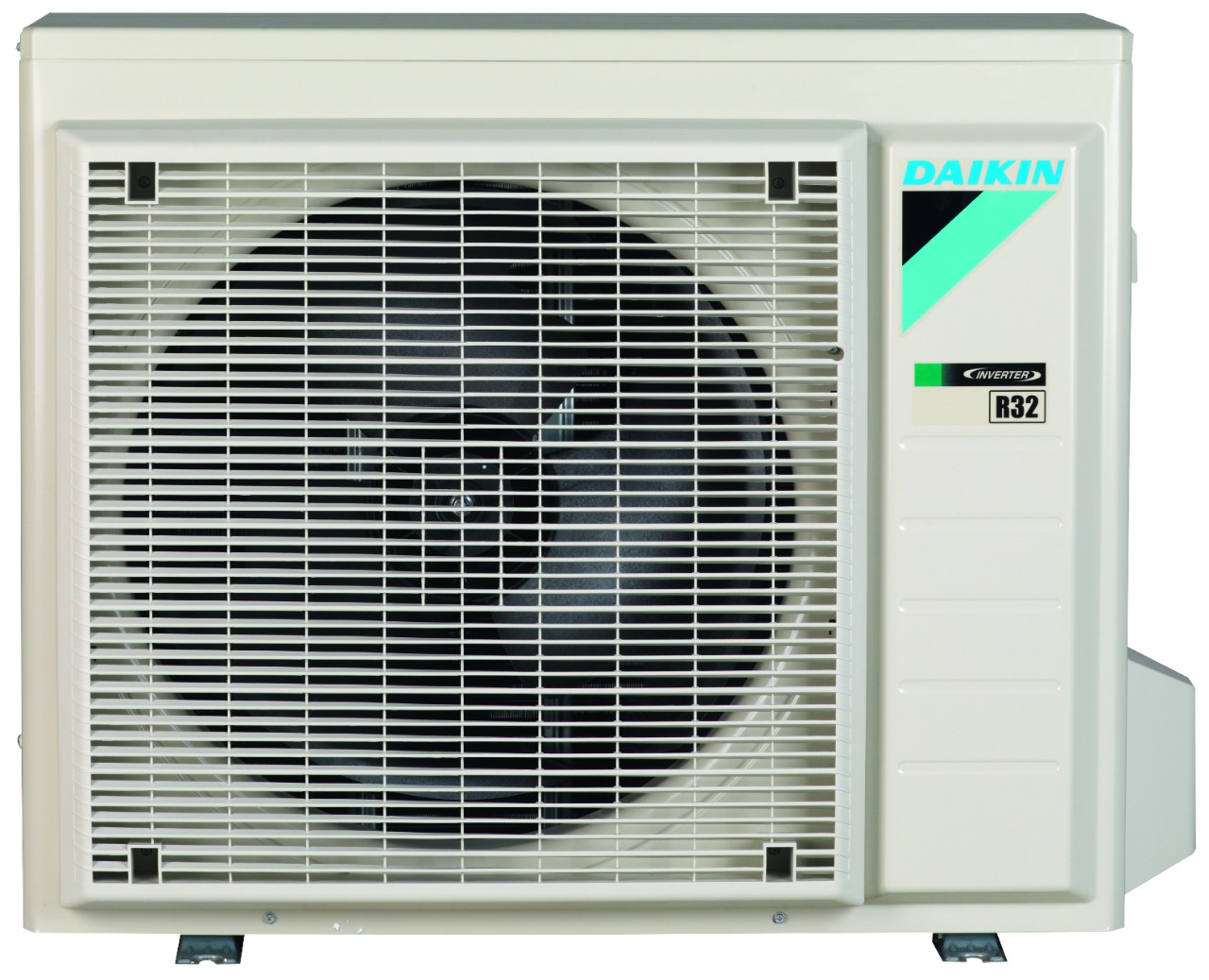

- Outdoor unit RXM25R suitable for roof, terrace, or exterior wall according to the page, heat exchanger fins with corrosion protection
Scope of delivery
Included in the standard scope:
- 1x Daikin FFA25A9 indoor unit
- 1x Daikin BYFQ60CW Fully Flat decorative grille in white
- 1x Daikin RXM25R outdoor unit
- 1x BRC7F530W infrared remote control
We confirm availability and delivery time before purchase upon request according to the page.
What you need additionally
- Refrigerant lines 6.35 mm (1/4 inch) + 9.52 mm (3/8 inch); total pipe length max. 20 m according to the table, height difference max. 15 m
- Condensate line and mounting material for installation in a suspended ceiling
- Optional according to the page: presence sensor and floor sensor
- Wall bracket or floor console for the outdoor unit (32 kg)
- Electrical supply line and circuit breaker (value not stated on the page)
- Installation and commissioning by a specialist company
Technical data
| Indoor unit | Daikin FFA25A9 |
| Outdoor unit | Daikin RXM25R |
| Decorative grille | Daikin BYFQ60CW, 46 x 620 x 620 mm (H x W x D), 2.8 kg |
| Rated cooling capacity | 2.5 kW |
| Rated heating capacity | 3.20 kW |
| Energy efficiency class cooling / heating | A++ / A+ according to the page, on the A+++ to D scale |
| SEER / SCOP according to the table | 6.17 / 4.24 |
| Annual energy consumption cooling / heating according to the table | 142 / 762 kWh |
| Power supply | 220 to 240 V, 50 Hz, single-phase |
| Power consumption | not stated on the page |
| Sound pressure level indoor unit cooling and heating (N / H according to the table) | 25 / 31 dB(A) |
| Sound pressure level outdoor unit cooling / heating | 46 / 47 dB(A) |
| Air volume flow indoor unit cooling / heating | 6.5 / 8.0 / 9.0 m³/min |
| Dimensions indoor unit (H x W x D), weight | 260 x 575 x 575 mm, 16 kg |
| Dimensions outdoor unit (H x W x D), weight | 550 x 765 x 285 mm, 32 kg |
| Pipe connections liquid + gas | 6.35 mm (1/4 inch) + 9.52 mm (3/8 inch) |
| Total pipe length / height difference max. | 20 m / 15 m |
| Operating range outdoor temperature cooling / heating | minus 10 to plus 50 °C / minus 20 to plus 24 °C |
| Condensate pump | not stated on the page |
| Installation | flush, protrusion 8 mm according to the page; four individually controllable louvres |
| Optional according to the page | Presence sensor, floor sensor |
| Remote control | Infrared remote control BRC7F530W included |
| Manufacturer according to the page | Daikin Europe N.V. |
Frequently Asked Questions
What cooling and heating capacity does the Daikin Fully Flat FFA25A9 with 2.5 kW have?
According to the table, 2.5 kW in cooling and 3.20 kW in heating (rated values); the page does not state the operating ranges of the capacity. SEER 6.17 and SCOP 4.24 according to the table, energy efficiency class according to the page A++ in cooling and A+ in heating on the A+++ to D scale. We can check which power class is suitable for your room upon request.
What are the dimensions of the cassette and decorative grille?
Cassette 260 x 575 x 575 mm (H x W x D) at 16 kg and decorative grille BYFQ60CW 46 x 620 x 620 mm at 2.8 kg according to the table; the page does not state the ceiling cutout, we will share it upon request. Outdoor unit RXM25R: 550 x 765 x 285 mm, 32 kg.
What exactly is included in the delivery?
The delivery exclusively includes the indoor unit FFA25A9, the decorative grille BYFQ60CW, the outdoor unit RXM25R, and an infrared remote control BRC7F530W. Lines, condensate line, bracket, and mounting material must be ordered separately; a mounting set is not selectable on this page. We will provide you with suitable material upon request. We confirm availability and delivery time before purchase according to the page.
Does the cassette have a condensate pump and what sensors are available?
The page does not state anything about the condensate pump; we will clarify this upon request. According to the page, a presence sensor and a floor sensor are optionally available and are configured via the remote control.
How long can the line between the indoor and outdoor unit be?
20 m total pipe length and 15 m height difference are the maximum according to the table, pipe connections 6.35 mm (1/4 inch) + 9.52 mm (3/8 inch). Whether your pipe route fits and what needs to be provided for it, we check upon request.
Can I heat with the unit in winter?
Yes. The heating mode is stated according to the table down to minus 20 °C outdoor temperature; the heating capacity is 3.20 kW, energy efficiency class in heating according to the page A+ on the A+++ to D scale, SCOP 4.24. With falling outdoor temperature, the available heating capacity decreases; the system is therefore suitable as a supplement to the existing heating.
How loud is the unit?
The table states 25 / 31 dB(A) for the indoor unit (N / H, cooling like heating); the outdoor unit is 46 / 47 dB(A) according to the table (cooling / heating).
Can I install the air conditioner myself?
The installation and commissioning of a split air conditioner is carried out by a certified specialist company. Self-installation is not intended.
