Daikin

Daikin Fully Flat FFA35A9 Ceiling Cassette 3.4 kW

Daikin Fully Flat FFA35A9 Ceiling Cassette 3.4 kW

Daikin Fully Flat FFA35A9 split ceiling cassette with 3.4 kW cooling and 4.20 kW heating capacity, suitable for rooms of approximately 26 to 34 m²*. Energy efficiency class A++ for cooling and A+ for heating, on a scale from A+++ to D. Flush-mount installation with an 8 mm lip, individually adjustable louvers, Fully Flat decorative grille BYFQ60CW 620 x 620 mm and infrared remote control included.

Regular price €2.899,00
Regular price Sale price €2.899,00
Sale Sold out

incl. VAT + Shipping Costs

Taxes included. Shipping calculated at checkout.

Crowd

  • American Express
  • Diners Club
  • Discover
  • Google Pay
  • JCB
  • Mastercard
  • PayPal
  • Visa
  • Brand-name units from a specialist retailerOriginal products from leading manufacturers
  • Personal adviceBy phone, email or WhatsApp
  • Installation on requestBy specialist installers in your region
  • Secure paymentPayPal with Buyer Protection, credit card and more

Description

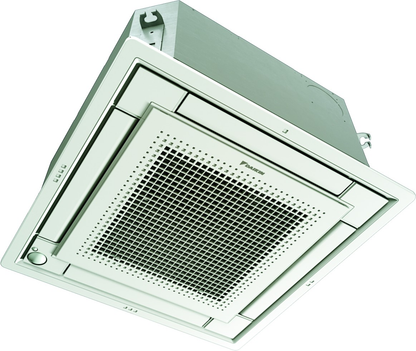

The Daikin Fully Flat FFA35A9 is a split ceiling cassette from the Sky Air series with a cooling capacity of 3.4 kW and a heating capacity of 4.20 kW, consisting of the FFA35A9 indoor unit with the BYFQ60CW Fully Flat decorative grille and the RXM35R outdoor unit. SEER 6.38 and SCOP 4.10, energy efficiency class according to page A++ in cooling and A+ in heating on the scale from A+++ to D. According to page, the grille protrudes 8 mm from the ceiling, and each louver can be adjusted individually according to page. The power class is suitable as a guide for rooms of approximately 26 to 34 m²*.

Performance and range of application

The cooling capacity is 3.4 kW, the heating capacity 4.20 kW (nominal values); the page does not state the power operating ranges. Power supply 220 to 240 V, 50 Hz, single-phase. According to the table, the unit operates at an outdoor temperature of minus 10 to plus 50 °C in cooling and at minus 20 to plus 24 °C in heating; the annual energy consumption is stated as 186 / 1,058 kWh (cooling / heating). According to the table, the air volume flow of the indoor unit is 6.5 / 8.5 / 10.0 m³/min in cooling (three stages). The page does not state the power consumption.

The stated area of approximately 26 to 34 m²* is a guideline for standard room height and normal insulation standards, not a binding design. Which power class is right for your property depends on room height, insulation standards, window areas, shading, as well as the number of people and devices. We will check the appropriate design for your property upon request.

* Guideline based on the cooling capacity specified by the manufacturer, at a standard room height of approximately 2.5 m, normal insulation standards, and average solar radiation. Different conditions on site, such as large window areas, sloped roofs, or a high number of people, may require a different power class. The binding design is carried out on a property-specific basis. For a professional design of your property, please contact us.

The most important advantages at a glance

  • 3.4 kW cooling and 4.20 kW heating capacity according to the table.
  • Energy efficiency class A++ in cooling and A+ in heating according to page, scale A+++ to D, with SEER 6.38 and SCOP 4.10.
  • Flush installation: according to page, the grille protrudes 8 mm from the ceiling, indoor unit 260 mm high.
  • Individually adjustable louvers according to page, Fully Flat decorative grille BYFQ60CW in white (620 x 620 mm) included in the delivery.
  • Presence sensor and floor sensor optional according to page.
  • Max. total pipe length 20 m, height difference 15 m according to the table.
  • Infrared remote control BRC7F530W included, outdoor unit with swing compressor according to page.

Detailed functions

Inverter and heat pump operation

In heating mode, the unit uses the outdoor air down to minus 20 °C as an air-to-air heat pump according to the table. The inverter regulates the power according to demand; the operating ranges are not stated on the page. The outdoor unit RXM35R has a swing compressor and heat exchanger fins with corrosion protection according to page. Seasonal values according to the table: SEER 6.38, SCOP 4.10.

Airflow and filter

The air exits through the four louvers of the Fully Flat decorative grille BYFQ60CW (46 x 620 x 620 mm), which can be adjusted individually according to page; this keeps areas free from direct airflow. According to the table, the air volume flow is 6.5 / 8.5 / 10.0 m³/min in cooling on three stages. A presence sensor and a floor sensor are optional according to page and are set up via the remote control. The page does not mention a filter; information on request.

Operating modes

  • Cooling: 3.4 kW nominal
  • Heating: 4.20 kW nominal, down to minus 20 °C according to the table
  • Individual control of the four louvers according to page
  • Other operating modes, timers, or programs are not mentioned on the page

Control and comfort

  • Infrared remote control BRC7F530W included; according to page, multilingual, with setup of the sensor option and the individual louver positions
  • Wired remote control, WLAN control, or building management system are not mentioned on the page; options on request

Operational safety

  • Operating range according to the table: minus 10 to plus 50 °C cooling, minus 20 to plus 24 °C heating
  • The page does not mention a condensate pump; available on request

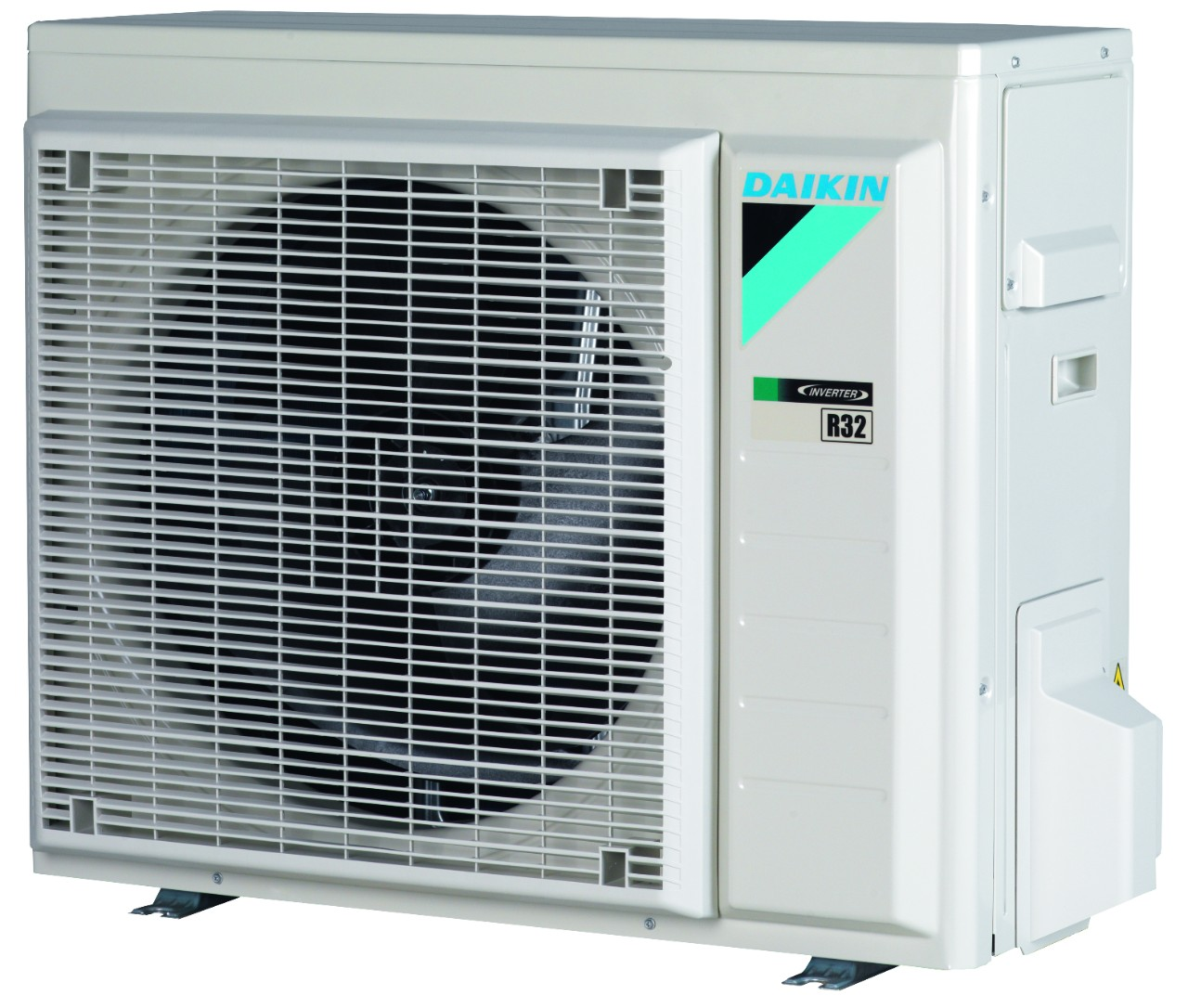

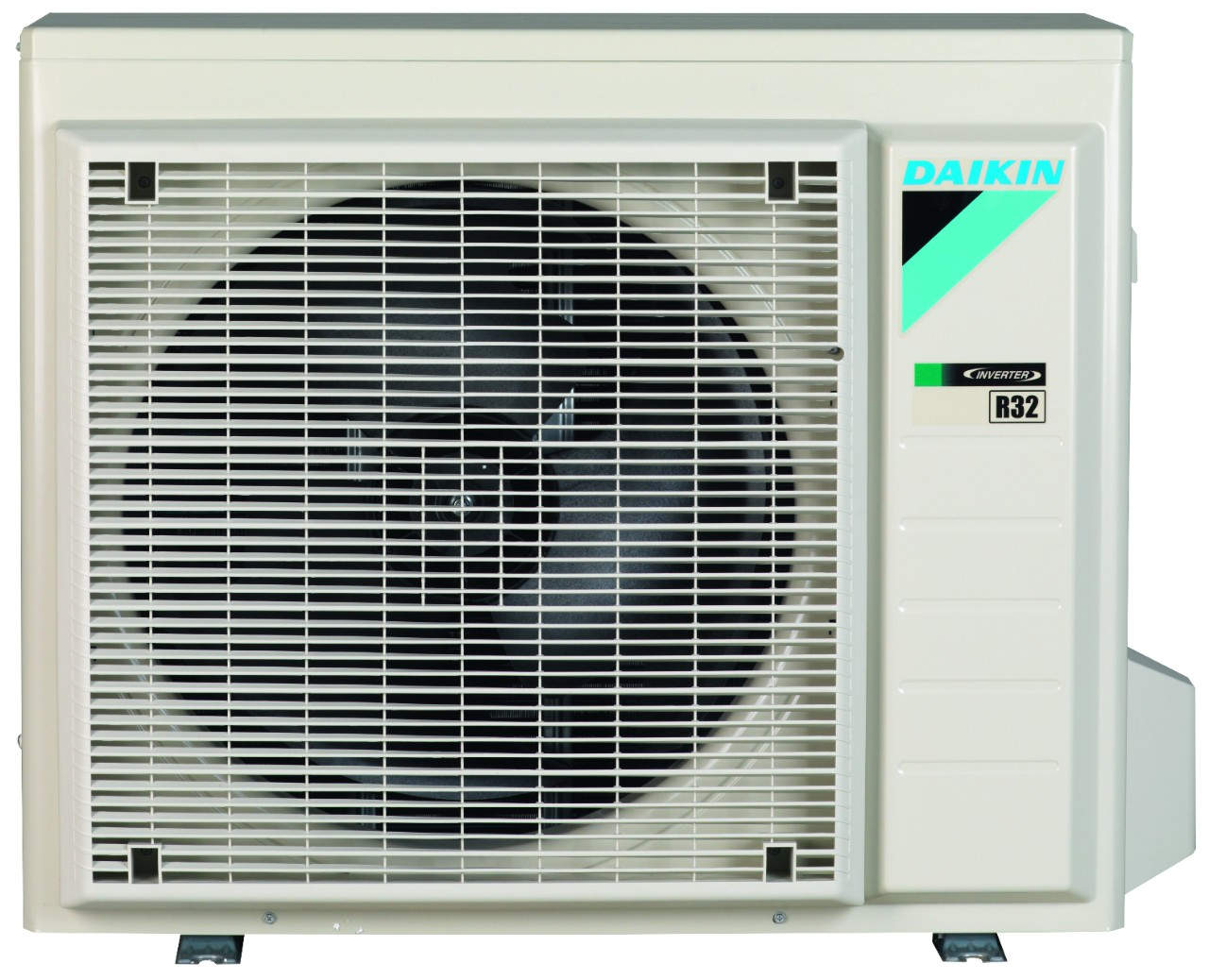

  • Outdoor unit RXM35R suitable for roof, terrace, or exterior wall according to page, heat exchanger fins with corrosion protection

Scope of delivery

Included in the standard scope:

  • 1x Daikin FFA35A9 indoor unit
  • 1x Daikin BYFQ60CW Fully Flat decorative grille in white
  • 1x Daikin RXM35R outdoor unit
  • 1x BRC7F530W infrared remote control

We confirm availability and delivery time before purchase upon request according to page.

What you need in addition

  • Refrigerant lines 6.35 mm (1/4 inch) + 9.52 mm (3/8 inch); total pipe length max. 20 m, height difference max. 15 m according to the table
  • Condensate line and mounting material for installation in the suspended ceiling
  • Optional according to page: presence sensor and floor sensor
  • Wall bracket or floor console for the outdoor unit (32 kg)
  • Electrical supply line and circuit breaker (value not stated on the page)
  • Installation and commissioning by a specialist company

Technical data

Indoor unit Daikin FFA35A9
Outdoor unit Daikin RXM35R
Decorative grille Daikin BYFQ60CW, 46 x 620 x 620 mm (H x W x D), 2.8 kg
Nominal cooling capacity 3.4 kW
Nominal heating capacity 4.20 kW
Energy efficiency class Cooling / Heating A++ / A+ according to page, scale A+++ to D
SEER / SCOP according to the table 6.38 / 4.10
Annual energy consumption Cooling / Heating according to the table 186 / 1,058 kWh
Power supply 220 to 240 V, 50 Hz, single-phase
Power consumption not stated on the page
Sound pressure level indoor unit Cooling and Heating (L / H according to the table) 25 / 34 dB(A)
Sound pressure level outdoor unit Cooling / Heating 49 / 49 dB(A)
Air volume flow indoor unit Cooling / Heating 6.5 / 8.5 / 10.0 / 6.5 / 8.5 / 10.0 m³/min
Dimensions indoor unit (H x W x D), weight 260 x 575 x 575 mm, 16 kg
Dimensions outdoor unit (H x W x D), weight 550 x 765 x 285 mm, 32 kg
Pipe connections Liquid + Gas 6.35 mm (1/4 inch) + 9.52 mm (3/8 inch)
Total pipe length / height difference max. 20 m / 15 m
Operating range outdoor temperature Cooling / Heating minus 10 to plus 50 °C / minus 20 to plus 24 °C
Condensate pump not stated on the page
Installation flush, protrusion 8 mm according to page; four individually adjustable louvers
Optional according to page Presence sensor, floor sensor
Remote control Infrared remote control BRC7F530W included
Manufacturer according to page Daikin Europe N.V.

Frequently Asked Questions

What cooling and heating capacity does the Daikin Fully Flat FFA35A9 with 3.4 kW have?

According to the table, 3.4 kW in cooling and 4.20 kW in heating (nominal values); the page does not state the power operating ranges. SEER 6.38 and SCOP 4.10 according to the table, energy efficiency class according to page A++ in cooling and A+ in heating on the scale from A+++ to D. Which power class is right for your room, we will check upon request.

What are the dimensions of the cassette and decorative grille?

The indoor unit measures 260 x 575 x 575 mm (height x width x depth) according to the table and weighs 16 kg; it disappears in the suspended ceiling, the decorative grille BYFQ60CW with 46 x 620 x 620 mm and 2.8 kg remains visible. The page does not state the required ceiling cutout, available on request; the outdoor unit RXM35R measures 550 x 765 x 285 mm and weighs 32 kg.

What exactly is included in the delivery?

The delivery includes exclusively the FFA35A9 indoor unit, the BYFQ60CW decorative grille, the RXM35R outdoor unit, and a BRC7F530W infrared remote control. Refrigerant lines, condensate line, bracket, and mounting material are not included, this page does not offer a mounting set. We will state the appropriate material upon request. We confirm availability and delivery time before purchase according to page.

Does the cassette have a condensate pump and what sensors are available?

The page does not mention a condensate pump; whether it is included, we will clarify upon request. As options, the page mentions a presence sensor and a floor sensor, which are set up via the remote control according to page.

How long can the line between the indoor and outdoor unit be?

According to the table, the maximum total pipe length is 20 m and the maximum height difference is 15 m; the pipe connections are stated as 6.35 mm (1/4 inch) + 9.52 mm (3/8 inch). Which line route is permissible for your property and what the specialist company must provide for this, we will check upon request.

Can I heat with the unit in winter?

Yes. The heating mode is stated according to the table down to minus 20 °C outdoor temperature; the heating capacity is 4.20 kW, energy efficiency class in heating according to page A+ on the scale from A+++ to D, SCOP 4.10. The colder it is outside, the less heating capacity is available; therefore, the system is suitable as a supplement to the existing heating.

How loud is the unit?

For the indoor unit, the table states 25 / 34 dB(A) as the low and high stage (L / H), the same for cooling and heating. The outdoor unit is stated as 49 dB(A) in cooling and 49 dB(A) in heating.

Can I install the air conditioner myself?

The installation and commissioning of a split air conditioner is carried out by a certified specialist company. Self-installation is not intended.
