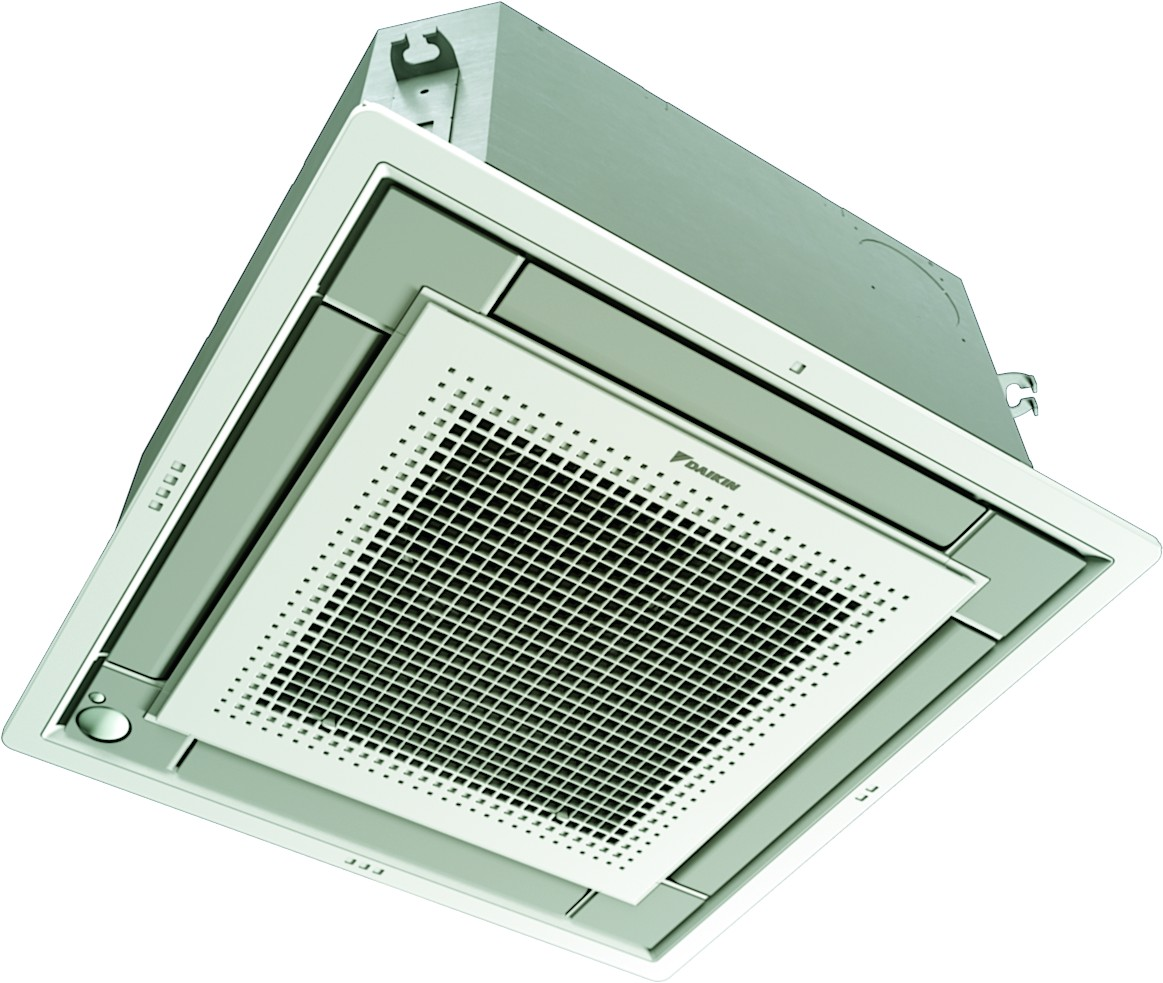

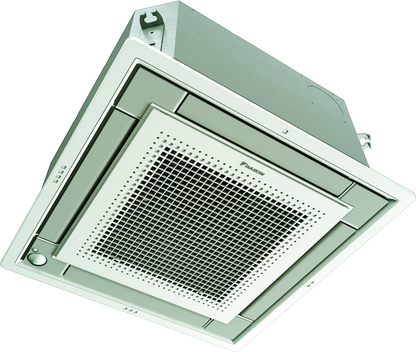

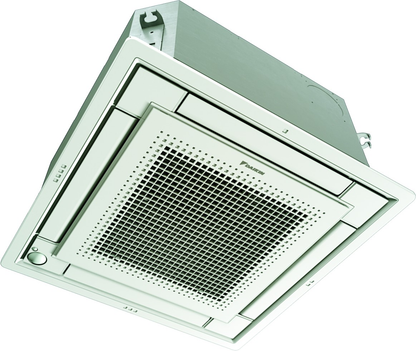

Daikin Fully Flat FFA50A9 Ceiling Cassette 5.0 kW
Daikin Fully Flat FFA50A9 Ceiling Cassette 5.0 kW
Daikin Fully Flat FFA50A9 split ceiling cassette with 5.0 kW cooling and 5.80 kW heating capacity, suitable for rooms of approximately 38 to 50 m²*. Energy efficiency class A+ for cooling and A for heating, on a scale from A+++ to D. Flush-mount installation with an 8 mm lip, individually adjustable louvres, Fully Flat decorative grille BYFQ60CW 620 x 620 mm and infrared remote control included.
incl. VAT + Shipping Costs
Crowd
Couldn't load pickup availability
- Brand-name units from a specialist retailerOriginal products from leading manufacturers
- Personal adviceBy phone, email or WhatsApp
- Installation on requestBy specialist installers in your region
- Secure paymentPayPal with Buyer Protection, credit card and more
Description
Description
With 5.0 kW cooling and 5.80 kW heating capacity (nominal values), the Daikin Fully Flat FFA50A9 is a fully flat ceiling cassette from the Sky Air series, which according to the page sits flush in the ceiling void; indoor unit FFA50A9, decorative grille BYFQ60CW, outdoor unit RXM50R. SEER 5.98 and SCOP 3.90, energy efficiency class according to the page A+ in cooling and A in heating on the scale from A+++ to D. According to the page, the grille protrudes 8 mm above the ceiling, the four louvres are individually adjustable according to the page. As a guide, the power class is suitable for rooms of approximately 38 to 50 m²*.
Performance and range of application
In cooling mode, the unit delivers 5.0 kW, in heating mode 5.80 kW (nominal values); operating ranges are not stated on the page. Connection to 220 to 240 V, 50 Hz, single-phase. Operating range according to the table: minus 10 to plus 50 °C in cooling, minus 20 to plus 24 °C in heating; annual energy consumption according to the table 292 / 1,377 kWh (cooling / heating). The air volume flow of the indoor unit is 8.6 / 10.9 / 12.7 m³/min in cooling (three stages) according to the table. The page does not state the power consumption.
The stated area of approximately 38 to 50 m²* is a guideline at standard room height and normal insulation standard, not a binding design. Room height, insulation standard, window areas, shading and the number of people and devices determine which power class is suitable for your property. We will check the appropriate design for your property upon request.
* Guideline based on the cooling capacity specified by the manufacturer, at a standard room height of approximately 2.5 m, normal insulation standard and average solar radiation. Deviating conditions on site, such as large window areas, sloped roofs or a high number of people, may require a different power class. The binding design is carried out on a property-specific basis. For a professional design of your property, please contact us.
The most important advantages at a glance
- 5.0 kW cooling and 5.80 kW heating capacity according to the table.
- Energy efficiency class A+ in cooling and A in heating according to the page, scale A+++ to D, with SEER 5.98 and SCOP 3.90.
- Flush installation: the grille protrudes 8 mm from the ceiling according to the page, indoor unit 260 mm high.
- Individually adjustable louvres according to the page, Fully Flat decorative grille BYFQ60CW in white (620 x 620 mm) included in the delivery.
- Presence sensor and floor sensor optional according to the page.
- Max. total pipe length 30 m, height difference 20 m according to the table.
- Infrared remote control BRC7F530W included, outdoor unit with swing compressor according to the page.
Functions in detail
Inverter and heat pump operation
Heating is based on the principle of the air-to-air heat pump, according to the table down to minus 20 °C outdoor temperature. The inverter control adjusts the performance; the page does not state the operating ranges. The outdoor unit RXM50R has a swing compressor and heat exchanger fins with corrosion protection according to the page. Seasonal values according to the table: SEER 5.98, SCOP 3.90.
Airflow and filter
Four louvres in the Fully Flat decorative grille BYFQ60CW (46 x 620 x 620 mm), individually adjustable according to the page, so that individual directions can remain closed. According to the table, the air volume flow in cooling is 8.6 / 10.9 / 12.7 m³/min (three stages). A presence sensor and a floor sensor are optional according to the page and are set up via the remote control. The page does not mention a filter; information on request.
Operating modes
- Cooling: 5.0 kW nominal
- Heating: 5.80 kW nominal, down to minus 20 °C according to the table
- Individual control of the four louvres according to the page
- Other operating modes, timers or programs are not mentioned on the page
Control and comfort
- Infrared remote control BRC7F530W included; according to the page multilingual, with setup of the sensor option and the individual louvre positions
- Wired remote control, WLAN control or building management system are not mentioned on the page; options upon request
Operational safety
- Operating range according to the table: minus 10 to plus 50 °C cooling, minus 20 to plus 24 °C heating
- The page does not mention a condensate pump; upon request
- Outdoor unit RXM50R according to the page suitable for roof, terrace or exterior wall, heat exchanger fins with corrosion protection

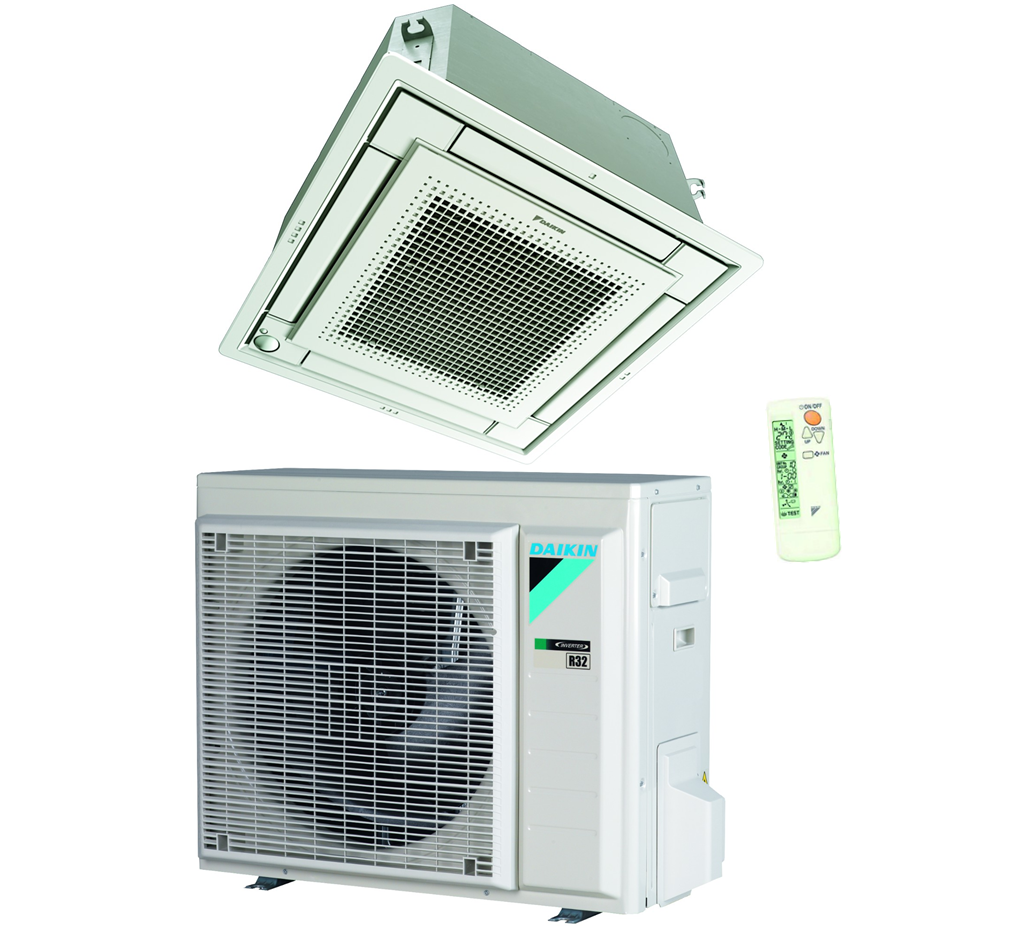

Scope of delivery
Included in the standard scope:
- 1x indoor unit Daikin FFA50A9

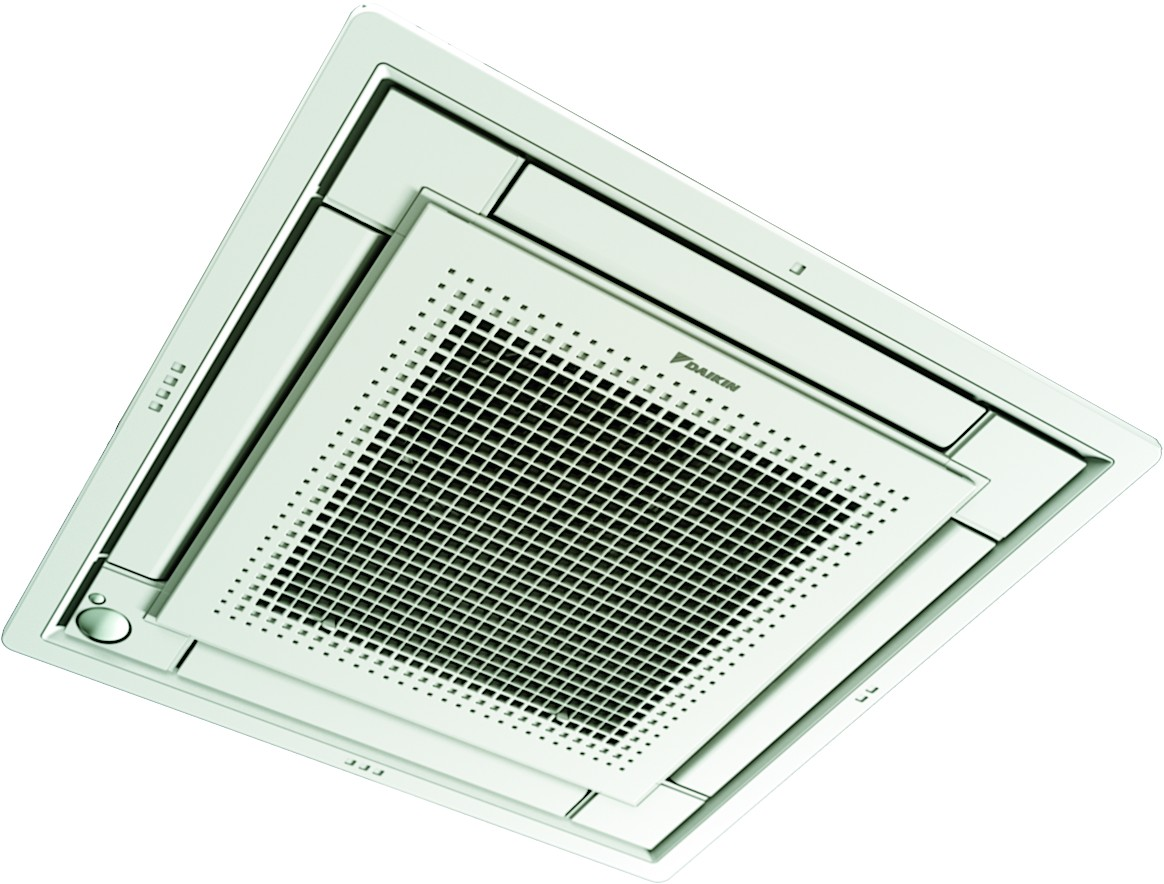

- 1x decorative grille Daikin BYFQ60CW Fully Flat in white

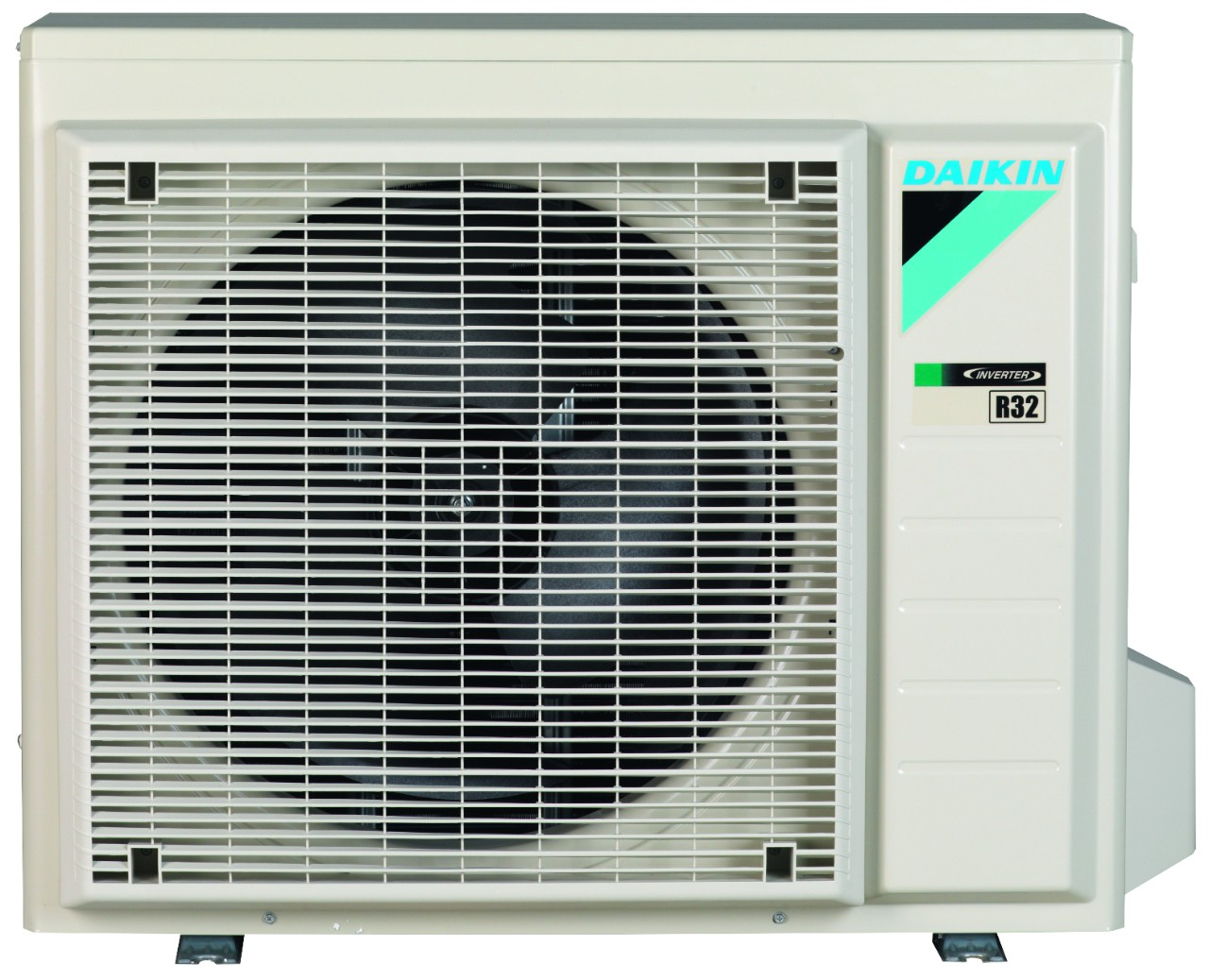

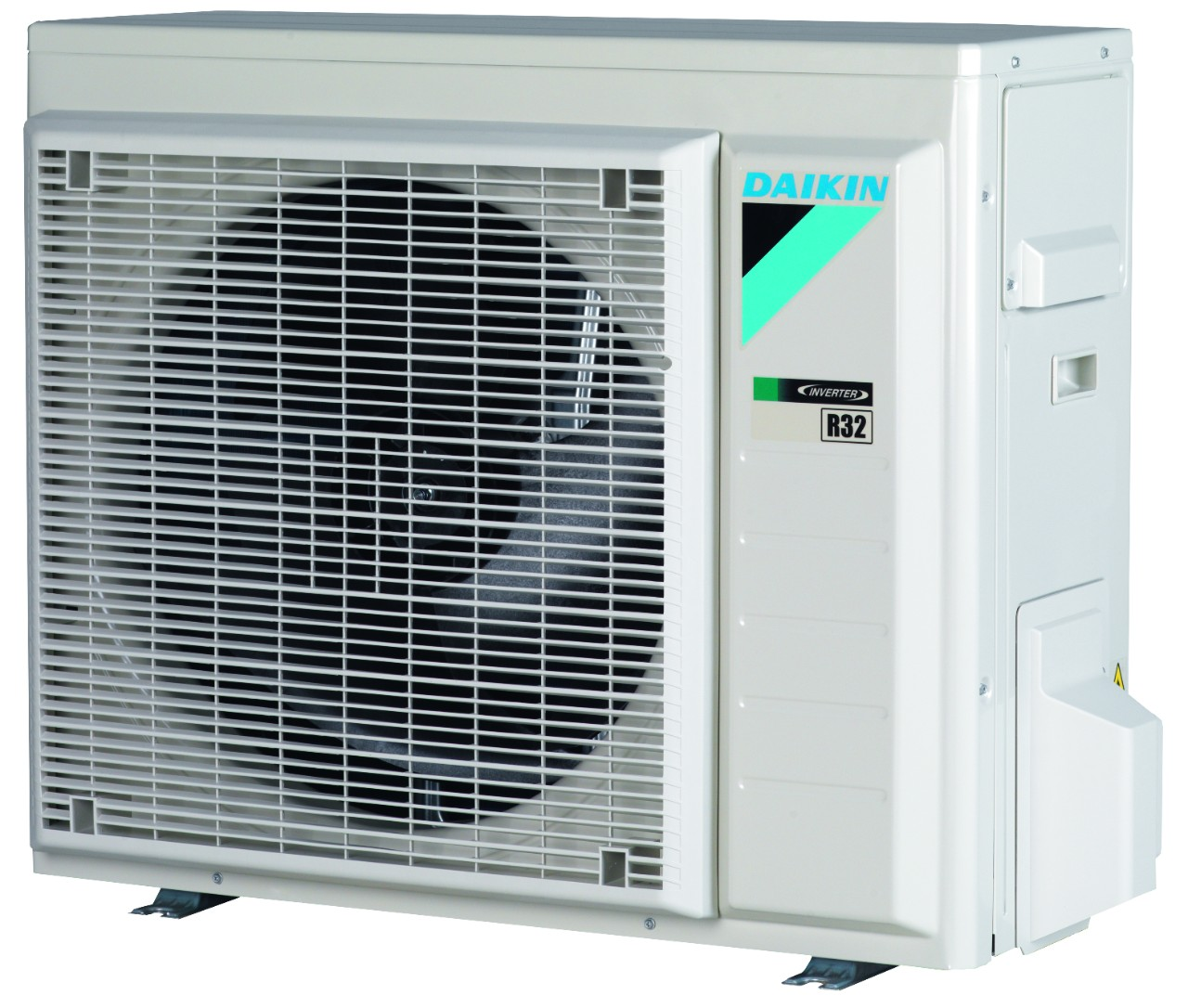

- 1x outdoor unit Daikin RXM50R
- 1x infrared remote control BRC7F530W
We confirm availability and delivery time according to the page before purchase upon request.
What you need additionally
- Refrigerant lines 6.35 mm (1/4 inch) + 12.7 mm (1/2 inch); total pipe length according to the table max. 30 m, height difference max. 20 m
- Condensate line and mounting material for installation in the suspended ceiling
- Optional according to the page: presence sensor and floor sensor
- Wall bracket or floor console for the outdoor unit (50 kg)
- Electrical supply line and protection (value is not stated on the page)
- Installation and commissioning by a specialist company
Technical data
| Indoor unit | Daikin FFA50A9 |
| Outdoor unit | Daikin RXM50R |
| Decorative grille | Daikin BYFQ60CW, 46 x 620 x 620 mm (H x W x D), 2.8 kg |
| Nominal cooling capacity | 5.0 kW |
| Nominal heating capacity | 5.80 kW |
| Energy efficiency class Cooling / Heating | A+ / A according to the page, scale A+++ to D |
| SEER / SCOP according to the table | 5.98 / 3.90 |
| Annual energy consumption Cooling / Heating according to the table | 292 / 1,377 kWh |
| Power supply | 220 to 240 V, 50 Hz, single-phase |
| Power consumption | not stated on the page |
| Sound pressure level indoor unit Cooling and Heating (N / H according to the table) | 27 / 39 dB(A) |
| Sound pressure level outdoor unit Cooling / Heating | 48 / 49 dB(A) |
| Air volume flow indoor unit Cooling / Heating | 8.6 / 10.9 / 12.7 m³/min |
| Dimensions indoor unit (H x W x D), weight | 260 x 575 x 575 mm, 17.5 kg |
| Dimensions outdoor unit (H x W x D), weight | 734 x 870 x 373 mm, 50 kg |
| Pipe connections Liquid + Gas | 6.35 mm (1/4 inch) + 12.7 mm (1/2 inch) |
| Total pipe length / height difference max. | 30 m / 20 m |
| Operating range outdoor temperature Cooling / Heating | minus 10 to plus 50 °C / minus 20 to plus 24 °C |
| Condensate pump | not stated on the page |
| Installation | flush, overhang 8 mm according to the page; four individually adjustable louvres |
| Optional according to the page | Presence sensor, floor sensor |
| Remote control | Infrared remote control BRC7F530W included |
| Manufacturer according to the page | Daikin Europe N.V. |
Frequently Asked Questions
What cooling and heating capacity does the Daikin Fully Flat FFA50A9 with 5.0 kW have?
According to the table 5.0 kW in cooling and 5.80 kW in heating (nominal values); the page does not state the operating ranges of the performance. SEER 5.98 and SCOP 3.90 according to the table, energy efficiency class according to the page A+ in cooling and A in heating on the scale from A+++ to D. Which power class is suitable for your room, we will check upon request.
What dimensions do the cassette and decorative grille have?
According to the table 260 x 575 x 575 mm (H x W x D) at 17.5 kg for the cassette and 46 x 620 x 620 mm at 2.8 kg for the decorative grille BYFQ60CW. What ceiling cutout is required is not stated on the page, upon request. For the outdoor unit RXM50R, 734 x 870 x 373 mm and 50 kg are stated on the page.
What exactly is included in the delivery?
The delivery exclusively includes the indoor unit FFA50A9, the decorative grille BYFQ60CW, the outdoor unit RXM50R and an infrared remote control BRC7F530W. Not included are refrigerant lines, condensate line, wall bracket or console and mounting material; there is no mounting set on this page. What material is suitable, we will share upon request. Availability and delivery time we confirm according to the page before purchase.
Does the cassette have a condensate pump and what sensors are available?
Whether a condensate pump is built-in is not stated on the page, upon request. Optionally, according to the page, there is a presence sensor and a floor sensor; the sensor option is set up according to the page via the remote control.
How long can the line between the indoor and outdoor unit be?
The table states 30 m total pipe length and 20 m height difference as maximum; pipe connections 6.35 mm (1/4 inch) + 12.7 mm (1/2 inch). The permissible pipe route and the necessary preparation by the specialist company we clarify for your property upon request.
Can I heat with the unit in winter?
Yes. The heating mode is stated according to the table down to minus 20 °C outdoor temperature; the heating capacity is 5.80 kW, energy efficiency class in heating according to the page A on the scale from A+++ to D, SCOP 3.90. At low outdoor temperatures, the available heating capacity decreases, so the system complements the existing heating and does not replace it.
How loud is the unit?
Indoor unit according to the table 27 / 39 dB(A) (N / H, cooling and heating); for the outdoor unit 48 / 49 dB(A) (cooling / heating) are stated on the page.
Can I install the air conditioner myself?
The installation and commissioning of a split air conditioner is carried out by a certified specialist company. Self-installation is not intended.
