Daikin Fully Flat FFA60A9 Ceiling Cassette 5.7 kW
Daikin Fully Flat FFA60A9 Ceiling Cassette 5.7 kW
Daikin Fully Flat FFA60A9 split ceiling cassette with 5.7 kW cooling and 7.00 kW heating capacity, suitable for rooms of approximately 44 to 57 m²*. Energy efficiency class A+ for cooling and A+ for heating, on a scale from A+++ to D.
Flush-mount installation with an 8 mm lip, individually adjustable louvers, Fully Flat decorative grille BYFQ60CW 620 x 620 mm and infrared remote control included.
incl. VAT + Shipping Costs
Crowd
Couldn't load pickup availability
- Brand-name units from a specialist retailerOriginal products from leading manufacturers
- Personal adviceBy phone, email or WhatsApp
- Installation on requestBy specialist installers in your region
- Secure paymentPayPal with Buyer Protection, credit card and more
Description
Description

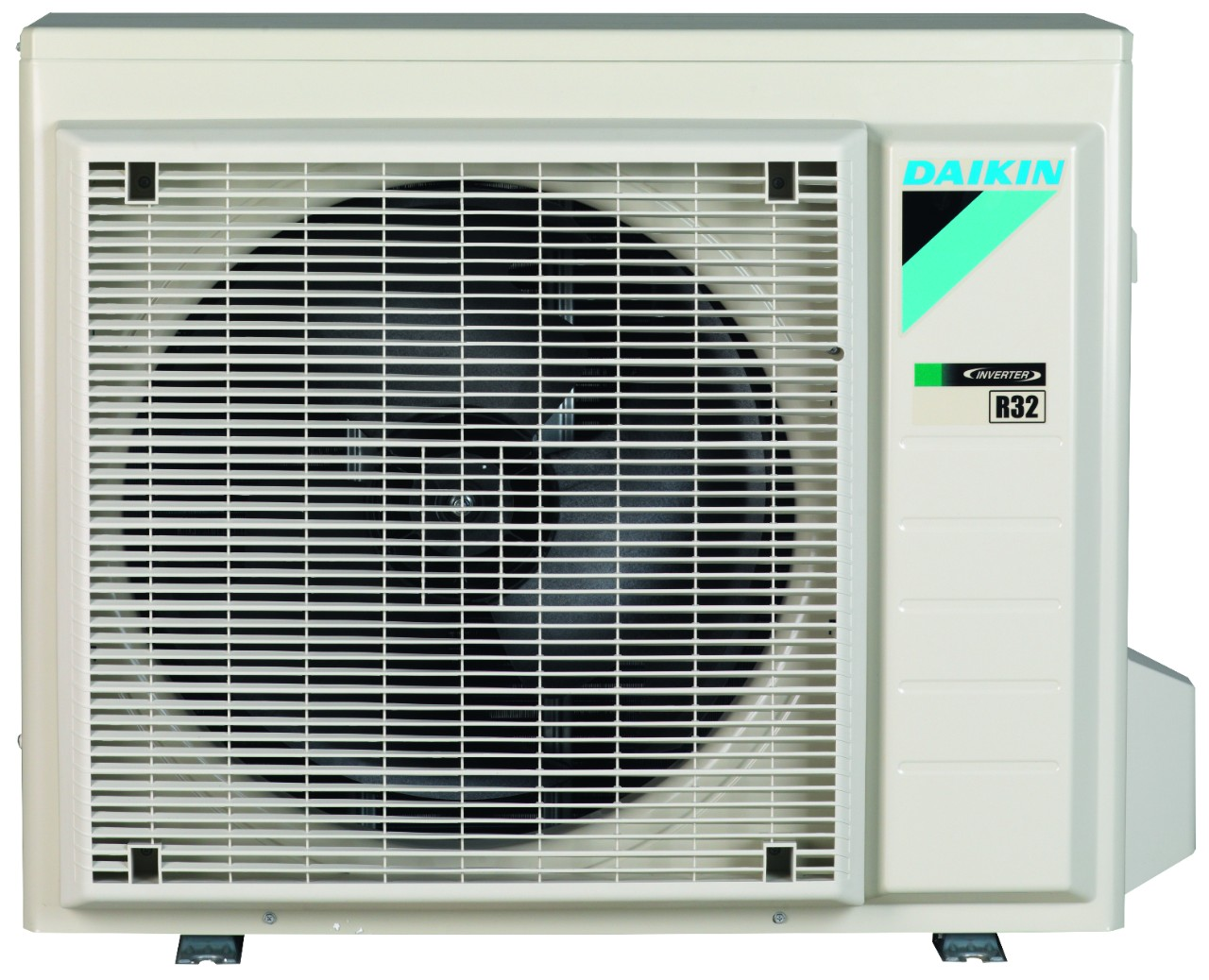

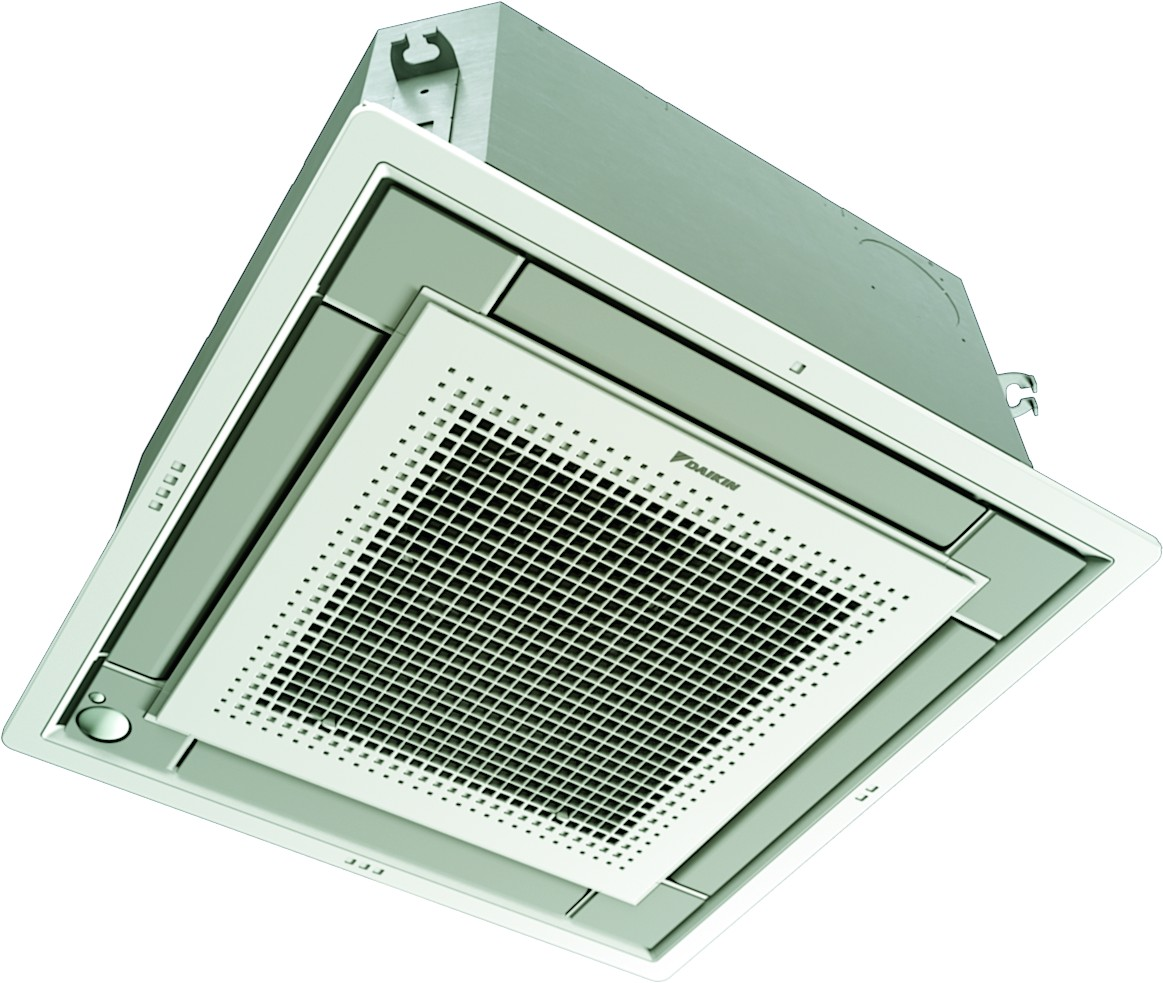

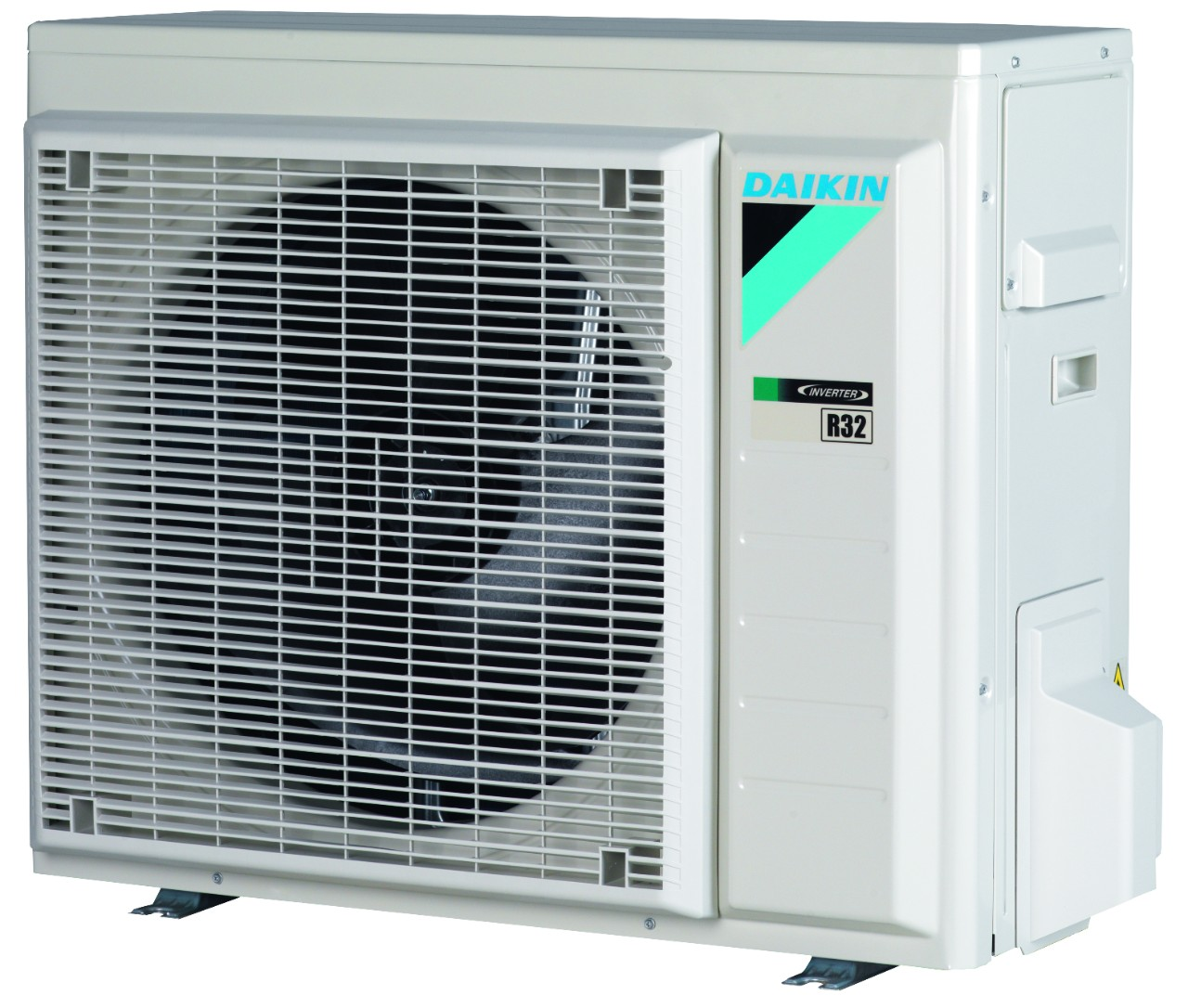

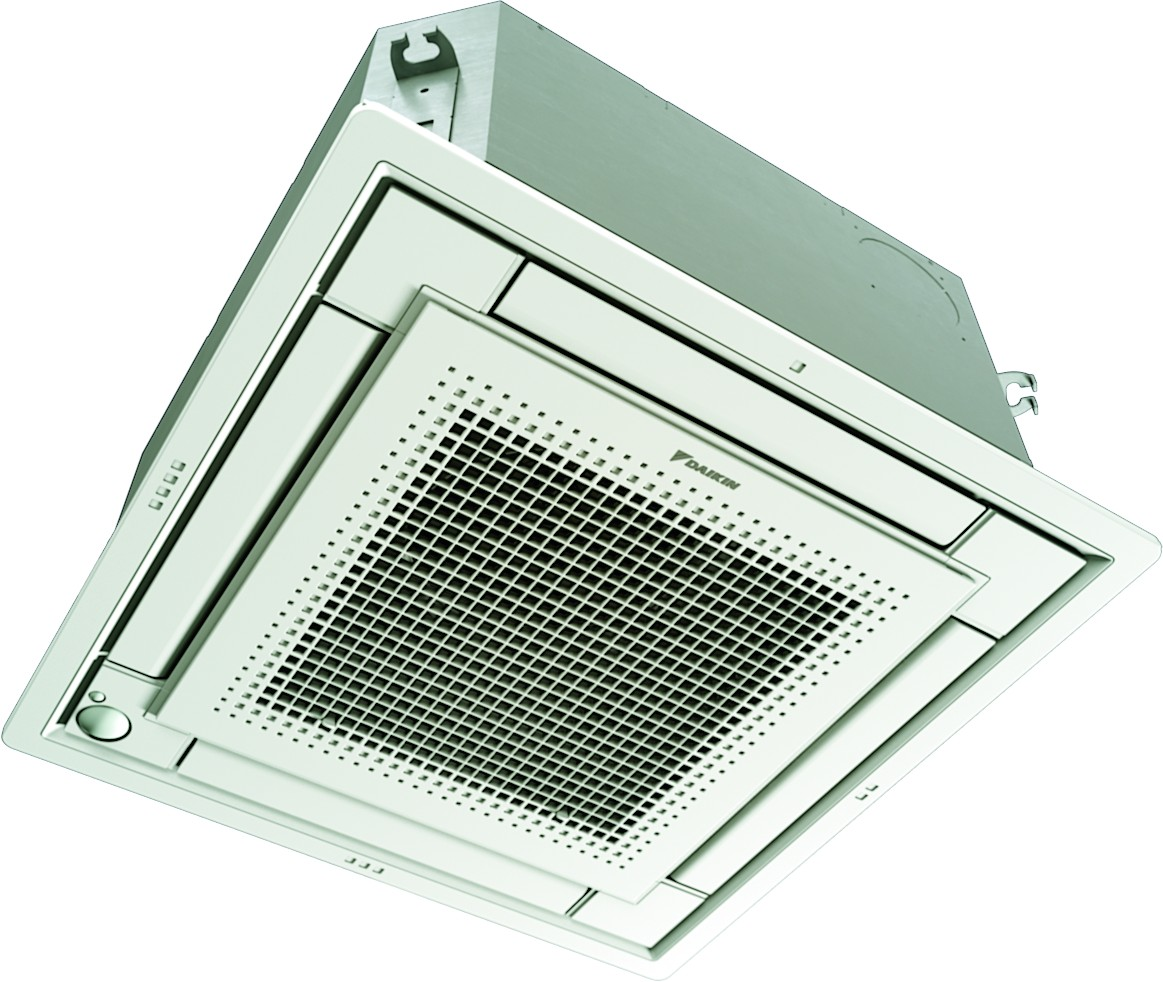

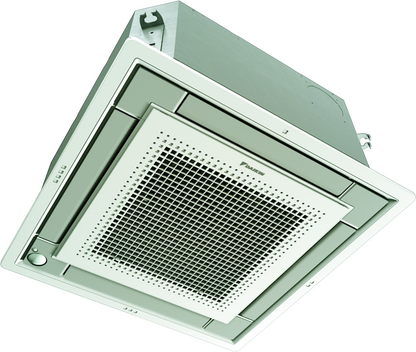

The Daikin Fully Flat FFA60A9 cools with 5.7 kW and heats with 7.00 kW nominal capacity; the FFA60A9 indoor unit from the Sky Air series is installed as a ceiling cassette in the suspended ceiling, with the white decorative grille BYFQ60CW visible, while the RXM60R outdoor unit operates outside. SEER 5.76 and SCOP 4.04, energy efficiency class according to the page A+ in cooling and A+ in heating on the scale from A+++ to D. Flush installation with an 8 mm overhang and individually adjustable louvres are listed as features. The power class is suitable as a guide for rooms of approximately 44 to 57 m²*.
Performance and range of application
In cooling mode, the unit delivers 5.7 kW, in heating mode 7.00 kW (nominal values); the operating ranges are not listed on the page. Connection to 220 to 240 V, 50 Hz, single-phase. Operating range according to the table: minus 10 to plus 50 °C in cooling, minus 20 to plus 24 °C in heating; annual energy consumption according to the table 347 / 1,372 kWh (cooling / heating). The air volume flow of the indoor unit is 9.5 / 12.5 / 14.5 m³/min in cooling (three stages) according to the table. The page does not state the power consumption.
The stated area of approximately 44 to 57 m²* is a guideline for standard room height and normal insulation standards, not a binding design. Whether the power class is suitable for your room depends on the room height, insulation standards, window areas, shading, and the number of people and devices. We will check the appropriate design for your property upon request.
* Guideline based on the cooling capacity specified by the manufacturer, at a standard room height of approximately 2.5 m, normal insulation standards, and average solar radiation. Different conditions on site, such as large window areas, sloped roofs, or a high number of people, may require a different power class. The binding design is carried out on a property-specific basis. For a professional design of your property, please contact us.
The most important advantages at a glance
- 5.7 kW cooling and 7.00 kW heating capacity according to the table.
- Energy efficiency class A+ in cooling and A+ in heating according to the page, scale A+++ to D, with SEER 5.76 and SCOP 4.04.
- Flush installation: the grille protrudes 8 mm from the ceiling according to the page, indoor unit 260 mm high.
- Individually adjustable louvres according to the page, Fully Flat decorative grille BYFQ60CW in white (620 x 620 mm) included in the delivery.
- Presence sensor and floor sensor optional according to the page.
- Max. total pipe length 30 m, height difference 20 m according to the table.
- Infrared remote control BRC7F530W included, outdoor unit with swing compressor according to the page.
Detailed functions
Inverter and heat pump operation
The inverter adjusts the power to the demand; the page does not state the power operating ranges. In heating mode, the unit operates as an air-to-air heat pump and uses outdoor air down to minus 20 °C according to the table. The RXM60R outdoor unit has a swing compressor and heat exchanger louvres with corrosion protection according to the page. Seasonal values according to the table: SEER 5.76, SCOP 4.04.
Airflow and filters

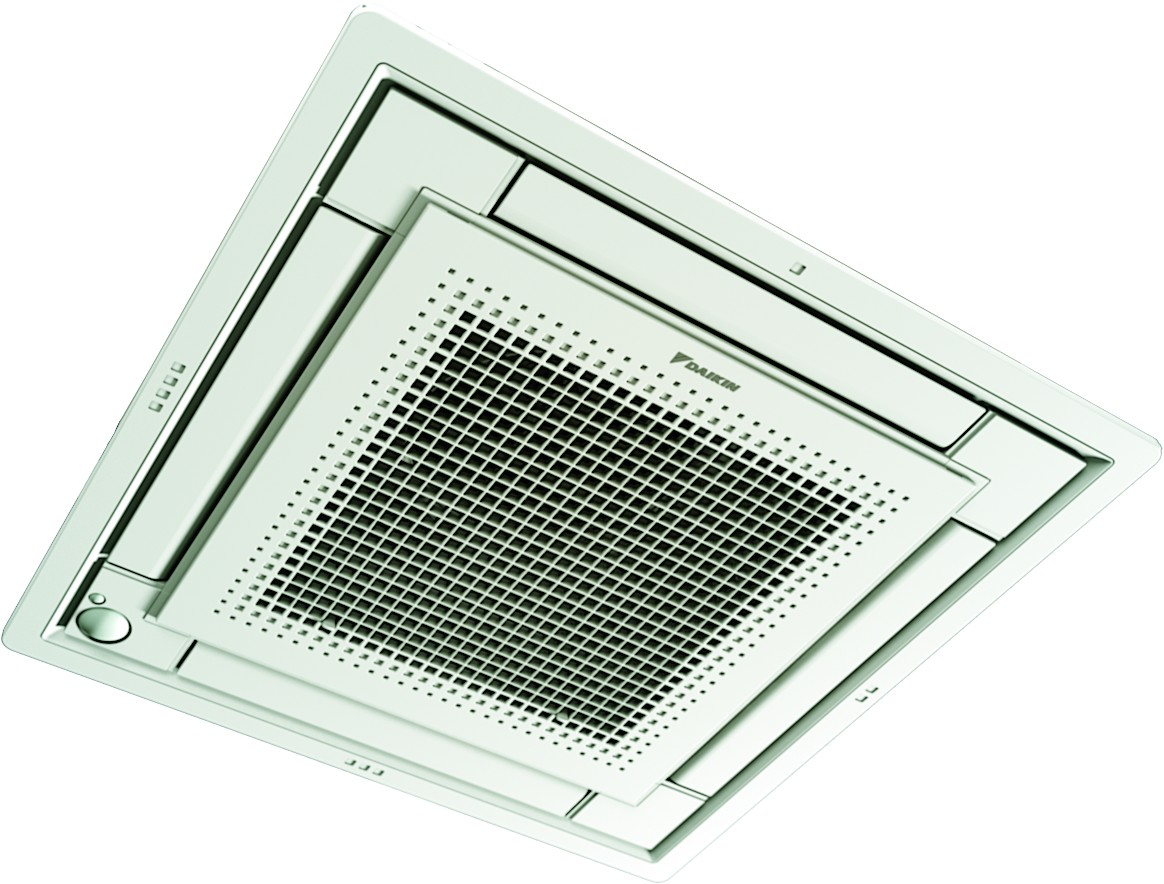

Through the Fully Flat decorative grille BYFQ60CW (46 x 620 x 620 mm), the air flows over four louvres, which are individually adjustable according to the page; air volume flow according to the table 9.5 / 12.5 / 14.5 m³/min in cooling on three stages. A presence sensor and a floor sensor are optional according to the page and are set up via the remote control. The page does not mention a filter; information on request.
Operating modes
- Cooling: 5.7 kW nominal
- Heating: 7.00 kW nominal, down to minus 20 °C according to the table
- Individual control of the four louvres according to the page
- Other operating modes, timers, or programs are not mentioned on the page
Control and comfort
- Infrared remote control BRC7F530W included; according to the page multilingual, with setup of the sensor option and the individual louvre positions
- Wired remote control, WLAN control, or building management system are not mentioned on the page; options on request
Operational safety
- Operating range according to the table: minus 10 to plus 50 °C cooling, minus 20 to plus 24 °C heating
- The page does not mention a condensate pump; on request
- Outdoor unit RXM60R according to the page suitable for roof, terrace, or exterior wall, heat exchanger louvres with corrosion protection
Scope of delivery
Included in the standard scope:
- 1x Daikin FFA60A9 indoor unit
- 1x Daikin BYFQ60CW Fully Flat decorative grille in white
- 1x Daikin RXM60R outdoor unit
- 1x BRC7F530W infrared remote control
We confirm availability and delivery time according to the page before purchase upon request.
What you need additionally
- Refrigerant lines 6.35 mm (1/4 inch) + 12.7 mm (1/2 inch); total pipe length according to the table max. 30 m, height difference max. 20 m
- Condensate line and mounting material for installation in the suspended ceiling
- Optional according to the page: presence sensor and floor sensor
- Wall bracket or floor console for the outdoor unit (50 kg)
- Electrical supply line and circuit breaker (value is not stated on the page)
- Installation and commissioning by a specialist company
Technical data
| Indoor unit | Daikin FFA60A9 |
| Outdoor unit | Daikin RXM60R |
| Decorative grille | Daikin BYFQ60CW, 46 x 620 x 620 mm (H x W x D), 2.8 kg |
| Nominal cooling capacity | 5.7 kW |
| Nominal heating capacity | 7.00 kW |
| Energy efficiency class Cooling / Heating | A+ / A+ according to the page, scale A+++ to D |
| SEER / SCOP according to the table | 5.76 / 4.04 |
| Annual energy consumption Cooling / Heating according to the table | 347 / 1,372 kWh |
| Power supply | 220 to 240 V, 50 Hz, single-phase |
| Power consumption | not stated on the page |
| Sound pressure level Indoor unit Cooling and Heating (L / H according to the table) | 32 / 43 dB(A) |
| Sound pressure level Outdoor unit Cooling / Heating | 48 / 49 dB(A) |
| Air volume flow Indoor unit Cooling / Heating | 9.5 / 12.5 / 14.5 m³/min |
| Dimensions Indoor unit (H x W x D), weight | 260 x 575 x 575 mm, 17.5 kg |
| Dimensions Outdoor unit (H x W x D), weight | 734 x 870 x 373 mm, 50 kg |
| Pipe connections Liquid + Gas | 6.35 mm (1/4 inch) + 12.7 mm (1/2 inch) |
| Total pipe length / height difference max. | 30 m / 20 m |
| Operating range outdoor temperature Cooling / Heating | minus 10 to plus 50 °C / minus 20 to plus 24 °C |
| Condensate pump | not stated on the page |
| Installation | flush, overhang 8 mm according to the page; four individually adjustable louvres |
| Optional according to the page | Presence sensor, floor sensor |
| Remote control | Infrared remote control BRC7F530W included |
| Manufacturer according to the page | Daikin Europe N.V. |
Frequently Asked Questions
What cooling and heating capacity does the Daikin Fully Flat FFA60A9 with 5.7 kW have?
According to the table 5.7 kW in cooling and 7.00 kW in heating (nominal values); the page does not state the operating ranges of the power. SEER 5.76 and SCOP 4.04 according to the table, energy efficiency class according to the page A+ in cooling and A+ in heating on the scale from A+++ to D. Which power class is suitable for your room, we will check upon request.
What dimensions do the cassette and decorative grille have?
According to the table 260 x 575 x 575 mm (H x W x D) at 17.5 kg for the cassette and 46 x 620 x 620 mm at 2.8 kg for the decorative grille BYFQ60CW. What ceiling cutout is required is not stated on the page, on request. For the outdoor unit RXM60R, 734 x 870 x 373 mm and 50 kg are stated on the page.
What exactly is included in the scope of delivery?
The delivery exclusively includes the indoor unit FFA60A9, the decorative grille BYFQ60CW, the outdoor unit RXM60R and an infrared remote control BRC7F530W. Also not included: refrigerant lines, condensate line, bracket and mounting material; as a variant there is no mounting set. We will tell you the suitable accessories upon request. We confirm availability and delivery time according to the page before purchase.
Does the cassette have a condensate pump and what sensors are available?
The page does not mention a condensate pump (on request), but does mention as options a presence sensor and a floor sensor, to be set up according to the page via the remote control.
How long can the line between the indoor and outdoor unit be?
Maximum 30 m total length and 20 m height difference according to the table; connected with 6.35 mm (1/4 inch) + 12.7 mm (1/2 inch). What length your installation situation allows and what the specialist company must provide for this, we will check upon request.
Can I heat with the unit in winter?
Yes. The heating mode is stated according to the table down to minus 20 °C outdoor temperature; the heating capacity is 7.00 kW, energy efficiency class in heating according to the page A+ on the scale from A+++ to D, SCOP 4.04. The colder it is outside, the less heating capacity is available; therefore, the system is suitable as a supplement to the existing heating.
How loud is the unit?
According to the table, the indoor unit is 32 / 43 dB(A) on the low and high stage (L / H); the outdoor unit comes to 48 dB(A) in cooling and 49 dB(A) in heating.
Can I install the air conditioner myself?
The installation and commissioning of a split air conditioner is carried out by a certified specialist company. Self-installation is not intended.
