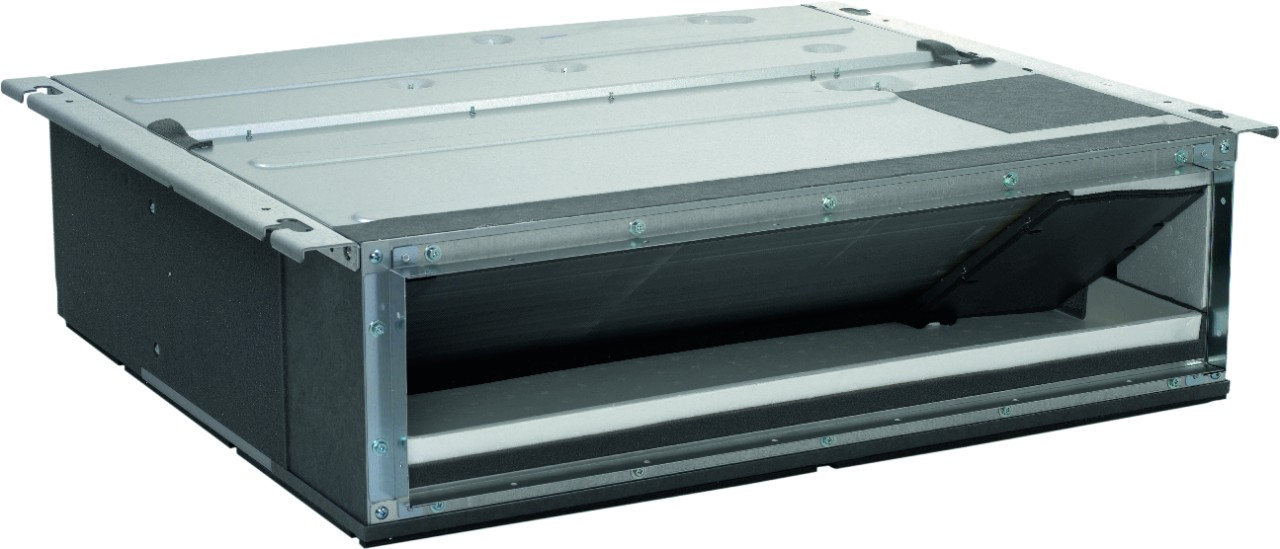

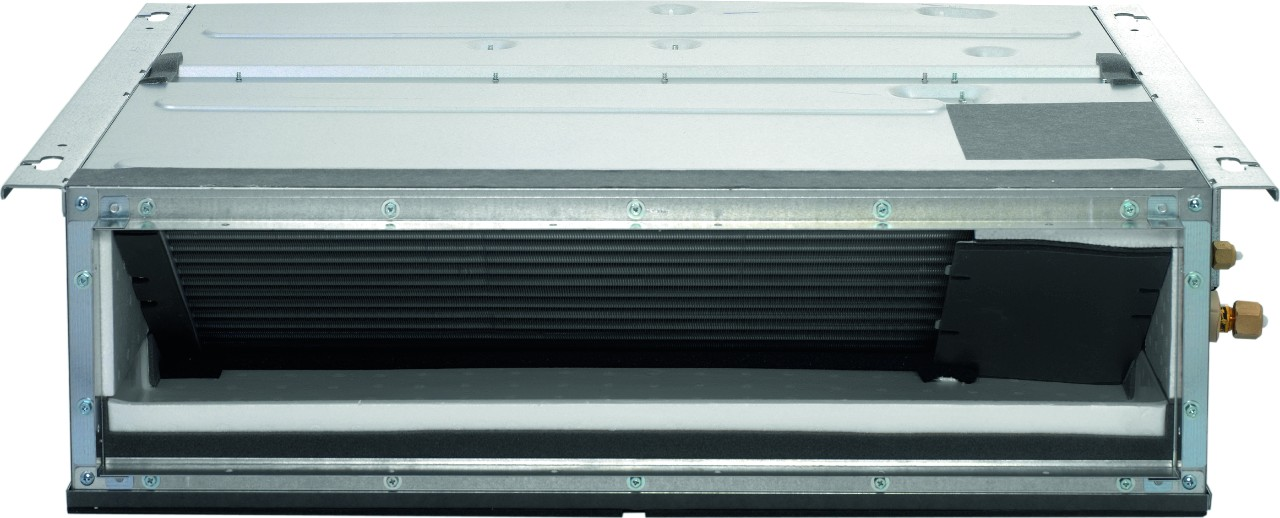

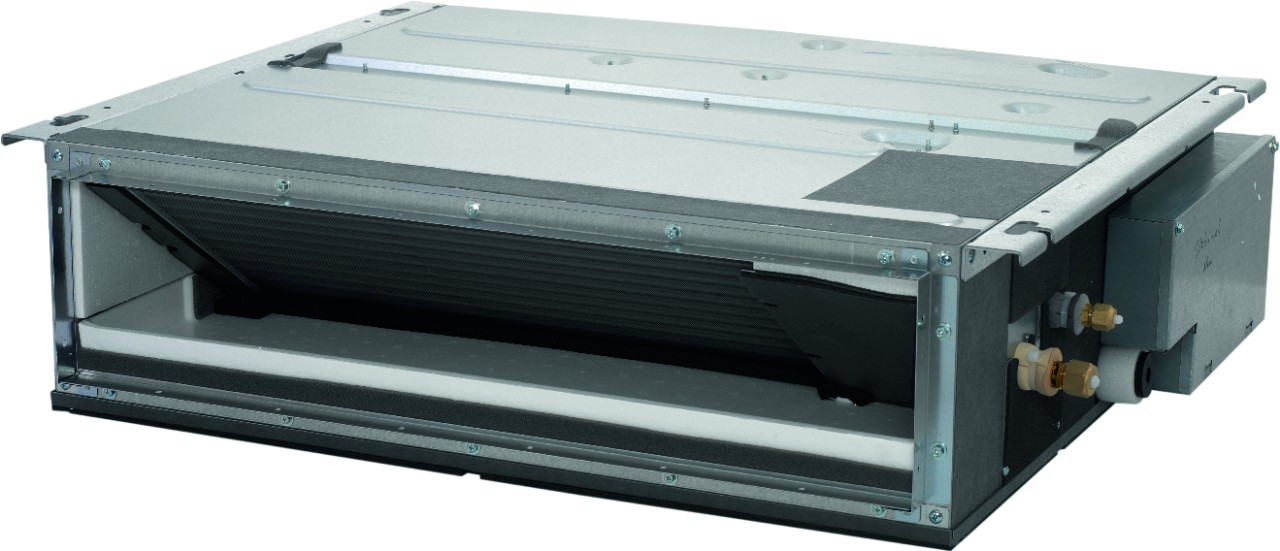

Daikin duct device FDXM35F9 3.4 kW
Daikin duct device FDXM35F9 3.4 kW
incl. VAT + shipping costs
Crowd
Description
Description
Split ducted air conditioner Daikin FDXM35F9 / RXM35R9 / BRC4C65 3.4 kW
Included in delivery:

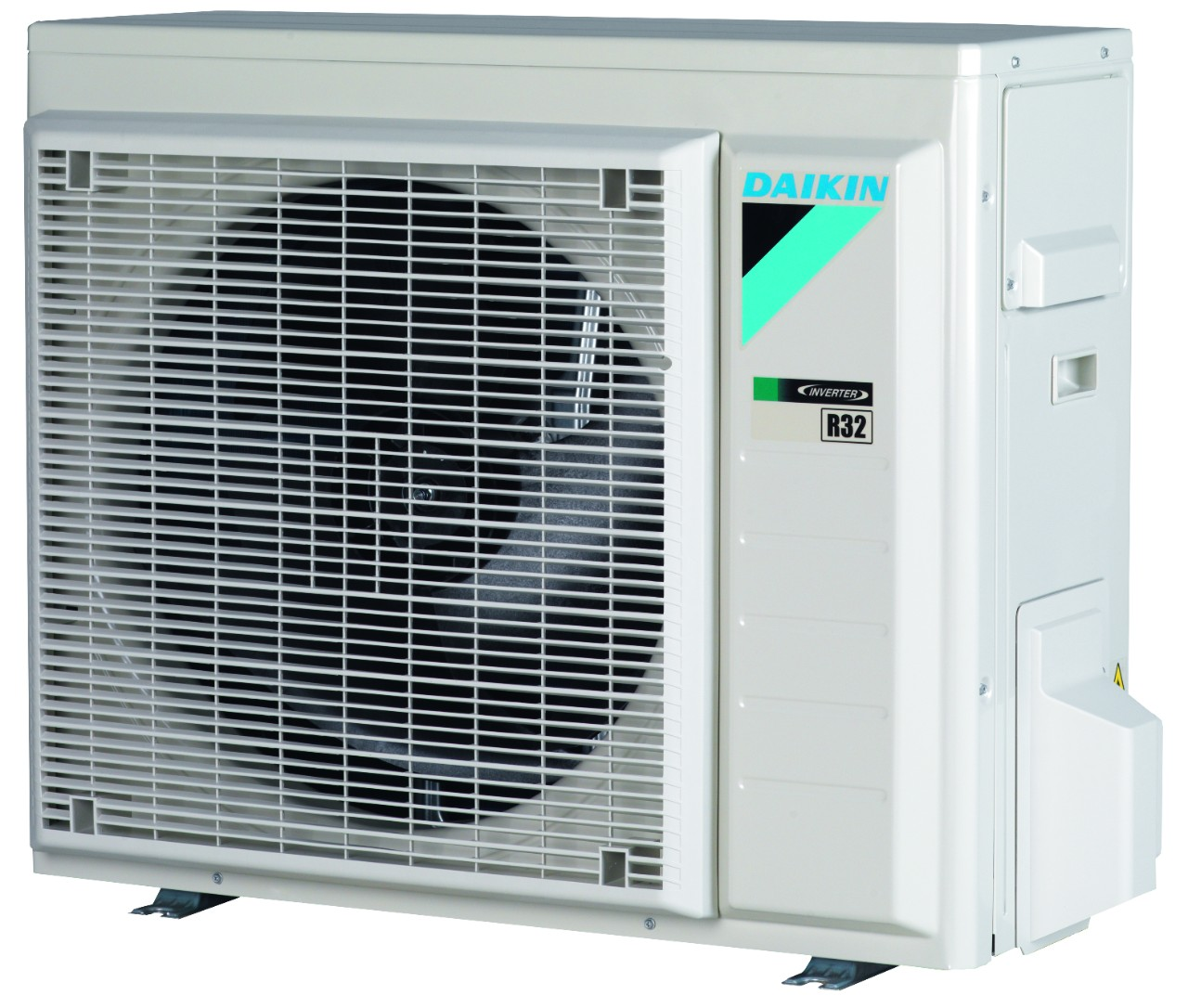

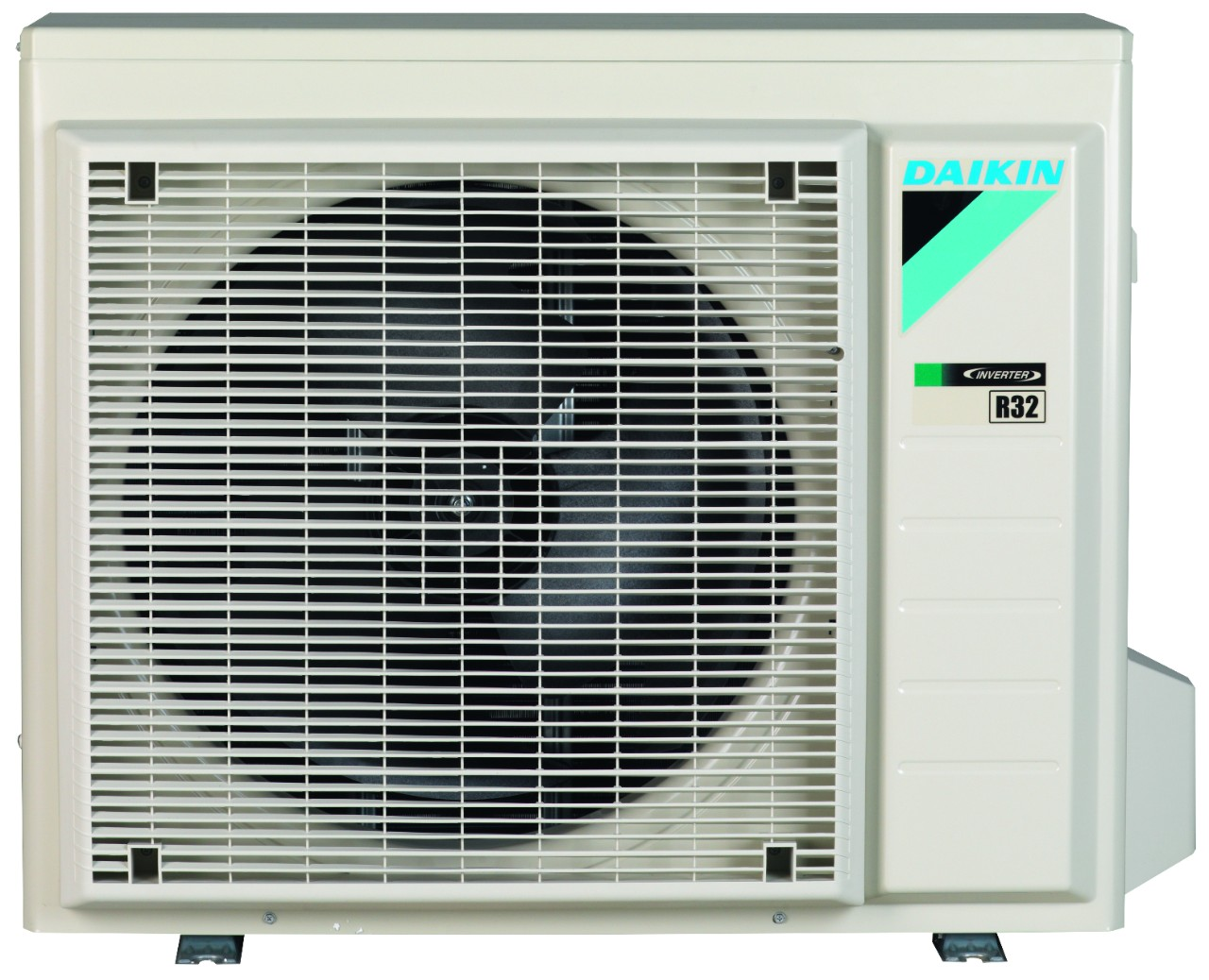

• one outdoor unit RXM35R9
• one indoor unit FDXM35F9
• a remote control BRC4C65
Features:
• The combination with split outdoor units is ideal for smaller residential, retail and office applications
• The device is invisible as it is installed in the ceiling: only the intake and exhaust air grilles are visible
• Compact dimensions for easy installation in ceiling cavities from 240 mm height
• An average external static pressure of up to 40 Pa allows the device to be used with flexible flex pipes of different lengths
• The automatic filter cleaning option ensures maximum efficiency, comfort and reliability through regular cleaning of the filter
• The outdoor unit is equipped with a swing compressor, which ensures lower noise and higher energy efficiency.
• Daikin outdoor units are robust and can be easily mounted on a roof or terrace, or simply placed against an outside wall.
• Heat exchanger fins of the outdoor unit with corrosion protection
Specifications:
| Cooling capacity (Nom./Min./Max.) : | 1.40/3.40/3.80 kW |
| Heating capacity (Nom./Min./Max.) : | 1.40/4.00/5.00 kW |
| Annual energy consumption cooling/heating: | 226/1046 kWh/a |
| Heating energy efficiency class: | A+ |
| SEER/SCOP/A: | 5.26/3.88 |
| Sound pressure level indoor unit cooling: | 27.0/35.0 dB(A) |
| Sound pressure level indoor unit heating: | 27.0/35.0 dB(A) |
| Sound pressure level outdoor unit cooling/heating (Nom.): | 49/49 dB(A) |
| Indoor unit dimensions (HxWxD): | 200x750x620 mm (21 kg) |
| Outdoor unit dimensions (HxWxD): | 550x765x285 mm (32 kg) |
| Power supply: | 1 phase, 220-240 V, 50 Hz |
| Cooling/heating operating range (min.-max.): | −10~50/−20~24 °C |
| Air volume flow indoor unit cooling: | 7.3/8.0/8.7 m3/min |
| Air volume flow indoor unit heating: | 7.3/8.0/8.7 m3/min |
| Refrigerant type: | R32, GWP=675 |
| Refrigerant pre-charge: | pre-filled up to 10 m |
| Pipe connections liquid + gas: | 6.35 mm + 9.50 mm |
| Total cable length: | 20 m |
| Max. height difference: | 15 m |
Before purchasing, please contact us to confirm availability and delivery time!
*Important NOTE
Dear customer, you should bear in mind that with the purchase the buyer / user confirms compliance with “Regulation (EU) No 517/2014 of the European Parliament and of the Council of 16 April 2014 on fluorinated greenhouse gases and compliance with Regulation (EU) No 573/2024 of the European Parliament and of the Council of March 2024 on fluorinated greenhouse gases, which stipulates that: the person purchasing the split air conditioner / the user confirms that it will be professionally installed by certified professionals.
https://www.gesetze-im-internet.de/chemklimaschutzv/__9.html
Manufacturer information
Manufacturer information
Important NOTE
Important NOTE
Dear Customer, please note that by purchasing this product, the buyer/user confirms compliance with Regulation (EU) No 517/2014 of the European Parliament and of the Council of 16 April 2014 on fluorinated greenhouse gases and Regulation (EU) No 573/2024 of the European Parliament and of the Council of March 2024 on fluorinated greenhouse gases, which stipulates the following: The person who buys/uses the split air conditioner confirms that it will be professionally installed by certified professionals.
F-Gas Regulation Download Declaration
