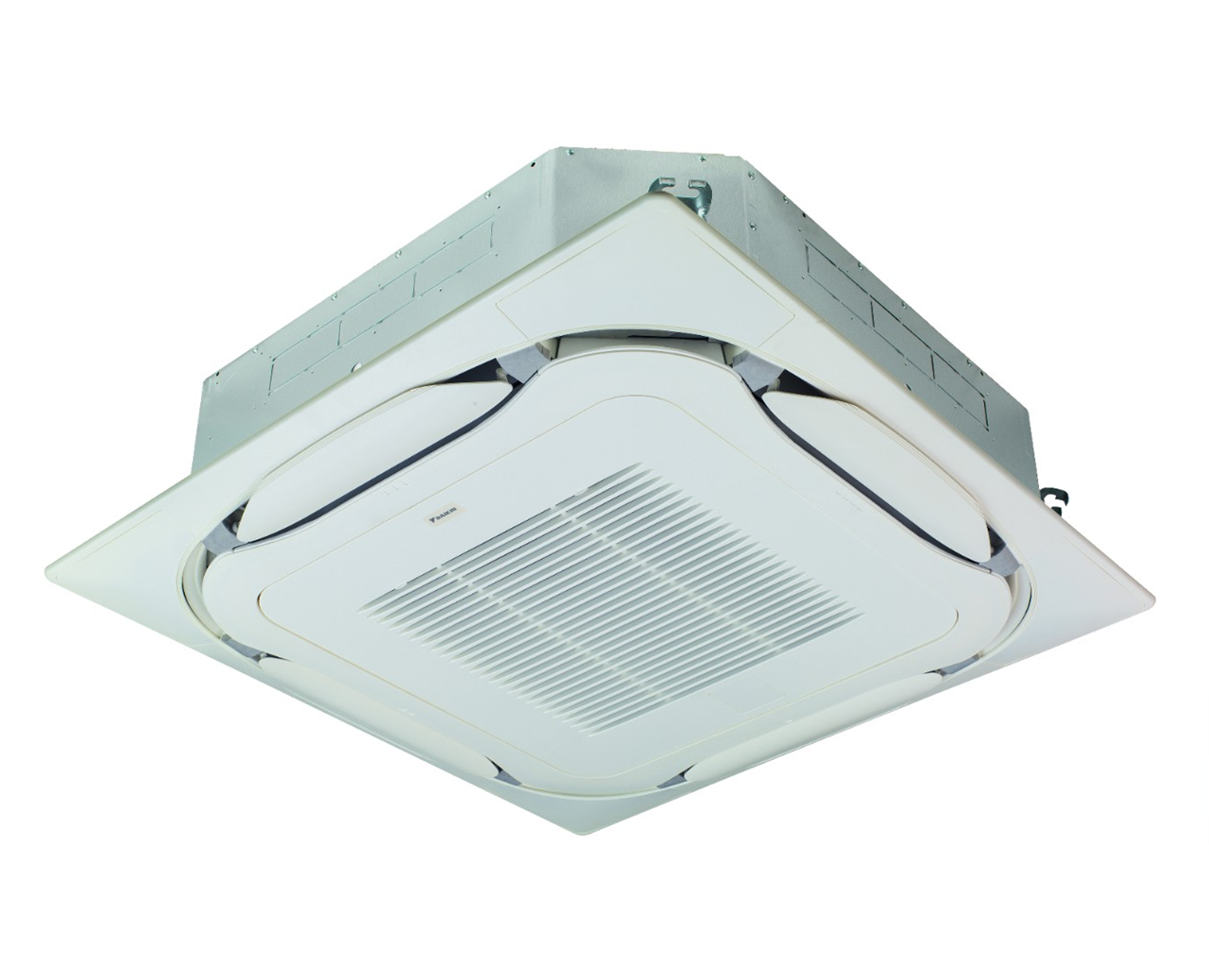

Daikin Roundflow FCAG35B Ceiling Cassette 3.5 kW

Daikin Roundflow FCAG35B Ceiling Cassette 3.5 kW

Daikin Roundflow FCAG35B split ceiling cassette with 3.5 kW cooling and 4.20 kW heating capacity, suitable for rooms of approximately 27 to 35 m²*. Energy efficiency class A++ for cooling and A++ for heating, on a scale from A+++ to D. 360-degree airflow, standard condensate pump, decorative grille BYCQ140E 950 x 950 mm and infrared remote control included.

Regular price €2.799,00
Regular price Sale price €2.799,00
Sale Sold out

incl. VAT + Shipping Costs

Taxes included. Shipping calculated at checkout.

Crowd

  • American Express
  • Diners Club
  • Discover
  • Google Pay
  • JCB
  • Mastercard
  • PayPal
  • Visa
  • Brand-name units from a specialist retailerOriginal products from leading manufacturers
  • Personal adviceBy phone, email or WhatsApp
  • Installation on requestBy specialist installers in your region
  • Secure paymentPayPal with Buyer Protection, credit card and more

Description

The Daikin Roundflow FCAG35B is a split Roundflow ceiling cassette with a cooling capacity of 3.5 kW and a heating capacity of 4.20 kW, consisting of indoor unit FCAG35B with decorative grille BYCQ140E and outdoor unit RXM35R. SEER 6.35 and SCOP 4.90, energy efficiency class according to page A++ in cooling and A++ in heating on the scale from A+++ to D. According to the page, the air flows out around the unit over 360 degrees, a condensate pump is standard according to the page, the indoor unit is 204 mm high. As a guide, the power class is suitable for rooms of approximately 27 to 35 m²*.

Performance and range of application

The cooling capacity is 3.5 kW, the heating capacity 4.20 kW (nominal values); the page does not state the power operating ranges. Power supply 220 to 240 V, 50 Hz, single-phase. According to the table, the unit operates at outdoor temperatures from minus 10 to plus 50 °C in cooling and from minus 20 to plus 24 °C in heating; the annual energy consumption is stated as 193 / 948 kWh (cooling / heating). According to the table, the air volume flow of the indoor unit is 8.8 / 10.6 / 12.9 m³/min in cooling and 9.4 / 11.6 / 14.1 m³/min in heating (three stages). The page does not state the power consumption.

The stated area of approximately 27 to 35 m²* is a guideline at standard room height and normal insulation standard, not a binding design. Which power class is right for your property depends on room height, insulation standard, window areas, shading, as well as the number of people and devices. We check the appropriate design for your property upon request.

* Guideline based on the cooling capacity specified by the manufacturer, at a standard room height of approximately 2.5 m, normal insulation standard and average solar radiation. Deviating conditions on site, such as large window areas, sloped roofs or a high number of people, may require a different power class. The binding design is carried out on a property-specific basis. For a professional design of your property please contact us.

The most important advantages at a glance

  • 3.5 kW cooling and 4.20 kW heating capacity according to the table.
  • Energy efficiency class A++ in cooling and A++ in heating according to the page, scale A+++ to D, with SEER 6.35 and SCOP 4.90.
  • Air distribution over 360 degrees according to the page, five selectable fan speeds.
  • Condensate pump as standard according to the page, indoor unit 204 mm high.

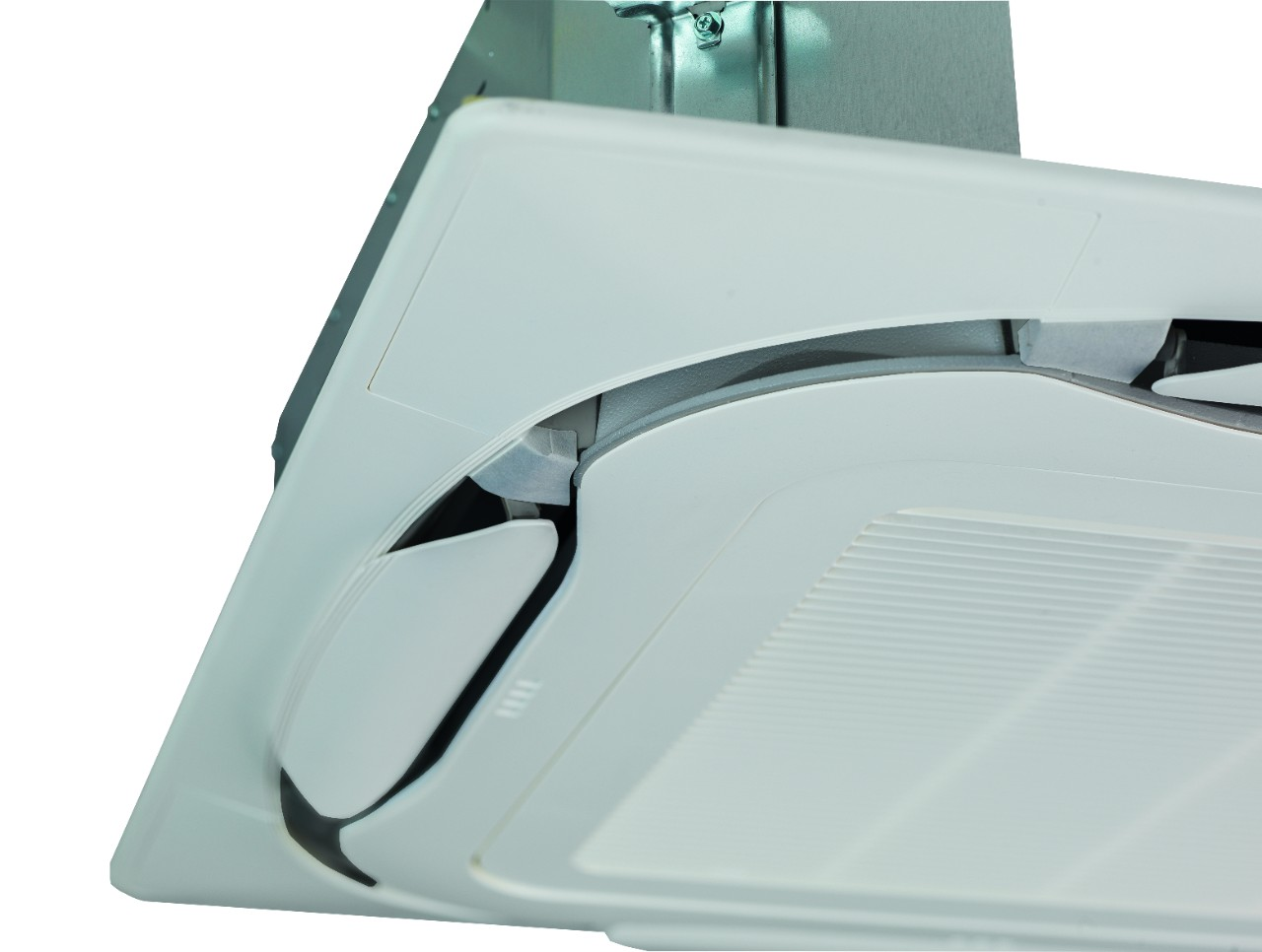

  • Decorative grille BYCQ140E in white (RAL 9010) with grey louvers, 950 x 950 mm, included in the delivery.
  • Max. total pipe length 20 m, height difference 15 m according to the table.
  • Infrared remote control BRC7FA532F included, outdoor unit with swing compressor according to the page.

Functions in detail

Inverter and heat pump operation

The inverter adjusts the power to the demand; the page does not state the power operating ranges. In heating mode, the unit operates as an air-to-air heat pump and uses outdoor air down to minus 20 °C according to the table. The outdoor unit RXM35R has a swing compressor and heat exchanger fins with corrosion protection according to the page. Seasonal values according to the table: SEER 6.35, SCOP 4.90.

Airflow and filter

According to the page, the air flows out all around over 360 degrees from the decorative grille BYCQ140E (65 x 950 x 950 mm); louvers with a swinging motion distribute the air evenly in the room according to the page, the fan has five selectable speeds according to the page. The air volume flow is 8.8 / 10.6 / 12.9 m³/min in cooling on three stages according to the table. The page does not mention a filter; information on request.

Operating modes

  • Cooling: 3.5 kW nominal
  • Heating: 4.20 kW nominal, down to minus 20 °C according to the table
  • Five selectable fan speeds according to the page
  • Other operating modes, timers or programs are not mentioned on the page

Control and comfort

  • Infrared remote control BRC7FA532F included
  • Wired remote control, WLAN control or building management system is not mentioned on the page; options on request

Operational safety

  • Operating range according to the table: minus 10 to plus 50 °C cooling, minus 20 to plus 24 °C heating
  • Condensate pump as standard according to the page
  • Outdoor unit RXM35R according to the page suitable for roof, terrace or exterior wall, heat exchanger fins with corrosion protection

Scope of delivery

Included in the standard scope:

  • 1x indoor unit Daikin FCAG35B
  • 1x decorative grille Daikin BYCQ140E in white (RAL 9010) with grey louvers
  • 1x outdoor unit Daikin RXM35R
  • 1x infrared remote control BRC7FA532F

We confirm availability and delivery time according to the page before purchase upon request.

What you need additionally

  • Refrigerant lines 6.35 mm (1/4 inch) + 9.52 mm (3/8 inch); total pipe length according to the table max. 20 m, height difference max. 15 m
  • Condensate line and mounting material for installation in the suspended ceiling
  • Wall bracket or floor console for the outdoor unit (32 kg)
  • Electrical supply line and circuit breaker (value is not stated on the page)
  • Installation and commissioning by a professional company

Technical data

Indoor unit Daikin FCAG35B
Outdoor unit Daikin RXM35R
Decorative grille Daikin BYCQ140E, 65 x 950 x 950 mm (H x W x D), 5.5 kg
Nominal cooling capacity 3.5 kW
Nominal heating capacity 4.20 kW
Energy efficiency class Cooling / Heating A++ / A++ according to the page, scale A+++ to D
SEER / SCOP according to the table 6.35 / 4.90
Annual energy consumption Cooling / Heating according to the table 193 / 948 kWh
Power supply 220 to 240 V, 50 Hz, single-phase
Power consumption not stated on the page
Sound pressure level indoor unit Cooling and Heating (L / H according to the table) 27 / 31 dB(A)
Sound pressure level outdoor unit Cooling / Heating 49 / 49 dB(A)
Air volume flow indoor unit Cooling / Heating 8.8 / 10.6 / 12.9 / 9.4 / 11.6 / 14.1 m³/min
Dimensions indoor unit (H x W x D), weight 204 x 840 x 840 mm, 18 kg
Dimensions outdoor unit (H x W x D), weight 550 x 765 x 285 mm, 32 kg
Pipe connections Liquid + Gas 6.35 mm (1/4 inch) + 9.52 mm (3/8 inch)
Total pipe length / height difference max. 20 m / 15 m
Operating range outdoor temperature Cooling / Heating minus 10 to plus 50 °C / minus 20 to plus 24 °C
Condensate pump Standard according to the page
Air distribution 360 degrees according to the page, five fan speeds
Remote control Infrared remote control BRC7FA532F included
Manufacturer according to the page Daikin Europe N.V.

Frequently asked questions

What cooling and heating capacity does the Daikin Roundflow FCAG35B with 3.5 kW have?

According to the table 3.5 kW in cooling and 4.20 kW in heating (nominal values); the page does not state the power operating ranges. SEER 6.35 and SCOP 4.90 according to the table, energy efficiency class according to the page A++ in cooling and A++ in heating on the scale from A+++ to D. Which power class is right for your room, we check upon request.

What dimensions do the cassette and decorative grille have?

The indoor unit measures according to the table 204 x 840 x 840 mm (height x width x depth) and weighs 18 kg; it disappears in the suspended ceiling, visible remains the decorative grille BYCQ140E with 65 x 950 x 950 mm and 5.5 kg. The page does not state the necessary ceiling cutout, upon request; the outdoor unit RXM35R measures 550 x 765 x 285 mm and weighs 32 kg.

What exactly is included in the delivery?

The delivery includes exclusively the indoor unit FCAG35B, the decorative grille BYCQ140E, the outdoor unit RXM35R and an infrared remote control BRC7FA532F. Refrigerant lines, condensate line, bracket and mounting material are not included, this page does not offer a mounting set. We state suitable material upon request. We confirm availability and delivery time according to the page before purchase.

Does the cassette have a condensate pump?

Yes, according to the page a condensate pump is standard; the page does not state the delivery height, we share it upon request. The professional company plans the condensate line there.

How long can the line between the indoor and outdoor unit be?

According to the table the maximum total pipe length is 20 m and the maximum height difference is 15 m; the pipe connections are stated with 6.35 mm (1/4 inch) + 9.52 mm (3/8 inch). Which pipe route is permissible for your property and what the professional company must provide for it, we check upon request.

Can I heat with the unit in winter?

Yes. The heating mode is stated according to the table down to minus 20 °C outdoor temperature; the heating capacity is 4.20 kW, energy efficiency class in heating according to the page A++ on the scale from A+++ to D, SCOP 4.90. The available power decreases with falling outdoor temperature, which is why the system is suitable as a supplement to the existing heating.

How loud is the unit?

For the indoor unit the table states 27 / 31 dB(A) as low and high stage (L / H), same for cooling and heating. The outdoor unit is stated with 49 dB(A) in cooling and 49 dB(A) in heating.

Can I install the air conditioner myself?

The installation and commissioning of a split air conditioner is carried out by a certified professional company. Self-installation is not intended.
