Daikin Roundflow FCAG60B Ceiling Cassette 5.7 kW
Daikin Roundflow FCAG60B Ceiling Cassette 5.7 kW
Daikin Roundflow FCAG60B split ceiling cassette with 5.7 kW cooling and 7.00 kW heating capacity, suitable for rooms of approximately 44 to 57 m²*. Energy efficiency class A++ for cooling and A+ for heating, on a scale from A+++ to D.
360-degree airflow, standard condensate pump, decorative grille BYCQ140E 950 x 950 mm and infrared remote control included.
incl. VAT + Shipping Costs
Crowd
Couldn't load pickup availability
- Brand-name units from a specialist retailerOriginal products from leading manufacturers
- Personal adviceBy phone, email or WhatsApp
- Installation on requestBy specialist installers in your region
- Secure paymentPayPal with Buyer Protection, credit card and more
Description
Description

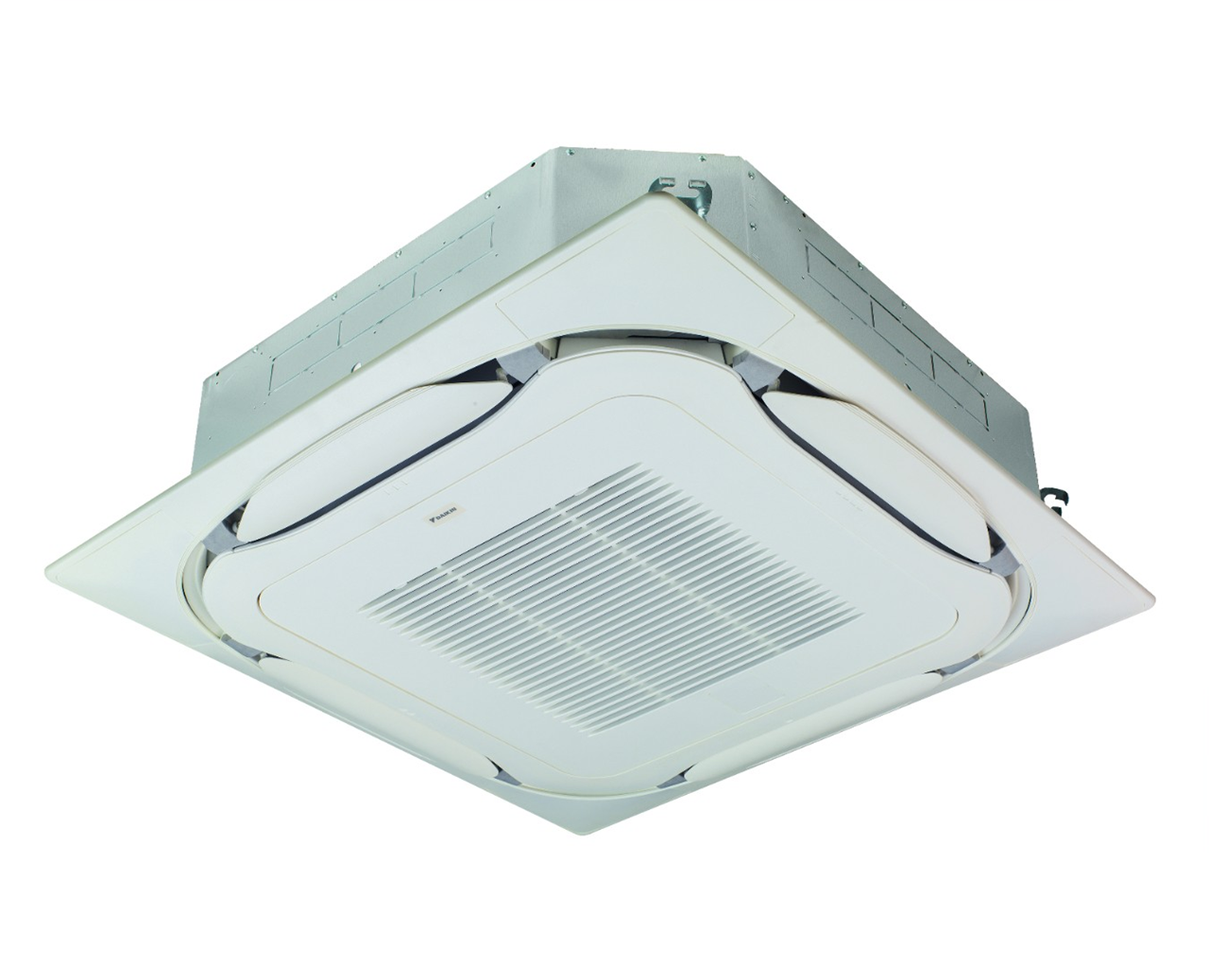

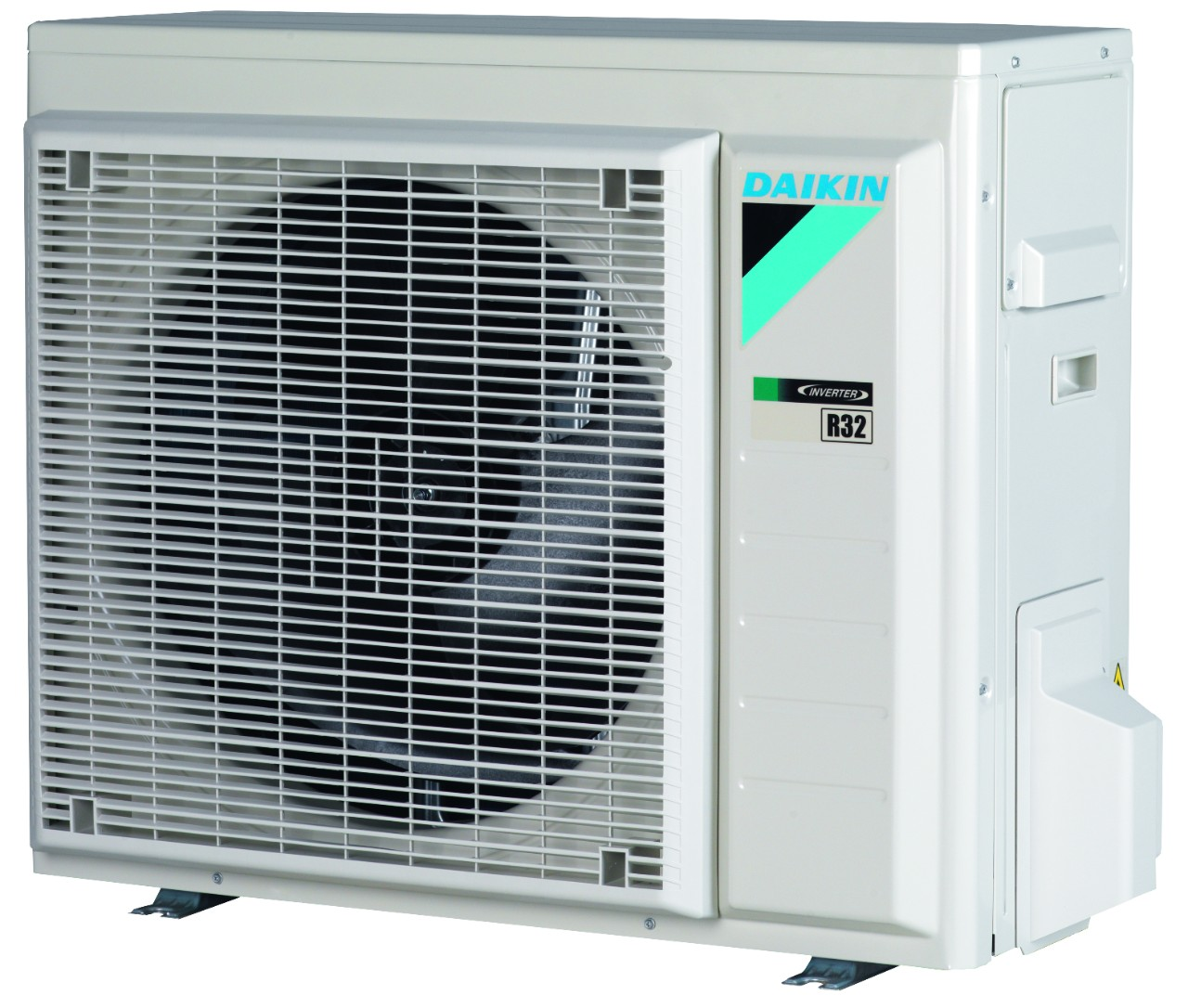

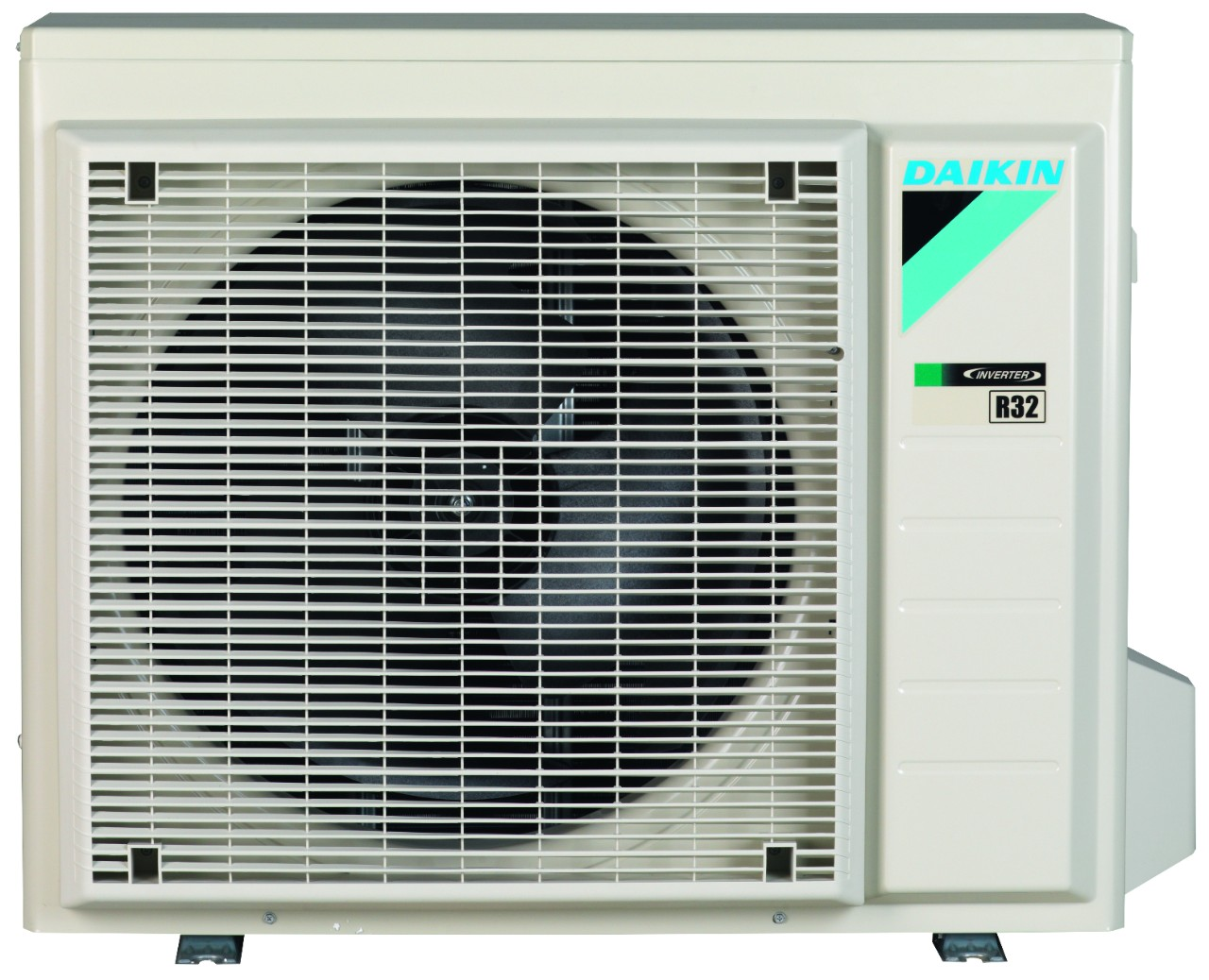

The Daikin Roundflow FCAG60B cools with 5.7 kW and heats with 7.00 kW nominal capacity; the FCAG60B indoor unit is installed as a Roundflow ceiling cassette in the suspended ceiling, with the BYCQ140E decorative grille visible, while the RXM60R outdoor unit operates outside. SEER 6.40 and SCOP 4.20, energy efficiency class according to the page A++ in cooling and A+ in heating on the scale from A+++ to D. All-round 360-degree air distribution, standard condensate pump, and 204 mm installation height are listed as features. The power class is suitable as a guide for rooms of approximately 44 to 57 m²*.
Performance and range of application
Nominal capacity of 5.7 kW in cooling and 7.00 kW in heating; the page does not state the operating ranges; connection to 220 to 240 V, 50 Hz, single-phase. According to the table, cooling is possible between minus 10 and plus 50 °C, and heating between minus 20 and plus 24 °C outdoor temperature; the annual energy consumption is 312 / 1,569 kWh (cooling / heating) according to the table. The air volume flow of the indoor unit is 9.6 / 12.2 / 14.9 m³/min in cooling (three stages) according to the table. The page does not state the power consumption.
The stated area of approximately 44 to 57 m²* is a guideline for standard room height and normal insulation standards, not a binding design. Whether the power class is suitable for your room depends on the room height, insulation standards, window areas, shading, and the number of people and devices. We will check the appropriate design for your property upon request.
* Guideline based on the cooling capacity specified by the manufacturer, at a standard room height of approximately 2.5 m, normal insulation standards, and average solar radiation. Different conditions on site, such as large window areas, sloped roofs, or a high number of people, may require a different power class. The binding design is carried out on a property-specific basis. For a professional design of your property, please contact us.
The most important advantages at a glance
- 5.7 kW cooling and 7.00 kW heating capacity according to the table.
- Energy efficiency class A++ in cooling and A+ in heating according to the page, scale A+++ to D, with SEER 6.40 and SCOP 4.20.
- 360-degree air distribution according to the page, five selectable fan speeds.
- Standard condensate pump according to the page, indoor unit height 204 mm.

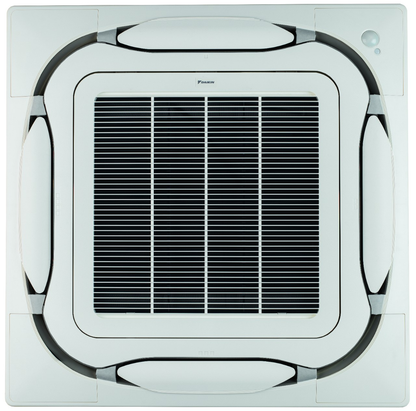

- Decorative grille BYCQ140E in white (RAL 9010) with grey louvres, 950 x 950 mm, included in the delivery.
- Max. total pipe length 30 m, height difference 20 m according to the table.
- Infrared remote control BRC7FA532F included, outdoor unit with swing compressor according to the page.
Detailed functions
Inverter and heat pump operation
Heating is based on the air-to-air heat pump principle, according to the table down to minus 20 °C outdoor temperature. The inverter control adjusts the performance; the page does not state the operating ranges. The RXM60R outdoor unit has a swing compressor and heat exchanger fins with corrosion protection according to the page. Seasonal values according to the table: SEER 6.40, SCOP 4.20.
Airflow and filter

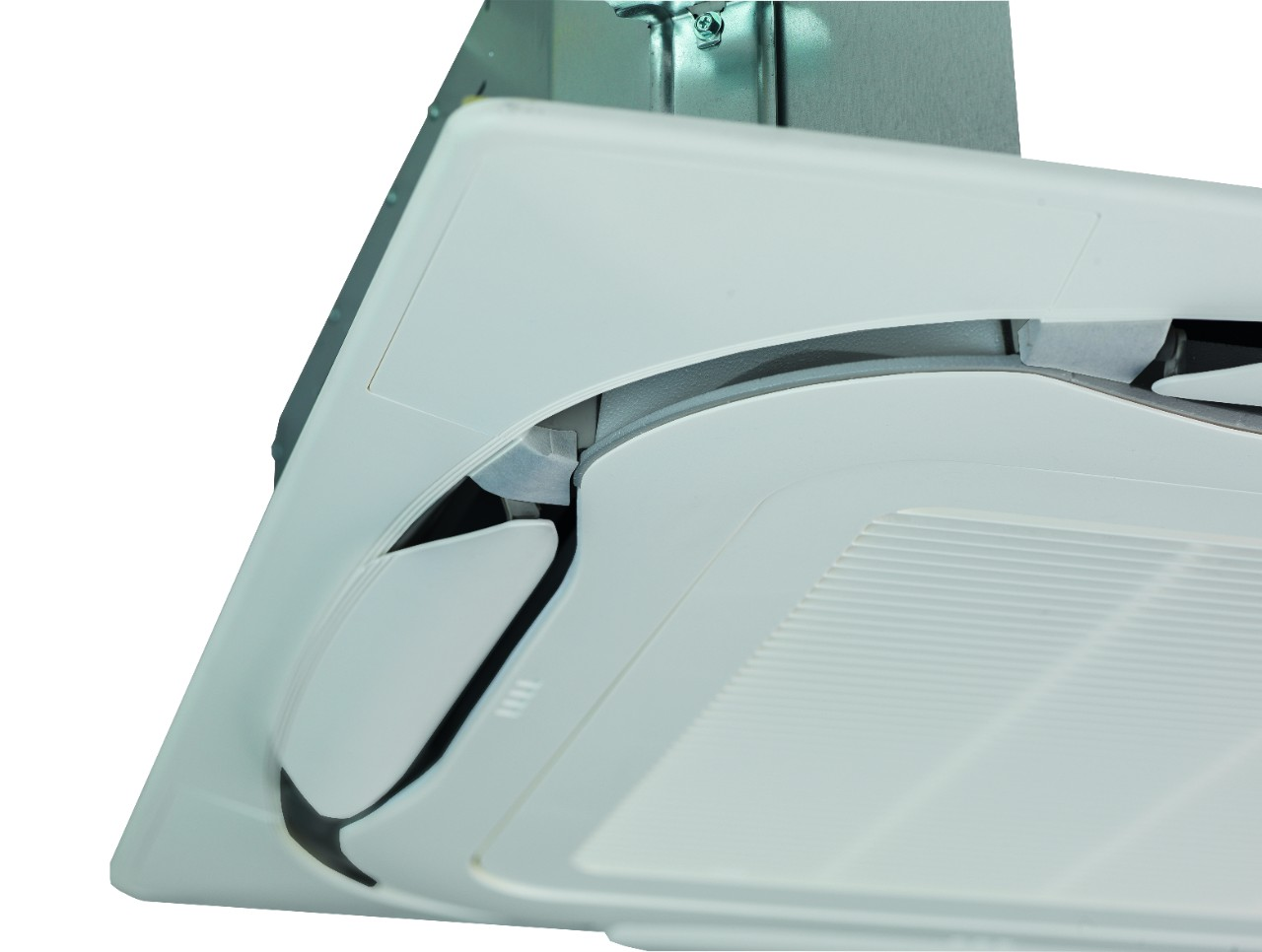

Through the BYCQ140E decorative grille (65 x 950 x 950 mm), the air flows into the room over 360 degrees according to the page; the flaps swing according to the page for even distribution, five fan speeds are selectable according to the page. Air volume flow according to the table 9.6 / 12.2 / 14.9 m³/min in cooling on three stages. The page does not mention a filter; information on request.
Operating modes
- Cooling: 5.7 kW nominal
- Heating: 7.00 kW nominal, down to minus 20 °C according to the table
- Five selectable fan speeds according to the page
- The page does not mention other operating modes, timers, or programs
Control and comfort
- Infrared remote control BRC7FA532F included
- The page does not mention wired remote control, WLAN control, or building management technology; options on request
Operational safety
- Operating range according to the table: minus 10 to plus 50 °C cooling, minus 20 to plus 24 °C heating
- Standard condensate pump according to the page
- Outdoor unit RXM60R according to the page suitable for roof, terrace, or exterior wall, heat exchanger fins with corrosion protection
Scope of delivery
Included in the standard scope:
- 1x Daikin FCAG60B indoor unit
- 1x Daikin BYCQ140E decorative grille in white (RAL 9010) with grey louvres
- 1x Daikin RXM60R outdoor unit
- 1x BRC7FA532F infrared remote control
Availability and delivery time are confirmed according to the page upon request before purchase.
What you need additionally
- Refrigerant lines 6.35 mm (1/4 inch) + 12.7 mm (1/2 inch); total pipe length according to the table max. 30 m, height difference max. 20 m
- Condensate line and mounting material for installation in the suspended ceiling
- Wall bracket or floor console for the outdoor unit (50 kg)
- Electrical supply line and circuit breaker (value not stated on the page)
- Installation and commissioning by a specialist company
Technical data
| Indoor unit | Daikin FCAG60B |
| Outdoor unit | Daikin RXM60R |
| Decorative grille | Daikin BYCQ140E, 65 x 950 x 950 mm (H x W x D), 5.5 kg |
| Nominal cooling capacity | 5.7 kW |
| Nominal heating capacity | 7.00 kW |
| Energy efficiency class cooling / heating | A++ / A+ according to the page, scale A+++ to D |
| SEER / SCOP according to the table | 6.40 / 4.20 |
| Annual energy consumption cooling / heating according to the table | 312 / 1,569 kWh |
| Power supply | 220 to 240 V, 50 Hz, single-phase |
| Power consumption | not stated on the page |
| Sound pressure level indoor unit cooling and heating (L / H according to the table) | 28 / 33 dB(A) |
| Sound pressure level outdoor unit cooling / heating | 48 / 49 dB(A) |
| Air volume flow indoor unit cooling / heating | 9.6 / 12.2 / 14.9 / 9.6 / 12.2 / 14.9 m³/min |
| Dimensions indoor unit (H x W x D), weight | 204 x 840 x 840 mm, 19 kg |
| Dimensions outdoor unit (H x W x D), weight | 734 x 870 x 373 mm, 50 kg |
| Pipe connections liquid + gas | 6.35 mm (1/4 inch) + 12.7 mm (1/2 inch) |
| Total pipe length / height difference max. | 30 m / 20 m |
| Operating range outdoor temperature cooling / heating | minus 10 to plus 50 °C / minus 20 to plus 24 °C |
| Condensate pump | Standard according to the page |
| Air distribution | 360 degrees according to the page, five fan speeds |
| Remote control | Infrared remote control BRC7FA532F included |
| Manufacturer according to the page | Daikin Europe N.V. |
Frequently asked questions
What cooling and heating capacity does the Daikin Roundflow FCAG60B with 5.7 kW have?
According to the table, 5.7 kW in cooling and 7.00 kW in heating (nominal values); the page does not state the operating ranges of the performance. SEER 6.40 and SCOP 4.20 according to the table, energy efficiency class according to the page A++ in cooling and A+ in heating on the scale from A+++ to D. We will check which power class is suitable for your room upon request.
What are the dimensions of the cassette and decorative grille?
Cassette 204 x 840 x 840 mm (H x W x D) at 19 kg and decorative grille BYCQ140E 65 x 950 x 950 mm at 5.5 kg according to the table; the page does not state the ceiling cutout, we will share it upon request. Outdoor unit RXM60R: 734 x 870 x 373 mm, 50 kg.
What exactly is included in the delivery?
The delivery exclusively includes the indoor unit FCAG60B, the decorative grille BYCQ140E, the outdoor unit RXM60R, and an infrared remote control BRC7FA532F. Also not included: refrigerant lines, condensate line, bracket, and mounting material; as an option, there is no mounting set. We will tell you the suitable accessories upon request. Availability and delivery time are confirmed according to the page before purchase.
Does the cassette have a condensate pump?
A condensate pump is standard according to the page. The page does not state the delivery height (upon request); the specialist company lays the condensate line.
How long can the line between the indoor and outdoor unit be?
Maximum 30 m total length and 20 m height difference according to the table; connected with 6.35 mm (1/4 inch) + 12.7 mm (1/2 inch). We will check what length your installation situation allows and what the specialist company must provide for this upon request.
Can I heat with the device in winter?
Yes. The heating operation is specified according to the table down to minus 20 °C outdoor temperature; the heating capacity is 7.00 kW, energy efficiency class in heating according to the page A+ on the scale from A+++ to D, SCOP 4.20. The colder it is outside, the less heating capacity is available; the system is therefore suitable as a supplement to the existing heating.
How loud is the device?
According to the table, the indoor unit is 28 / 33 dB(A) on the low and high stage (L / H); the outdoor unit comes to 48 dB(A) in cooling and 49 dB(A) in heating.
Can I install the air conditioner myself?
The installation and commissioning of a split air conditioner is carried out by a certified specialist company. Self-installation is not intended.
