Daikin Siesta ATXF35E 3.3 kW Split Air Conditioner

Description

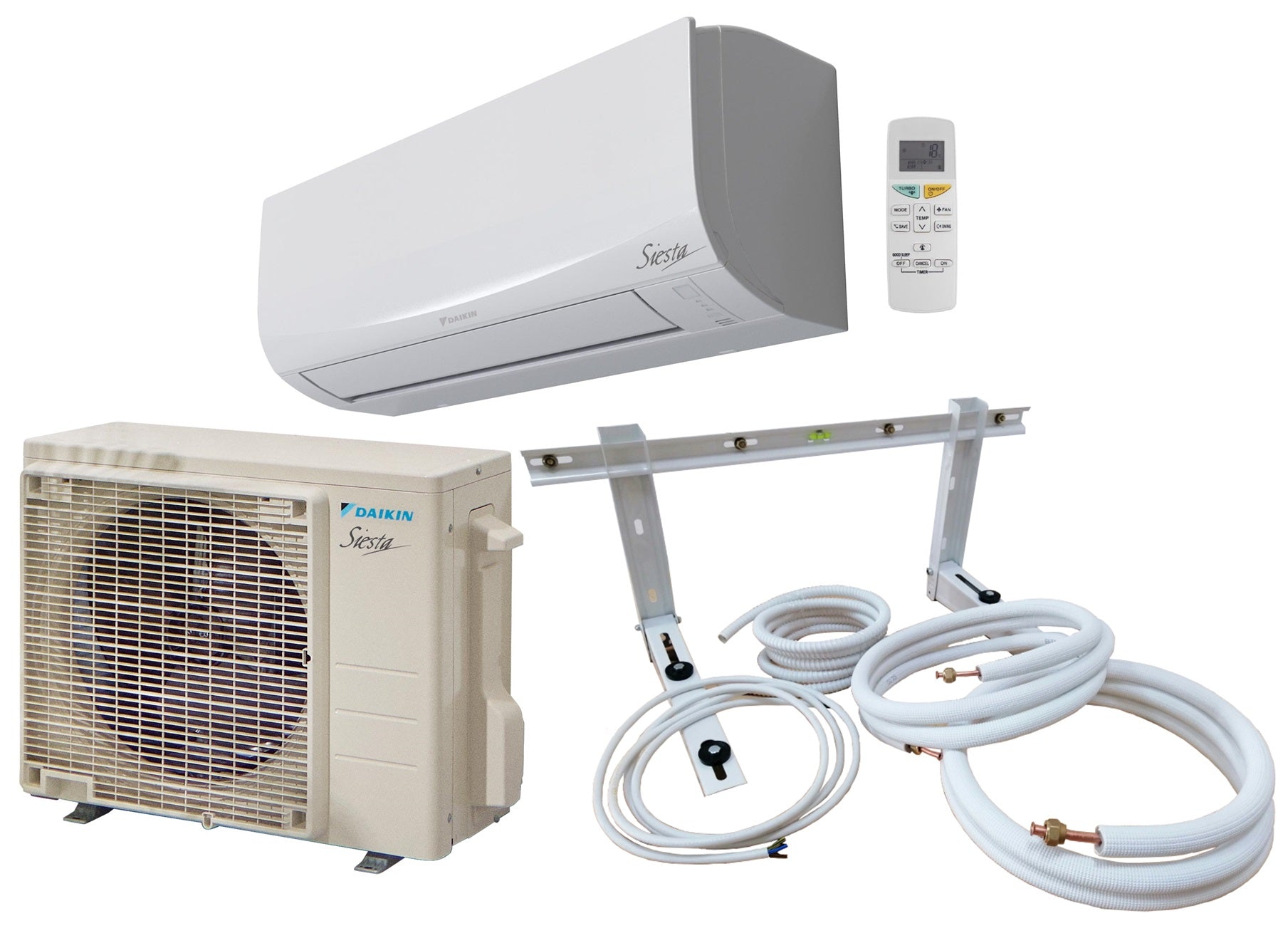

Included in the delivery:

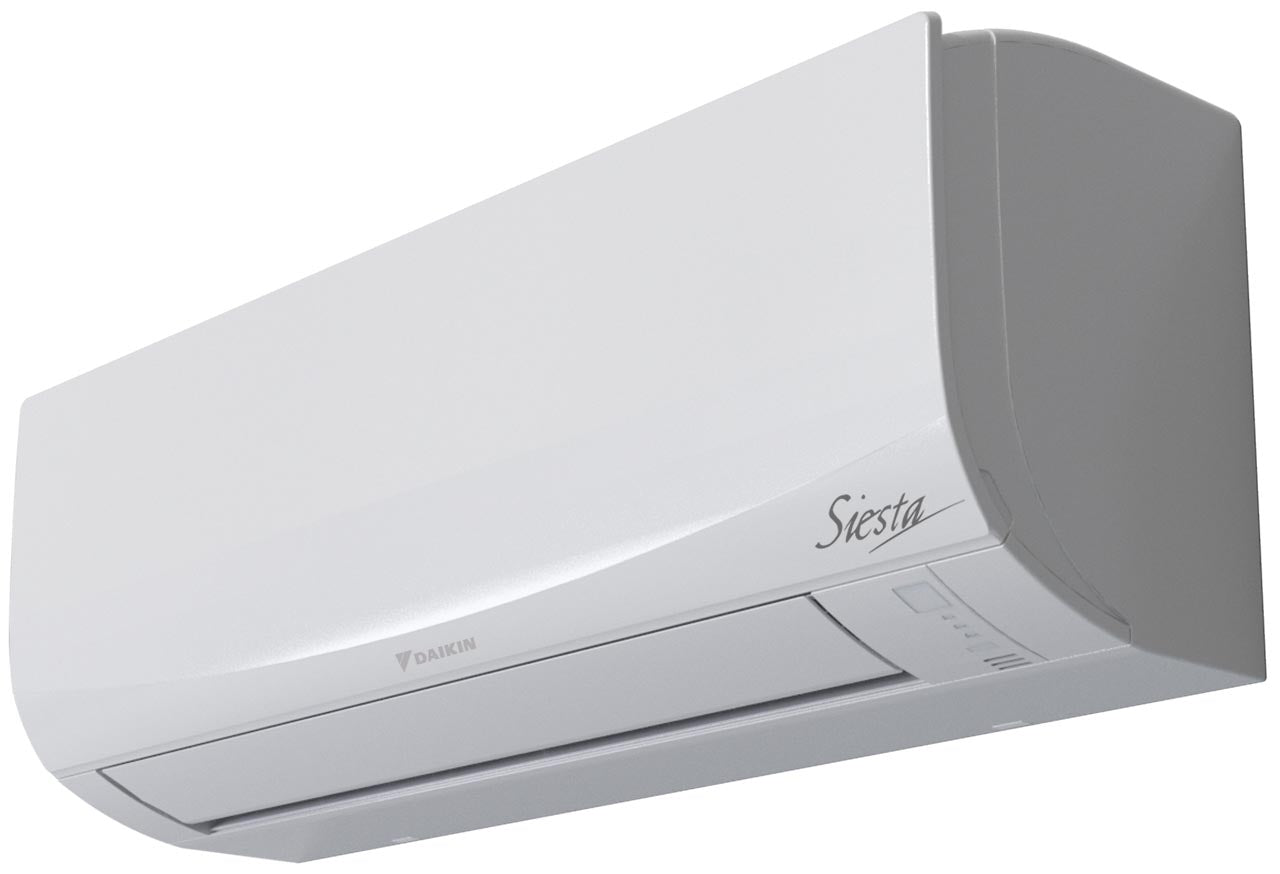

- one indoor unit ATXF35E

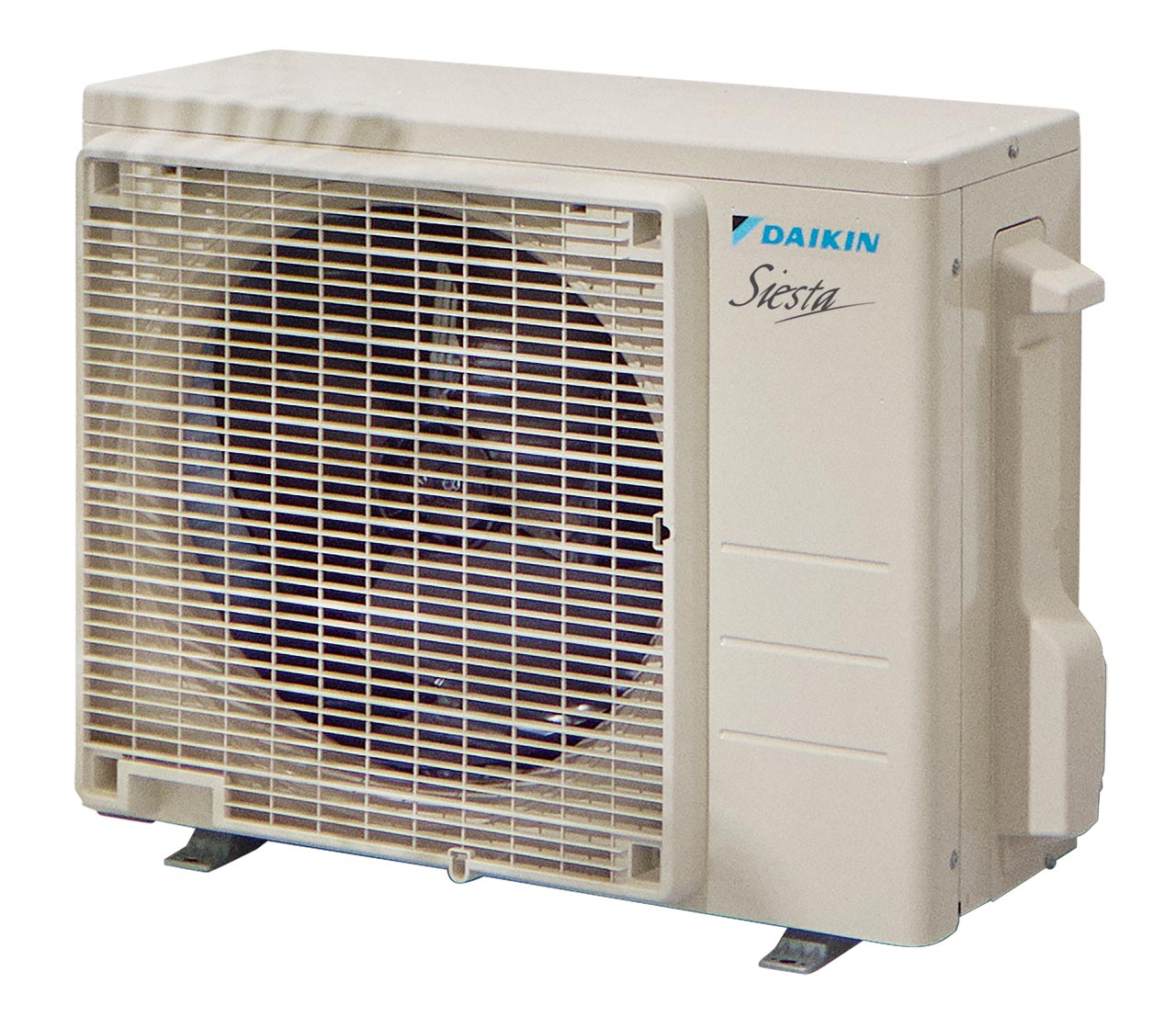

- an outdoor unit ARXF35E
- an infrared remote control
*optional WiFi BRP069C47
*Optional mounting kit (length to choose from: 3 to 12 m):
-insulated copper pipe with crimped nuts Armacell 1/4" and 3/8",
-Condensate hose 16 mm,
-Electrical cable 5x 1.5 mm²,

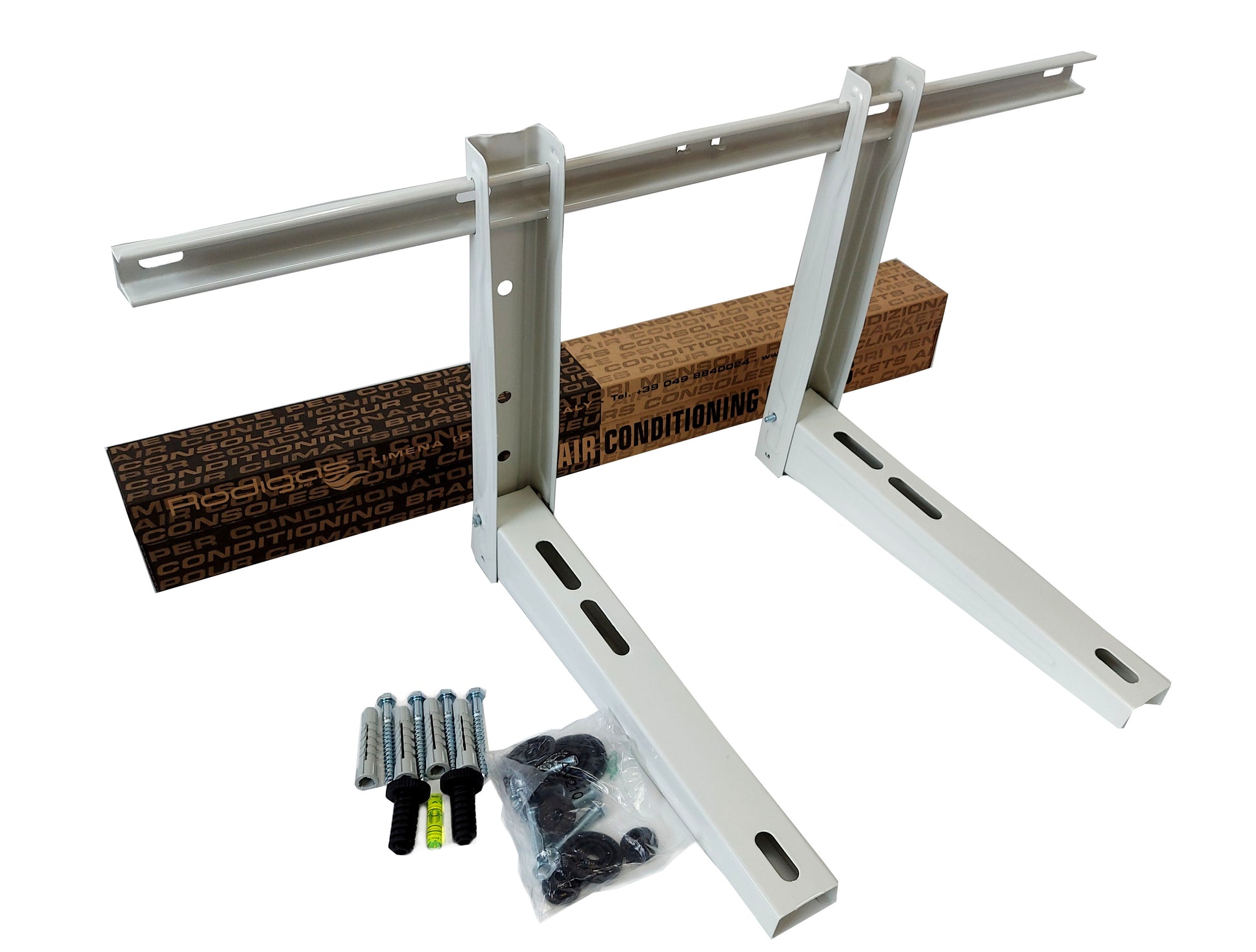

-a wall bracket for the Rodigas MS 230 outdoor unit,
-a wall penetration

Features:

• Energy savings in standby mode
• Fan mode only
• Comfort mode
• Powerful mode (operation at full power)
• Automatic switching between cooling and heating
• Quiet operation of the indoor unit
• Automatic vertical louvers
• Automatic fan speed
• Stepwise adjustment of the fan speed
• Dehumidification program
• Odor filter
• Online controller
• Programmable 24-hour clock
• Automatic restart
• Self-diagnosis

Specifications:

Cooling capacity / Heating capacity:	3.30 kW / 3.50 kW
Energy efficiency class:	SEER A++ / SCOP A+
Sound pressure level indoor unit:	20-43 dB(A)
Sound pressure level of outdoor unit:	4070-46.0 dB(A)
Indoor unit dimensions (W x D x H):	770x225x286 mm (8.50 kg)
Dimensions of outdoor unit (W x D x H):	740x343x556 mm (24.0 kg)
Power supply:	1~ / 50 Hz. / 220–240 V
Pipe connections for liquid and gas:	1/4" + 3/8"
Operating range cooling / heating (min.-max.):	-10°C - 46°C / -15°C - 18°C
Refrigerant:	R-32
Refrigerant pre-fill:	The outdoor unit is pre-filled to a depth of 10 m.

*Important NOTE
Dear Customer, please be aware that by purchasing this product, the buyer/user confirms compliance with Regulation (EU) No 517/2014 of the European Parliament and of the Council of 16 April 2014 on fluorinated greenhouse gases and Regulation (EU) No 573/2024 of the European Parliament and of the Council of March 2024 on fluorinated greenhouse gases, which stipulates that: the person acquiring the split air conditioner/user confirms that it will be professionally installed by certified professionals.

https://www.gesetze-im-internet.de/chemklimaschutzv/__9.html

Important NOTE

Dear Customer, please note that by purchasing this product, the buyer/user confirms compliance with Regulation (EU) No 517/2014 of the European Parliament and of the Council of 16 April 2014 on fluorinated greenhouse gases and Regulation (EU) No 573/2024 of the European Parliament and of the Council of March 2024 on fluorinated greenhouse gases, which stipulates the following: The person who buys/uses the split air conditioner confirms that it will be professionally installed by certified professionals.

F-Gas Regulation Download Declaration
