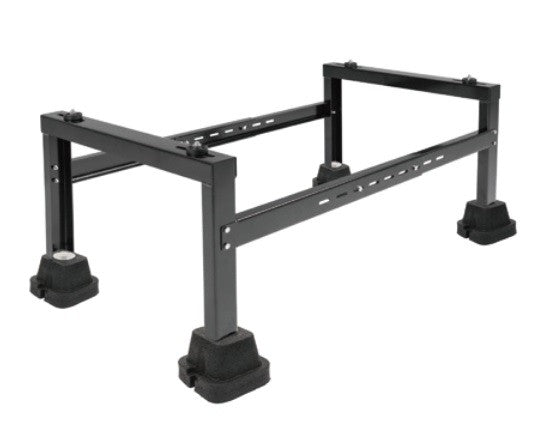

Bracket for the outdoor unit, heat pump • HP-A • 360 kg • Feet included

Specifications of the HP-A mount:

• Maximum unit size: 1050 x 520 mm
• Adjustable height: 456-465mm by screw
• Adjustable width: 680 - 1050mm
• Maximum load: 360 kg

The HP-A heat pump base is designed for installation of both recessed and outdoor units, both on the ground and on roofs with a maximum slope of 5%. The bracket offers exceptional stability and multi-level adjustment, allowing a wide range of standard units to be installed on different surfaces. The frame is made of galvanized steel, powder-coated in RAL 7021. All joints and bolts are made of Q235 galvanized steel. Anti-vibration feet and pads ensure high vibration leveling of the unit. The washers are made of high-quality EPDM rubber, and the feet are made of SBR rubber with steel inserts.

Special features of the HP-A heat pump base:

• Vibration-damping pads and anti-vibration feet (made of recycled SBR rubber with steel inserts)
• Height and width adjustable
• Anti-corrosive coating provides aesthetics and functionality for many years
• Stronger sheet metal for almost twice the load-bearing capacity
• For floor and roof mounting with a maximum slope of 5% (mounting on various surfaces possible)
