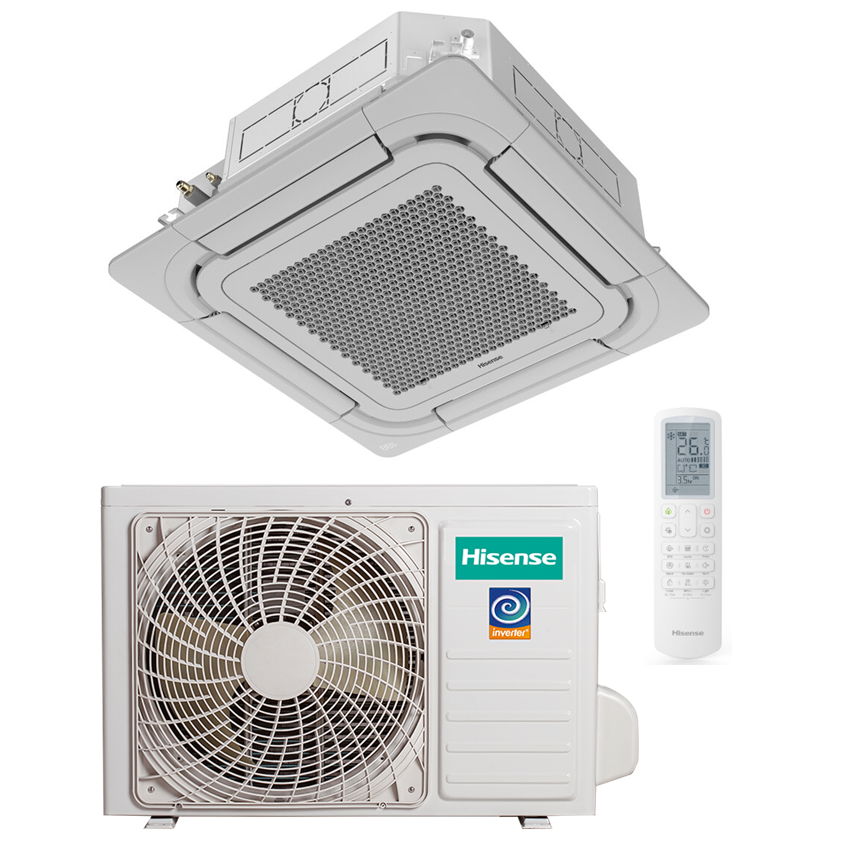

Hisense AUC105 Ceiling Cassette 10.0 kW optional with Wi-Fi

Hisense AUC105 Ceiling Cassette 10.0 kW optional with Wi-Fi

Hisense AUC105 split ceiling cassette with 10.0 kW cooling and 11.0 kW heating capacity, suitable as a guide for rooms of approximately 77 to 100 m²*. Energy efficiency class A++ for cooling and A+ for heating, on a scale from A+++ to D. 840 x 840 mm cassette with PE-QFA/CD grille, 360-degree airflow, built-in condensate pump, RCH-RVD01 remote control included, optional AEH-W4G2 Wi-Fi module.

Regular price €2.299,00
Regular price Sale price €2.299,00
Sale Sold out

incl. VAT + Shipping Costs

Taxes included. Shipping calculated at checkout.
WiFi AEH-W4G2

Crowd

  • American Express
  • Diners Club
  • Discover
  • Google Pay
  • JCB
  • Mastercard
  • PayPal
  • Visa
  • Brand-name units from a specialist retailerOriginal products from leading manufacturers
  • Personal adviceBy phone, email or WhatsApp
  • Installation on requestBy specialist installers in your region
  • Secure paymentPayPal with Buyer Protection, credit card and more

Description

With a cooling capacity of 10.0 kW and a heating capacity of 11.0 kW (rated values), the Hisense AUC105 is a ceiling cassette unit with an 840 x 840 mm indoor unit designed for installation in a suspended ceiling; indoor unit AUC105UR4RKC8, PE-QFA/CD grille, outdoor unit AUW105U4RK7. SEER 6.20 and SCOP 4.00, energy efficiency class according to the page A++ for cooling and A+ for heating on the A+++ to D scale. According to the page, the cassette blows air around 360 degrees, the louvres can be controlled individually according to the page, and a condensate pump is built-in; Wi-Fi control is optional, available on this page as the "with WiFi AEH-W4G2" variant (AEH-W4G2 Wi-Fi module). The power class is suitable as a guide for rooms of approximately 77 to 100 m²*.

Performance and range of application

In cooling mode, the unit delivers 10.0 kW, and in heating mode, 11.0 kW (rated values); the operating ranges and power consumption are not stated on the page. Connection to 220 to 240 V, 50 Hz, single-phase. Operating range according to the table: minus 15 to plus 48 °C for cooling, minus 15 to plus 24 °C for heating. The page does not state the annual energy consumption.

The stated area of approximately 77 to 100 m²* is a guideline for standard room height and normal insulation standards, not a binding design. For shops, offices, and dining areas, additional internal loads from people, lighting, and equipment may increase the requirements compared to the guideline. We will check the appropriate design for your property upon request.

* Guideline based on the cooling capacity specified by the manufacturer, with a standard room height of approximately 2.5 m, normal insulation standards, and average solar radiation. Different conditions on site, such as large window areas, sloped roofs, or a high number of people, may require a different power class. The binding design is based on the specific property. For a professional design of your property, please contact us.

The most important advantages at a glance

  • 10.0 kW cooling and 11.0 kW heating capacity according to the table (rated values).
  • Energy efficiency class A++ for cooling and A+ for heating according to the page, on the A+++ to D scale, with SEER 6.20 and SCOP 4.00.
  • 360-degree airflow according to the page, individually controllable louvres, PE-QFA/CD grille 950 x 950 mm included.
  • Condensate pump built-in according to the page, indoor unit 840 x 840 mm and 272 mm high.
  • Ag+ silver ion air filter and humidity sensor according to the page, fresh air supply.
  • RCH-RVD01 remote control included; Wi-Fi optional, AEH-W4G2 Wi-Fi module available as the "with WiFi AEH-W4G2" variant.

Detailed functions

Inverter and heat pump operation

In heating mode, the unit uses outdoor air down to minus 15 °C as an air-to-air heat pump according to the table. The inverter regulates the power according to demand; power consumption values are not stated on the page. According to the page, it includes compressor crankcase heating, intelligent defrosting, a heating mode to maintain a room temperature of plus 8 °C, and protection against cold airflow during warm-up. Seasonal values according to the table: SEER 6.20, SCOP 4.00.

Airflow and filters

360-degree airflow according to the page through the PE-QFA/CD grille (950 x 50 x 950 mm), with individually controllable louvres, Auto-Swing, and fresh air supply according to the page. According to the page, it includes Ag+ silver ion air filters, nylon filters with a dirt indicator, a humidity sensor, and self-cleaning. The page also states that the unit is suitable for high rooms. The page does not provide information on filter efficiency or airflow.

Operating modes

  • Cooling: 10.0 kW nominal
  • Heating: 11.0 kW nominal, down to minus 15 °C according to the table
  • 8 °C heating mode: maintains the room temperature at plus 8 °C according to the page
  • I FEEL: temperature measurement at the remote control according to the page
  • SLEEP for the night and ECOnomy mode according to the page

Control and comfort

  • RCH-RVD01 remote control (wireless) included according to the page
  • 24-hour timer and hotel card on/off according to the page
  • Optional Wi-Fi control: AEH-W4G2 Wi-Fi module according to the page, available as the "with WiFi AEH-W4G2" variant; the page does not state the app
  • Automatic restart after power failure according to the page

Operational safety

  • Operating range according to the table: minus 15 to plus 48 °C for cooling, minus 15 to plus 24 °C for heating
  • Self-diagnosis and refrigerant leak detection according to the page
  • Condensate pump built-in according to the page; the page does not state the delivery head
  • Compressor crankcase heating and intelligent defrosting according to the page

Scope of delivery

Standard delivery includes:

  • 1x Hisense AUC105UR4RKC8 indoor unit
  • 1x Hisense PE-QFA/CD grille

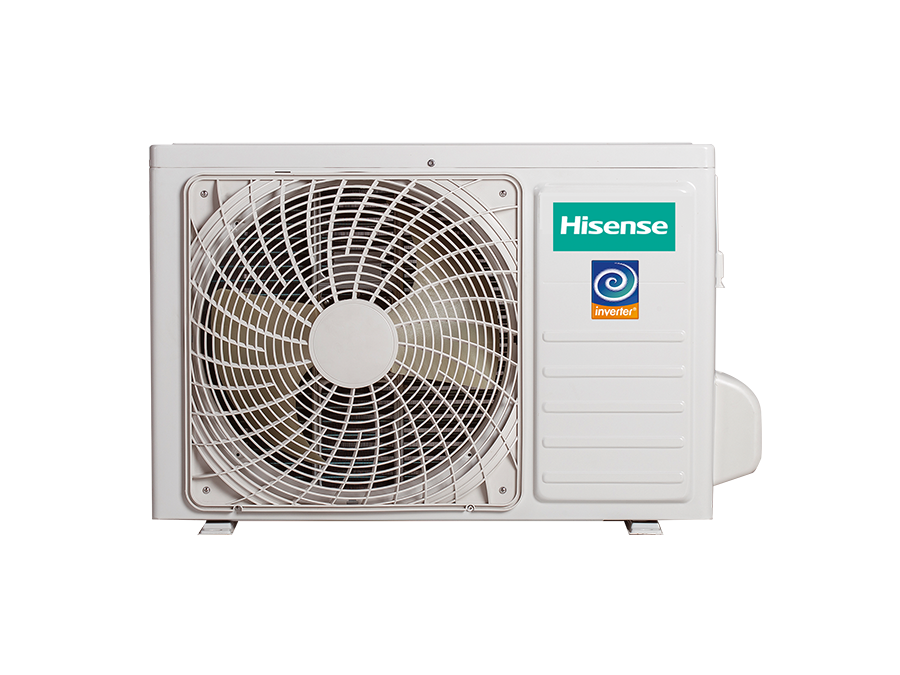

  • 1x Hisense AUW105U4RK7 outdoor unit
  • 1x RCH-RVD01 remote control

The AEH-W4G2 Wi-Fi module is optional according to the page and is not included in the standard delivery; you can add it on this page as the "with WiFi AEH-W4G2" variant.

Additional items required

  • Refrigerant lines 9.52 mm (3/8 inch) + 15.88 mm (5/8 inch); the page does not state the maximum length and height difference, available upon request
  • Condensate line and mounting material for installation in a suspended ceiling
  • Wall bracket or floor console for the outdoor unit (55 kg)
  • Electrical supply line and circuit breaker (the page does not state the value)
  • Installation and commissioning by a qualified company

Technical data

Indoor unit Hisense AUC105UR4RKC8
Outdoor unit Hisense AUW105U4RK7
Grille Hisense PE-QFA/CD, 950 x 50 x 950 mm (W x H x D), 6.5 kg
Rated cooling capacity 10.0 kW
Rated heating capacity 11.0 kW
Energy efficiency class Cooling / Heating A++ / A+ according to the page, on the A+++ to D scale
SEER / SCOP according to the table 6.20 / 4.00
Power supply 220 to 240 V, 50 Hz, single-phase
Power consumption not stated on the page
Indoor unit sound pressure level (three levels according to the table) 50 / 46 / 42 dB(A)
Outdoor unit sound pressure level 57 dB(A)
Indoor unit dimensions (W x H x D), weight 840 x 272 x 840 mm, 26 kg
Outdoor unit dimensions (W x H x D), weight 900 x 750 x 340 mm, 55 kg
Pipe connections Liquid + Gas 9.52 mm (3/8 inch) + 15.88 mm (5/8 inch)
Max. line length / height difference not stated on the page
Operating range outdoor temperature Cooling / Heating minus 15 to plus 48 °C / minus 15 to plus 24 °C
Airflow 360 degrees, individually controllable louvres, Auto-Swing, fresh air supply according to the page
Filters according to the page Ag+ silver ion air filter, nylon filter with filter indicator, self-cleaning
Condensate pump built-in according to the page
Sensors according to the page Humidity sensor, I FEEL at the remote control
Remote control RCH-RVD01 remote control included
Wi-Fi optional: AEH-W4G2 Wi-Fi module, available as the "with WiFi AEH-W4G2" variant
Manufacturer / EU representative according to the page Hisense Europe (Gorenje Group), Velenje

Frequently Asked Questions

What cooling and heating capacity does the Hisense AUC105 with 10.0 kW have?

According to the table, 10.0 kW for cooling and 11.0 kW for heating (rated values); the page does not state the power operating ranges or power consumption. SEER 6.20 and SCOP 4.00 according to the table, energy efficiency class according to the page A++ for cooling and A+ for heating on the A+++ to D scale. We will check which power class is suitable for your room upon request.

What are the dimensions of the cassette and grille?

According to the table, 840 x 272 x 840 mm (W x H x D) at 26 kg for the cassette and 950 x 50 x 950 mm at 6.5 kg for the PE-QFA/CD grille. The page does not state what ceiling cutout is required, available upon request. For the AUW105U4RK7 outdoor unit, the page states 900 x 750 x 340 mm and 55 kg.

What exactly is included in the scope of delivery?

The delivery includes exclusively the AUC105UR4RKC8 indoor unit, the PE-QFA/CD grille, the AUW105U4RK7 outdoor unit, and an RCH-RVD01 remote control. Refrigerant lines, condensate line, wall bracket or console, and mounting material are not included; a mounting set is not available on this page. The AEH-W4G2 Wi-Fi module is optional and can be selected on this page as the "with WiFi AEH-W4G2" variant. We will share which material is suitable upon request.

Does the unit have Wi-Fi and a condensate pump?

Not from the factory: For app control, order the "with WiFi AEH-W4G2" variant on this page with the AEH-W4G2 Wi-Fi module included; the page does not state the app. Yes to the condensate pump: built-in according to the page, delivery head available upon request.

How long can the line between the indoor and outdoor unit be?

The table states the pipe connections 9.52 mm (3/8 inch) + 15.88 mm (5/8 inch), but no maximum line length and no height difference. We will clarify the permissible line route for your property upon request.

Can I use the unit to heat in winter?

Yes. The heating mode is stated according to the table down to minus 15 °C outdoor temperature; the heating capacity is 11.0 kW, energy efficiency class for heating according to the page A+ on the A+++ to D scale, SCOP 4.00. The 8 °C heating mode keeps unused rooms frost-free according to the page. At low outdoor temperatures, the available heating capacity decreases, so the system complements the existing heating and does not replace it.

How loud is the unit?

Indoor unit according to the table 50 / 46 / 42 dB(A) on three unnamed levels; for the outdoor unit, 57 dB(A) is stated on the page.

Can I install the air conditioner myself?

The installation and commissioning of a split air conditioner is carried out by a certified qualified company. Self-installation is not intended.

Manufacturer Information

Manufacturer/EU representative: Hisense Europe (Gorenje Group)
Postal address: Hisense Europe, Vevlje 1, 3320 Velenje, Slovenia (EU headquarters)
Email address: support.al@hisense.com (for Albania/EU; general: info@gorenje.com)

Important Note

Dear Customer, please note that by purchasing this product, the buyer/user confirms compliance with Regulation (EU) No 517/2014 of the European Parliament and of the Council of 16 April 2014 on fluorinated greenhouse gases and Regulation (EU) No 573/2024 of the European Parliament and of the Council of March 2024 on fluorinated greenhouse gases, which stipulates the following: The person who buys/uses the split air conditioner confirms that it will be professionally installed by certified professionals.
