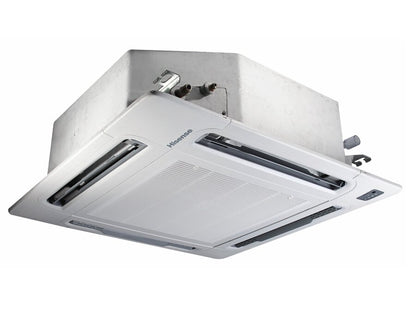

Hisense AUC175 Ceiling-Mounted Cassette 17.2 kW, optional Wi-Fi

Hisense AUC175 Ceiling-Mounted Cassette 17.2 kW, optional Wi-Fi

Hisense AUC175 split ceiling cassette with 17.2 kW cooling and 20.0 kW heating capacity, suitable as a guide for rooms of approximately 132 to 172 m²*. The page does not state the energy efficiency class, SEER and SCOP. 840 x 840 mm cassette with PE-DA-B29 grille, 360-degree airflow, built-in condensate pump, R2-01 remote control included, AEH-W4G2 Wi-Fi module available as an option, three-phase 400 V connection.

Regular price €3.199,00
Regular price Sale price €3.199,00
Sale Sold out

incl. VAT + Shipping Costs

Taxes included. Shipping calculated at checkout.
WiFi AEH-W4G2

Crowd

  • American Express
  • Diners Club
  • Discover
  • Google Pay
  • JCB
  • Mastercard
  • PayPal
  • Visa
  • Brand-name units from a specialist retailerOriginal products from leading manufacturers
  • Personal adviceBy phone, email or WhatsApp
  • Installation on requestBy specialist installers in your region
  • Secure paymentPayPal with Buyer Protection, credit card and more

Description

The Hisense AUC175 (AUC175UR4RHB4) is designed as a ceiling cassette for installation in a suspended ceiling: AUC175UR4RHB4 indoor unit with PE-DA-B29 grille, AUW175U6RP4 outdoor unit on 400 V three-phase, 17.2 kW cooling and 20.0 kW heating capacity. The page does not state the SEER and SCOP, nor does it state an energy efficiency class. Airflow over 360 degrees, individually controllable louvers and a condensate pump are listed as features; on this page, you can add the AEH-W4G2 Wi-Fi module by selecting the "with WiFi AEH-W4G2" option. The power class is suitable as a guide for rooms of approximately 132 to 172 m²*.

Performance and range of application

Rated capacity 17.2 kW in cooling and 20.0 kW in heating; the page does not state the operating ranges and power consumption. Connection to 380 to 415 V, 50 Hz, three-phase. According to the table, cooling is possible at minus 15 to plus 48 °C, and heating at minus 15 to plus 24 °C outdoor temperature. The page does not state the annual energy consumption.

The stated area of approximately 132 to 172 m²* is a guideline for standard room height and normal insulation standards, not a binding design. In shops, offices and commercial spaces, additional internal loads from people, lighting and equipment can increase the requirements compared to the guideline. We will check the appropriate design for your property upon request.

* Guideline based on the cooling capacity specified by the manufacturer, at a standard room height of approximately 2.5 m, normal insulation standards and average solar radiation. Different conditions on site, such as large window areas, sloped roofs or a high number of people, may require a different power class. The binding design is carried out on a property-specific basis. For a professional design of your property, please contact us.

The most important advantages at a glance

  • 17.2 kW cooling and 20.0 kW heating capacity according to the table (rated values).
  • Energy efficiency class, SEER and SCOP are not stated on the page; information available upon request.
  • 360-degree airflow according to the page, louvers individually controllable, PE-DA-B29 grille 950 x 950 mm included in the delivery.
  • Condensate pump built-in according to the page, indoor unit 840 x 840 mm and 272 mm high.
  • Ag+ silver ion air filter and humidity sensor according to the page, fresh air supply.
  • R2-01 remote control included; Wi-Fi optional, AEH-W4G2 Wi-Fi module available as the "with WiFi AEH-W4G2" option.

Detailed functions

Inverter and heat pump operation

Heating is based on the air-to-air heat pump principle, according to the table down to minus 15 °C outdoor temperature. The inverter control adjusts the performance; the page does not state the power consumption. According to the page, it includes compressor crankcase heater, intelligent defrosting, a heating mode to maintain a room temperature of plus 8 °C and protection against cold airflow during reheating. Seasonal values (SEER, SCOP) are not stated on the page.

Airflow and filters

Through the PE-DA-B29 grille (950 x 45 x 950 mm), the air flows into the room over 360 degrees according to the page, each louver is individually controllable according to the page, auto-swing and fresh air supply are also included. Ag+ silver ion air filter, nylon filter with filter indicator, humidity sensor and self-cleaning are available according to the page; also suitable for high rooms according to the page. The page does not provide information on filter efficiency or airflow.

Operating modes

  • Cooling: 17.2 kW nominal
  • Heating: 20.0 kW nominal, down to minus 15 °C according to the table
  • 8 °C heating mode: maintains the room temperature at plus 8 °C according to the page
  • I FEEL: temperature measurement at the remote control according to the page
  • SLEEP for the night and ECOnomy mode according to the page

Control and comfort

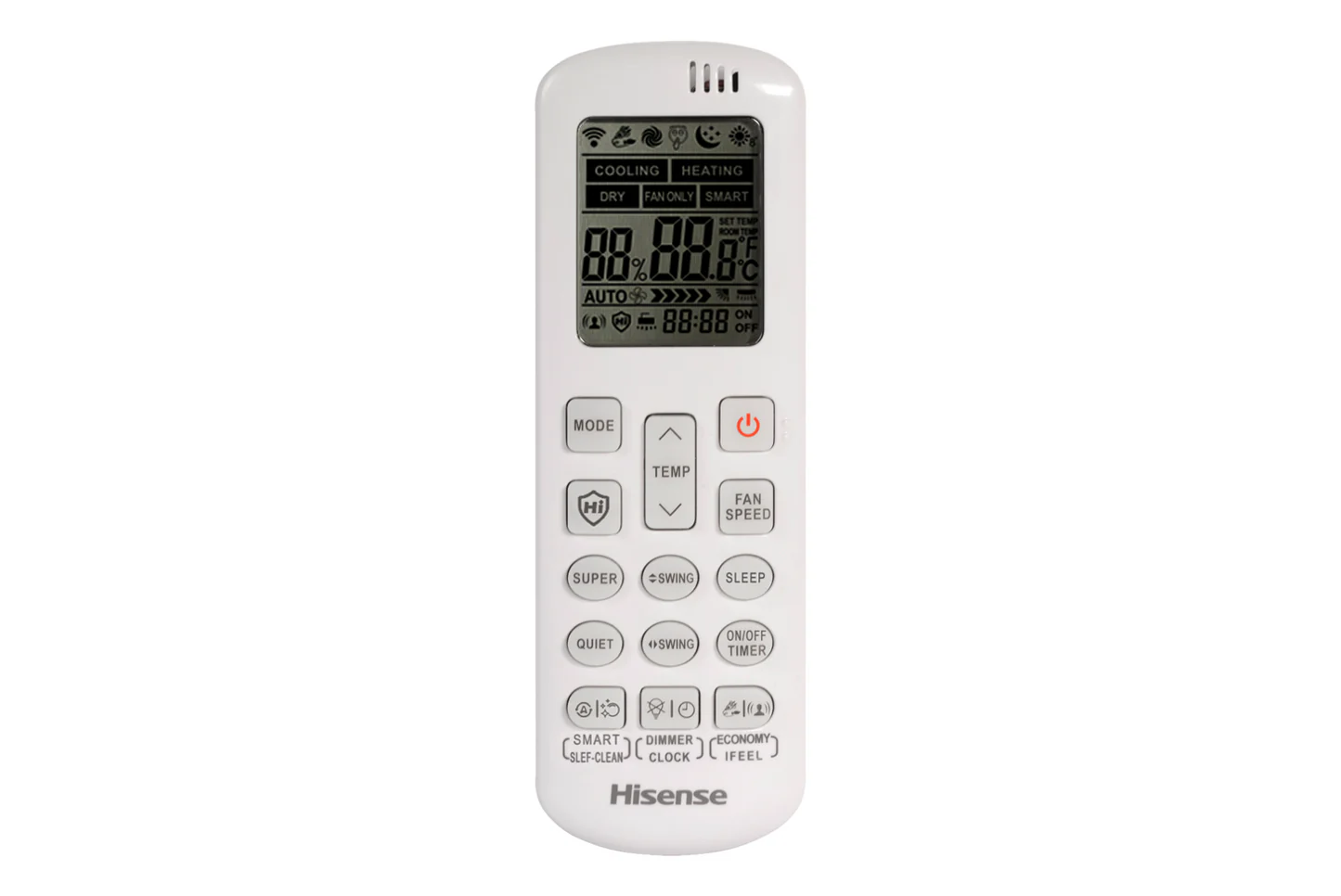

  • R2-01 remote control (wireless) included according to the page
  • 24-hour timer and switching on/off with hotel card according to the page
  • Optional Wi-Fi control: AEH-W4G2 Wi-Fi module according to the page, available on this page as the "with WiFi AEH-W4G2" option; the page does not state the app
  • Automatic restart after power failure according to the page

Operational safety

  • Operating range according to the table: minus 15 to plus 48 °C cooling, minus 15 to plus 24 °C heating
  • Self-diagnosis and refrigerant leak detection according to the page
  • Condensate pump built-in according to the page; the page does not state the head height
  • Compressor crankcase heater and intelligent defrosting according to the page

Scope of delivery

Included in the standard scope:

  • 1x Hisense AUC175UR4RHB4 indoor unit
  • 1x Hisense PE-DA-B29 grille
  • 1x Hisense AUW175U6RP4 outdoor unit
  • 1x R2-01 remote control

The AEH-W4G2 Wi-Fi module is optional according to the page and not included in the standard scope; you can add it on this page by selecting the "with WiFi AEH-W4G2" option.

What else you need

  • Refrigerant lines 9.52 mm (3/8 inch) + 15.88 mm (5/8 inch); the page does not state the maximum length and height difference, available upon request
  • Condensate line and mounting material for installation in a suspended ceiling
  • Wall bracket or floor console for the outdoor unit (109.0 kg)
  • Electrical supply line and circuit breaker (value not stated on the page), three-phase 400 V
  • Installation and commissioning by a specialist company

Technical data

Indoor unit Hisense AUC175UR4RHB4
Outdoor unit Hisense AUW175U6RP4
Grille Hisense PE-DA-B29, 950 x 45 x 950 mm (W x H x D), 6.5 kg
Rated cooling capacity 17.2 kW
Rated heating capacity 20.0 kW
Energy efficiency class Cooling / Heating not stated on the page
SEER / SCOP according to the table not stated on the page
Power supply 380 to 415 V, 50 Hz, three-phase
Power consumption not stated on the page
Sound pressure level indoor unit (three levels according to the table) 53 / 46 / 44 dB(A)
Sound pressure level outdoor unit 63 dB(A)
Dimensions indoor unit (W x H x D), weight 840 x 272 x 840 mm, 32.0 kg
Dimensions outdoor unit (W x H x D), weight 950 x 1,386 x 340 mm, 109.0 kg
Pipe connections Liquid + Gas 9.52 mm (3/8 inch) + 15.88 mm (5/8 inch)
Max. line length / height difference not stated on the page
Operating range outdoor temperature Cooling / Heating minus 15 to plus 48 °C / minus 15 to plus 24 °C
Airflow 360 degrees, individually controllable louvers, auto-swing, fresh air supply according to the page
Filters according to the page Ag+ silver ion air filter, nylon filter with filter indicator, self-cleaning
Condensate pump built-in according to the page
Sensors according to the page Humidity sensor, I FEEL at the remote control
Remote control R2-01 remote control included
Wi-Fi optional: AEH-W4G2 Wi-Fi module, "with WiFi AEH-W4G2" option
Manufacturer / EU representative according to the page Hisense Europe (Gorenje Group), Velenje

Frequently Asked Questions

What cooling and heating capacity does the Hisense AUC175 (AUC175UR4RHB4) have with 17.2 kW?

According to the table, 17.2 kW in cooling and 20.0 kW in heating (rated values); the page does not state the operating ranges of the power or power consumption. The page does not state the SEER and SCOP, nor does it state an energy efficiency class; information available upon request. We will check which power class is suitable for your room upon request.

What are the dimensions of the cassette and grille?

Cassette 840 x 272 x 840 mm (W x H x D) at 32.0 kg and PE-DA-B29 grille 950 x 45 x 950 mm at 6.5 kg according to the table; the page does not state the ceiling cutout, we will provide it upon request. Outdoor unit AUW175U6RP4: 950 x 1,386 x 340 mm, 109.0 kg.

What exactly is included in the scope of delivery?

The delivery includes exclusively the AUC175UR4RHB4 indoor unit, the PE-DA-B29 grille, the AUW175U6RP4 outdoor unit and an R2-01 remote control. Also not included: refrigerant lines, condensate line, bracket and mounting material; a mounting set is not available on this page, but the "with WiFi AEH-W4G2" option with the AEH-W4G2 Wi-Fi module is. We will provide suitable accessories upon request.

Does the unit have Wi-Fi and a condensate pump?

The AEH-W4G2 Wi-Fi module is not part of the basic unit; on this page, you can add it as the "with WiFi AEH-W4G2" option, the page does not state the app. Condensate pump built-in according to the page; the head height is not stated on the page, available upon request.

How long can the line between the indoor and outdoor unit be?

Pipe connections 9.52 mm (3/8 inch) + 15.88 mm (5/8 inch) according to the table; the maximum length and height difference are not stated on the page. We will check if your line route is suitable upon request.

Can I use the unit for heating in winter?

Yes. Heating operation is stated according to the table down to minus 15 °C outdoor temperature; the heating capacity is 20.0 kW; the page does not state the SCOP. The 8 °C heating mode keeps unused rooms frost-free according to the page. At low outdoor temperatures, the available heating capacity decreases, so the system complements the existing heating and does not replace it.

How loud is the unit?

According to the table, the indoor unit is 53 / 46 / 44 dB(A) (three levels without names); the outdoor unit reaches 63 dB(A).

Can I install the air conditioner myself?

The installation and commissioning of a split air conditioner is carried out by a certified specialist company. Self-installation is not intended.
