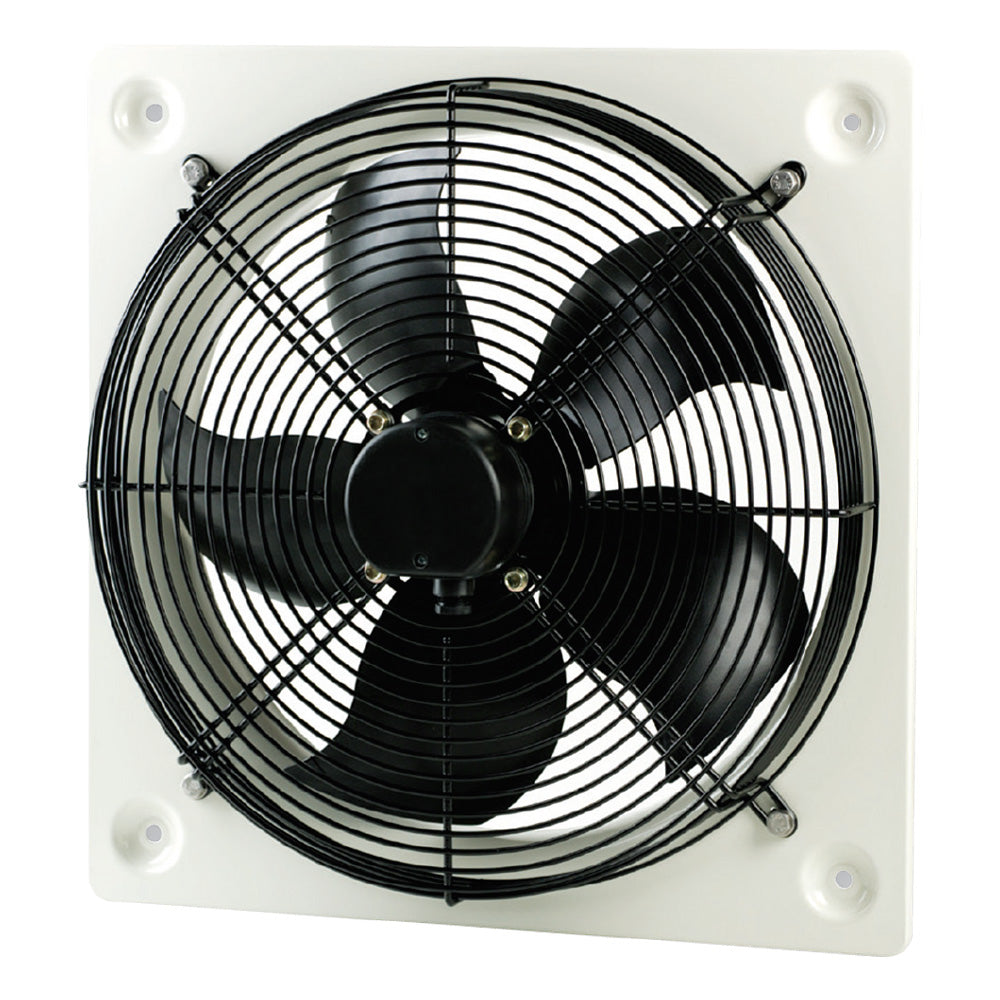

HXM wall fan S&P HXM-400

The HXM axial fans mounted on wall plates are made of pressed, galvanized steel, protected against corrosion by a beige epoxy-polyester paint.

The wheels are made of aluminum sheet (HXM-200 to HXM-350) or steel sheet (HXM-400), painted with black polyester paint.

All models are equipped with a steel inlet grille as standard.

The manufacturer is the Spanish company “Soler & Palau”

Motor
HXM-200 to HXM-350: Variable speed AC motor
230 V - 50/60 Hz with thermal contacts,
Protection class IP44, thermal class B,
Maintenance-free ball bearings.
Including cable (length: 50cm)
HXM-400: external rotor motor,
Protection class IP54, thermal class F, with thermal contacts and control box.

Further information
Standard air direction: (A) (motor over impeller).

Technical data:

Model: HXM-400
Speed ​​(min-1): 1255
Diameter (mm): 400
Max. power consumption (W): 151
Current (A): 0.7
Sound pressure level (dB(A)): 56
Volume flow (free flow) (m3 /h): 3,670
Operating temperature (ºC): Min -40, Max: +60
Weight (kg): 9.0
Speed ​​controller: REB: REB-1N, RMB: RMB-1.5
