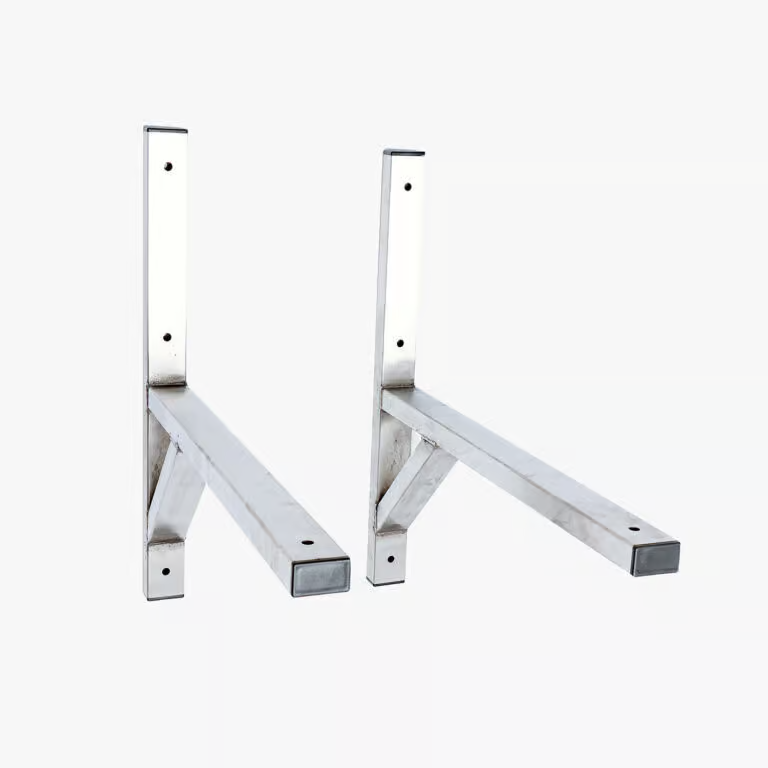

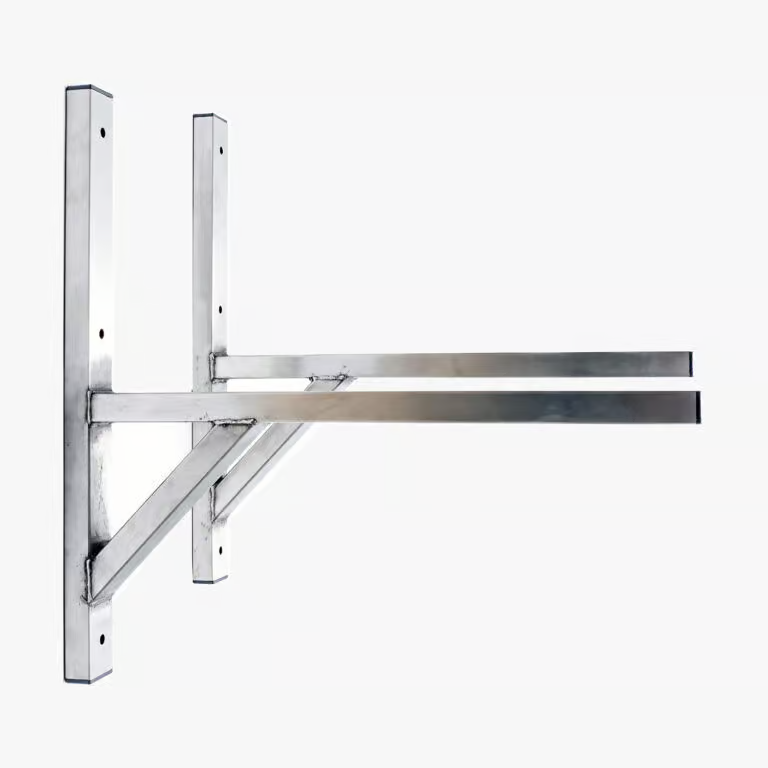

The INOX bracket 70035P is a set of two welded stainless steel wall brackets with a wall arm length of 700 mm. Both brackets are mounted on the wall independently. This allows a unit of any width to be placed on them. The load capacity is 119.8 kg per bracket and 239.6 kg per set. The price applies to the set of two brackets.

Design and Features

• Material: Stainless steel, chrome-nickel
• Design: Welded construction with support
• Profile: Rectangular tube 30 x 50 mm, wall thickness 2 mm
• Load capacity: 119.8 kg per bracket, 239.6 kg per set
• Any unit width: the two brackets are positioned separately

Applications

• Outdoor units of air conditioners
• Outdoor units of heat pumps
• Condensers and cooling units
• VRF and VRV systems
• Recuperation systems and exhaust air fans
• Compressors and power generators
• Other equipment for wall mounting

Scope of Delivery

• 2x stainless steel wall bracket 70035P, wall arm length 700 mm

What You Need in Addition

• Fastening material suitable for the wall construction
• Load-bearing wall, assessed by a specialist company
• Installation and commissioning by a specialist company

Technical Data

Model	70035P
Material	Stainless steel, chrome-nickel
Wall arm length	700 mm
Support arm height	700 mm
Profile	Rectangular tube 30 x 50 mm
Wall thickness	2 mm
Design	Welded construction with support
Load capacity per bracket	119.8 kg
Load capacity per set	239.6 kg
Weight per set	7.16 kg
Scope of Delivery	Set with 2 brackets

Frequently Asked Questions

How much weight can the bracket support?

119.8 kg per bracket, so 239.6 kg per set of two brackets. You can find the weight of your unit in its technical data.

Is the bracket suitable for my outdoor unit?

The two brackets are positioned on the wall independently, so the distance depends on your unit. Therefore, the unit width is not fixed. The installation depth must be checked, as the wall arm is 700 mm long.

How far does the unit stand from the wall?

The wall arm length is 700 mm. Within this length, the specialist company determines the position of the unit.

How many brackets are included?

Two. The unit stands on both brackets. The set weighs 7.16 kg. The stated price applies to the set.

Is the bracket suitable for outdoor use?

The bracket is made of stainless steel with a chrome-nickel content. An additional anti-corrosion coating is not intended for this material.

Is fastening material included in the scope of delivery?

No. The screws and wall plugs depend on the wall construction and are selected appropriately by the specialist company.

Can I install the bracket myself?

The installation and assessment of the wall are carried out by a specialist company. It also places the unit and commissions the system.
