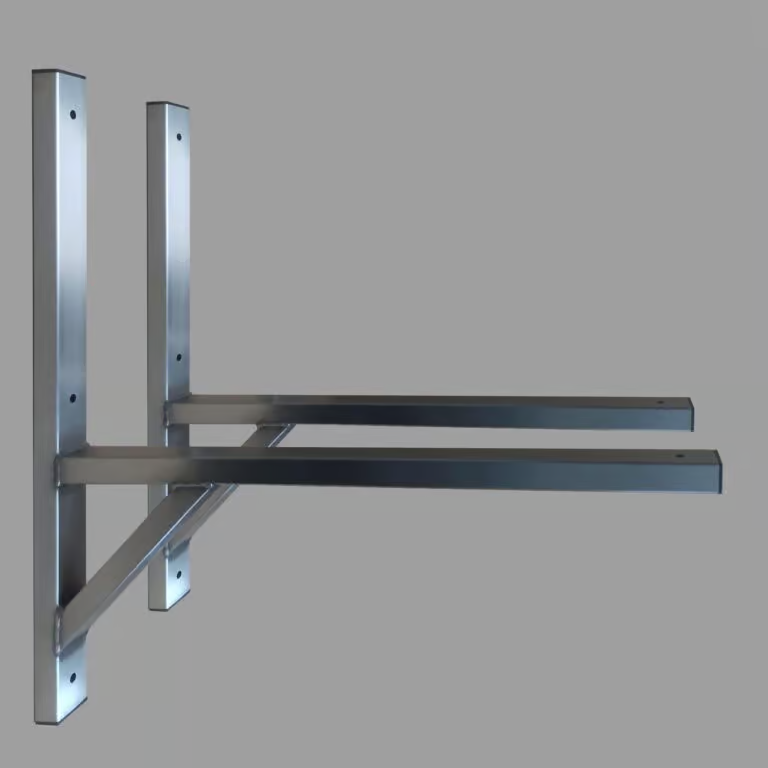

INOX bracket 80035P INOX 800mm
The price is for the set (2 pieces).
Since both brackets are mounted independently on the wall, an outdoor unit of any width can be installed on the bracket. Please note that the maximum load for one bracket is 165 kg (363 lbs) and for two brackets (a set) is 331.4 kg (730 lbs).
Wall arm length 800 mm
Support arm height 800 mm
Welded construction
Type of support
Closed profile made of stainless steel INOX (chrome-nickel)
Rectangular cross-section 30 mm x 50 mm, wall thickness 2 mm
Max. load 1 pc. 165 kg
Max. load 1 set 331.4 kg
Weight of 1 set: 9.36 kg
Welded bracket 80035P INOX enables secure mounting of outdoor units:
- air conditioning,
- heat pumps,
- capacitors,
- power generators,
- Cooling units,
- Recuperation systems,
- exhaust fans,
- compressors,
- VRF and VRV systems,
- and other devices that require wall mounting.
