Stainless steel
Wall bracket White INOX 70035PM 700 mm, set of 2, 239.6 kg
Wall bracket White INOX 70035PM 700 mm, set of 2, 239.6 kg
incl. VAT + shipping costs
Crowd
Description
Description

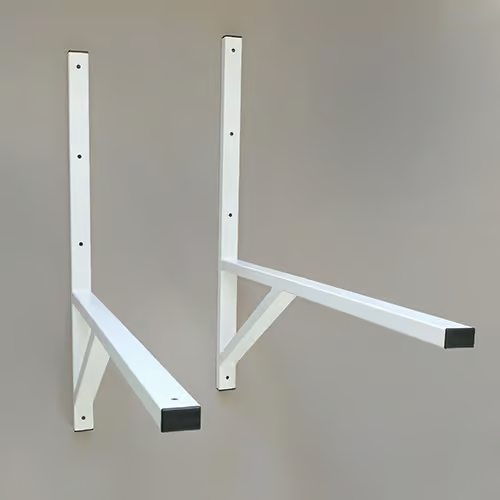

The INOX bracket 70035PM is a set of two welded wall brackets for the outdoor unit of an air conditioner or heat pump, powder-coated in white RAL 9016. Both brackets are mounted on the wall independently of each other. This allows an outdoor unit of any width to be placed on them. The wall arm length is 700 mm, the load capacity 119.8 kg per bracket and 239.6 kg per set. The price applies to the set of two brackets.
Design and Features
- Material: cold-formed closed steel profile
- Surface: powder coating in white RAL 9016
- Design: welded construction with support
- Profile: rectangular tube 30 x 50 mm, wall thickness 2 mm
- Load capacity: 119.8 kg per bracket, 239.6 kg per set
- Any unit width: the two brackets are placed separately
Scope of Delivery
- 2x wall bracket 70035PM, powder-coated in white RAL 9016, wall arm length 700 mm
What You Need in Addition
- fastening material suitable for the wall construction
- load-bearing wall, assessed by a specialist company
- installation and commissioning by a specialist company
Technical Data
| Model | 70035PM |
| Material | cold-formed closed steel profile |
| Surface | powder coating |
| Color | white RAL 9016 |
| Wall arm length | 700 mm |
| Support arm height | 700 mm |
| Profile | rectangular tube 30 x 50 mm |
| Wall thickness | 2 mm |
| Design | welded construction with support |
| Load capacity per bracket | 119.8 kg |
| Load capacity per set | 239.6 kg |
| Weight per set | approximately 7.16 kg |
| Scope of delivery | set with 2 brackets |
Frequently Asked Questions
How much weight does the bracket support?
119.8 kg per bracket, so 239.6 kg per set of two brackets. You can find the weight of your outdoor unit in its technical data.
Does the bracket fit my outdoor unit?
The two brackets are placed on the wall independently of each other, so the distance depends on your unit. This means the unit width is not fixed. The building depth must be checked, as the wall arm is 700 mm long.
How far does the unit stand from the wall?
The wall arm length is 700 mm. Within this length, the specialist company determines the position of the unit.
How many brackets are included?
Two. An outdoor unit stands on both brackets. The set weighs approximately 7.16 kg. The stated price applies to the set.
Is the bracket suitable for outdoor use?
The bracket consists of a cold-formed closed steel profile and is powder-coated in white RAL 9016. The coating provides protection against corrosion.
Is fastening material included in the scope of delivery?
No. The screws and wall plugs depend on the wall construction and are selected appropriately by the specialist company.
Can I install the bracket myself?
The installation and assessment of the wall are carried out by a specialist company. It also places the unit and commissions the system.
Important NOTE
Important NOTE
Dear Customer, please note that by purchasing this product, the buyer/user confirms compliance with Regulation (EU) No 517/2014 of the European Parliament and of the Council of 16 April 2014 on fluorinated greenhouse gases and Regulation (EU) No 573/2024 of the European Parliament and of the Council of March 2024 on fluorinated greenhouse gases, which stipulates the following: The person who buys/uses the split air conditioner confirms that it will be professionally installed by certified professionals.
F-Gas Regulation Download Declaration
