Split air conditioner Mitsubishi MSZ-HR35VF / MUZ-HR35VF 3.5 kW
Included in delivery:

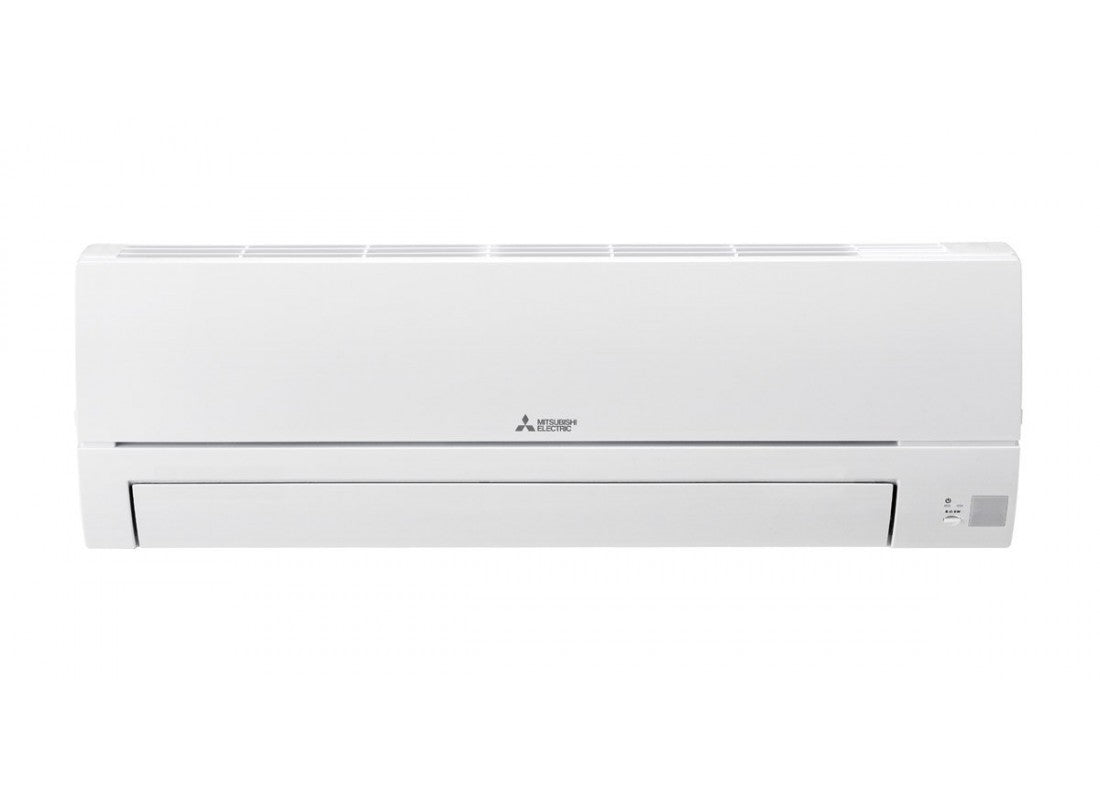

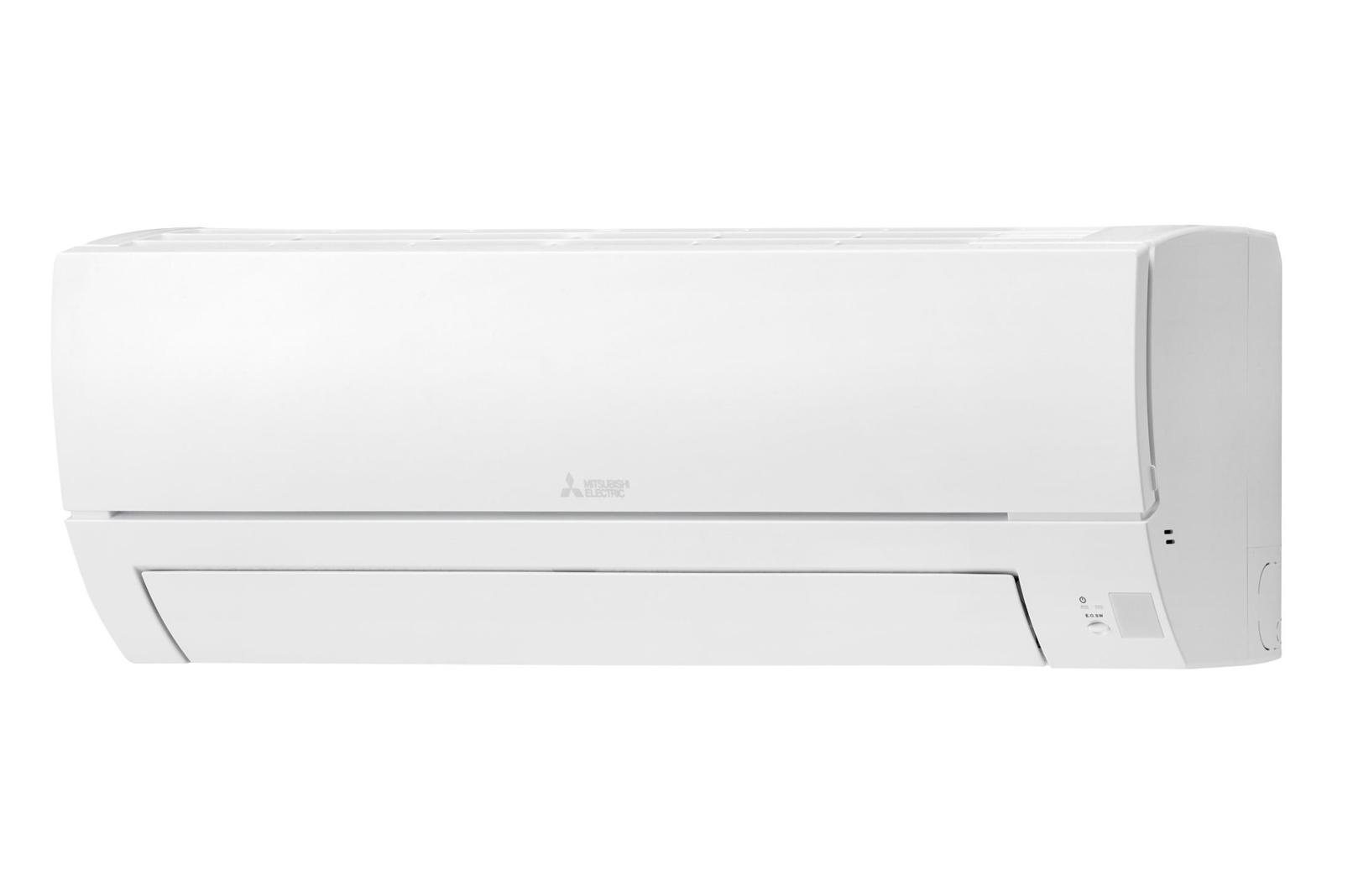

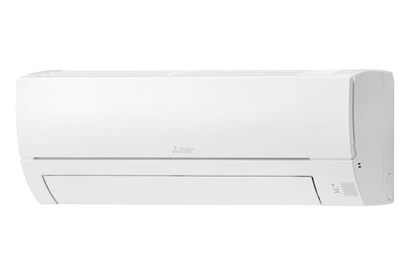

- one indoor unit MSZ-HR35VF

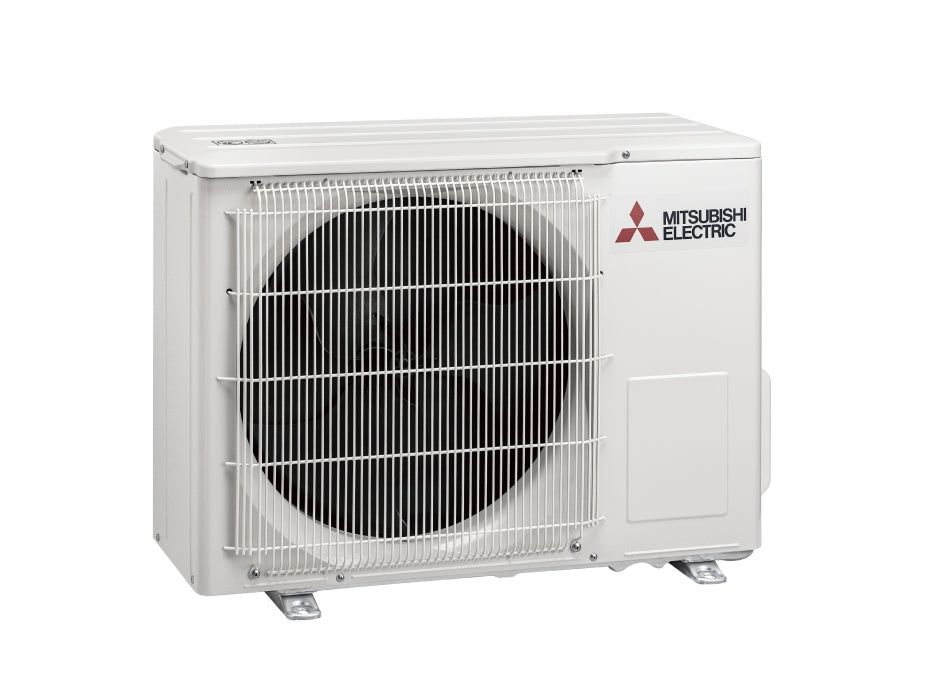

- one outdoor unit MUZ-HR35VF

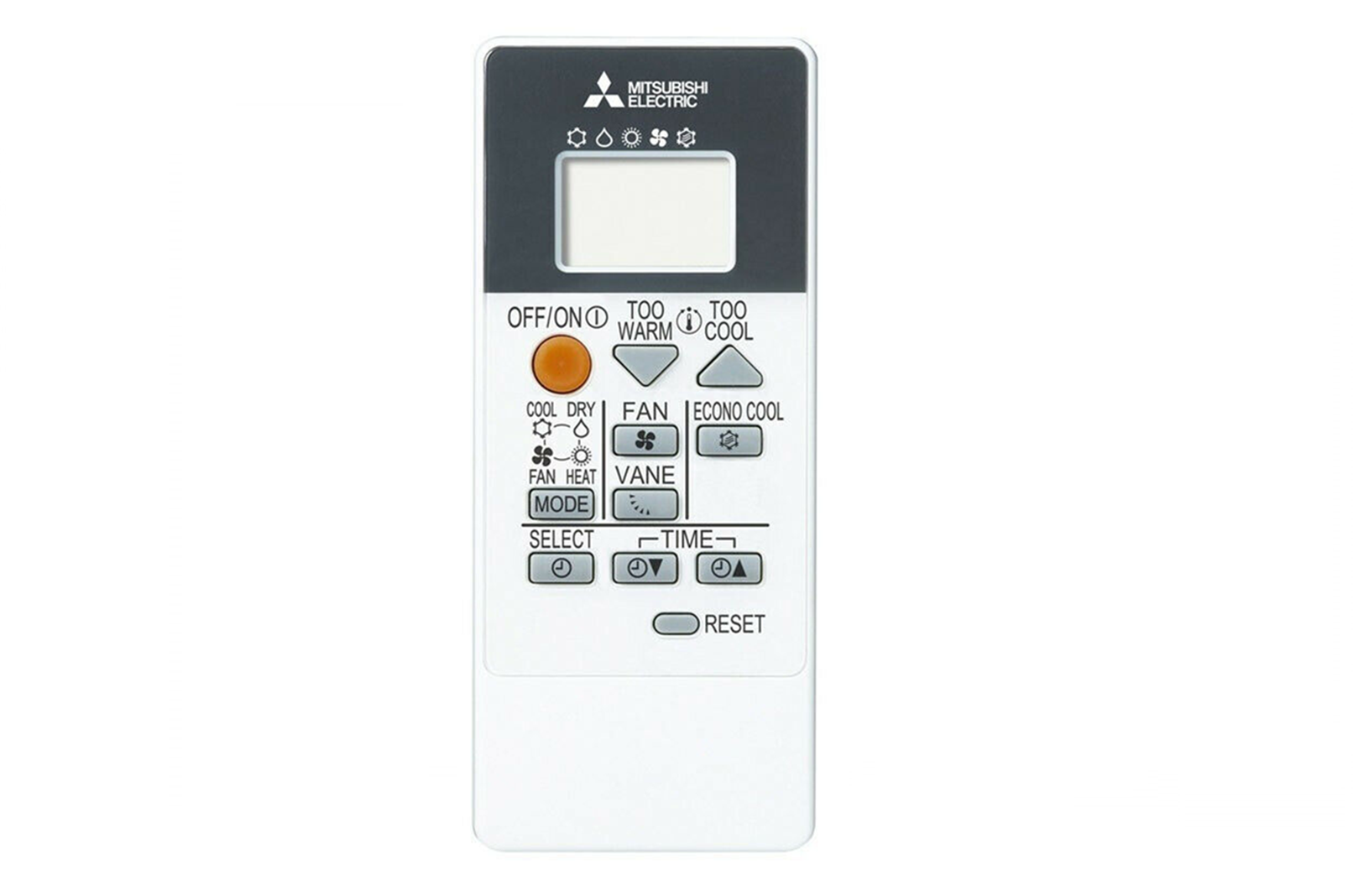

- a remote control
Features:
• Small width of the device (allows installation in smaller, narrower spaces)
• intuitive remote control
• * optional WiFi module
• Control of airflow speed on a three-stage scale (low/medium/high)
• The airflow direction can be controlled in up-down direction (ceiling-floor) and in manual right-left direction (manual) from the remote control
• Inverter technology
• Heat pump operation
• Drying
• ventilation
• The unit offers a powerful start-up, allowing the room to be quickly cooled to the desired temperature in summer or heated in winter. Once the desired temperature is reached, a comfortable and consistent temperature is maintained in the room.
• Vertical swing
• Fault diagnosis system
• Automatic restart after power failure
• Storage of all entered values in case of power failure
Specifications:
| Cooling capacity: | 3.4 kW (min.-max.: 0.9-3.4 kW) |
| Heating output: | 3.6 kW (min.-max.: 0.9-3.7 kW) |
| Nom. power consumption: |
Cooling (T=+35°C): 1.21 kW / Heating (T=+7°C): 0.975 kW |
| Energy efficiency class cooling/heating: | A++ / A+ |
| Sound pressure level indoor unit (SLo-Lo-Mid-Hi-SHi): | Cooling: 22-31-38-46 dB(A) / Heating: 21-30-37-44 dB(A) |
| Sound pressure level outdoor unit (min.-max): | 51-51 dB(A) |
| SEER / SCOP: | 6.2 / 4.3 |
| Indoor unit dimensions (WxHxD): | 838 x 280 x 228 mm (8.5 kg) |
| Dimensions of outdoor unit (WxHxD): | 699 x 538 x 249 mm (24 kg) |
| Operating area: | Cooling: -10 ~ +46 °C / Heating: -10 ~ +24 °C |
| Refrigerant pre-charge: | The outdoor unit is pre-filled with R32 refrigerant up to 7.5 m. |
|
Pipe connections liquid + gas: |
6.35mm (1/4") + 9.52mm (3/8") |
| Height difference between outdoor unit and indoor unit: | Max. 12 m |
| Refrigerant line length between indoor and outdoor unit: | Max. 20 m |
*Important NOTE
Dear customer, you should bear in mind that with the purchase the buyer / user confirms compliance with “Regulation (EU) No 517/2014 of the European Parliament and of the Council of 16 April 2014 on fluorinated greenhouse gases and compliance with Regulation (EU) No 573/2024 of the European Parliament and of the Council of March 2024 on fluorinated greenhouse gases, which stipulates that: the person purchasing the split air conditioner / the user confirms that it will be professionally installed by certified professionals.
