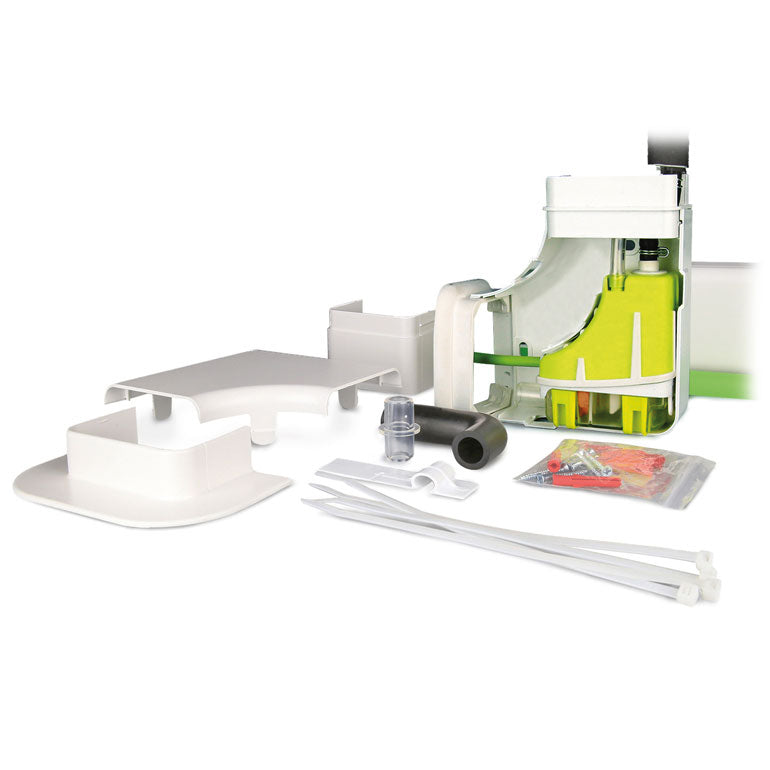

The Aspen Silent+ Mini Lime is a condensate pump for air conditioning systems that removes condensate from the indoor unit when there is no gradient for free drainage. The pump delivers up to 12 l/h and can pump to a height of up to 10 meters. It is designed for systems up to 16 kW and for wall-mounted units.

Design and Features

• Noise level: 20 dB(A) at a distance of 1 meter, for areas where a low noise level is required
• Vibration damper: decouples the pump from the mounting surface
• Absorbing materials: integrated into the housing
• Container with quick-release closure: can be opened on site
• LED in the container: indicates the operating status

Scope of Delivery

• 1x Aspen Silent+ Mini Lime condensate pump

What You Need in Addition

• Condensate hose in the required length
• 230 V electrical connection at the installation site
• Installation and commissioning by a specialist company

Technical Data

Manufacturer and Series	Aspen Silent+
Model	Mini Lime
Max. delivery rate	12 l/h at 0 m delivery height
Max. delivery height	10 m at 6 l/h delivery rate
Noise level	20 dB(A) at 1 m distance
Suitable for systems up to	16 kW
Protection rating	IP24
Supply voltage	230 V, 50/60 Hz
Current consumption	0.1 A
Power consumption	16 W
Max. water temperature	40 °C

Frequently Asked Questions

What is a condensate pump used for?

An indoor unit produces condensate during cooling operation. If the drain is higher than the unit or there is insufficient gradient, the condensate will not drain on its own. The pump then pumps it to the drain.

What systems is the pump designed for?

For wall-mounted units and systems up to 16 kW. You can find the cooling capacity of your unit in its technical data.

How high does the pump deliver?

Up to 10 meters at a delivery rate of 6 l/h. At 0 meters delivery height, the delivery rate is 12 l/h. The higher the delivery height, the lower the delivery volume.

How loud is the pump?

The manufacturer specifies 20 dB(A) at a distance of one meter.

How can I tell that the pump is working?

There is an LED in the container that indicates the operating status. The container can be opened via a quick-release closure.

Is a condensate hose included?

No. The pump is supplied. You select the hose according to the required length at the installation site.

Can I connect the pump myself?

The pump is connected to 230 V and integrated into the condensate system of the unit. Installation and commissioning are carried out by a specialist company.
