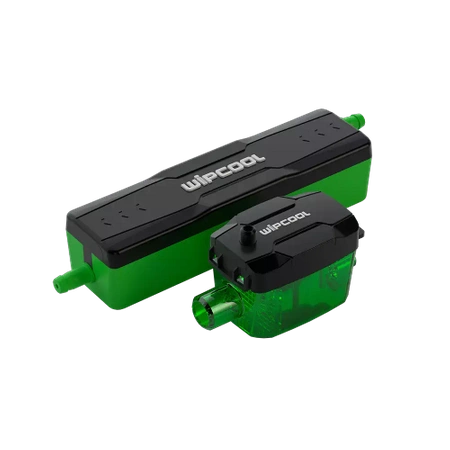

The Wipcool Mini P12 is a condensate pump for air conditioning systems up to 8 kW that removes condensate from the indoor unit when there is no gradient for free drainage. It pumps up to 12 l/h and can overcome a height of up to 7 meters. The water level is detected by a probe; there is no movable float.

Design and Features

• Sensor without float: the water level is detected by a switching probe, not by a movable float
• Automatic operation: the pump switches on and off based on the water level
• Noise level: 19 dB according to the manufacturer
• Wide voltage range: 100 to 240 V, 50 to 60 Hz
• Outlet: 6 mm inner diameter

Scope of Delivery

• 1x Wipcool Mini P12 condensate pump

What else you need

• Condensate hose with a 6 mm inner diameter in the required length
• Electrical connection at the installation site
• Installation and commissioning by a specialist company

Technical Data

Manufacturer	Wipcool
Model	Mini P12
Max. flow rate	12 l/h
Max. head height	7 m
Suitable for systems up to	8 kW, 30,000 Btu/h
Noise level	19 dB
Supply voltage	100 to 240 V, 50 to 60 Hz
Max. condensate temperature	50 °C
Outlet	6 mm inner diameter

Frequently Asked Questions

What is a condensate pump used for?

An indoor unit produces condensate during cooling operation. If the drain is higher than the unit or there is insufficient gradient, the condensate will not drain on its own. The pump then pumps it to the drain.

For which systems is the P12 designed?

For systems up to 8 kW. You can find the cooling capacity of your unit in its technical data.

How high does the pump pump?

Up to 7 meters. The higher the head height, the lower the flow rate.

What does a sensor without a float mean?

The water level is detected by a switching probe. There is no movable float that could become blocked.

What hose do I need?

The outlet has an inner diameter of 6 mm. The appropriate hose is selected at the installation site according to the required length.

Is a hose included in the scope of delivery?

The pump is delivered. The hose is not included in the scope of delivery.

Can I connect the pump myself?

The pump is electrically connected and integrated into the system's condensate line. Installation and commissioning are carried out by a specialist company.
