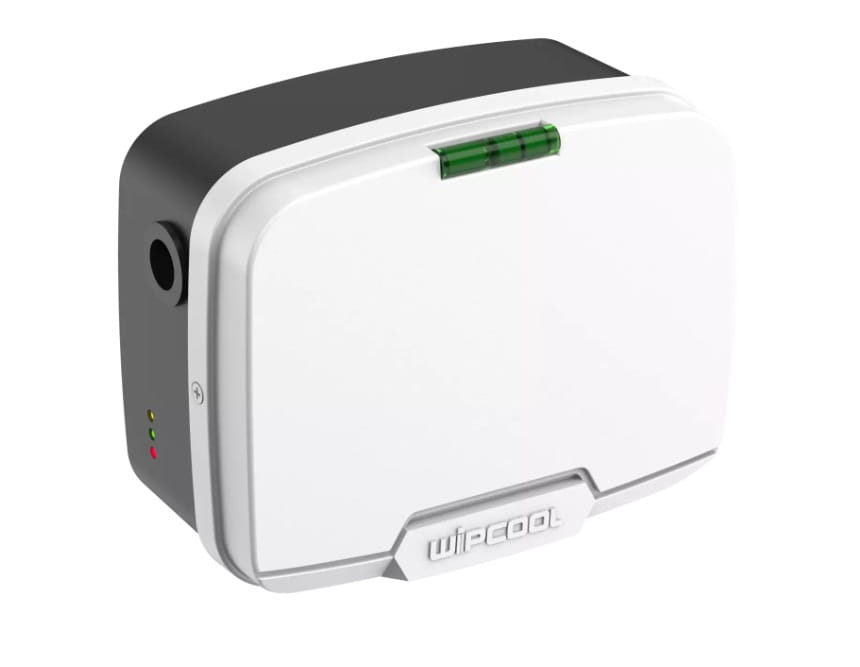

The Wipcool P15J is a condensate sprayer: it sprays the condensate produced through a diffuser instead of allowing it to drain as a stream of water. This makes it an alternative for installation locations where no drain is available and a stream of water would be disruptive. The sprayed water can be directed to the outdoor unit's condenser. The P15J processes up to 15 l/h and is designed for systems up to 30,000 Btu/h, approximately 8 kW.

How the device works

• Spraying instead of draining: the condensate is sprayed through a diffuser
• No drain required: no pipe to a drain is needed
• Directing to the outdoor unit: the sprayed water can be directed to the outdoor unit's condenser
• Flow rate: up to 15 l/h
• Noise level: 55 dB according to the manufacturer, significantly higher than that of a condensate pump
• Operating temperature: 0 to 50 °C

Scope of delivery

• 1x Wipcool P15J condensate sprayer

What else you need

• Electrical connection at the installation site
• Assessment of the installation site by a specialist company, due to the noise level and spray direction
• Installation and commissioning by a specialist company

Technical data

Manufacturer	Wipcool
Series	Pioneer
Model	P15J
Design	Condensate sprayer with diffuser
Flow rate	15 l/h
Delivery head	1.5 m
Suitable for systems up to	30,000 Btu/h, approximately 8 kW
Noise level	55 dB
Operating temperature	0 to 50 °C

Frequently asked questions

How does a condensate sprayer work?

The condensate produced during cooling is sprayed through a diffuser instead of draining as a stream of water through a pipe. A connection to a drain is therefore not required.

How does the device differ from a condensate pump?

A condensate pump pumps the condensate to a drain. The sprayer does not require a drain because it sprays the water. It is therefore intended for installation locations where no drain is accessible.

How loud is the device?

The manufacturer specifies 55 dB. This is significantly higher than the noise level of a condensate pump. The installation site should be chosen accordingly, for example, not in the immediate vicinity of a bedroom or workplace. The specialist company will assess this.

For which systems is the device intended?

For systems up to 30,000 Btu/h, which corresponds to approximately 8 kW. You can find the cooling capacity of your device in its technical data.

How much condensate does the device process?

Up to 15 liters per hour, with a delivery head of 1.5 meters.

Where is the water sprayed?

The sprayed water can be directed to the outdoor unit's condenser. The specialist company determines the spray direction and installation site based on the installation situation.

At what temperatures does the device operate?

The operating range is between 0 and 50 °C.

Can I connect the device myself?

The device is electrically connected and integrated into the system's condensate management. Installation and commissioning are carried out by a specialist company.
