LG Compact Inverter US36FC Indoor Unit 9.5 kW

LG Compact Inverter US36FC Indoor Unit 9.5 kW

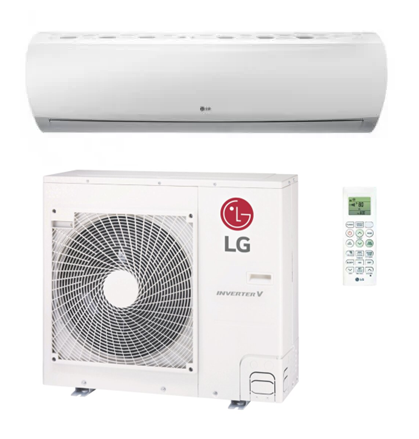

LG Compact Inverter US36FC split wall-mounted unit with 9.5 kW cooling and 10.8 kW heating capacity, suitable for rooms of approximately 73 to 95 m²*. Energy efficiency class A++ for cooling and A+ for heating, on a scale from A+++ to D. Indoor unit US36F.NR0, 1,200 mm wide; outdoor unit UUC1.U40; heating down to minus 15°C; integrated Wi-Fi; wireless remote control included.

Regular price €2.499,00
Regular price Sale price €2.499,00
Sale Sold out

incl. VAT + Shipping Costs

Taxes included. Shipping calculated at checkout.

Crowd

  • American Express
  • Diners Club
  • Discover
  • Google Pay
  • JCB
  • Mastercard
  • PayPal
  • Visa
  • Brand-name units from a specialist retailerOriginal products from leading manufacturers
  • Personal adviceBy phone, email or WhatsApp
  • Installation on requestBy specialist installers in your region
  • Secure paymentPayPal with Buyer Protection, credit card and more

Description

The LG Compact Inverter US36FC is a split wall-mounted unit with a cooling capacity of 9.5 kW and a heating capacity of 10.8 kW, consisting of indoor unit US36F.NR0 for wall mounting and outdoor unit UUC1.U40. SEER 6.4 and SCOP 4.1, energy efficiency class according to page A++ in cooling and A+ in heating on the scale from A+++ to D. Wi-Fi is integrated according to the page, the air direction can be set in six angles via the remote control according to the page, and the indoor unit dries the heat exchanger after operation according to the page. As a guide, the power class is suitable for rooms of approximately 73 to 95 m²*.

Performance and range of application

The cooling capacity is 9.5 kW in the range of 3.8 to 10.6 kW, the heating capacity 10.8 kW in the range of 4.3 to 11.5 kW (according to the page). Power supply 220 to 240 V, 50 Hz, single-phase. According to the page, the device operates at minus 20 to plus 50 °C outdoor temperature in cooling and at minus 15 to plus 18 °C in heating. The page does not state the power consumption, annual energy consumption, and air volume flow.

The stated area of approximately 73 to 95 m²* is a guideline at usual room height and normal insulation standard, not a binding design. Room height, insulation standard, window areas, shading, and the number of people and devices determine which power class is suitable for your property. We check the appropriate design for your property upon request.

* Guideline based on the cooling capacity specified by the manufacturer, at a usual room height of approximately 2.5 m, normal insulation standard, and average solar radiation. Different conditions on site, such as large window areas, sloped roofs, or a high number of people, may require a different power class. The binding design is carried out on a property-specific basis. For a professional design of your property please contact us.

The most important advantages at a glance

  • 9.5 kW cooling and 10.8 kW heating capacity in the range of 3.8 to 10.6 kW and 4.3 to 11.5 kW respectively according to the page.
  • Energy efficiency class A++ in cooling and A+ in heating according to the page, scale A+++ to D, with SEER 6.4 and SCOP 4.1.
  • Integrated Wi-Fi according to the page, wireless remote control included in the delivery.
  • Six airflow angles according to the page, adjustable via the remote control, up, down, left, and right.
  • Indoor unit 1,200 x 360 x 265 mm, 18.3 kg according to the page; heating operation down to minus 15 °C according to the page.
  • Drying of the heat exchanger after operation according to the page; sensors for temperature and pressure.

Detailed functions

Inverter and heat pump operation

The inverter adjusts the power to the demand; according to the page, the control range in cooling is from 3.8 to 10.6 kW and in heating from 4.3 to 11.5 kW. In heating mode, the device operates as an air-to-air heat pump and uses the outdoor air down to minus 15 °C according to the page. According to the page, temperature sensors and a pressure sensor help to reach the set room temperature. Seasonal values according to the page: SEER 6.4, SCOP 4.1.

Airflow and filter

The air direction can be set in six angles via the remote control according to the page, up, down, left, and right. After operation, the indoor unit dries the heat exchanger according to the page. The page does not state a filter or the air volume flow; information on request.

Operating modes

  • Cooling: 9.5 kW nominal, 3.8 to 10.6 kW according to the page
  • Heating: 10.8 kW nominal, 4.3 to 11.5 kW according to the page, down to minus 15 °C
  • Other operating modes, timers, or programs are not stated on the page

Control and comfort

  • Integrated Wi-Fi according to the page; the page does not state the app for end users, information on request
  • Wireless remote control included in the delivery according to the page
  • LGMV app (Monitoring View) according to the page for the professional company for monitoring and setting via smartphone
  • Six airflow angles via the remote control according to the page

Operational safety

  • Operating range according to the page: minus 20 to plus 50 °C cooling, minus 15 to plus 18 °C heating
  • The page does not state the sound pressure level of the outdoor unit; on request

Scope of delivery

Included in the standard scope:

  • 1x indoor unit LG US36F.NR0
  • 1x outdoor unit LG UUC1.U40
  • 1x wireless remote control

Wi-Fi is integrated according to the page; this page does not offer a mounting set.

What you need additionally

  • Refrigerant lines 9.52 mm (3/8 inch) + 15.88 mm (5/8 inch); maximum length and height difference are not stated on the page, on request
  • Condensate line and mounting material for wall mounting
  • Wall bracket or floor console for the outdoor unit (57.7 kg)
  • Electrical supply line and protection (value is not stated on the page)
  • Installation and commissioning by a professional company

Technical data

Indoor unit LG US36F.NR0
Outdoor unit LG UUC1.U40
Nominal cooling capacity (min. to max.) 9.5 kW (3.8 to 10.6 kW)
Nominal heating capacity (min. to max.) 10.8 kW (4.3 to 11.5 kW)
Nominal power consumption cooling / heating (min. to max.) not stated on the page
Energy efficiency class cooling / heating A++ / A+ according to the page, scale A+++ to D
SEER / SCOP 6.4 / 4.1
Annual energy consumption cooling / heating not stated on the page
Power supply 220 to 240 V, 50 Hz, single-phase
Sound pressure level indoor unit (three levels according to the page) 51 / 46 / 42 dB(A)
Sound pressure level outdoor unit cooling / heating (high level) not stated on the page
Air volume flow indoor unit not stated on the page
Dimensions indoor unit (W x H x D), weight 1,200 x 360 x 265 mm, 18.3 kg
Dimensions outdoor unit (W x H x D), weight 950 x 834 x 330 mm, 57.7 kg
Pipe connections liquid + gas 9.52 mm (3/8 inch) + 15.88 mm (5/8 inch)
Max. line length / height difference not stated on the page
Operating range outdoor temperature cooling / heating minus 20 to plus 50 °C / minus 15 to plus 18 °C
Airflow according to the page six airflow angles, drying of the heat exchanger
Control according to the page wireless remote control, LGMV app for the professional company
Wi-Fi integrated according to the page
Manufacturer / EU representative according to the page LG Electronics Deutschland GmbH, Eschborn

Frequently Asked Questions

What cooling and heating capacity does the LG Compact Inverter US36FC with 9.5 kW have?

According to the page, 9.5 kW in cooling and 10.8 kW in heating (nominal values), adjustable from 3.8 to 10.6 kW and 4.3 to 11.5 kW respectively. SEER 6.4 and SCOP 4.1 according to the page, energy efficiency class according to the page A++ in cooling and A+ in heating on the scale from A+++ to D. We check which power class is suitable for your room upon request.

How big is the indoor unit and where is it mounted?

The indoor unit US36F.NR0 is wall-mounted; according to the page, it measures 1,200 x 360 x 265 mm (width x height x depth) and weighs 18.3 kg. The outdoor unit UUC1.U40 measures 950 x 834 x 330 mm and weighs 57.7 kg. With 9.5 kW, the device is intended for small businesses and shops according to the page.

What exactly is included in the delivery?

The delivery includes exclusively the indoor unit US36F.NR0, the outdoor unit UUC1.U40, and a wireless remote control. Refrigerant lines, condensate line, bracket, and mounting material are not included, this page does not offer a mounting set. We state suitable material on request.

Does the device have Wi-Fi?

Yes, according to the page, Wi-Fi is integrated. Which app is included for end users is not stated on the page; we confirm it on request. The LGMV app (Monitoring View) is intended for the professional company according to the page, for monitoring and setting via smartphone.

How long can the line between the indoor and outdoor unit be?

The maximum line length and the maximum height difference are not stated on the page; the pipe connections are stated as 9.52 mm (3/8 inch) + 15.88 mm (5/8 inch). Which line route is permissible for your property, we check upon request.

Can I heat with the device in winter?

Yes. The heating capacity is 10.8 kW in the range of 4.3 to 11.5 kW, energy efficiency class in heating according to the page A+ on the scale from A+++ to D, SCOP 4.1. The heating operation is stated according to the page down to minus 15 °C outdoor temperature. With decreasing outdoor temperature, the available heating capacity decreases; the system is therefore suitable as a supplement to the existing heating system.

How loud is the device?

For the indoor unit, the page states 51 / 46 / 42 dB(A) in cooling on three levels; the levels are not stated. The page does not state the sound pressure level of the outdoor unit; on request.

Can I install the air conditioner myself?

The installation and commissioning of a split air conditioner is carried out by a certified professional company. Self-installation is not intended.
