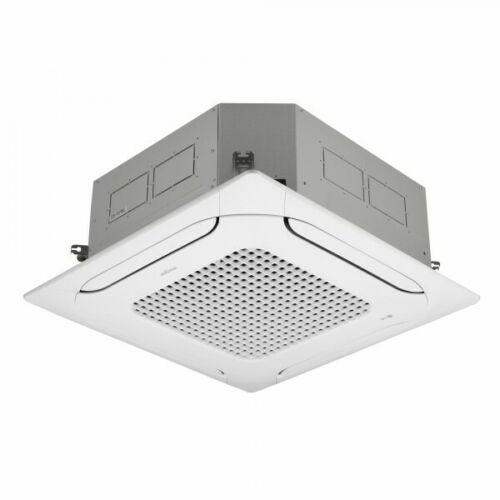

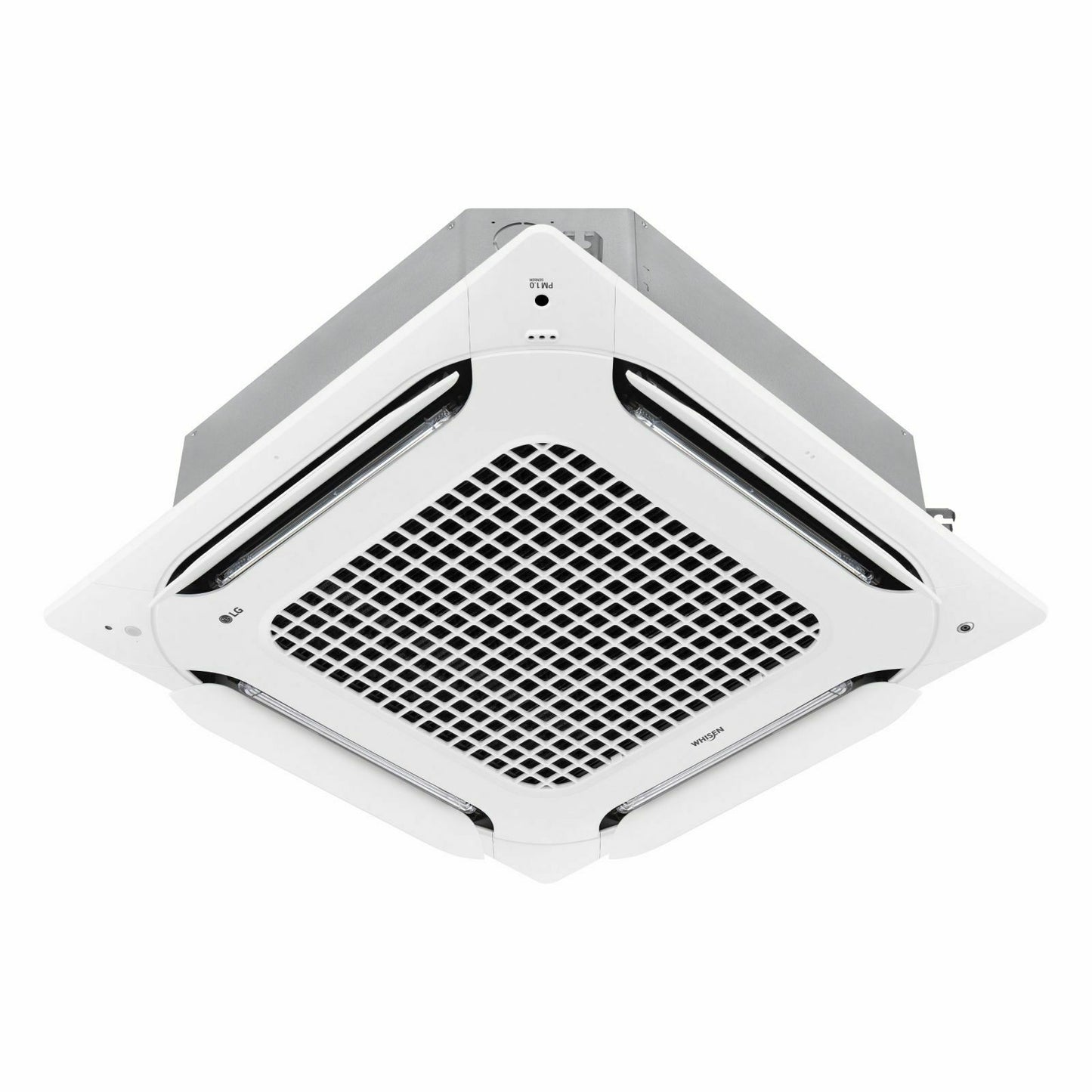

LG Standard Inverter CT12F Ceiling Cassette 3.4 kW

LG Standard Inverter CT12F Ceiling Cassette 3.4 kW

LG Standard Inverter CT12F split ceiling cassette with 3.4 kW cooling and 4.1 kW heating capacity, suitable for rooms of approximately 26 to 34 m²*. Energy efficiency class A++ for cooling and A+ for heating, on a scale from A+++ to D. 4-way air outlet with double-blade louvers, 570 x 570 mm indoor unit with panel, quiet night mode on the outdoor unit, wired remote control included, optional Wi-Fi control.

Regular price €2.149,00
Regular price Sale price €2.149,00
Sale Sold out

incl. VAT + Shipping Costs

Taxes included. Shipping calculated at checkout.

Crowd

  • American Express
  • Diners Club
  • Discover
  • Google Pay
  • JCB
  • Mastercard
  • PayPal
  • Visa
  • Brand-name units from a specialist retailerOriginal products from leading manufacturers
  • Personal adviceBy phone, email or WhatsApp
  • Installation on requestBy specialist installers in your region
  • Secure paymentPayPal with Buyer Protection, credit card and more

Description

With a cooling capacity of 3.4 kW and a heating capacity of 4.1 kW (rated values), the LG Standard Inverter CT12F operates as a 4-way ceiling cassette in a suspended ceiling; indoor unit CT12F with grille, outdoor unit and wired remote control included as a set. SEER 6.7 and SCOP 4.0, energy efficiency class according to the page A++ in cooling and A+ in heating on the scale from A+++ to D. According to the page, a 4-way air outlet with double-blade louvres distributes the air, the outdoor unit features a low-noise night mode and the Wi-Fi control is optional. The power class is suitable as a guide for rooms of approximately 26 to 34 m²*.

Performance and range of application

In cooling mode, the unit delivers 3.4 kW (1.5 to 4.5 kW), in heating mode 4.1 kW (1.8 to 5.0 kW) according to the table; the power consumption is 0.98 kW and 1.11 kW respectively at rated power according to the table (0.30 to 1.62 kW in cooling, 0.30 to 1.57 kW in heating). Connection to 220 to 240 V, 50 Hz, single-phase; the page does not state an operating range for the outdoor temperature. The annual energy consumption is stated as 178 / 980 kWh (cooling / heating) according to the table, the air volume flow of the indoor unit as 9.5 / 8.0 / 7.0 m³/min (three stages).

The stated area of approximately 26 to 34 m²* is a guideline for standard room height and normal insulation standards, not a binding design. Whether the power class is suitable for your room depends on room height, insulation standards, window areas, shading and the number of people and devices. We will check the appropriate design for your property upon request.

* Guideline based on the cooling capacity specified by the manufacturer, at a standard room height of approximately 2.5 m, normal insulation standards and average solar radiation. Different conditions on site, such as large window areas, sloped roofs or a high number of people, may require a different power class. The binding design is carried out on a property-specific basis. For a professional design of your property please contact us.

The most important advantages at a glance

  • 3.4 kW cooling and 4.1 kW heating capacity, control range 1.5 to 4.5 kW and 1.8 to 5.0 kW according to the table.
  • Energy efficiency class A++ in cooling and A+ in heating on the scale A+++ to D according to the page, SEER 6.7 and SCOP 4.0.
  • 4-way air outlet with double-blade louvres according to the page, indoor unit 570 x 570 mm and 214 mm high, grille included.
  • Low-noise night mode of the outdoor unit according to the page, indoor unit according to the table from 32 dB(A).
  • Group control and connection to a central control system according to the page, two-sensor control, child lock.
  • Wired remote control included; Wi-Fi control according to the page optional, available upon request.

Detailed functions

Inverter and heat pump operation

In heating mode, the unit operates as an air-to-air heat pump; the page does not state up to what outdoor temperature. The inverter regulates the power according to demand, according to the table between 1.5 to 4.5 kW in cooling and 1.8 to 5.0 kW in heating. According to the page, hot start (no cold air flow when heating up), fast cooling and an automatic change of operating mode are included. Seasonal values according to the table: SEER 6.7, SCOP 4.0.

Airflow and filters

Four air outlet sides with double-blade louvres according to the page; the air volume flow is 9.5 / 8.0 / 7.0 m³/min according to the table (three stages). According to the page, a double filter protection is included. The page does not provide information on the filter type and filter efficiency; the page does not state the code of the grille.

Operating modes

  • Cooling: 3.4 kW rated, 1.5 to 4.5 kW according to the table
  • Heating: 4.1 kW rated, 1.8 to 5.0 kW according to the table
  • Automatic change of operating mode, hot start and fast cooling according to the page
  • Low-noise night mode of the outdoor unit according to the page

Control and comfort

  • Wired remote control included according to the page; timer and child lock (child access protection) according to the page
  • Group control, two-sensor control and connection to a central control system according to the page
  • Wi-Fi control according to the page optional; module and app not stated by the page, available upon request
  • Automatic restart after power failure according to the page

Operating safety

  • Outdoor temperature operating range: not stated on the page, available upon request
  • The page does not state a condensate pump; available upon request
  • Outdoor unit according to the table 49 dB(A) in cooling and 52 dB(A) in heating (high stage)

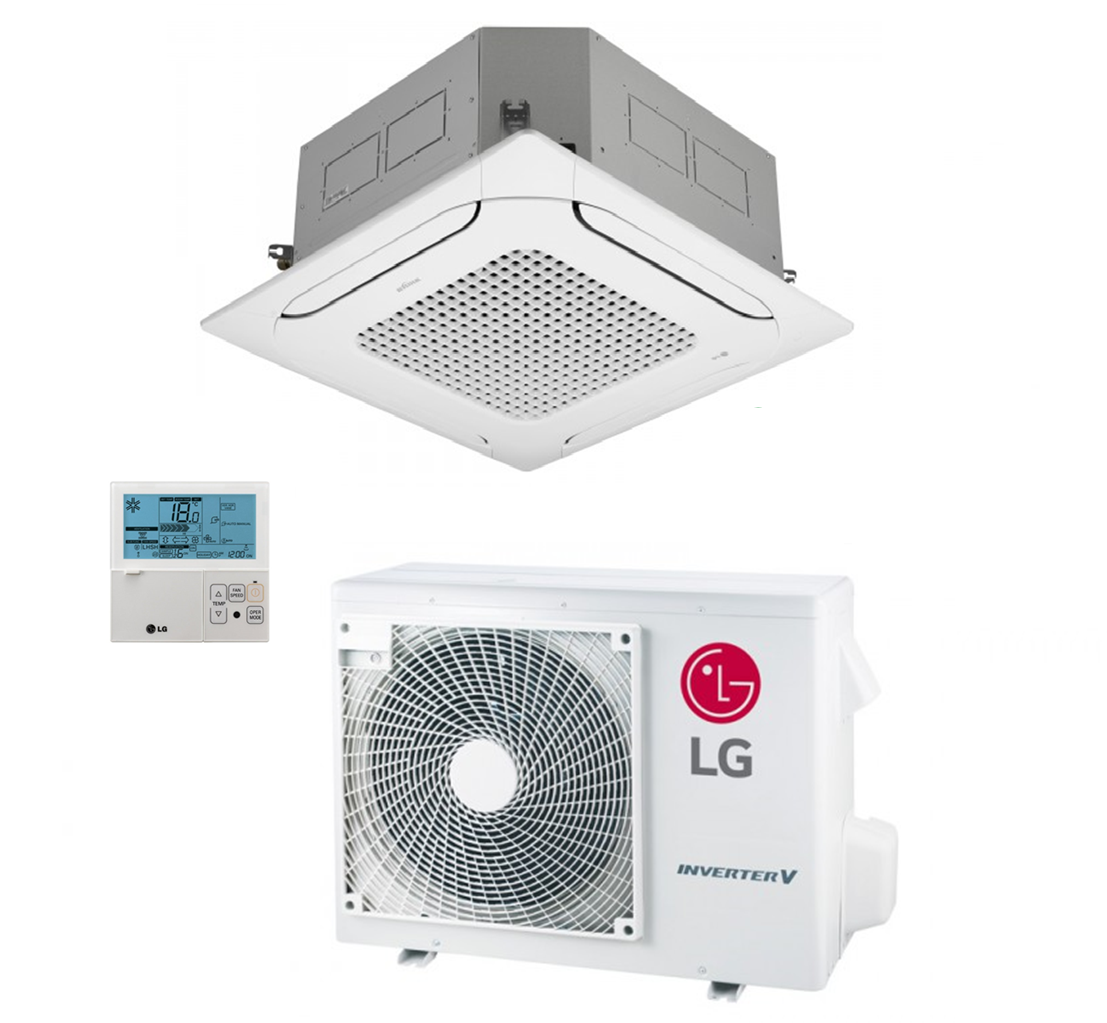

Scope of delivery

Included in the standard scope:

  • 1x indoor unit LG CT12F with grille (grille code not stated on the page)

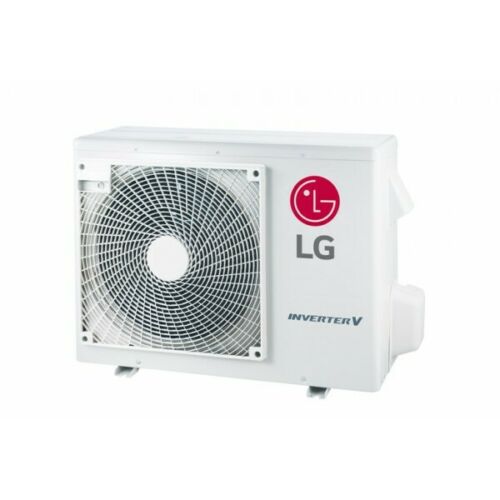

  • 1x outdoor unit (code not stated on the page)

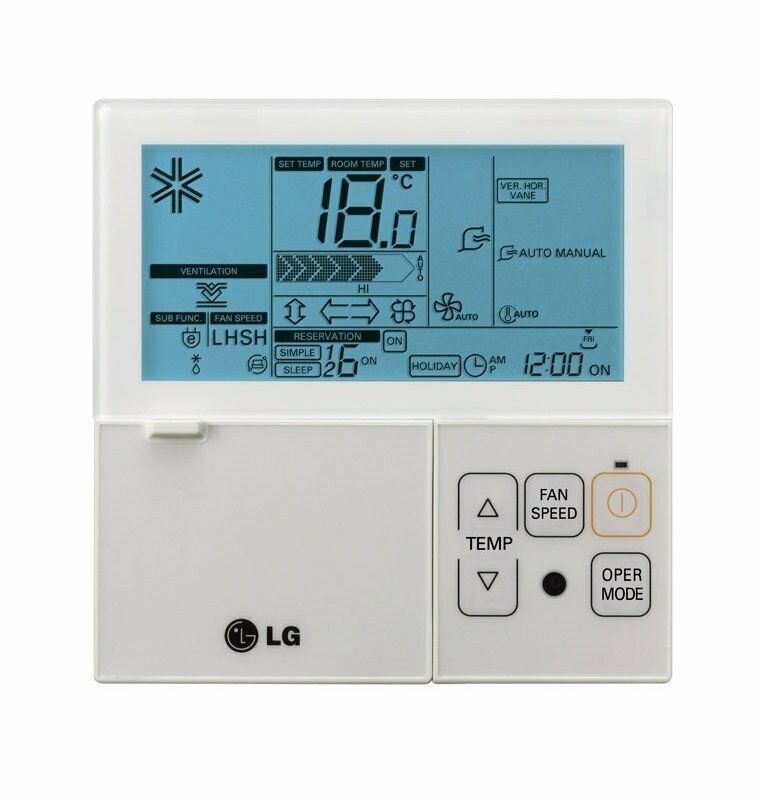

  • 1x wired remote control

A Wi-Fi module is optional according to the page and not included in the scope of delivery; this page does not offer a mounting set.

What you need additionally

  • Refrigerant lines 6.35 mm (1/4 inch) + 9.52 mm (3/8 inch); maximum length and height difference are not stated on the page, available upon request
  • Condensate line and mounting material for installation in the suspended ceiling
  • Wall bracket or floor console for the outdoor unit (33.3 kg)
  • Electrical supply line and circuit breaker (value not stated on the page)
  • Installation and commissioning by a specialist company

Technical data

Indoor unit LG CT12F with grille
Outdoor unit not stated on the page
Rated cooling capacity (min. to max.) 3.4 kW (1.5 to 4.5 kW)
Rated heating capacity (min. to max.) 4.1 kW (1.8 to 5.0 kW)
Rated power consumption cooling / heating (min. to max.) 0.98 kW (0.30 to 1.62 kW) / 1.11 kW (0.30 to 1.57 kW)
Energy efficiency class cooling / heating A++ / A+ according to the page, scale A+++ to D
SEER / SCOP 6.7 / 4.0
Annual energy consumption cooling / heating 178 / 980 kWh
Power supply 220 to 240 V, 50 Hz, single-phase
Sound pressure level indoor unit (three stages according to the table) 38 / 35 / 32 dB(A)
Sound pressure level outdoor unit cooling / heating (high stage) 49 / 52 dB(A)
Air volume flow indoor unit 9.5 / 8.0 / 7.0 m³/min
Dimensions indoor unit (W x H x D), weight 570 x 214 x 570 mm, 12.4 kg
Dimensions outdoor unit (W x H x D), weight 770 x 545 x 288 mm, 33.3 kg
Pipe connections liquid + gas 6.35 mm (1/4 inch) + 9.52 mm (3/8 inch)
Max. line length / height difference not stated on the page
Outdoor temperature operating range cooling / heating not stated on the page
Air outlet 4 sides, double-blade louvres according to the page
Filter according to the page Double filter protection
Condensate pump not stated on the page
Control according to the page Wired remote control, group control, central control, two-sensor control, timer, child lock
Wi-Fi optional according to the page; module available upon request
Manufacturer / EU representative according to the page LG Electronics Deutschland GmbH, Eschborn

Frequently asked questions

What cooling and heating capacity does the LG Standard Inverter CT12F with 3.4 kW have?

3.4 kW cooling and 4.1 kW heating capacity (rated values) according to the table; the control range extends from 1.5 to 4.5 kW in cooling and 1.8 to 5.0 kW in heating. Energy efficiency class according to the page A++ in cooling and A+ in heating on the scale from A+++ to D, SEER 6.7 and SCOP 4.0. We will check whether the power class is suitable for your room upon request.

What are the dimensions of the cassette and which grille is included?

According to the table, 570 x 214 x 570 mm (W x H x D) at 12.4 kg for the cassette; the grille is included according to the page, its code, its dimensions and the ceiling cutout are not stated by the page (available upon request). For the outdoor unit, 770 x 545 x 288 mm and 33.3 kg are stated on the page.

What exactly is included in the scope of delivery?

The delivery exclusively includes the indoor unit CT12F with grille, the outdoor unit and a wired remote control; the codes of the outdoor unit and grille are not stated by the page. Not included are refrigerant lines, condensate line, wall bracket or console and mounting material; a mounting set is not available on this page. We will share which material is suitable upon request.

Does the cassette have Wi-Fi and a condensate pump?

The Wi-Fi control is optional according to the page, without specification of the module and app; available upon request. The page does not state anything about the condensate pump, we will clarify this upon request.

How long can the line between the indoor and outdoor unit be?

The table states the pipe connections as 6.35 mm (1/4 inch) + 9.52 mm (3/8 inch), but no maximum line length and no height difference. We will clarify the permissible line route for your property upon request.

Can I use the unit for heating in winter?

Yes. The heating capacity is 4.1 kW in the range of 1.8 to 5.0 kW, energy efficiency class in heating according to the page A+ on the scale from A+++ to D, SCOP 4.0. Up to what outdoor temperature heating operation is possible is not stated on the page; available upon request. The colder it is outside, the less heating capacity is available; the system is therefore suitable as a supplement to the existing heating.

How loud is the unit?

Indoor unit according to the table 38 / 35 / 32 dB(A) on three unnamed stages; for the outdoor unit, 49 / 52 dB(A) (cooling / heating, high stage) are stated on the page, no value for the night mode.

Can I install the air conditioner myself?

The installation and commissioning of a split air conditioner is carried out by a certified specialist company. Self-installation is not intended.
