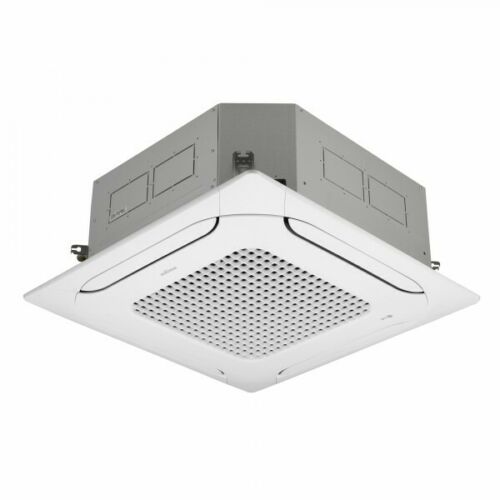

LG Standard Inverter CT24F Ceiling Cassette 6.8 kW
LG Standard Inverter CT24F Ceiling Cassette 6.8 kW
LG Standard Inverter CT24F Split Ceiling Cassette with 6.8 kW cooling and 7.5 kW heating capacity, suitable for rooms of approximately 52 to 68 m²*. Energy efficiency class A++ for cooling and A+ for heating, on a scale from A+++ to D. 4-way air outlet with double-blade louvers, 840 x 840 mm indoor unit with panel, quiet night mode for the outdoor unit, wired remote control included, optional Wi-Fi control.
incl. VAT + Shipping Costs
Crowd
Couldn't load pickup availability
- Brand-name units from a specialist retailerOriginal products from leading manufacturers
- Personal adviceBy phone, email or WhatsApp
- Installation on requestBy specialist installers in your region
- Secure paymentPayPal with Buyer Protection, credit card and more
Description
Description
LG Standard Inverter CT24F: Split ceiling cassette with 6.8 kW cooling and 7.5 kW heating capacity, CT24F indoor unit with grille for suspended ceilings, outdoor unit and wired remote control. SEER 7.4 and SCOP 4.3, energy efficiency class according to the page A++ for cooling and A+ for heating on the A+++ to D scale. According to the page, the air is discharged through a 4-way outlet with double-blade louvres; the outdoor unit's night mode is quiet according to the page, Wi-Fi is optional according to the page. The power class is suitable as a guide for rooms of approximately 52 to 68 m²*.
Performance and range
6.8 kW cooling capacity with a 2.7 to 8.0 kW adjustable range and 7.5 kW heating capacity with 3.0 to 9.0 kW according to the table; plus 1.93 kW (0.40 to 2.66 kW) power consumption in cooling and 1.96 kW (0.40 to 2.84 kW) in heating. Connection to 220 to 240 V, 50 Hz, single-phase; the outdoor temperature limits are not stated on the page. The annual energy consumption is stated as 322 / 1,823 kWh (cooling / heating) according to the table, the indoor unit's air volume flow at 18 / 15.5 / 14 m³/min (three speeds).
The stated area of approximately 52 to 68 m²* is a guideline for standard room height and normal insulation standards, not a binding design. Which power class is right for your property depends on room height, insulation standards, window areas, shading, as well as the number of people and devices. We will check the appropriate design for your property upon request.
* Guideline based on the cooling capacity specified by the manufacturer, at a standard room height of approximately 2.5 m, normal insulation standards and average solar radiation. Different conditions on site, such as large window areas, sloped roofs or a high number of people, may require a different power class. The binding design is carried out on a property-specific basis. For a professional design of your property, please contact us.
The most important advantages at a glance
- 6.8 kW cooling and 7.5 kW heating capacity in the range of 2.7 to 8.0 kW and 3.0 to 9.0 kW respectively according to the table.
- Energy efficiency class A++ in cooling and A+ in heating according to the page, A+++ to D scale, with SEER 7.4 and SCOP 4.3.
- 4-way air outlet with double-blade louvres according to the page, indoor unit 840 x 840 mm and 204 mm high, grille included.
- Quiet night mode of the outdoor unit according to the page, indoor unit from 34 dB(A) according to the table.
- Group control and connection to a central control system according to the page, two-sensor control, child lock.
- Wired remote control included; Wi-Fi control optional according to the page, available upon request.
Detailed functions
Inverter and heat pump operation
The inverter control keeps the power in cooling between 2.7 and 8.0 kW according to the table and in heating between 3.0 and 9.0 kW; as an air-to-air heat pump, the device heats, the page does not state the outdoor temperature limits. According to the page, hot start (no cold air flow when heating up), fast cooling and an automatic change of operating mode are included. Seasonal values according to the table: SEER 7.4, SCOP 4.3.
Airflow and filter
The 4-way air outlet with double-blade louvres distributes 18 / 15.5 / 14 m³/min on three speeds according to the page; as a filter, the page provides a double filter protection. The page does not provide information on the filter type and filter effect; the page does not state the code of the grille.
Operating modes
- Cooling: 6.8 kW nominal, 2.7 to 8.0 kW according to the table
- Heating: 7.5 kW nominal, 3.0 to 9.0 kW according to the table
- Automatic change of operating mode, hot start and fast cooling according to the page
- Quiet night mode of the outdoor unit according to the page
Control and comfort
- Wired remote control included according to the page; timer and child lock (child access protection) according to the page
- Group control, two-sensor control and connection to a central control system according to the page
- Wi-Fi control optional according to the page; module and app not stated by the page, available upon request
- Automatic restart after power failure according to the page
Operational safety
- Outdoor temperature operating range: not stated on the page, available upon request
- The page does not state a condensate pump; available upon request
- Outdoor unit according to the table 48 dB(A) in cooling and 52 dB(A) in heating (high speed)
Scope of delivery
Included in the standard scope:
- 1x indoor unit LG CT24F with grille (grille code not stated on the page)

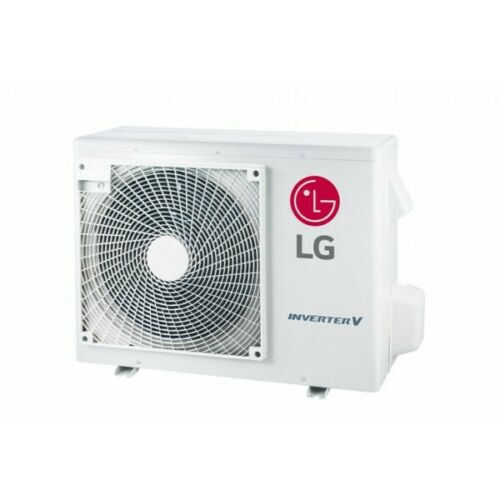

- 1x outdoor unit (code not stated on the page)

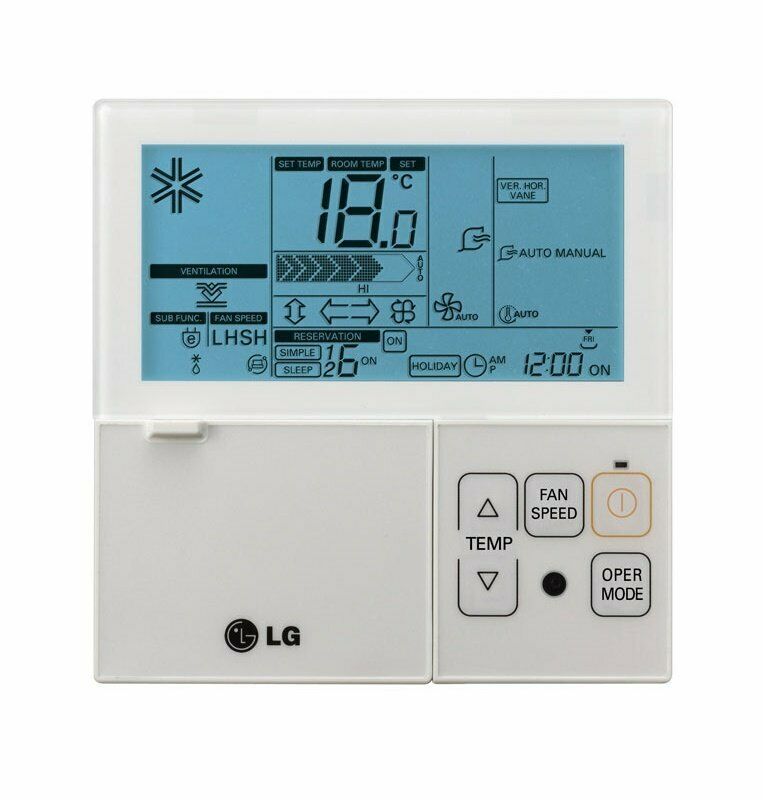

- 1x wired remote control
A Wi-Fi module is optional according to the page and not included in the scope of delivery; this page does not offer a mounting set.
What you need additionally
- Refrigerant lines 9.52 mm (3/8 inch) + 15.88 mm (5/8 inch); maximum length and height difference not stated on the page, available upon request
- Condensate line and mounting material for installation in the suspended ceiling
- Wall bracket or floor console for the outdoor unit (57.7 kg)
- Electrical supply line and protection (value not stated by the page)
- Installation and commissioning by a specialist company
Technical data
| Indoor unit | LG CT24F with grille |
| Outdoor unit | not stated on the page |
| Nominal cooling capacity (min. to max.) | 6.8 kW (2.7 to 8.0 kW) |
| Nominal heating capacity (min. to max.) | 7.5 kW (3.0 to 9.0 kW) |
| Nominal power consumption cooling / heating (min. to max.) | 1.93 kW (0.40 to 2.66 kW) / 1.96 kW (0.40 to 2.84 kW) |
| Energy efficiency class cooling / heating | A++ / A+ according to the page, A+++ to D scale |
| SEER / SCOP | 7.4 / 4.3 |
| Annual energy consumption cooling / heating | 322 / 1,823 kWh |
| Power supply | 220 to 240 V, 50 Hz, single-phase |
| Sound pressure level indoor unit (three speeds according to the table) | 38 / 36 / 34 dB(A) |
| Sound pressure level outdoor unit cooling / heating (high speed) | 48 / 52 dB(A) |
| Air volume flow indoor unit | 18 / 15.5 / 14 m³/min |
| Dimensions indoor unit (W x H x D), weight | 840 x 204 x 840 mm, 21.1 kg |
| Dimensions outdoor unit (W x H x D), weight | 950 x 834 x 330 mm, 57.7 kg |
| Pipe connections liquid + gas | 9.52 mm (3/8 inch) + 15.88 mm (5/8 inch) |
| Max. line length / height difference | not stated on the page |
| Outdoor temperature operating range cooling / heating | not stated on the page |
| Air outlet | 4 sides, double-blade louvres according to the page |
| Filter according to the page | Double filter protection |
| Condensate pump | not stated on the page |
| Control according to the page | Wired remote control, group control, central control, two-sensor control, timer, child lock |
| Wi-Fi | optional according to the page; module available upon request |
| Manufacturer / EU representative according to the page | LG Electronics Deutschland GmbH, Eschborn |
Frequently asked questions
What cooling and heating capacity does the LG Standard Inverter CT24F with 6.8 kW have?
According to the table, 6.8 kW in cooling and 7.5 kW in heating (nominal values), adjustable from 2.7 to 8.0 kW and 3.0 to 9.0 kW respectively. SEER 7.4 and SCOP 4.3 according to the table, energy efficiency class according to the page A++ in cooling and A+ in heating on the A+++ to D scale. We will check which power class is right for your room upon request.
What dimensions does the cassette have and which grille belongs to it?
The cassette measures 840 x 204 x 840 mm (W x H x D) according to the table and weighs 21.1 kg, the grille belongs to it according to the page; which grille exactly, which dimensions and which ceiling cutout, is not stated on the page, available upon request. The outdoor unit: 950 x 834 x 330 mm at 57.7 kg.
What exactly is included in the scope of delivery?
The delivery includes exclusively the indoor unit CT24F with grille, the outdoor unit and a wired remote control; the codes of the outdoor unit and grille are not stated by the page. Lines, condensate line, bracket and mounting material must be ordered separately; a mounting set is not selectable on this page. We will provide you with suitable material upon request.
Does the cassette have Wi-Fi and a condensate pump?
Wi-Fi is available as an option according to the page, the page does not state the appropriate module and app; we will share it upon request. Whether a condensate pump is built-in is not stated on the page, available upon request.
How long can the line between the indoor and outdoor unit be?
It is connected with 9.52 mm (3/8 inch) + 15.88 mm (5/8 inch); the page does not state the permissible total length and height difference. Which length your installation situation allows, we will check upon request.
Can I heat with the device in winter?
Yes. The heating capacity is 7.5 kW in the range of 3.0 to 9.0 kW, energy efficiency class in heating according to the page A+ on the A+++ to D scale, SCOP 4.3. Up to what outdoor temperature heating operation is possible is not stated by the page; available upon request. The available power decreases with falling outdoor temperature, which is why the system is suitable as a supplement to the existing heating.
How loud is the device?
The table states 38 / 36 / 34 dB(A) for the indoor unit (three speeds, not stated) and 48 / 52 dB(A) for the outdoor unit (cooling / heating, high speed); the quiet night mode has no value on the page.
Can I install the air conditioner myself?
The installation and commissioning of a split air conditioner is carried out by a certified specialist company. Self-installation is not intended.
