LG Compact Inverter CT18FC Ceiling Cassette 5.0 kW

LG Compact Inverter CT18FC Ceiling Cassette 5.0 kW

LG Compact Inverter CT18FC split ceiling cassette with 5.0 kW cooling and 5.7 kW heating capacity, suitable for rooms of approximately 38 to 50 m²*. Energy efficiency class A++ for cooling and A+ for heating, on a scale from A+++ to D. 4-way air outlet with double-blade louvers, 570 x 570 mm indoor unit with panel, quiet night mode on the outdoor unit, wired remote control included, optional Wi-Fi control.

Regular price €1.979,00
Regular price Sale price €1.979,00
Sale Sold out

incl. VAT + Shipping Costs

Taxes included. Shipping calculated at checkout.

Crowd

  • American Express
  • Diners Club
  • Discover
  • Google Pay
  • JCB
  • Mastercard
  • PayPal
  • Visa
  • Brand-name units from a specialist retailerOriginal products from leading manufacturers
  • Personal adviceBy phone, email or WhatsApp
  • Installation on requestBy specialist installers in your region
  • Secure paymentPayPal with Buyer Protection, credit card and more

Description

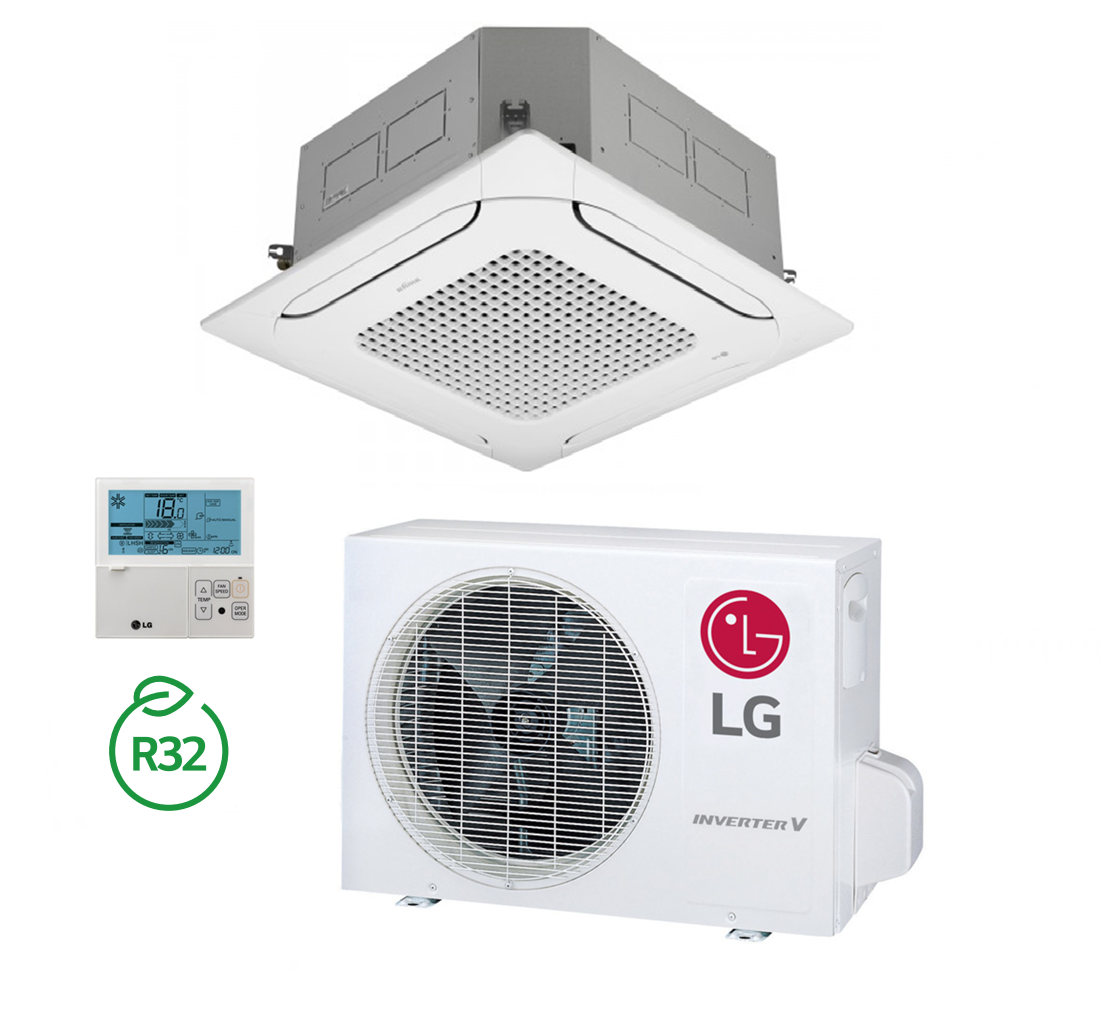

As a 4-way ceiling cassette, the LG Compact Inverter CT18FC provides 5.0 kW cooling and 5.7 kW heating capacity; the set includes the CT18FC indoor unit with grille, outdoor unit and wired remote control. SEER 6.4 and SCOP 4.3, energy efficiency class according to page A++ in cooling and A+ in heating on the scale from A+++ to D. According to the page, the equipment includes a 4-way air outlet with double-blade louvres and a quiet night mode for the outdoor unit; Wi-Fi is optional according to the page. The power class is suitable as a guide for rooms of approximately 38 to 50 m²*.

Performance and range of application

According to the table, the cooling capacity is 5.0 kW (adjustable range 2.0 to 5.8 kW) and the heating capacity is 5.7 kW (2.3 to 6.6 kW), power consumption 1.57 kW in cooling (0.30 to 2.20 kW) and 1.52 kW in heating (0.30 to 2.13 kW). Power supply 220 to 240 V, 50 Hz, single-phase; the page does not state an outdoor operating temperature range. The annual energy consumption is stated in the table as 273 / 1,335 kWh (cooling / heating), the indoor unit air volume flow at 13 / 12 / 11 m³/min (three stages).

The stated area of approximately 38 to 50 m²* is a guideline for standard room height and normal insulation standard, not a binding design. Whether the power class is suitable for your room depends on room height, insulation standard, window areas, shading and the number of people and devices. We will check the appropriate design for your property upon request.

* Guideline based on the cooling capacity specified by the manufacturer, at a standard room height of approximately 2.5 m, normal insulation standard and average solar radiation. Different conditions on site, such as large window areas, sloped roofs or a high number of people, may require a different power class. The binding design is carried out on a property-specific basis. For a professional design of your property, please contact us.

The most important advantages at a glance

  • 5.0 kW cooling and 5.7 kW heating capacity, adjustable range 2.0 to 5.8 kW and 2.3 to 6.6 kW according to the table.
  • Energy efficiency class A++ in cooling and A+ in heating on the scale A+++ to D according to the page, SEER 6.4 and SCOP 4.3.

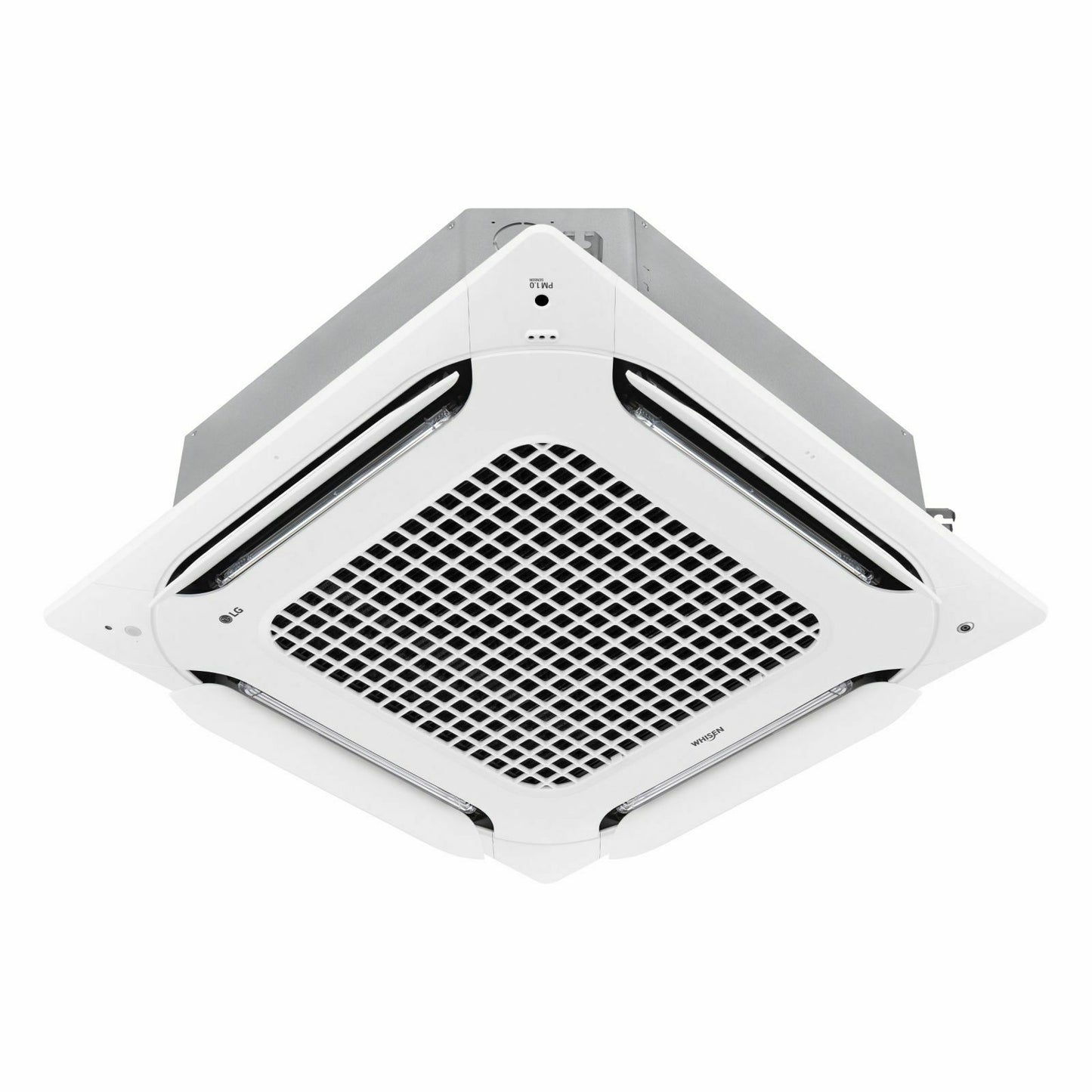

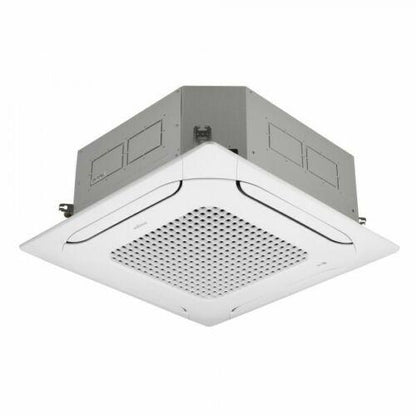

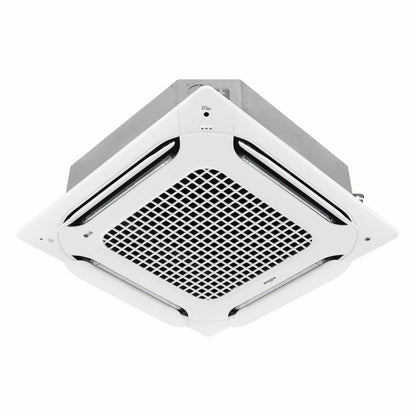

  • 4-way air outlet with double-blade louvres according to the page, indoor unit 570 x 570 mm and 256 mm high, grille included.
  • Quiet night mode for the outdoor unit according to the page, indoor unit from 37 dB(A) according to the table.
  • Group control and connection to a central control system according to the page, two-sensor control, child lock.

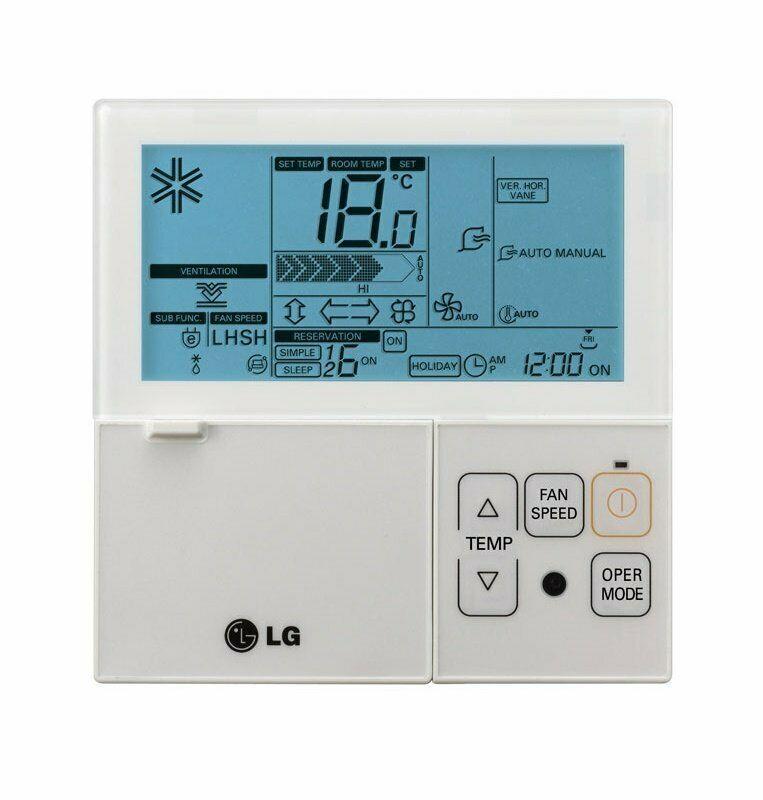

  • Wired remote control included; Wi-Fi control optional according to the page, available upon request.

Detailed functions

Inverter and heat pump operation

As an air-to-air heat pump, the unit heats in winter; the permissible outdoor temperature is not stated on the page. The inverter regulates according to the table between 2.0 to 5.8 kW in cooling and 2.3 to 6.6 kW in heating. According to the page, hot start (no cold air flow when heating up), fast cooling and an automatic mode switch are included. Seasonal values according to the table: SEER 6.4, SCOP 4.3.

Airflow and filter

Air is blown out in four directions through double-blade louvres according to the page, with 13 / 12 / 11 m³/min on three stages according to the table; a double filter protection is available according to the page. The page does not provide information on the filter type and filter efficiency; the page does not state the grille code.

Operating modes

  • Cooling: 5.0 kW nominal, 2.0 to 5.8 kW according to the table
  • Heating: 5.7 kW nominal, 2.3 to 6.6 kW according to the table
  • Automatic mode switch, hot start and fast cooling according to the page
  • Quiet night mode for the outdoor unit according to the page

Control and comfort

  • Wired remote control included according to the page; timer and child lock (child access protection) according to the page
  • Group control, two-sensor control and connection to a central control system according to the page
  • Wi-Fi control optional according to the page; module and app not stated by the page, information available upon request
  • Automatic restart after power failure according to the page

Operating safety

  • Outdoor operating temperature range: not stated on the page, available upon request
  • The page does not state a condensate pump; available upon request
  • Outdoor unit according to the table 47 dB(A) in cooling and 52 dB(A) in heating (high stage)

Scope of delivery

Included in the standard scope:

  • 1x LG CT18FC indoor unit with grille (grille code not stated on the page)
  • 1x outdoor unit (code not stated on the page)
  • 1x wired remote control

A Wi-Fi module is optional according to the page and not included in the scope of delivery; this page does not offer an installation set.

What you need additionally

  • Refrigerant lines 6.35 mm (1/4 inch) + 12.7 mm (1/2 inch); maximum length and height difference are not stated by the page, available upon request
  • Condensate line and mounting material for installation in the suspended ceiling
  • Wall bracket or floor console for the outdoor unit (44.5 kg)
  • Electrical supply line and circuit breaker (value not stated by the page)
  • Installation and commissioning by a specialist company

Technical data

Indoor unit LG CT18FC with grille
Outdoor unit not stated on the page
Cooling capacity nominal (min. to max.) 5.0 kW (2.0 to 5.8 kW)
Heating capacity nominal (min. to max.) 5.7 kW (2.3 to 6.6 kW)
Power consumption cooling / heating nominal (min. to max.) 1.57 kW (0.30 to 2.20 kW) / 1.52 kW (0.30 to 2.13 kW)
Energy efficiency class cooling / heating A++ / A+ according to the page, scale A+++ to D
SEER / SCOP 6.4 / 4.3
Annual energy consumption cooling / heating 273 / 1,335 kWh
Power supply 220 to 240 V, 50 Hz, single-phase
Sound pressure level indoor unit (three stages according to the table) 41 / 39 / 37 dB(A)
Sound pressure level outdoor unit cooling / heating (high stage) 47 / 52 dB(A)
Air volume flow indoor unit 13 / 12 / 11 m³/min
Dimensions indoor unit (W x H x D), weight 570 x 256 x 570 mm, 13.9 kg

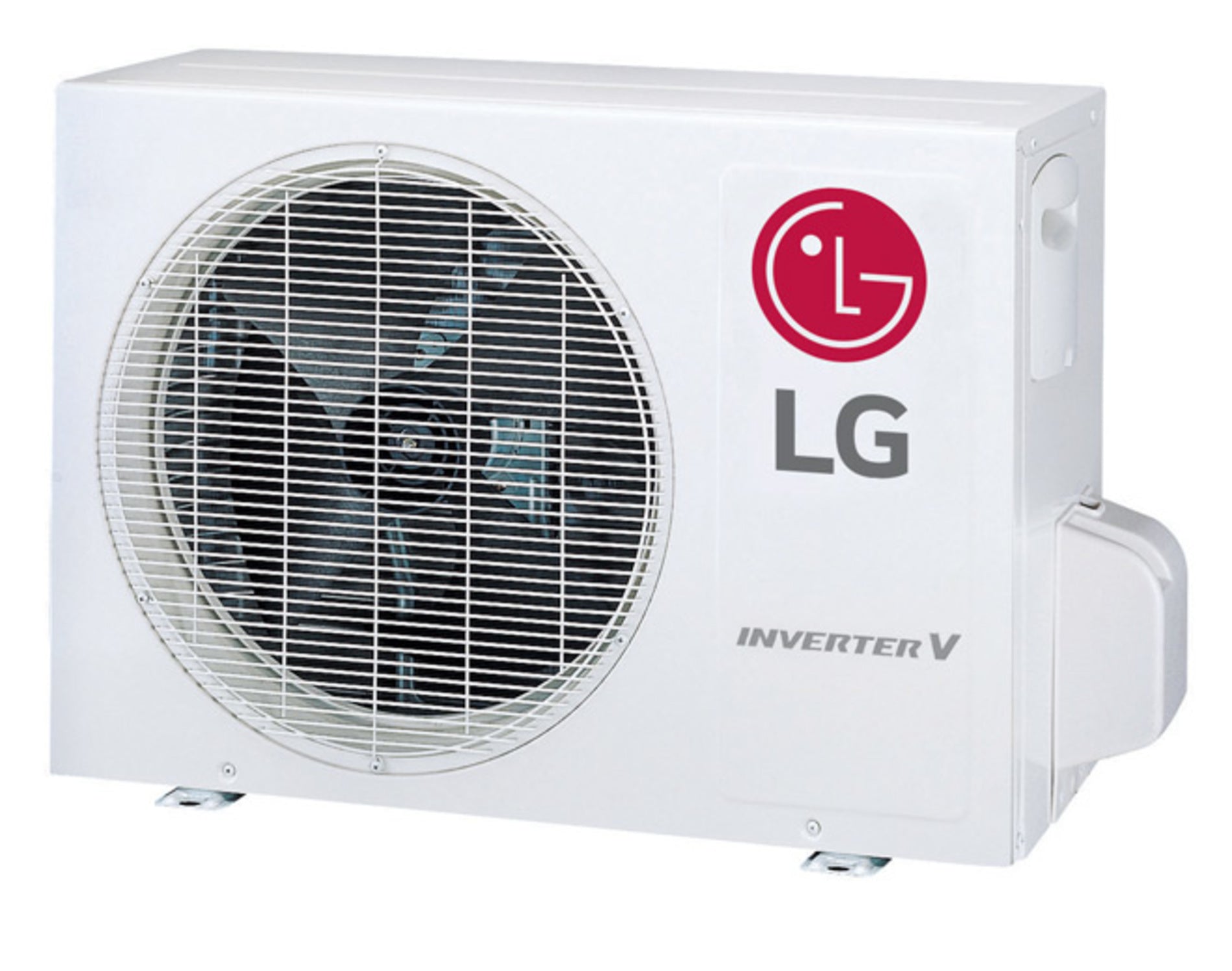

Dimensions outdoor unit (W x H x D), weight 870 x 650 x 330 mm, 44.5 kg
Pipe connections liquid + gas 6.35 mm (1/4 inch) + 12.7 mm (1/2 inch)
Max. line length / height difference not stated on the page
Outdoor operating temperature range cooling / heating not stated on the page
Air outlet 4 sides, double-blade louvres according to the page
Filter according to the page Double filter protection
Condensate pump not stated on the page
Control according to the page Wired remote control, group control, central control, two-sensor control, timer, child lock
Wi-Fi optional according to the page; module available upon request
Manufacturer / EU representative according to the page LG Electronics Deutschland GmbH, Eschborn

Frequently asked questions

What cooling and heating capacity does the LG Compact Inverter CT18FC with 5.0 kW have?

5.0 kW cooling and 5.7 kW heating capacity (nominal values) according to the table; the adjustable range is from 2.0 to 5.8 kW in cooling and 2.3 to 6.6 kW in heating. Energy efficiency class according to the page A++ in cooling and A+ in heating on the scale from A+++ to D, SEER 6.4 and SCOP 4.3. We will check whether the power class is suitable for your room upon request.

What dimensions does the cassette have and what grille is included?

Indoor unit 570 x 256 x 570 mm at 13.9 kg according to the table; the grille is included according to the page, the page does not state the code and dimensions, nor the ceiling cutout, both available upon request. Outdoor unit according to the table 870 x 650 x 330 mm, 44.5 kg.

What exactly is included in the scope of delivery?

The delivery includes exclusively the CT18FC indoor unit with grille, the outdoor unit and a wired remote control; the page does not state the codes of the outdoor unit and grille. Refrigerant lines, condensate line, bracket and mounting material are to be ordered additionally; this page does not offer an installation set. We will state what suits your installation upon request.

Does the cassette have Wi-Fi and a condensate pump?

Optional according to the page; we will confirm the module and app upon request. The page does not list a condensate pump, we will clarify this upon request.

How long can the line between the indoor and outdoor unit be?

The page states 6.35 mm (1/4 inch) + 12.7 mm (1/2 inch) as pipe connections, but not the maximum line length and height difference. We will clarify the line route for your property upon request.

Can I use the unit for heating in winter?

Yes. The heating capacity is 5.7 kW in the range of 2.3 to 6.6 kW, energy efficiency class in heating according to the page A+ on the scale from A+++ to D, SCOP 4.3. The page does not state up to what outdoor temperature heating operation is possible; available upon request. The colder it is outside, the less heating capacity is available; the system is therefore suitable as a supplement to the existing heating system.

How loud is the unit?

Indoor unit 41 / 39 / 37 dB(A) on three stages according to the table, without designation of the stages; outdoor unit 47 dB(A) (cooling) and 52 dB(A) (heating) on the high stage, night mode according to the page quiet, unquantified.

Can I install the air conditioner myself?

The installation and commissioning of a split air conditioner is carried out by a certified specialist company. Self-installation is not intended.
