LG Compact Inverter CT24FC Ceiling Cassette 6.8 kW
LG Compact Inverter CT24FC Ceiling Cassette 6.8 kW
LG Compact Inverter CT24FC split ceiling cassette with 6.8 kW cooling and 7.5 kW heating capacity, suitable for rooms of approximately 52 to 68 m²*. Energy efficiency class A++ for cooling and A+ for heating, on a scale from A+++ to D. 4-way air outlet with double-blade louvers, 840 x 840 mm indoor unit with panel, quiet night mode on the outdoor unit, wired remote control included, optional Wi-Fi control.
incl. VAT + Shipping Costs
Crowd
Couldn't load pickup availability
- Brand-name units from a specialist retailerOriginal products from leading manufacturers
- Personal adviceBy phone, email or WhatsApp
- Installation on requestBy specialist installers in your region
- Secure paymentPayPal with Buyer Protection, credit card and more
Description
Description

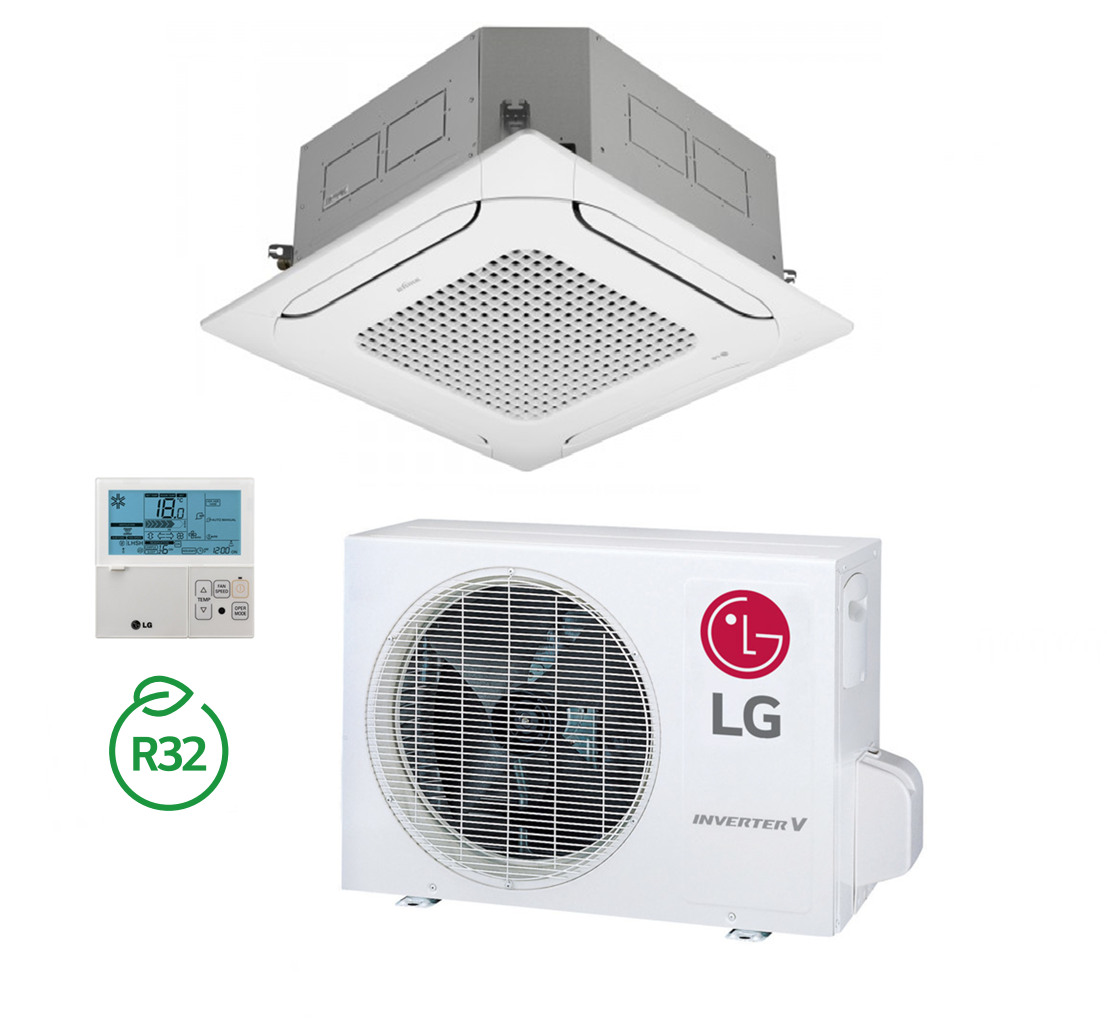

The LG Compact Inverter CT24FC is a ceiling cassette for installation in a suspended ceiling: CT24FC indoor unit with grille, outdoor unit and wired remote control, 6.8 kW cooling and 7.5 kW heating capacity. SEER 7.4 and SCOP 4.3, energy efficiency class according to page A++ in cooling and A+ in heating on the scale from A+++ to D. According to the page, the cassette has a 4-way air outlet with double-blade louvers, the outdoor unit has a quiet night mode; the Wi-Fi control is optional according to the page. As a guideline, the power class is suitable for rooms of approximately 52 to 68 m²*.
Performance and range of application
The table states 6.8 kW cooling and 7.5 kW heating capacity (nominal), adjustable from 2.7 to 8.0 kW and 3.0 to 9.0 kW respectively, with power consumption of 1.93 kW (0.40 to 2.66 kW) and 1.96 kW (0.40 to 2.84 kW). Connection to 220 to 240 V, 50 Hz, single-phase; the outdoor operating temperature range is not stated on the page. The annual energy consumption is stated in the table as 322 / 1,823 kWh (cooling / heating), the air volume flow of the indoor unit as 18 / 15.5 / 14 m³/min (three stages).
The stated area of approximately 52 to 68 m²* is a guideline for standard room height and normal insulation standard, not a binding design. In shops, offices and dining rooms, additional internal loads from people, lighting and equipment can increase the demand compared to the guideline. We check the appropriate design for your property upon request.
* Guideline based on the cooling capacity specified by the manufacturer, at a standard room height of approximately 2.5 m, normal insulation standard and average solar radiation. Different conditions on site, such as large window areas, sloped roofs or a high number of people, may require a different power class. The binding design is carried out on a property-specific basis. For a professional design of your property please contact us.
The most important advantages at a glance
- 6.8 kW cooling and 7.5 kW heating capacity (nominal), adjustable from 2.7 to 8.0 kW and 3.0 to 9.0 kW according to the table.
- Energy efficiency class A++ in cooling and A+ in heating, scale A+++ to D, according to the page; SEER 7.4 and SCOP 4.3.
- 4-way air outlet with double-blade louvers according to the page, indoor unit 840 x 840 mm and 204 mm high, grille included.
- Quiet night mode of the outdoor unit according to the page, indoor unit from 34 dB(A) according to the table.
- Group control and connection to a central control according to the page, two-sensor control, child lock.
- Wired remote control included; Wi-Fi control optional according to the page, available upon request.
Functions in detail
Inverter and heat pump operation
According to the table, the inverter regulates between 2.7 to 8.0 kW in cooling and 3.0 to 9.0 kW in heating; in heating mode, the device uses the outdoor air as an air-to-air heat pump, the page does not state the outdoor temperature limits. According to the page, hot start (no cold air flow when heating up), fast cooling and an automatic mode switch are included. Seasonal values according to the table: SEER 7.4, SCOP 4.3.
Airflow and filters
The cassette distributes the air to four sides, according to the page via double-blade louvers, with 18 / 15.5 / 14 m³/min on three stages according to the table. The page mentions a double filter protection. The page does not provide information on the filter type and filter efficiency; the page does not state the grille code.
Operating modes
- Cooling: 6.8 kW nominal, 2.7 to 8.0 kW according to the table
- Heating: 7.5 kW nominal, 3.0 to 9.0 kW according to the table
- Automatic mode switch, hot start and fast cooling according to the page
- Quiet night mode of the outdoor unit according to the page
Control and comfort
- Wired remote control included according to the page; timer and child lock (child access protection) according to the page
- Group control, two-sensor control and connection to a central control according to the page
- Wi-Fi control optional according to the page; module and app not stated by the page, information available upon request
- Automatic restart after power failure according to the page
Operating safety
- Outdoor operating temperature range: not stated on the page, available upon request
- The page does not mention a condensate pump; available upon request
- Outdoor unit according to the table 48 dB(A) in cooling and 52 dB(A) in heating (high stage)
Scope of delivery
Included in the standard scope:
- 1x indoor unit LG CT24FC with grille (grille code not stated on the page)
- 1x outdoor unit (code not stated on the page)

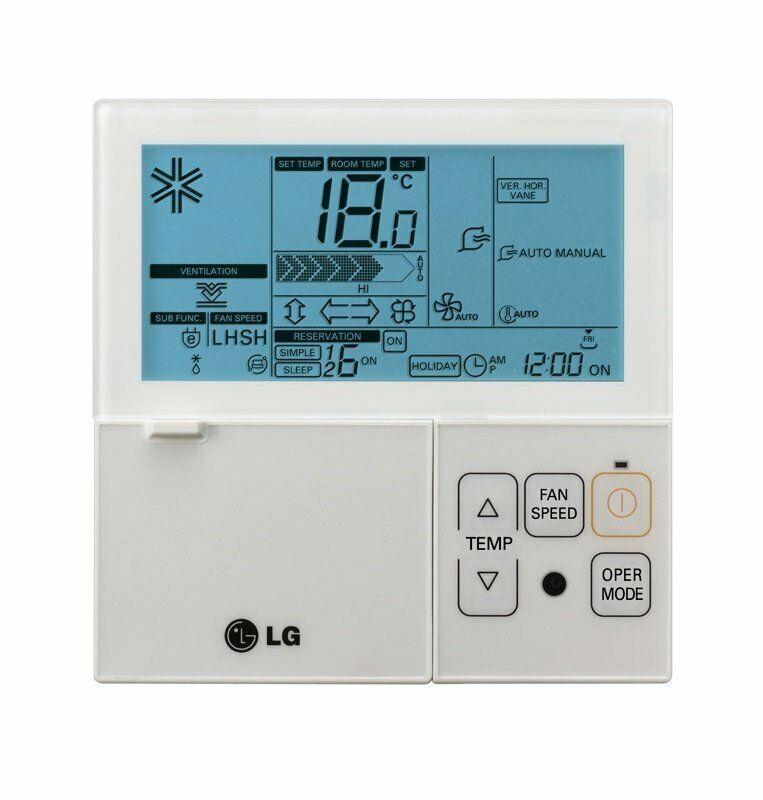

- 1x wired remote control
A Wi-Fi module is optional according to the page and not included in the scope of delivery; this page does not offer an installation set.
What you need additionally
- Refrigerant lines 9.52 mm (3/8 inch) + 15.88 mm (5/8 inch); maximum length and height difference not stated on the page, available upon request
- Condensate line and installation material for installation in the suspended ceiling
- Wall bracket or floor console for the outdoor unit (57.7 kg)
- Electrical supply line and protection (value not stated on the page)
- Installation and commissioning by a specialist company
Technical data
| Indoor unit | LG CT24FC with grille |
| Outdoor unit | not stated on the page |
| Cooling capacity nominal (min. to max.) | 6.8 kW (2.7 to 8.0 kW) |
| Heating capacity nominal (min. to max.) | 7.5 kW (3.0 to 9.0 kW) |
| Power consumption Cooling / Heating nominal (min. to max.) | 1.93 kW (0.40 to 2.66 kW) / 1.96 kW (0.40 to 2.84 kW) |
| Energy efficiency class Cooling / Heating | A++ / A+ according to the page, scale A+++ to D |
| SEER / SCOP | 7.4 / 4.3 |
| Annual energy consumption Cooling / Heating | 322 / 1,823 kWh |
| Power supply | 220 to 240 V, 50 Hz, single-phase |
| Sound pressure level indoor unit (three stages according to the table) | 38 / 36 / 34 dB(A) |
| Sound pressure level outdoor unit Cooling / Heating (high stage) | 48 / 52 dB(A) |
| Air volume flow indoor unit | 18 / 15.5 / 14 m³/min |
| Dimensions indoor unit (W x H x D), weight | 840 x 204 x 840 mm, 21.1 kg |
| Dimensions outdoor unit (W x H x D), weight | 950 x 834 x 330 mm, 57.7 kg |
| Pipe connections Liquid + Gas | 9.52 mm (3/8 inch) + 15.88 mm (5/8 inch) |
| Max. line length / height difference | not stated on the page |
| Outdoor operating temperature range Cooling / Heating | not stated on the page |
| Air outlet | 4 sides, double-blade louvers according to the page |
| Filter according to the page | Double filter protection |
| Condensate pump | not stated on the page |
| Control according to the page | Wired remote control, group control, central control, two-sensor control, timer, child lock |
| Wi-Fi | optional according to the page; module available upon request |
| Manufacturer / EU representative according to the page | LG Electronics Deutschland GmbH, Eschborn |
Frequently Asked Questions
What cooling and heating capacity does the LG Compact Inverter CT24FC with 6.8 kW have?
Nominal 6.8 kW in cooling and 7.5 kW in heating according to the table, with adjustable ranges of 2.7 to 8.0 kW and 3.0 to 9.0 kW. SEER 7.4 and SCOP 4.3; energy efficiency class according to the page A++ in cooling and A+ in heating on the scale from A+++ to D. We check the appropriate power class for your room upon request.
What are the dimensions of the cassette and which grille is included?
According to the table, the indoor unit measures 840 x 204 x 840 mm (W x H x D) and weighs 21.1 kg; the grille is included according to the page, without stating the code and dimensions; the page does not state the ceiling cutout. Outdoor unit: 950 x 834 x 330 mm, 57.7 kg according to the table.
What exactly is included in the scope of delivery?
The delivery exclusively includes the CT24FC indoor unit with grille, the outdoor unit and a wired remote control; the page does not state the codes of the outdoor unit and grille. Refrigerant lines, condensate line, bracket and installation material are not included; an installation set is not offered on this page. We provide suitable material upon request.
Does the cassette have Wi-Fi and a condensate pump?
The page mentions an optional Wi-Fi control, but no module and no app; both available upon request. The page is silent about the condensate pump; we check if it is included upon request.
How long can the line between the indoor and outdoor unit be?
Pipe connections according to the page 9.52 mm (3/8 inch) + 15.88 mm (5/8 inch); the length and height difference allowed by the manufacturer are not stated on the page, available upon request.
Can I use the device for heating in winter?
Yes. The heating capacity is 7.5 kW in the range of 3.0 to 9.0 kW, energy efficiency class in heating according to the page A+ on the scale from A+++ to D, SCOP 4.3. The page does not state up to what outdoor temperature heating operation is possible; available upon request. At low outdoor temperatures, the available heating capacity decreases, so the system supplements the existing heating and does not replace it.
How loud is the device?
For the indoor unit, 38 / 36 / 34 dB(A) are stated on three stages in the table, the names of the stages are missing; the outdoor unit is at 48 / 52 dB(A) (cooling / heating, high), for the night mode the page does not state a value.
Can I install the air conditioner myself?
The installation and commissioning of a split air conditioner is carried out by a certified specialist company. Self-installation is not intended.
