The LG Standard 2 operates at 19 dB(A) in sleep mode and can be controlled via an app without an additional module. The set combines the EZ12CYN.CSJ1 indoor unit with the EZ12CYU.CA31 outdoor unit. The inverter compressor continuously adjusts its output instead of constantly switching on and off. The indoor unit has a depth of 189 mm. As a guideline, the power class is suitable for rooms of approximately 27 to 35 m²^*.

Performance and range

The set delivers 3.5 kW cooling and 4.0 kW heating capacity, which corresponds to around 12,000 BTU. The heating capacity is therefore higher than the cooling capacity. Cooling is possible at outdoor temperatures from minus 10 to plus 48 °C, and heating from minus 10 to plus 24 °C. With an SEER of 6.6 and an SCOP of 4.0, the system achieves energy efficiency class A++ in cooling and A+ in heating.

The stated area of approximately 27 to 35 m²^* is a guideline for standard room height and normal insulation standards, not a binding design. Which power class is right for your property depends on room height, insulation standards, window areas, shading, as well as the number of people and devices. An undersized system will run continuously at full load, while an oversized one will cycle and consume electricity unnecessarily. We can check the appropriate design for your property upon request.

* Guideline based on the cooling capacity specified by the manufacturer, with a standard room height of approximately 2.5 m, normal insulation standards, and average sunlight exposure. Different conditions on site, such as large window areas, sloped roofs, or a high number of people, may require a different power class. The binding design is carried out on a property-specific basis. For a professional design of your property, please contact us.

The most important advantages at a glance

• 19 dB(A) in sleep mode according to the manufacturer's specifications.
• Control via LG ThinQ from the factory: no additional module or gateway required.
• SEER 6.6 and SCOP 4.0: energy efficiency class A++ in cooling and A+ in heating.

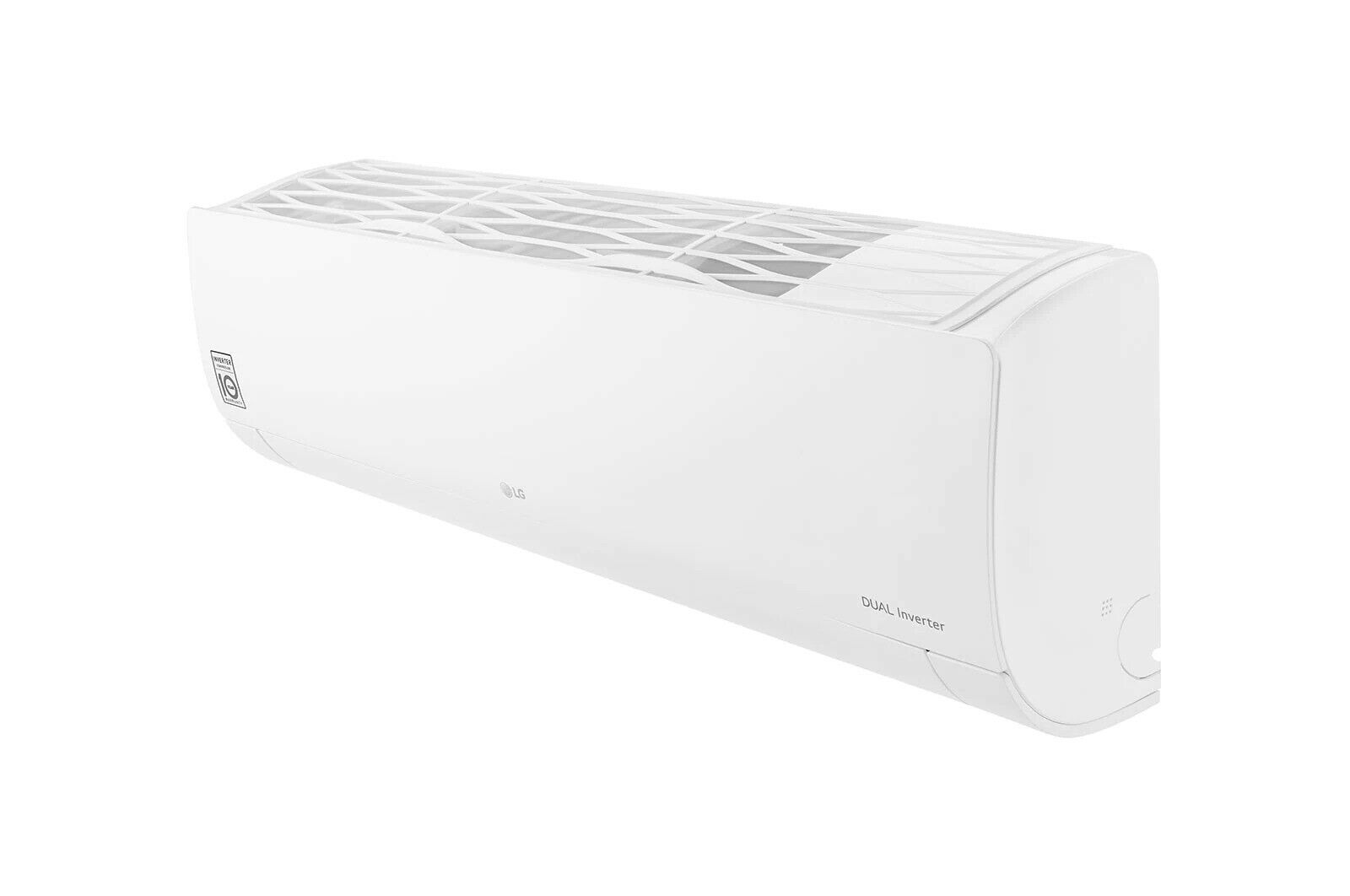

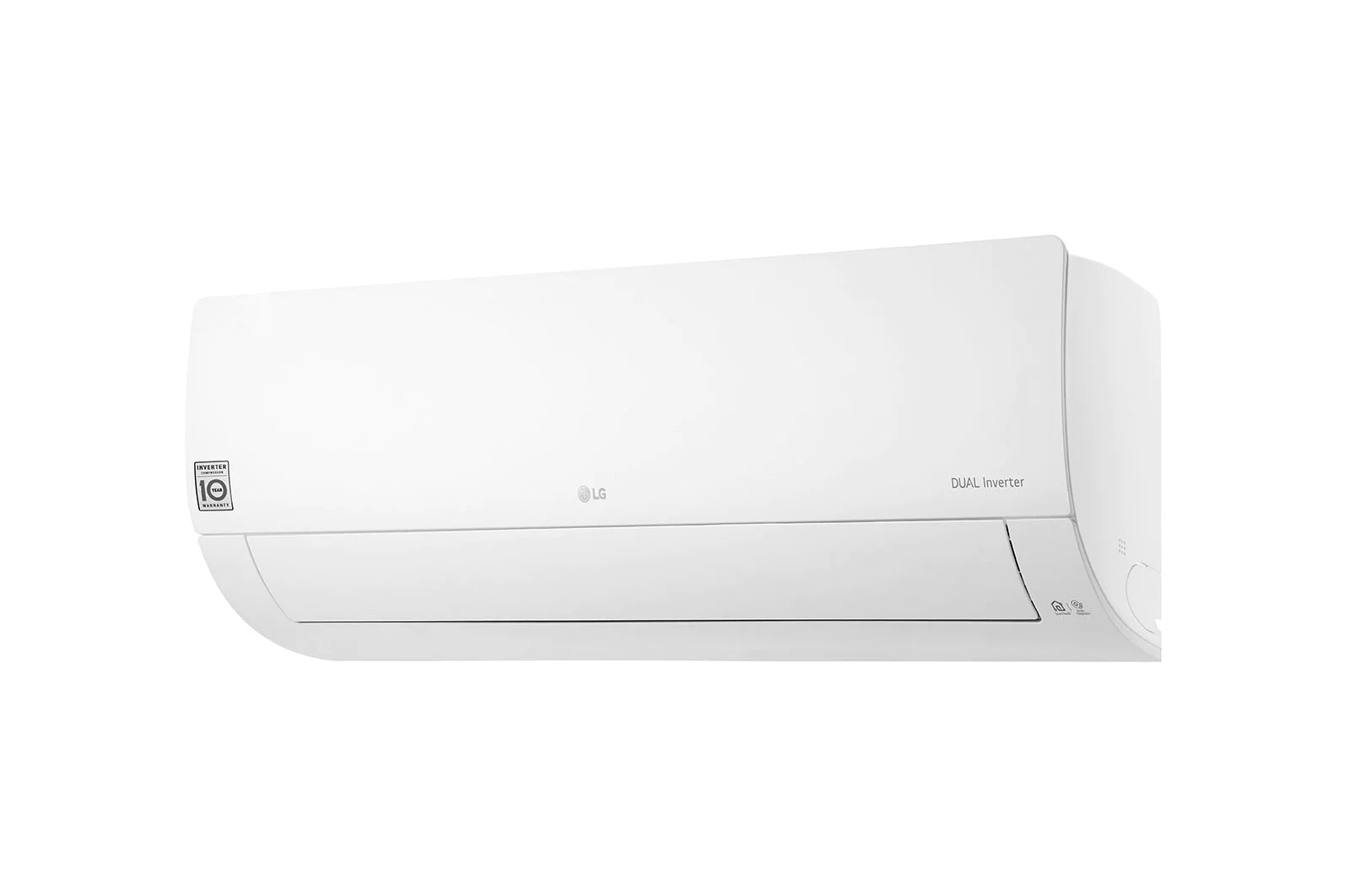

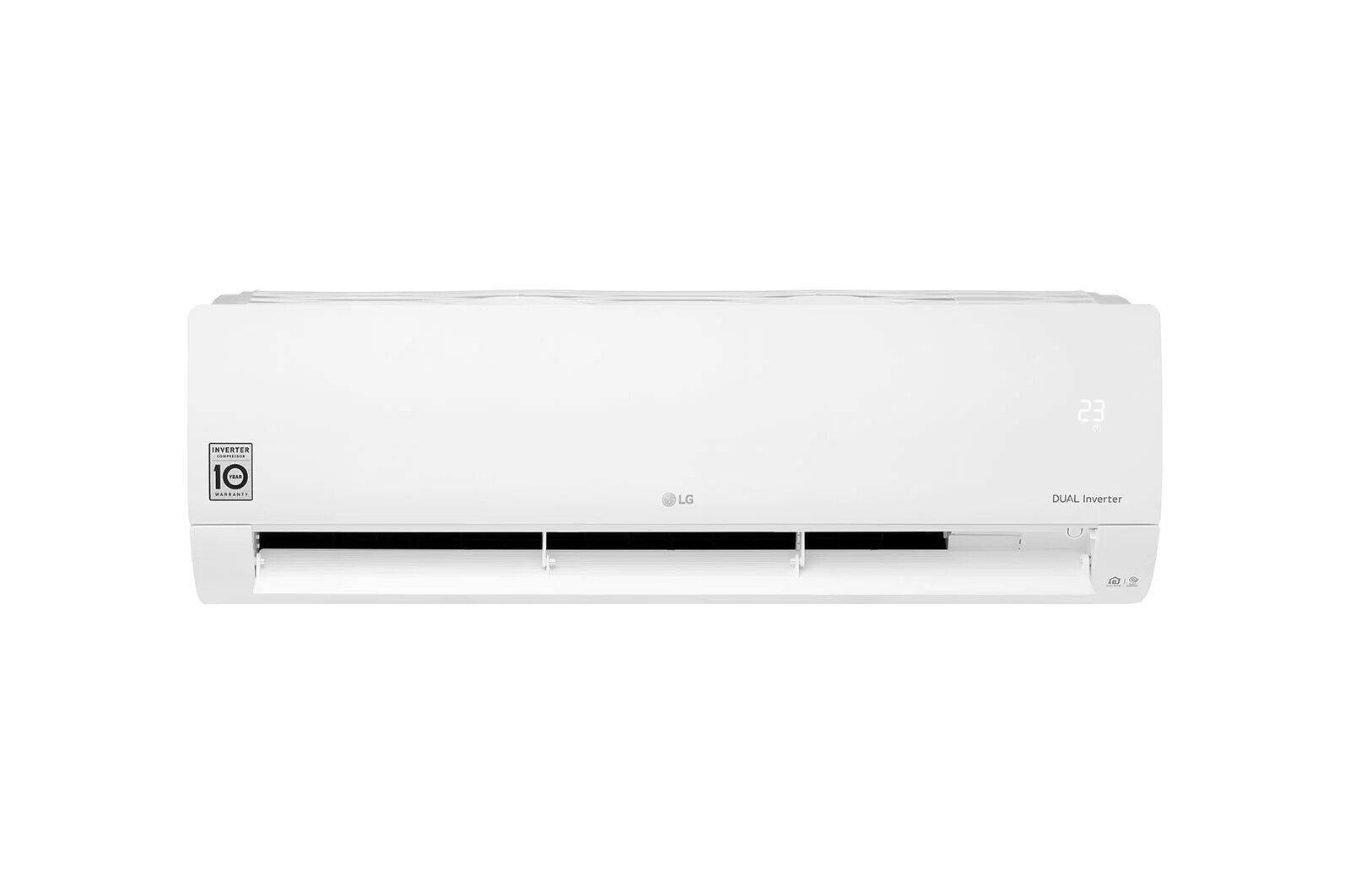

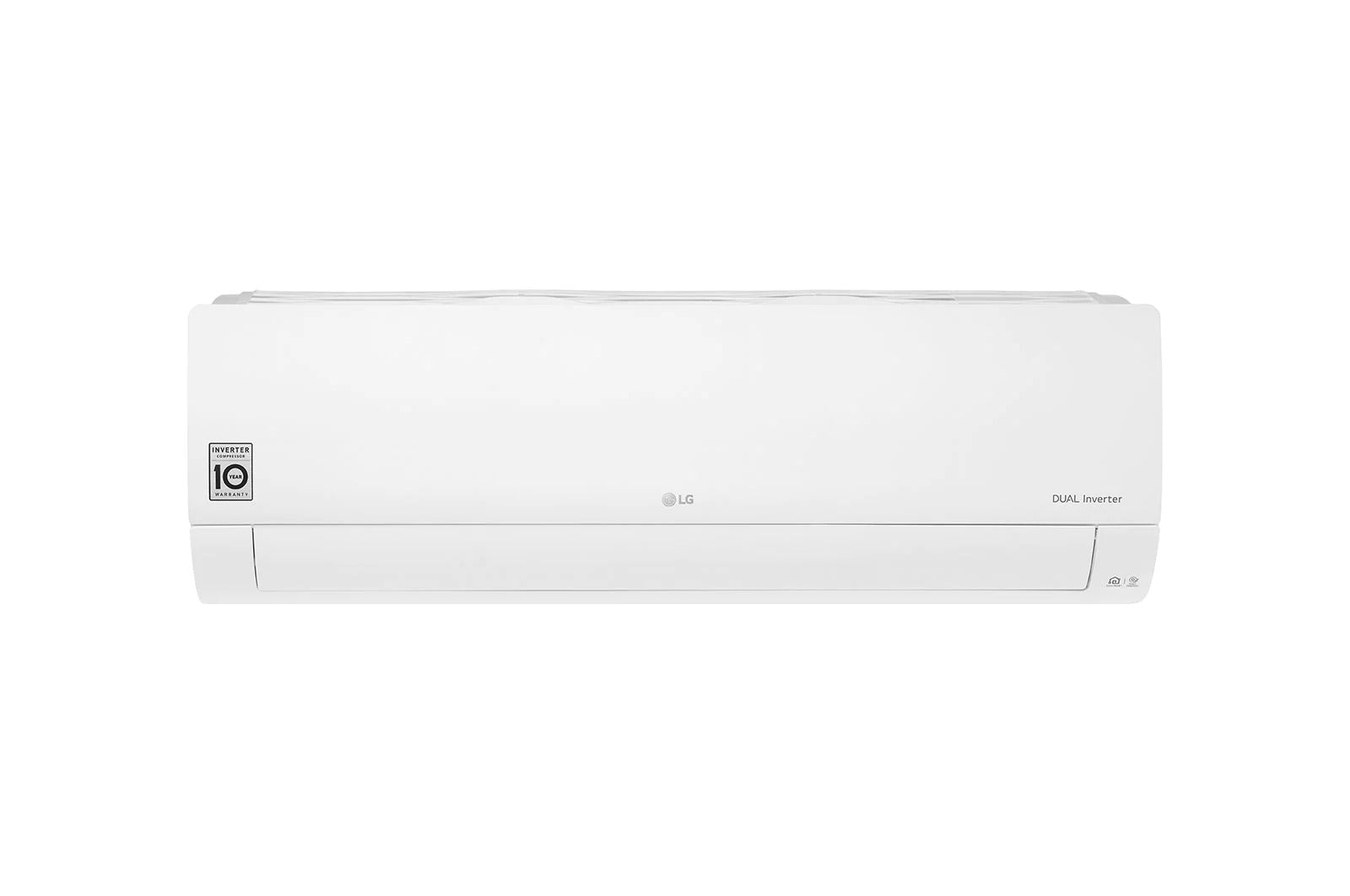

• Slim indoor unit: only 189 mm deep and 837 mm wide.
• Gold Fin coating on the outdoor unit for protection against corrosion.
• More heating than cooling capacity: 4.0 kW when heating compared to 3.5 kW when cooling.

Detailed functions

Inverter and heat pump operation

The inverter compressor adjusts its speed to the actual demand instead of constantly switching on and off. This reduces power consumption and keeps the room temperature constant. The fast heating function and powerful cooling quickly bring the room to the desired temperature. In heating mode, the device operates as an air-to-air heat pump and uses the warmth of the outdoor air down to minus 10 °C.

Air quality and purification

The automatic cleaning function dries the indoor unit after operation, thereby preventing odors and deposits on the heat exchanger. It runs automatically and does not need to be started.

Control and comfort

Control is via the LG ThinQ app and is available from the factory. A separate Wi-Fi module or gateway is not required. A remote control is also included.

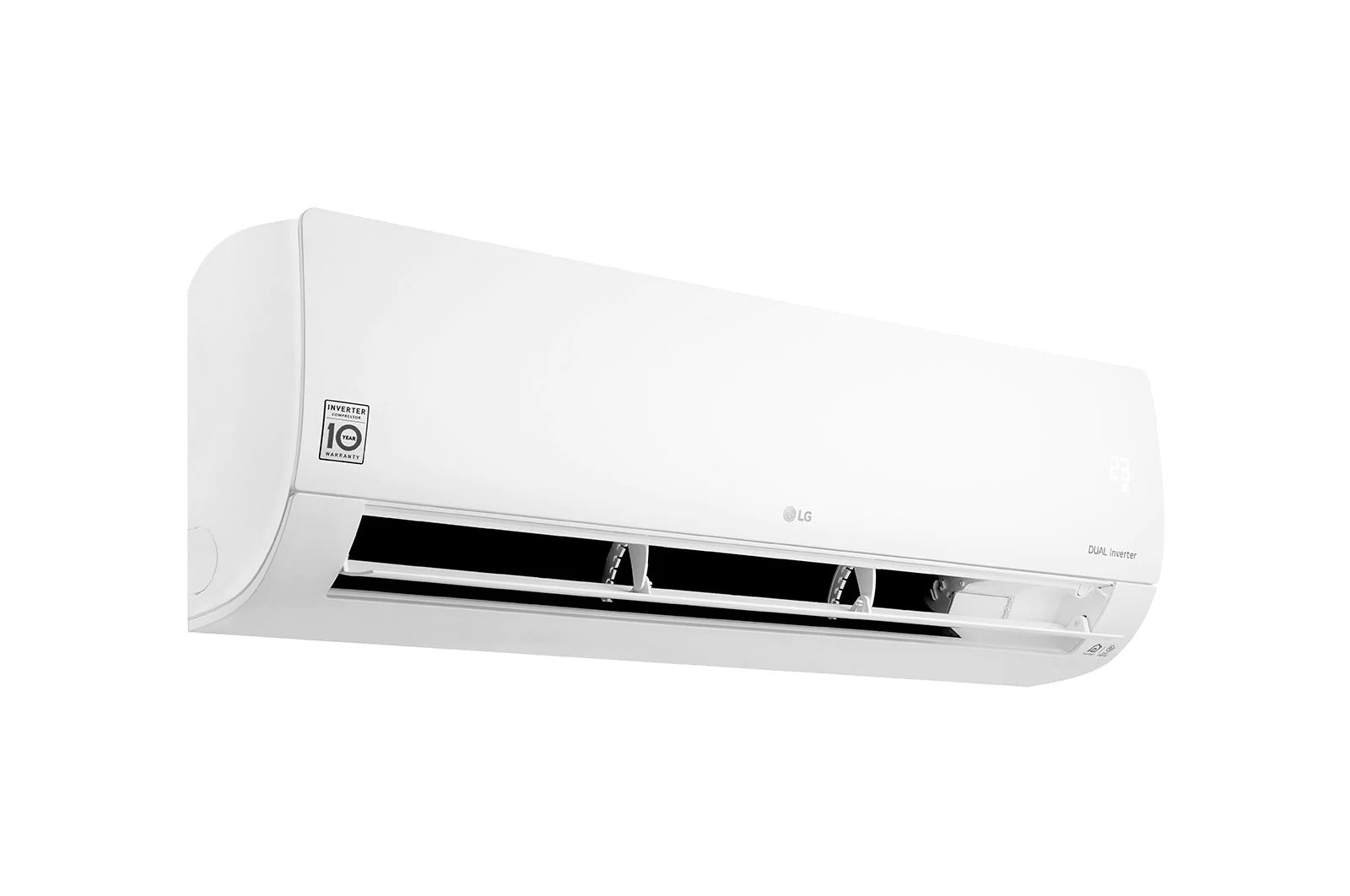

• 2-way swing: the louvers move in two directions and distribute the air more evenly
• Comfort airflow function: directs the airflow so that it does not hit people directly
• Low noise level: from 19 dB(A) in sleep mode, 41 dB(A) at the highest level
• Compact design: 837 x 308 x 189 mm and 8.7 kg

Operational safety

• Gold Fin coating: protects the outdoor unit's louvers against corrosion and extends their service life
• Intelligent diagnostics: automatically identifies faults and facilitates service

Scope of delivery

Standard delivery includes:

• 1x LG EZ12CYN.CSJ1 indoor unit
• 1x LG EZ12CYU.CA31 outdoor unit
• 1x remote control
• Operating instructions

Optional: Installation set 3 to 12 meters

You can order the appropriate installation set directly with your order. It contains:

• Insulated copper line
• Condensate hose
• Electrical and control cable

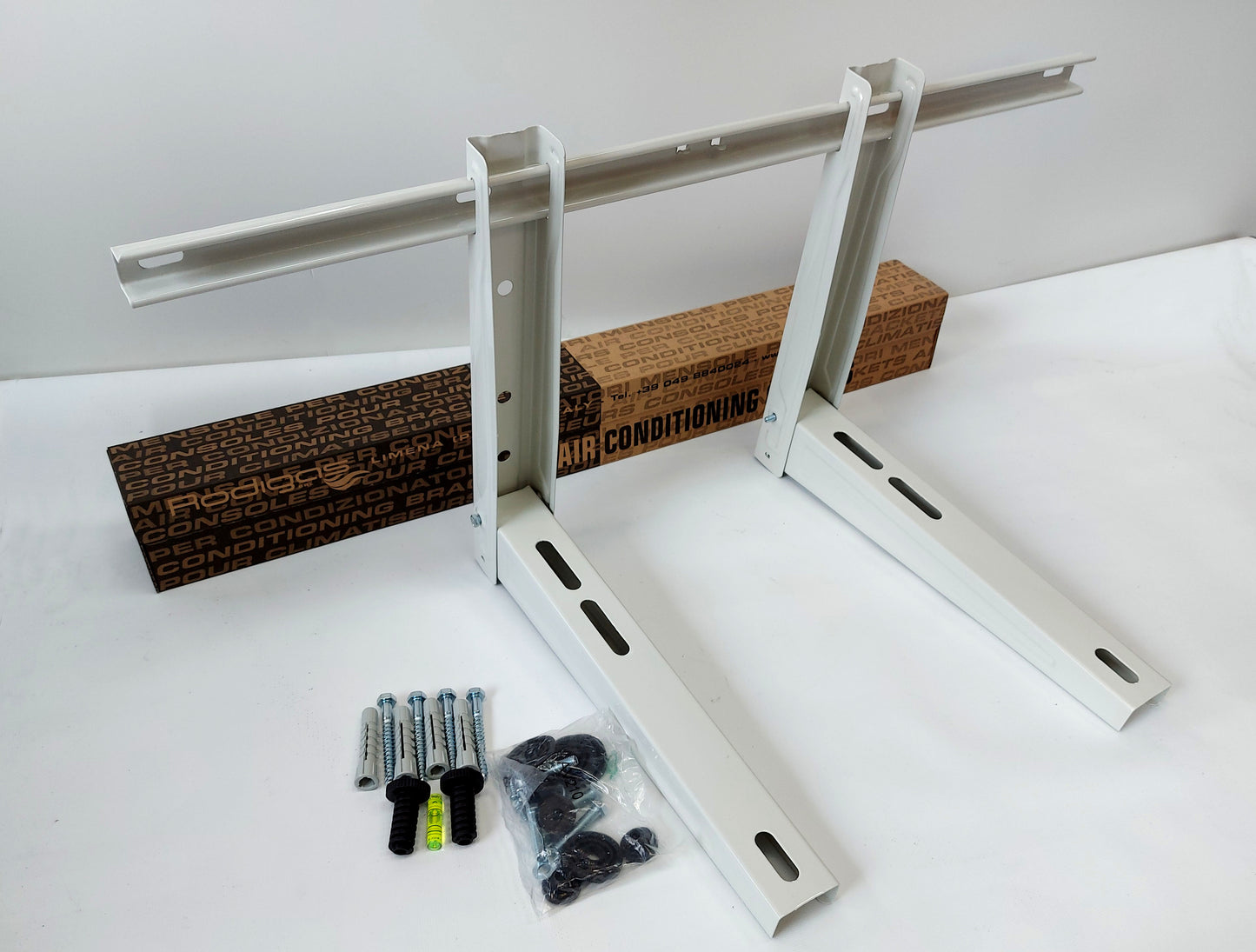

• Wall bracket for the outdoor unit
• Wall sleeve

What you need in addition

• Cables and installation materials, if you do not choose an installation set
• Condensate pump, depending on the installation situation
• Electrical supply line and circuit breaker
• Installation and commissioning by a specialist company

Technical specifications

Indoor unit	LG EZ12CYN.CSJ1
Outdoor unit	LG EZ12CYU.CA31
Cooling capacity / Heating capacity	3.5 kW / 4.0 kW
Energy efficiency class Cooling / Heating	A++ / A+
SEER / SCOP	6.6 / 4.0
Sound pressure level indoor unit Cooling (Sleep / low / medium / high)	19 / 27 / 35 / 41 dB(A)
Sound pressure level indoor unit Heating	27 / 35 / 41 dB(A)
Sound pressure level outdoor unit Cooling / Heating	48 dB(A) / 50 dB(A)
Pipe connections Liquid + Gas / Drain	6.35 mm (1/4") + 9.52 mm (3/8") / 21.5 mm
Line length min. to max.	3 to 15 m
Operating range Cooling / Heating	-10 to +48 °C / -10 to +24 °C
Indoor unit dimensions (WxHxD)	837 x 308 x 189 mm, 8.7 kg
Outdoor unit dimensions (WxHxD)	717 x 495 x 230 mm, 25.1 kg
Power supply	220 to 240 V
App control	LG ThinQ, available from the factory

Frequently asked questions

What cooling and heating capacity does the system have?

The cooling capacity is 3.5 kW, the heating capacity 4.0 kW. This corresponds to around 12,000 BTU. Heating is possible down to an outdoor temperature of minus 10 °C. We can check which power class is right for your room upon request.

Why does the device carry two different model designations?

LG has changed the designations for this series. S12EC became EZ12CYN, the indoor unit S12EC.NSJS became EZ12CYN.CSJ1, and the outdoor unit S12EC.UA3S became EZ12CYU.CA31. It is the same device with the same technical specifications. Depending on the delivery, the old or new designation may be on the type plate.

Is the installation set included in the price?

The installation set is an optional addition and is added via the variant selection. Without a selected installation set, the delivery includes only the indoor unit, outdoor unit, and remote control. The set is available in lengths of 3 to 12 meters.

Do I need an additional Wi-Fi module for app control?

No. The connection to the LG ThinQ app is available from the factory. A separate Wi-Fi module or gateway is not required. You only need a Wi-Fi network at the installation site.

How far apart can the indoor and outdoor units be?

The manufacturer specifies a line length of at least 3 and at most 15 m. The optional installation set is available in lengths of 3 to 12 meters.

How loud is the device?

The indoor unit operates in cooling mode at 19, 27, 35, or 41 dB(A) depending on the level, with 19 dB(A) corresponding to sleep mode. In heating mode, the values are 27, 35, and 41 dB(A). For the outdoor unit, the manufacturer specifies 48 dB(A) in cooling and 50 dB(A) in heating.

Can I install the air conditioner myself?

The installation and commissioning of a split air conditioner is carried out by a certified specialist company. Self-installation is not intended.
