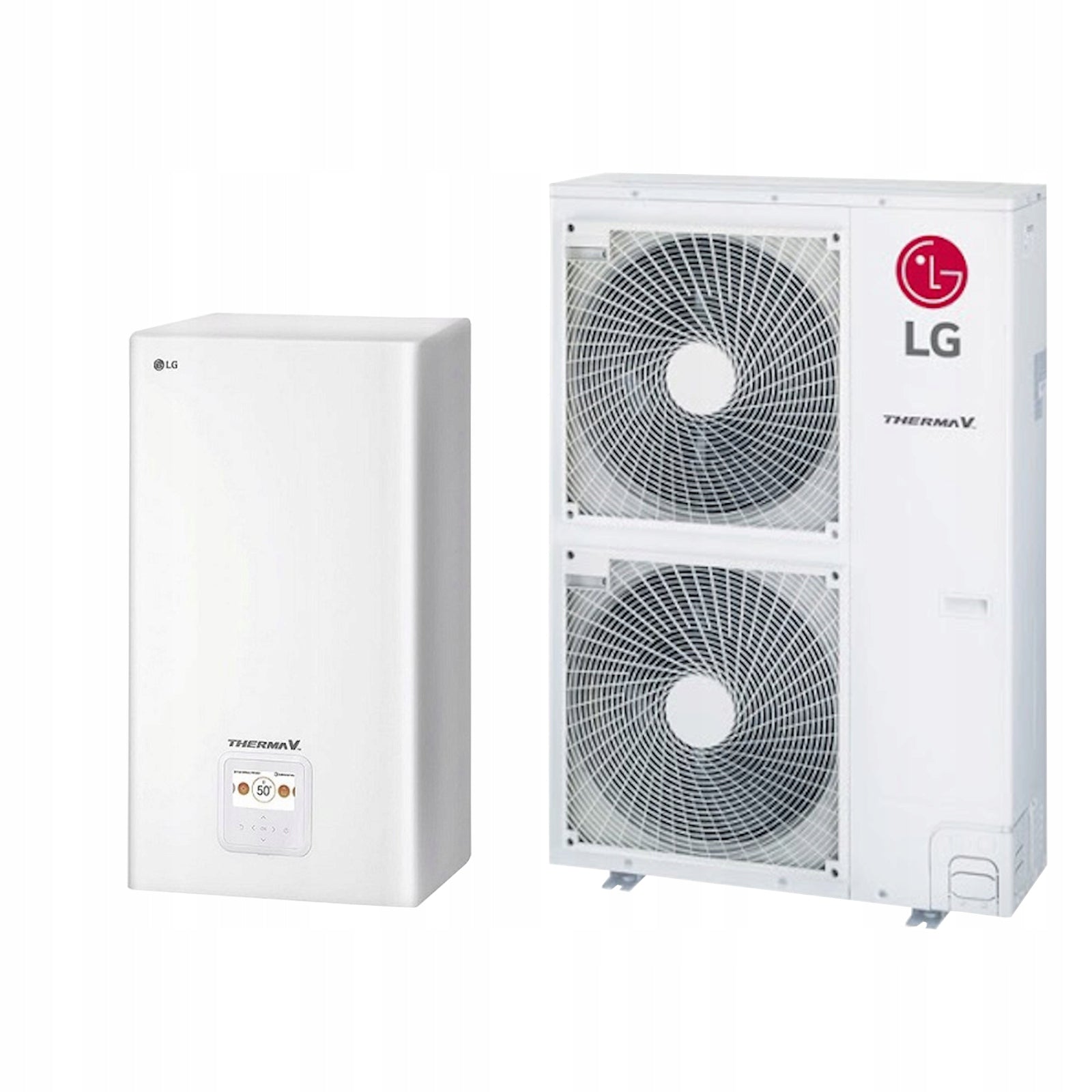

Air/water heat pump LG THERMA V R410A Split HU121MA / HN1616M 12 kW 1-phase 220-240 V + optional WiFi PWFMDD200

Specifications:

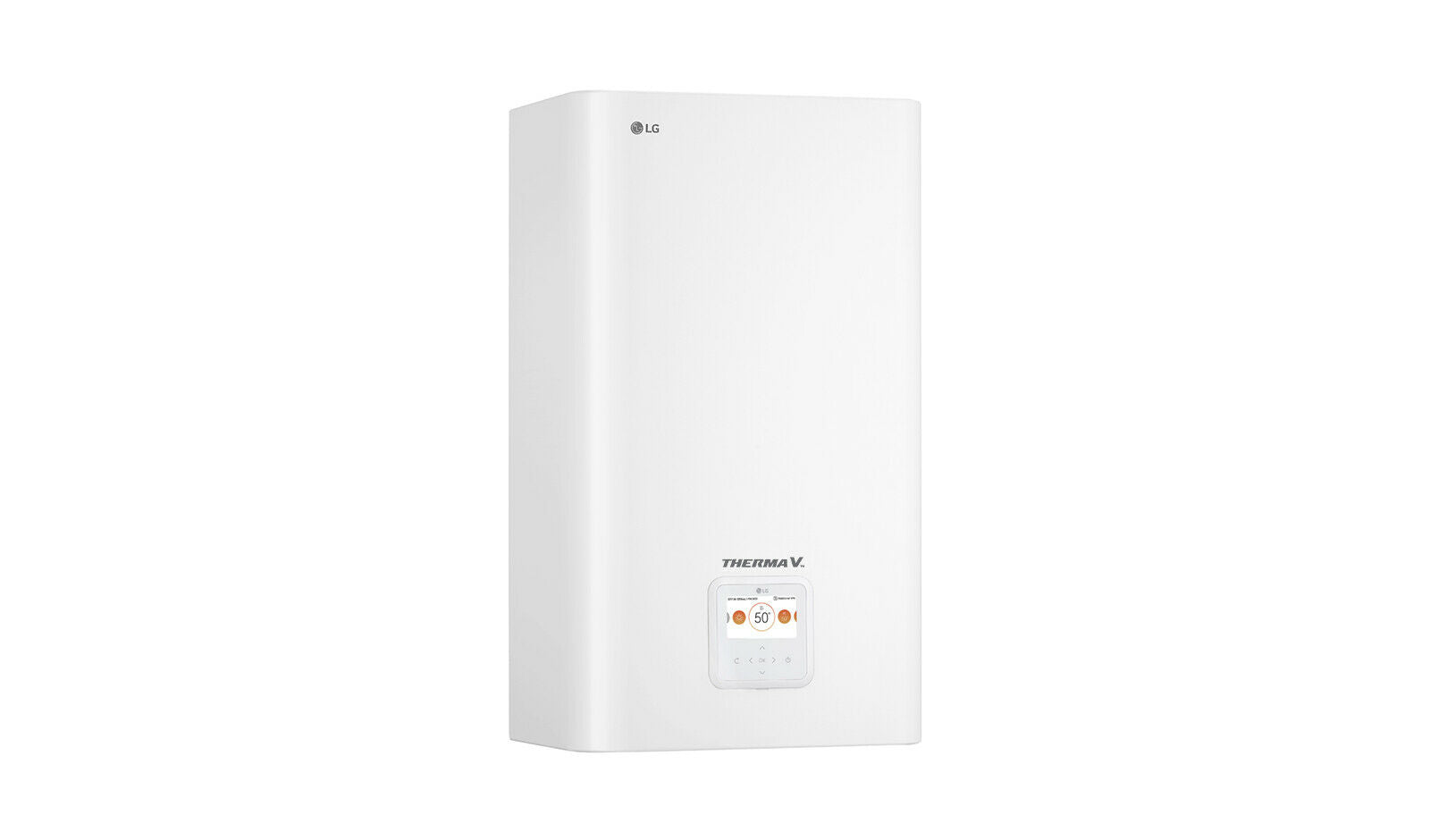

Information about the indoor unit:

Heating / cooling work area:	15 ~ 57°C/ 5 ~ 27°C
Electric heating:	2 pcs.
Performance of the electronic heater:	3 kW + 3 kW
Expansion tank:	8 liters
Water pressure sensor measuring range:	0 - 20 bar
Flow sensor measuring range:	5 - 80 l/min
Dimensions (H/W/D):	850 x 490 x 315
Net weight:	40 kg
Sound power level:	44 dB

Information about the outdoor unit:

Heating output: Cooling capacity:	12.00 kW 10.40 kW
Seasonal energy efficiency class for space heating:	A+++
COP (7°C -35°C):	4.55W/W
Dimensions (H/W/D):	1 380 × 950 × 330
Net weight:	84.80kg
Input power heating / cooling:	2.64 kW/ 2.66 kW
Compressor:	R1
Sound power level under partial load:	63 dB
Sound power level, distance 1 m.	55 dB
Refrigerant quantity (R410A) / CO2 equivalent emission:	2.5kg / 5.219tCO2eq
Installation length without refrigerant addition:	7.5 m
Maximum installation length:	50 m
Outside temperature of the heating workroom (H / K):	-25°C / 35°C
Outdoor room temperature cooling (H / K):	5°C / 48°C
Refrigerant:	R410A/ GWP 2088
Power supply:	1~ / 220 - 240V / 50Hz

Item description:

Increased installation flexibility
• Refrigerant lines connecting the indoor and outdoor units
• Hydraulic components installed in the indoor unit: plate heat exchanger, water pump, auxiliary heater, expansion tank, vent, etc.
• User-friendly interface for installation settings

High efficiency and scope of work
• High energy efficiency (SCOP 4.65 / A +++)
• Excellent performance at low ambient temperatures - 100% at an outside temperature of -7°C (except 16kW R410A split pump)
• Outlet water temperature up to 57 ° C (R410A)
• Extended operating range of the solar system

Innovative technology and design
• Built-in water flow and pressure sensors for real-time monitoring of the water cycle
• Advanced water pump control (optimal flow rate, constant flow, constant flow, constant △ T)
• Improved control logic

BEFORE PURCHASE, PLEASE CONTACT US BY PHONE TO CONFIRM AVAILABILITY.

*IMPORTANT NOTE
The commissioning of split air conditioning systems containing fluorinated greenhouse gases may only be carried out by a specialist company certified in accordance with Article 10 of EU Regulation No. 517/2014 of the European Parliament and of the Council of April 16, 2014, in conjunction with Section 6, Paragraph 1 of the German Chemicals Climate Protection Ordinance. By purchasing this device, you confirm that it will only be installed and commissioned by certified specialists in accordance with the above-mentioned regulations.
