LG Therma V Split Heat Pump 14 kW R410A 1-Phase + WiFi
LG Therma V Split Heat Pump 14 kW R410A 1-Phase + WiFi
incl. VAT + shipping costs
Crowd
Description
Description
LG THERMA V R410A Split Air/Water Heat Pump HU141MA / HN1616M 14 kW 1-Phase 220-240 V + optional WiFi PWFMDD200
1. Specifications:

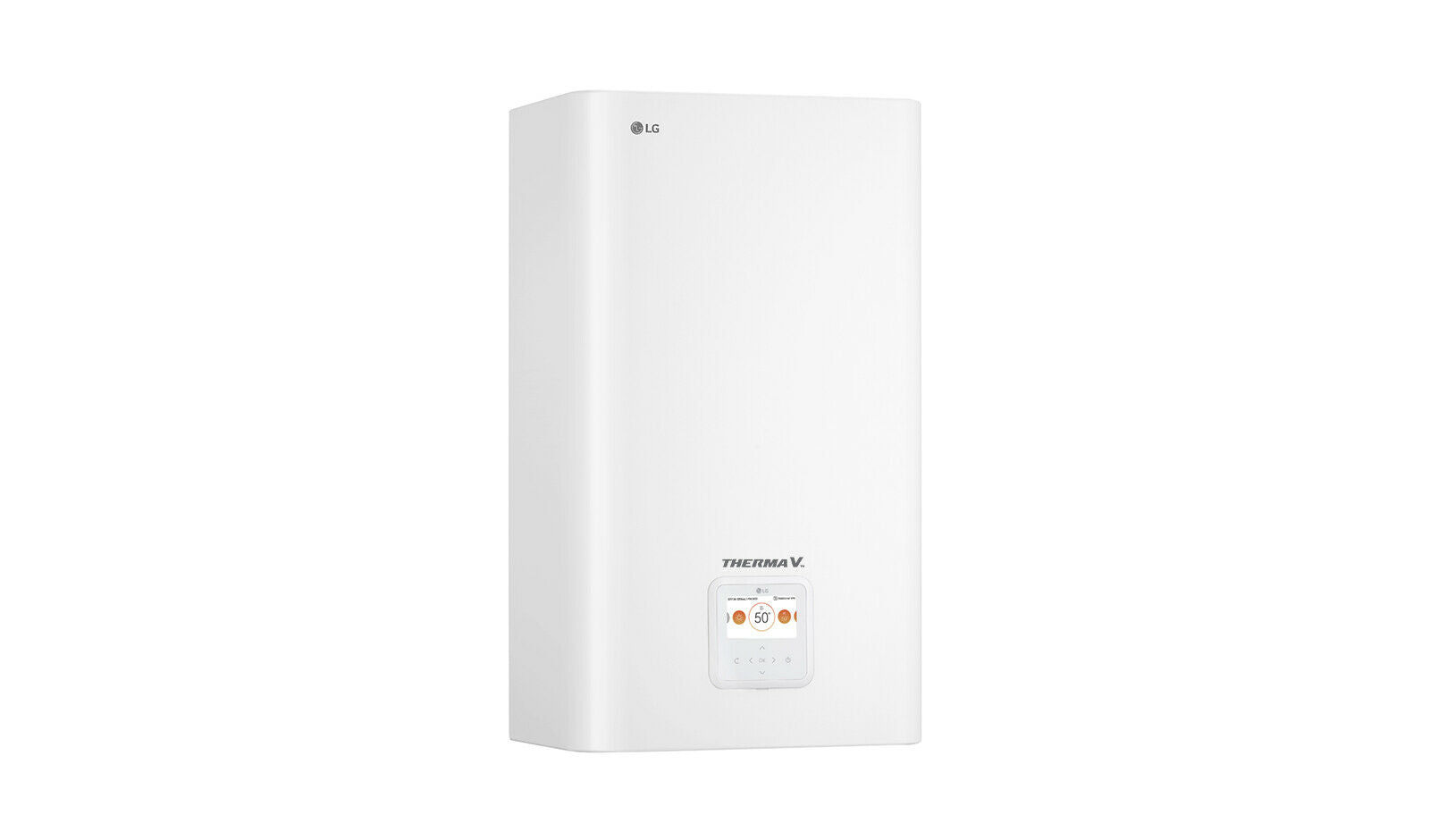

Indoor unit details:
| Heating / cooling operating range: | 15 ~ 57°C/ 5 ~ 27°C |
| Electric heating: | 2 pcs. |
| Electric heater power: | 3 kW + 3 kW |
| Expansion vessel: | 8 l |
| Water pressure sensor measuring range: | 0 - 20 bar |
| Flow sensor measuring range: | 5 - 80 l/min |
| Dimensions (H/W/D): | 850 x 490 x 315 |
| Net weight: | 40 kg |
| Sound power level: | 44 dB |
Outdoor unit details:
|
Heating capacity |
14.00 kW |
|
Seasonal space heating energy efficiency class |
A+++ |
|
COP (7°C -35°C) |
4.41 W/W |
|
Dimensions (H/W/D): |
1 380 × 950 × 330 |
|
Net weight : |
84.80 kg |
|
Heating / cooling inputpower: |
3.17 kW / 3.02 kW |
|
Compressor: |
R1 |
|
Sound power level at part load: |
64 dB |
|
Sound power level, distance 1 m. |
56 dB |
|
Refrigerant quantity (R410A) / CO2-equivalent emissions: |
2.5kg / 5.219tCO2eq |
|
Installation length without refrigerant charge: |
7.5 m |
|
Maximum installation length |
50 m |
|
Outdoor temperature of the heated space (H / C): |
-25°C / 35°C |
|
Outdoor space temperature cooling (H / C): |
5°C / 48°C |
|
Refrigerant: |
R410A / GWP 2088 |
|
Power supply: |
1~ / 220 - 240V / 50Hz |
2. Product description:

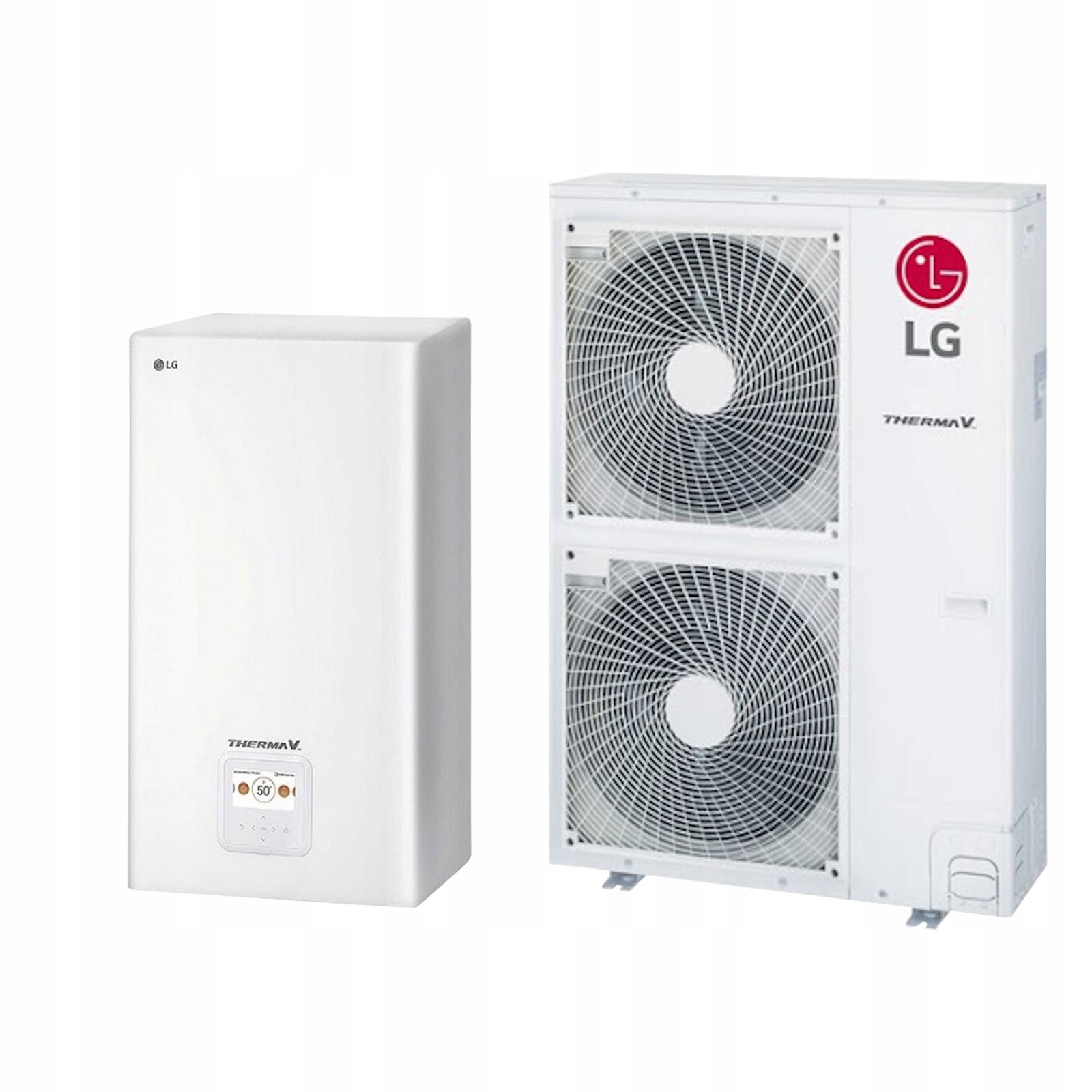

SPLIT CONCEPT
The Therma V Split consists of separate indoor and outdoor units. These two components are connected by refrigerant. The indoor unit contains water-side components such as plate heat exchangers, an expansion vessel, and a water pump. In addition, all water pipes connected to the heating system are located inside the building, thereby minimizing the risk of water freezing due to external conditions.
LG THERMA V R410A Split
Increased installation flexibility
• Refrigerant pipes connecting the indoor and outdoor units
• Hydraulic components built into the indoor unit: plate heat exchanger, water pump, auxiliary heating, expansion vessel, air vent, etc.
• User-friendly interface for installation settings
High efficiency and operating range
• High energy efficiency (SCOP 4.65 / A +++)
• Excellent performance at low ambient temperatures - 100% at an outdoor temperature of -7°C (except 16kW R410A Split pump)
• Water outlet temperature up to 57 °C (R410A)
• Extended operating range for solar systems
Innovative technology and design
• Built-in water flow and pressure sensors for real-time monitoring of the water circuit
• Advanced water pump control (optimal flow rate, constant flow, constant flow, constant △ T)
• Improved control logic
BEFORE PURCHASING, PLEASE CONTACT US BY TELEPHONE TO CONFIRM AVAILABILITY.
*IMPORTANT NOTE
The commissioning of "split air conditioners" containing fluorinated greenhouse gases may only be carried out by a certified specialist company in accordance with Article 10 of EU Regulation No. 517/2014 of the European Parliament and of the Council of 16 April 2014 in conjunction with § 6 para. 1 ChemKlimaschutzV. By purchasing, you confirm that this device will only be installed and commissioned by certified specialist personnel in accordance with the above regulations.
Manufacturer information
Manufacturer information
Important NOTE
Important NOTE
Dear Customer, please note that by purchasing this product, the buyer/user confirms compliance with Regulation (EU) No 517/2014 of the European Parliament and of the Council of 16 April 2014 on fluorinated greenhouse gases and Regulation (EU) No 573/2024 of the European Parliament and of the Council of March 2024 on fluorinated greenhouse gases, which stipulates the following: The person who buys/uses the split air conditioner confirms that it will be professionally installed by certified professionals.
F-Gas Regulation Download Declaration
