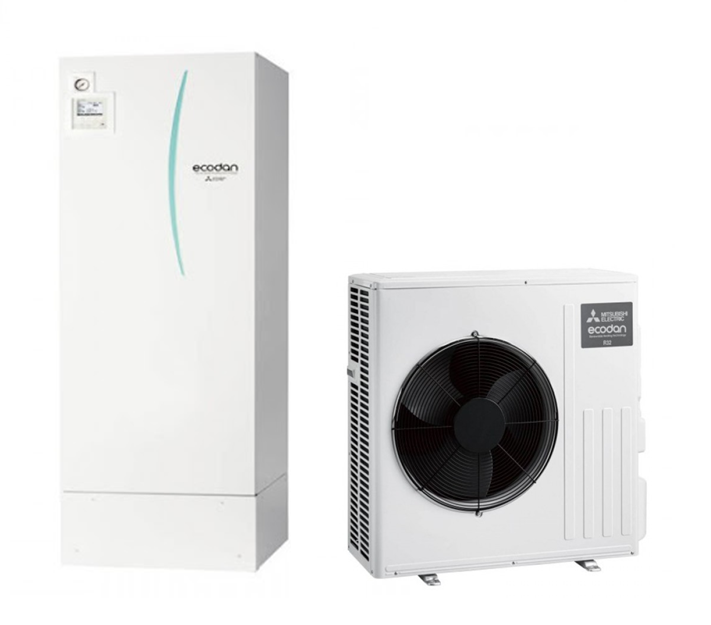

Air/water heat pump Split Eco Inverter SUZ-SWM80VA / storage module ERST20D-VM2D 7.1 kW 230 V R32

1. Included in delivery:

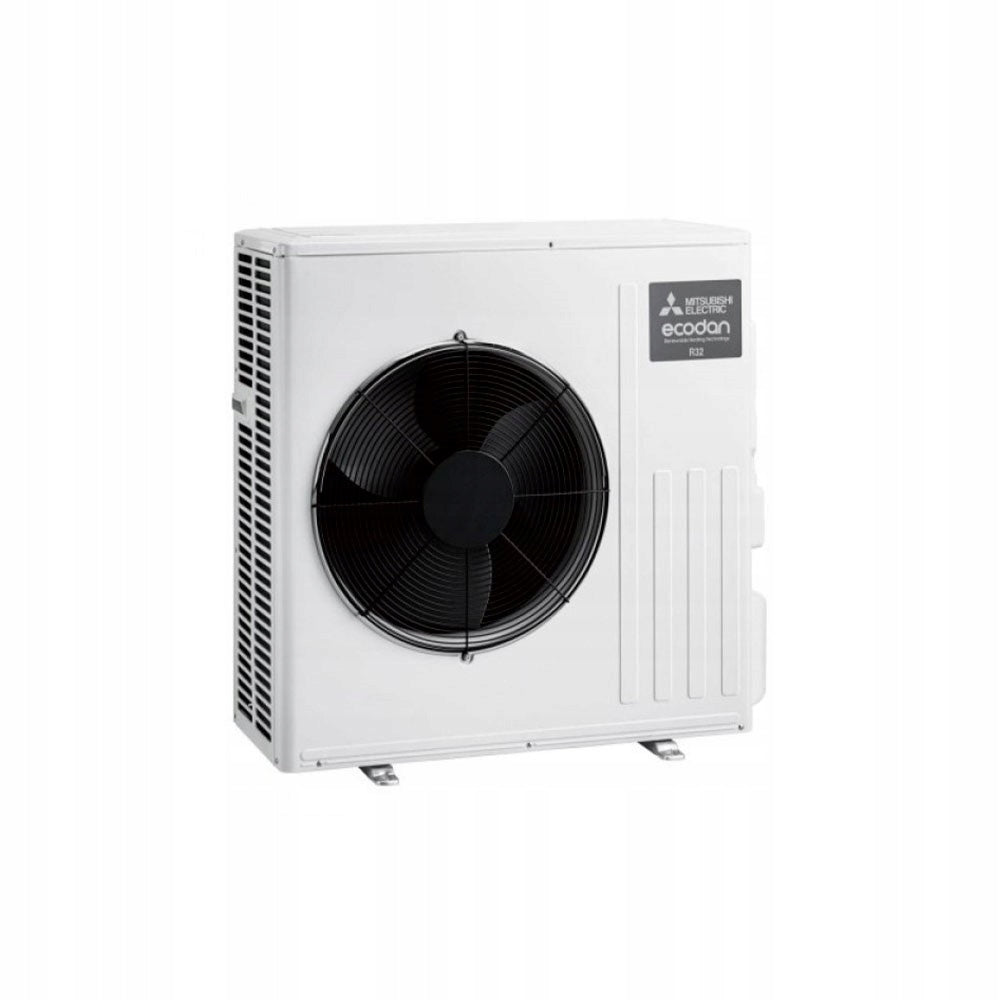

-one outdoor unit SUZ-SWM80VA

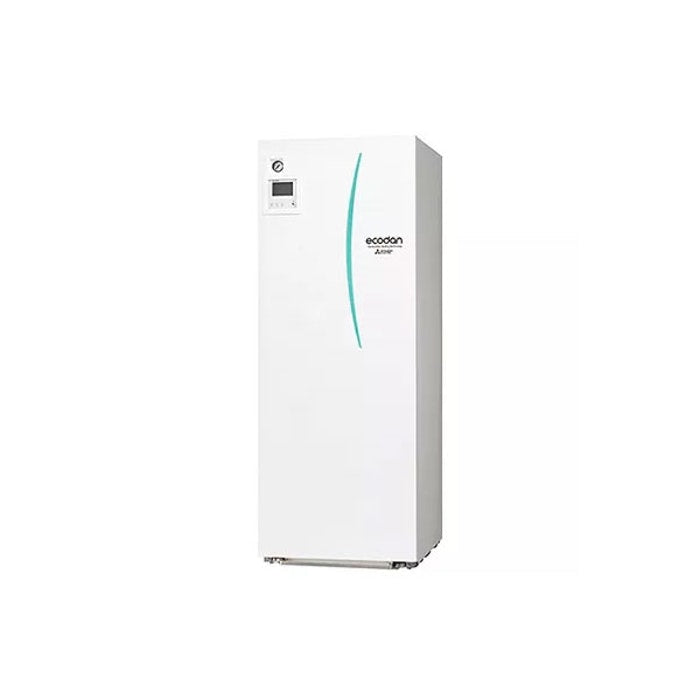

-one indoor unit storage module ERST20D-VM2D including wired remote control

2. Item description:

Ecodan air/water heat pumps
Whether it's a single-family home, a commercial property, or a large residential project: Ecodan heat pumps are an efficient and future-proof solution for heating and hot water production.

Control of two heating circuits
The Ecodan heat pump can control two heating circuits with different flow temperatures, thus controlling two different heat consumers, such as radiators and underfloor heating. Furthermore, the mixing valve control has been optimized to improve comfort in the second zone by prioritizing the heat stored in the buffer tank. This avoids frequent switching of the heat pump on and off in a two-zone system.

Layered heating of domestic hot water
In appliances with an integrated hot water tank, the water is heated continuously using a flow-through process. The water is heated by a separate, built-in plate heat exchanger. The cold water is pumped from the lower part of the tank by a small circulation pump and, after heating, flows to the upper part of the tank. Hot water is then drawn from the upper part. Using this heating technology allows the volume of the appliance to be reduced, which is not possible if the appliance must be equipped with a heat exchanger.

New range of Eco-Inverter outdoor units
- Three heat pumps for optimal adaptation of heating output to the building's heat requirements - SUZ-SWM40VA, SUZ-SWM60VA and SUZ-SWM80VA
- Performance tailored to the needs of new single-family homes so they can meet the increasing energy requirements of WT2017 and WT2021
- Energy efficiency class A+++
- R32-based unit: more efficient, quieter and more environmentally friendly
- Increased guaranteed heating operation down to -20 °C
- Flow temperature 60oC without the use of electric heaters
- Proven automation of Ecodan heat pumps, including Mitsubishi Electric's revolutionary auto-adaptive control system

Extended assured operating range
Previous Eco Inverter models guaranteed operation down to -15 °C, while the new devices have an extended range down to -20 °C.

High performance
Energy efficiency class A+++ / A++ in heating mode and A+ in hot water mode.

Quiet operation
Quieter operation compared to a conventional outdoor unit. The new Eco Inverter R32 unit achieves a lower sound pressure level, offering installation flexibility in densely populated areas.

3. Specifications:

BEFORE PURCHASE, PLEASE CONTACT US BY PHONE TO CONFIRM AVAILABILITY.

*IMPORTANT NOTE
The commissioning of split air conditioning systems containing fluorinated greenhouse gases may only be carried out by a specialist company certified in accordance with Article 10 of EU Regulation No. 517/2014 of the European Parliament and of the Council of April 16, 2014, in conjunction with Section 6, Paragraph 1 of the German Chemicals Climate Protection Ordinance. By purchasing this device, you confirm that it will only be installed and commissioned by certified specialists in accordance with the above-mentioned regulations.
