Monoblock heat pumps Mitsubishi Ecodan R290 8.2 kW to choose from:

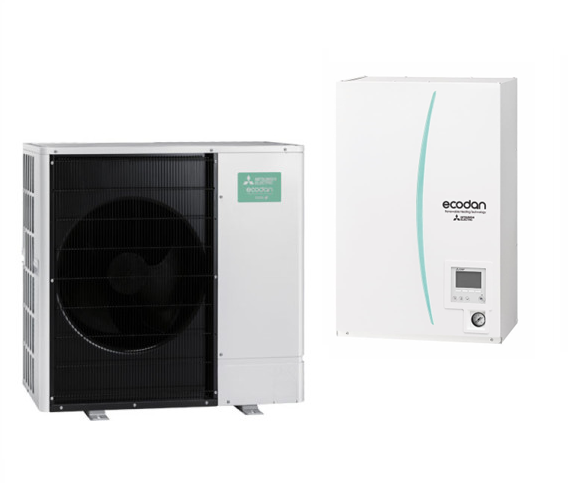

1. Outdoor unit PUZ-WZ80VAA + indoor unit Hydrobox ERPX-VM6E | Cooling and heating | Single-phase | Generation E
2. Outdoor unit PUZ-WZ80VAA + indoor unit cylinder ERPT17X-VM2E 170 L | Cooling and heating | single-phase | Generation E

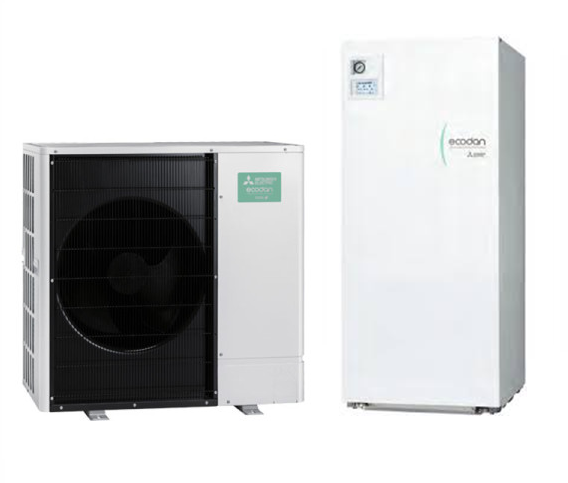

3. Outdoor unit PUZ-WZ80VAA + indoor unit cylinder ERPT20X-VM6E 200 L | Cooling and heating | single-phase | Generation E
4. Outdoor unit PUZ-WZ80VAA + indoor unit cylinder ERPT30X-VM6EE 300 L | Cooling and heating | single-phase | Generation E

Advantages:
The innovative model has a guaranteed operating range of up to -25°C ambient temperature and utilizes the refrigerant properties of R290 to efficiently achieve high water temperatures of up to 75°C and a low global warming potential (GWP), making the Ecodan R290 heat pump the perfect renewable alternative to conventional fossil boilers.

• Minimized energy consumption
• Flexible product placement
• Remote control, monitoring, maintenance and technical support
• Ideal for energy storage
• Zero carbon ready
• A+++ heating performance
• Ultra quiet noise level
• MELCloud activated
• High water temperature of up to 75°C
• Fully electric source for heating and hot water

Specifications:

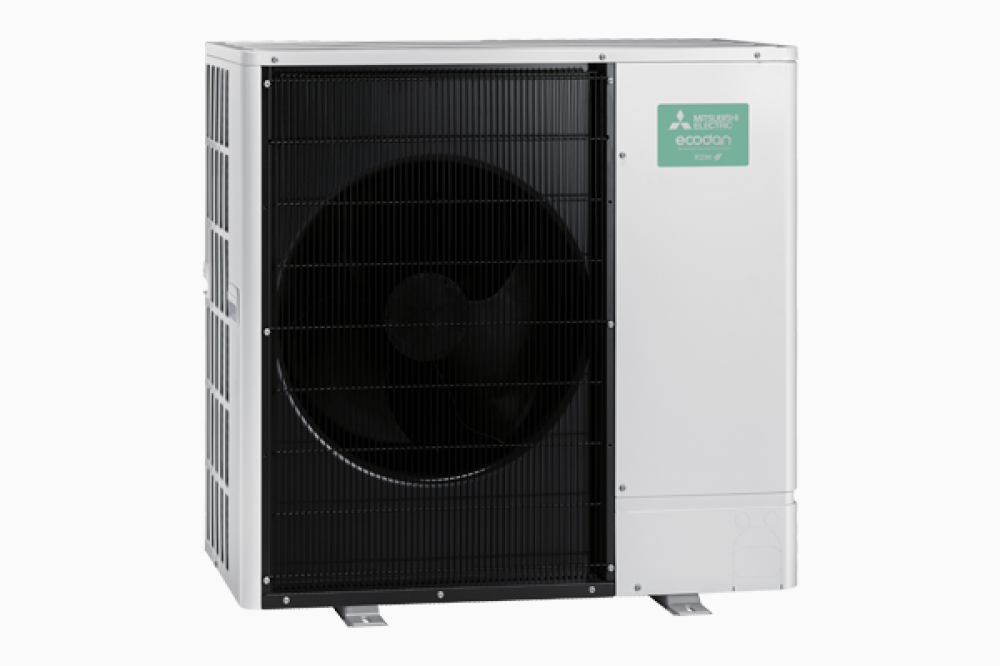

Outdoor unit PUZ-WZ80VAA:
• Heat pump space heating - 55°C:
ERP: A++
SCOP (MCS): 3.56
• Heat pump room heating - 35°C:
ERP: A+++
SCOP (MCS): 4.49
• Heat pump combi heater - Large profile ErP: A+
• Heating output (A-7/W35): 8.2 kW / COP: 2.28
• Operating ambient temperature: -25 ~ +46 °C DB
• Maximum water outlet temperature: 75 °C
• Sound pressure level 1m: 40 dB(A)
• Dimensions (WxDxH): 1050 x 480 x 1020 mm (117 kg)
• Power supply: 220-240v 50Hz, single phase
• Refrigerant: R290 (GWP 3)

Indoor unit Hydrobox ERPX-VM6E:
• Type: Monoblock
• Cooling and heating
• Heat exchanger type: X
• Power of the electric heating element: 2 + 4 kW
• Supply voltage of the electric heating element: 230 | 1 | 50 Hz.
• Sound pressure level: 40 dB(A)
• Dimensions (HxWxD): 800 x 530 x 360 mm (33 kg)

Indoor unit cylinder ERPT17X-VM2E:
• Type: Monoblock
• Cooling and heating
• Net capacity of the hot water tank: 170 L
• Heat exchanger type: X
• Power of the electric heating element: 2 kW
• Supply voltage of the electric heating element: 230 | 1 | 50 Hz.
• Sound pressure level: 40 dB(A)
• Dimensions (HxWxD): 1400 x 595 x 680 mm (84 kg)

Indoor unit cylinder ERPT20X-VM6E:
• Type: Monoblock
• Cooling and heating
• Net capacity of the hot water tank: 200 L
• Heat exchanger type: X
• Power of the electric heating element: 2 + 4 kW
• Supply voltage of the electric heating element: 230 | 1 | 50 Hz.
• Sound pressure level: 40 dB(A)
• Dimensions (HxWxD): 1600 x 595 x 680 mm (89 kg)

Indoor unit cylinder ERPT30X-VM6EE:
• Type: Monoblock
• Cooling and heating
• Net capacity of the hot water tank: 300 L
• Heat exchanger type: X
• Power of the electric heating element: 2 + 4 kW
• Supply voltage of the electric heating element: 230 | 1 | 50 Hz.
• Sound pressure level: 40 dB(A)
• Dimensions (HxWxD): 2050 x 595 x 680 mm (105 kg)

BEFORE PURCHASE, PLEASE CONTACT US BY PHONE TO CONFIRM AVAILABILITY.
