Mitsubishi Electric

Mitsubishi MSZ-AP60VGK Split Air Conditioner 6.1 kW with Wi-Fi

Mitsubishi MSZ-AP60VGK Split Air Conditioner 6.1 kW with Wi-Fi

Mitsubishi MSZ-AP60VGK split air conditioner with 6.1 kW cooling and 6.8 kW heating capacity, for rooms of approximately 55 to 70 m²*. A++ in cooling and heating, on the A+++ to D scale. Heating operation down to minus 15 °C, built-in Wi-Fi. Indoor unit 1,100 mm wide.

Regular price €1.999,00
Regular price Sale price €1.999,00
Sale Sold out

incl. VAT + Shipping Costs

Taxes included. Shipping calculated at checkout.
Mounting kit

Crowd

  • American Express
  • Diners Club
  • Discover
  • Google Pay
  • JCB
  • Mastercard
  • PayPal
  • Visa
  • Brand-name units from a specialist retailerOriginal products from leading manufacturers
  • Personal adviceBy phone, email or WhatsApp
  • Installation on requestBy specialist installers in your region
  • Secure paymentPayPal with Buyer Protection, credit card and more

Description

The Mitsubishi MSZ-AP60VGK delivers 6.1 kW of cooling and 6.8 kW of heating capacity, with a maximum of 7.3 kW in cooling and 8.6 kW in heating mode. With a SEER of 7.4 and SCOP of 4.6, it is in energy efficiency class A++ in both cooling and heating modes on the scale from A+++ to D. The indoor unit operates at 29 dB(A) on the lowest setting, and the heating mode is designed for outdoor temperatures down to minus 15 °C. As a guideline, the capacity class is suitable for rooms of approximately 55 to 70 m²*.

The indoor unit is 1,100 mm wide. This is the widest unit in our range. Measure the intended wall area before ordering and allow for the additional side clearance required for installation. If wall space is limited, consider the AY, EF, and LN series, whose indoor units are between 798 and 890 mm wide.

Performance and operating range

The unit delivers 6.1 kW of cooling and 6.8 kW of heating capacity. The cooling capacity is adjustable between 1.4 and 7.3 kW, and the heating capacity between 2.0 and 8.6 kW. In cooling mode, the system operates at outdoor temperatures between minus 10 and plus 46 °C, and in heating mode between minus 15 and plus 24 °C.

The stated area of approximately 55 to 70 m²* is a guideline for standard room height and normal insulation standards, not a binding design specification. The correct capacity class for your property depends on room height, insulation standards, window areas, shading, as well as the number of people and devices. An undersized unit will run continuously at full load, while an oversized unit will cycle on and off and consume electricity unnecessarily. We can check the appropriate design for your property upon request.

* Guideline based on the cooling capacity specified by the manufacturer, with a standard room height of approximately 2.5 m, normal insulation standards, and average solar radiation. Different conditions on site, such as large window areas, sloped roofs, or a high number of people, may require a different capacity class. The binding design is carried out on a property-specific basis. For a professional design of your property, please contact us.

The most important advantages at a glance

  • 6.1 kW cooling and 6.8 kW heating capacity, with a maximum of 7.3 and 8.6 kW.
  • Energy efficiency class A++ in cooling and heating on the scale from A+++ to D, with a SEER of 7.4 and SCOP of 4.6.
  • Heating mode down to minus 15 °C outdoor temperature.
  • 29 dB(A) on the lowest setting of the indoor unit.
  • Wi-Fi built-in, control via smartphone using MELCloud.
  • Installation set in lengths of 3 to 12 m can be ordered directly.

Detailed functions

Inverter and heat pump operation

The inverter compressor adjusts its speed to the actual demand. At startup, the system runs at high power to quickly bring the room to the desired temperature. After that, it ramps down to 1.4 kW in cooling mode and 2.0 kW in heating mode, maintaining the temperature without constantly switching on and off. In heating mode, the unit operates as an air-to-air heat pump and uses the heat from the outdoor air down to minus 15 °C.

Control via MELCloud

The Wi-Fi module is built-in from the factory. Using the MELCloud app, you can control the operating mode, temperature, and time programs from your smartphone, even when away. A remote control is also included. A weekly operating program can be set directly on the unit, as can a timer for switching on and off.

Operating modes

  • Cooling: 6.1 kW nominal, adjustable from 1.4 to 7.3 kW
  • Heating: 6.8 kW nominal, adjustable from 2.0 to 8.6 kW
  • Econo Cool: cooling mode with adjusted airflow and a higher setpoint temperature
  • i-save: stores your own temperature and operating setting for quick access
  • Night mode: reduced fan speed for operation during the night
  • Silent: reduced sound pressure level of the indoor unit
  • Anti-freeze protection: maintains the room temperature at a minimum level in unoccupied rooms
  • Winter regulator for outdoor unit operation

Airflow and filters

  • Horizontal air outlet for low-profile airflow along the ceiling
  • Vertical Swing: the air direction from ceiling to floor is controlled via the remote control
  • Automatic fan control adjusts the speed according to the deviation from the setpoint temperature
  • Air purification filter in the indoor unit

Operational safety

  • Automatic restart after a power failure
  • Stored input values are retained during a power failure

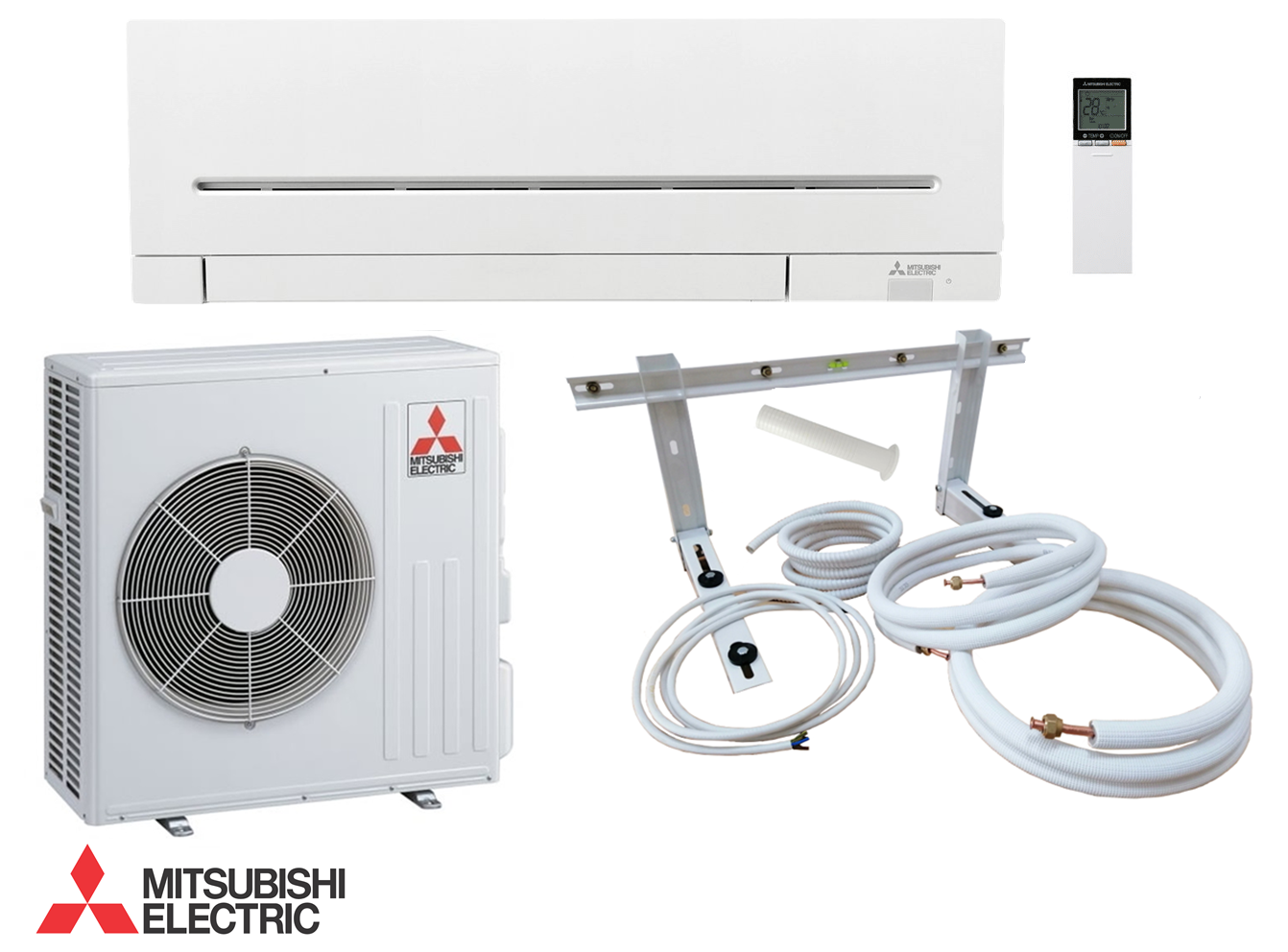

Scope of delivery

Standard delivery includes:

  • 1x Mitsubishi MSZ-AP60VGK indoor unit
  • 1x Mitsubishi MUZ-AP60VG outdoor unit
  • 1x remote control

Optional: Installation set 3 to 12 meters

You can order the appropriate installation set directly. It includes:

  • Insulated copper lines
  • 16 mm condensate hose
  • 5 x 1.5 mm² electrical cable
  • Rodigas wall bracket for the outdoor unit
  • Wall sleeve

The pipe connections for this unit are 6 mm on the liquid side and 12 mm on the gas side. Sets for lower capacity classes use thinner gas lines and are not compatible. We can inform you which set is suitable for your installation upon request.

Additional items required

  • Cables and installation materials if you do not choose an installation set
  • Condensate pump, depending on the installation situation
  • Electrical supply cable and circuit protection
  • Installation and commissioning by a certified specialist company

Technical specifications

Indoor unit Mitsubishi MSZ-AP60VGK
Outdoor unit Mitsubishi MUZ-AP60VG
Cooling capacity 6.1 kW (min. 1.4 to max. 7.3 kW)
Heating capacity 6.8 kW (min. 2.0 to max. 8.6 kW)
Energy efficiency class Cooling / Heating A++ / A++, scale A+++ to D
SEER / SCOP 7.4 / 4.6
Sound pressure level indoor unit (low / high) 29 / 48 dB(A)
Sound pressure level outdoor unit Cooling / Heating 56 / 57 dB(A)
Pipe connections Liquid + Gas 6 + 12 mm
Operating range Cooling / Heating -10 to +46 °C / -15 to +24 °C
Indoor unit dimensions (WxDxH) 1,100 x 257 x 325 mm, 16 kg
Outdoor unit dimensions (WxDxH) 800 x 285 x 714 mm, 40 kg
Wi-Fi built-in from the factory, control via MELCloud

Frequently asked questions

What cooling and heating capacity does the MSZ-AP60VGK have?

The cooling capacity is 6.1 kW, and the heating capacity is 6.8 kW. Both values are continuously adjustable via the inverter, from 1.4 to 7.3 kW in cooling mode and from 2.0 to 8.6 kW in heating mode. We can check which capacity class is suitable for your room upon request.

How wide is the indoor unit?

The indoor unit measures 1,100 mm in width, 325 mm in height, and 257 mm in depth, and weighs 16 kg. This is the widest unit in our range. Measure the intended wall area before ordering and allow for the additional side clearance required for installation. The outdoor unit measures 800 x 285 x 714 mm and weighs 40 kg.

Does this model have Wi-Fi?

Yes, the Wi-Fi module is built-in from the factory. Smartphone control is provided via the MELCloud app, and a remote control is also included. No retrofitting is required.

Down to what outdoor temperature does the unit heat?

The heating mode is designed for outdoor temperatures down to minus 15 °C. With a nominal capacity of 6.8 kW and a maximum of 8.6 kW, the heating capacity exceeds the cooling capacity. The available capacity decreases as the outdoor temperature drops, making the system suitable as a supplement to an existing heating system.

Is the installation set included in the price?

The installation set is an optional addition and is added via the variant selection. Without a selected installation set, the delivery includes only the indoor unit, outdoor unit, and remote control. The set is available in lengths of 3 to 12 meters.

How long can the line between the indoor and outdoor units be?

The installation set is available in lengths of 3 to 12 meters. The pipe connections are 6 mm on the liquid side and 12 mm on the gas side. We can check which length and routing are permissible for your installation situation upon request.

How loud is the unit?

For the indoor unit, the manufacturer specifies 29 dB(A) on the low setting and 48 dB(A) on the high setting. For the outdoor unit, it is 56 dB(A) in cooling mode and 57 dB(A) in heating mode.

Can I install the air conditioner myself?

The installation and commissioning of a split air conditioner are carried out by a certified specialist company. Self-installation is not intended.



Manufacturer Information

Manufacturer/EU representative: Mitsubishi Electric Europe B.V.
Postal address: Harman House, 1 George Street, Uxbridge, Middlesex, UB8 1QQ, United Kingdom
Email address: info@mecc.mee.com

Important Note

Dear Customer, please note that by purchasing this product, the buyer/user confirms compliance with Regulation (EU) No 517/2014 of the European Parliament and of the Council of 16 April 2014 on fluorinated greenhouse gases and Regulation (EU) No 573/2024 of the European Parliament and of the Council of March 2024 on fluorinated greenhouse gases, which stipulates the following: The person who buys/uses the split air conditioner confirms that it will be professionally installed by certified professionals.

F-Gas Regulation Download Declaration
