Mitsubishi MSZ-AY42VGK Split Air Conditioner 4.2 kW with Wi-Fi
Mitsubishi MSZ-AY42VGK Split Air Conditioner 4.2 kW with Wi-Fi
Mitsubishi MSZ-AY42VGK split air conditioner with 4.2 kW cooling and 5.2 kW heating capacity, suitable as a guide for rooms of approximately 35 to 45 m²*. Heating down to minus 20 °C, up to 6.0 kW at maximum. WiFi module built into the indoor unit.
incl. VAT + Shipping Costs
Crowd
Couldn't load pickup availability
- Brand-name units from a specialist retailerOriginal products from leading manufacturers
- Personal adviceBy phone, email or WhatsApp
- Installation on requestBy specialist installers in your region
- Secure paymentPayPal with Buyer Protection, credit card and more
Description
Description
The Mitsubishi MSZ-AY42VGK delivers 5.2 kW of heating capacity and heats down to minus 20 °C outdoor temperature. In cooling mode, it has an SEER of 7.9, and in heating mode, an SCOP of 4.7, placing it in energy efficiency class A++ in both cases on the A+++ to D scale. The WiFi module is pre-installed in the indoor unit. As a guideline, the capacity class is suitable for rooms of approximately 35 to 45 m²*.
Performance and range of application
The unit delivers 4.2 kW of cooling and 5.2 kW of heating capacity, which corresponds to around 14,000 BTU. The cooling capacity is adjustable between 0.9 and 4.5 kW, and the heating capacity between 1.3 and 6.0 kW. The heating capacity is thus significantly higher than the cooling capacity and reaches up to 6.0 kW at maximum. In cooling mode, the system operates at outdoor temperatures between minus 10 and plus 46 °C, and in heating mode between minus 20 and plus 24 °C.
The stated area of approximately 35 to 45 m²* is a guideline for standard room height and normal insulation standards, not a binding design. Which capacity class is right for your property depends on room height, insulation standards, window areas, shading, as well as the number of people and devices. An undersized unit will run continuously at full load, while an oversized unit will cycle and consume electricity unnecessarily. We can check the appropriate design for your property upon request.
* Guideline based on the cooling capacity specified by the manufacturer, with a standard room height of approximately 2.5 m, normal insulation standards, and average solar radiation. Different conditions on site, such as large window areas, sloped roofs, or a high number of people, may require a different capacity class. The binding design is carried out on a property-specific basis. For a professional design of your property, please contact us.
The most important advantages at a glance
- 5.2 kW heating capacity with 4.2 kW cooling capacity, up to 6.0 kW at maximum.
- Heating down to minus 20 °C outdoor temperature.
- Energy efficiency class A++ in cooling and heating on the A+++ to D scale, with an SEER of 7.9 and SCOP of 4.7.
- 21 dB(A) on the lowest fan speed.
- WiFi pre-installed: the WiFi module is already built into the indoor unit.
- Control from 0.9 kW in cooling mode and from 1.3 kW in heating mode, without constant cycling.
Detailed functions
Inverter and heat pump operation
The inverter compressor adjusts its speed to the actual demand. At startup, the system runs at high capacity to quickly bring the room to the desired temperature. After that, it drops back to the minimum required capacity of 0.9 kW and maintains the temperature without noticeable fluctuations. In heating mode, the unit operates as an air-to-air heat pump and uses the heat from the outdoor air down to minus 20 °C. With 6.0 kW at maximum, this model also covers larger living spaces and open-plan layouts.
Operating modes
- Cooling: 4.2 kW nominal, adjustable from 0.9 to 4.5 kW
- Heating: 5.2 kW nominal, adjustable from 1.3 to 6.0 kW
- Night mode: reduced noise emission and lowered capacity at night
- Dehumidification: lowers the humidity without cooling the room down significantly
- Ventilation: air circulation without cooling or heating mode
Control and comfort
The WiFi module, sometimes also referred to as a WiFi module, is built into the indoor unit and does not need to be retrofitted. For operation without an app, an infrared remote control with a weekly program is included.
- i-save: stores a lowered setpoint temperature and recalls it at the touch of a button
- Weekly program via remote control: fixed operating times throughout the week
- Horizontal air outlet for even air distribution in the room
- Unit width 798 mm with a mounting depth of 245 mm, same dimensions as the smaller models in the series
Filters in the indoor unit
- Air purification filter with silver ion coating
- Integrated V-Blocking filter
- Quad Connect Plasma filter, optionally available as an accessory
Scope of delivery
Included in the standard scope:

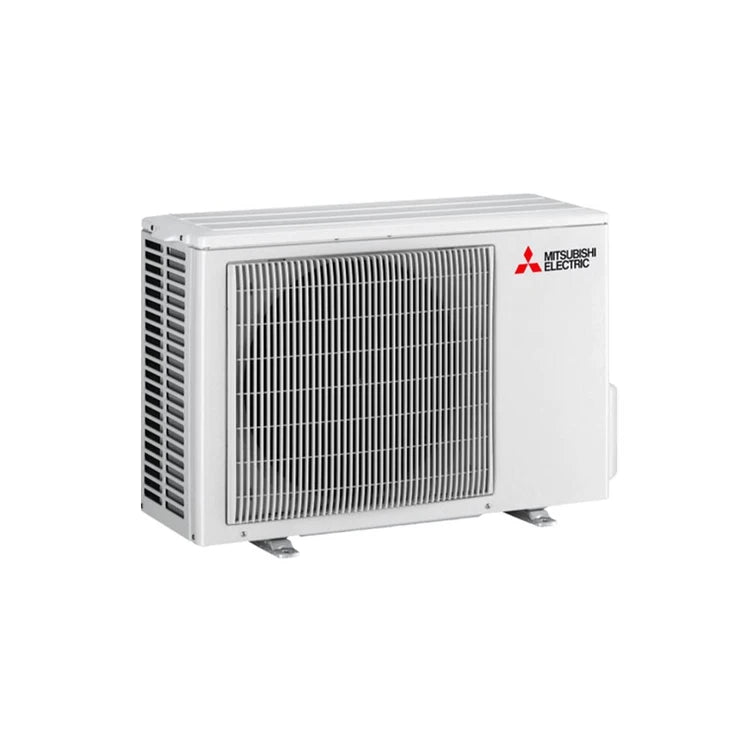

- 1x Mitsubishi MUZ-AY42VG outdoor unit

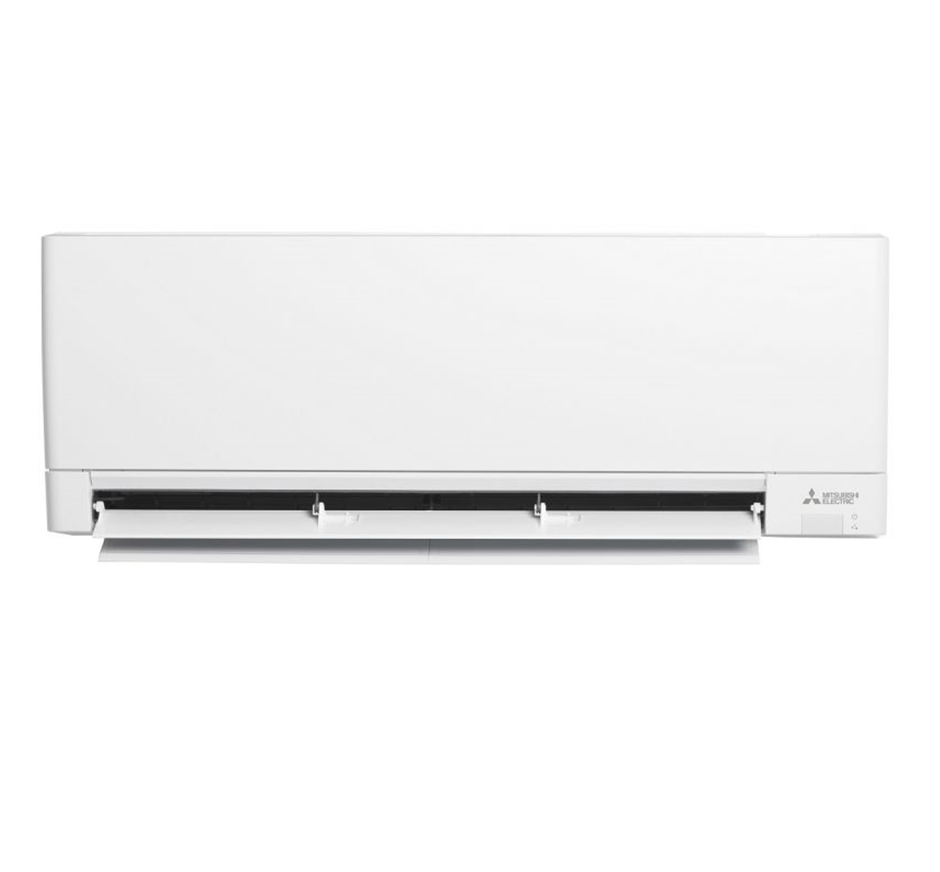

- 1x Mitsubishi MSZ-AY42VGK indoor unit with built-in WiFi module

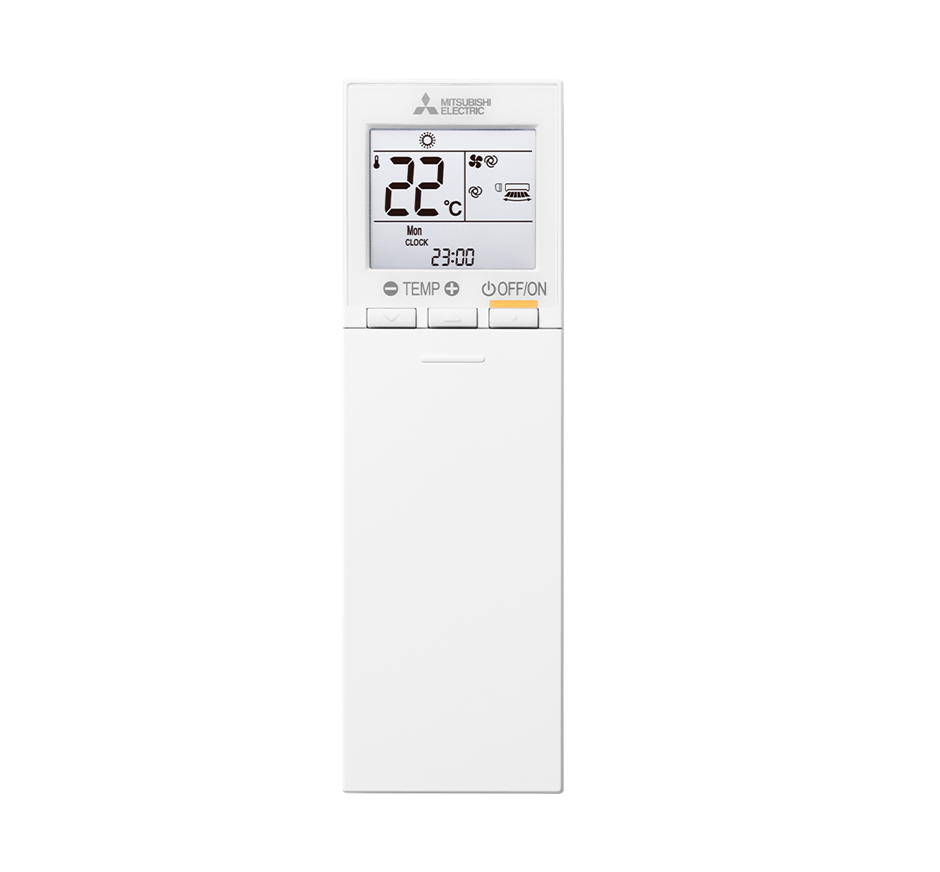

- 1x infrared remote control

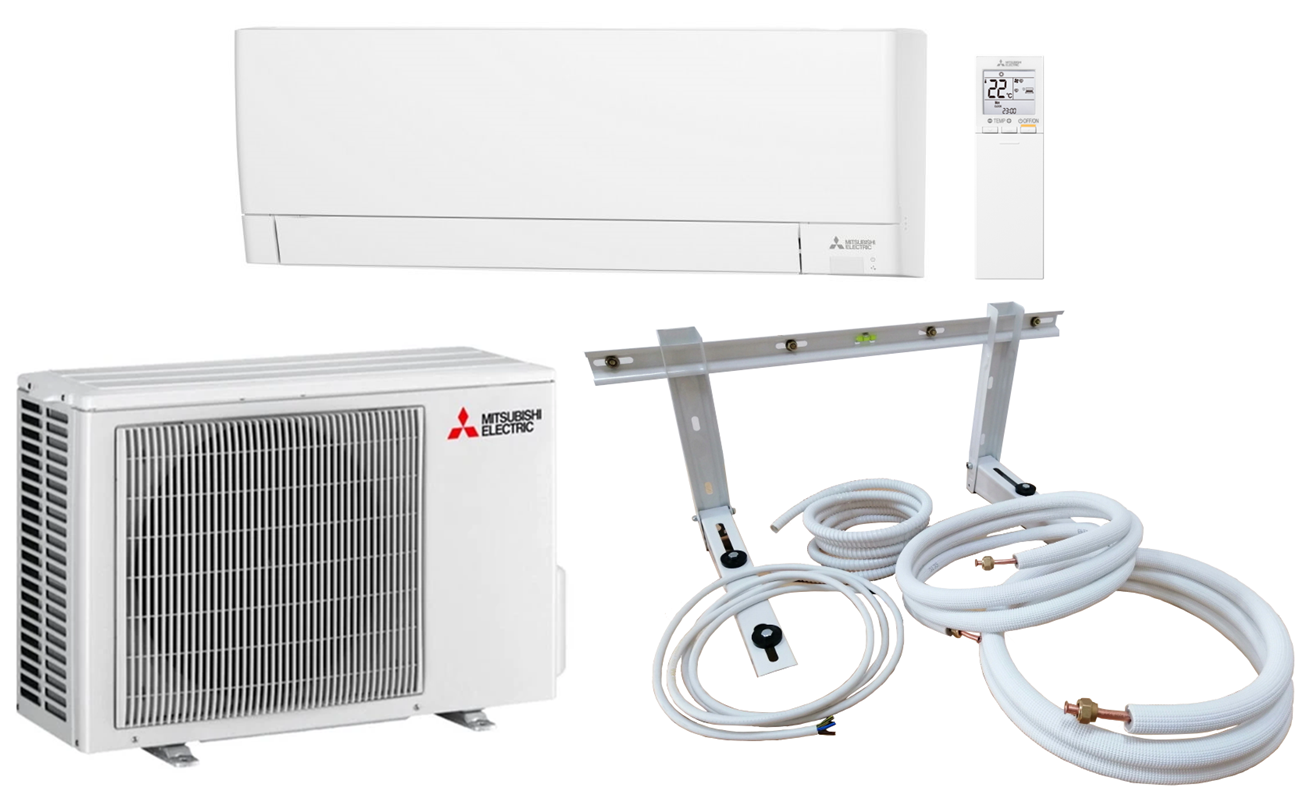

Optional: Installation set 3 to 12 meters
You can order the appropriate installation set directly with your order. It contains:
- Insulated copper line Armacell 1/4" and 3/8", flared and with union nuts
- 16 mm condensate hose
- 5 x 1.5 mm² electrical cable

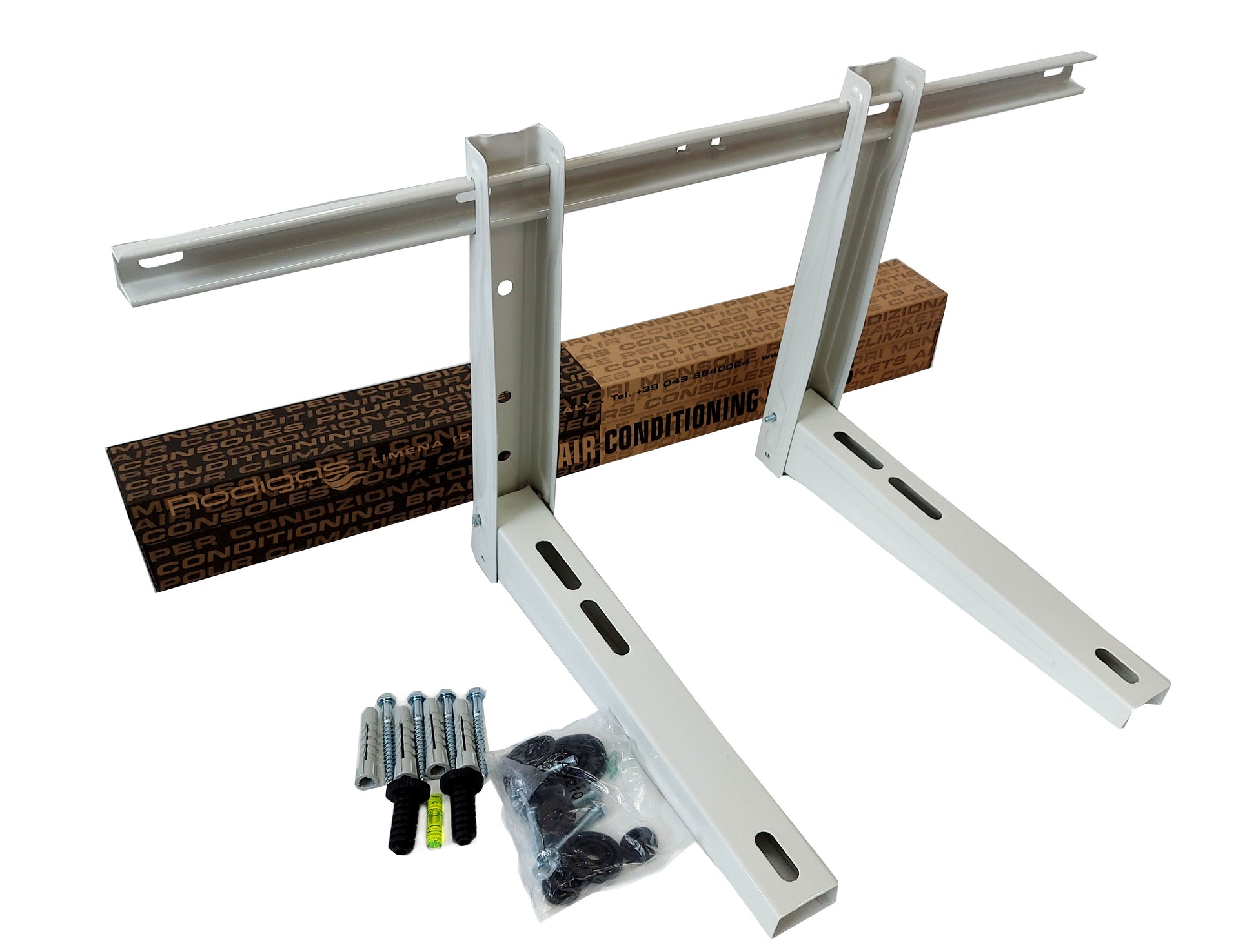

- Rodigas wall bracket for the outdoor unit
- Wall sleeve
What you need additionally
- Lines and installation material, if you do not choose an installation set
- Condensate pump, depending on the installation situation
- Electrical supply line and circuit breaker
- Installation and commissioning by a specialist company
Technical data
| Indoor unit | Mitsubishi MSZ-AY42VGK |
| Outdoor unit | Mitsubishi MUZ-AY42VG |
| Cooling capacity | 4.2 kW (min. to max.: 0.9 to 4.5 kW), around 14,000 BTU |
| Heating capacity | 5.2 kW (min. to max.: 1.3 to 6.0 kW) |
| Energy efficiency class Cooling / Heating | A++ / A++, scale A+++ to D |
| SEER / SCOP | 7.9 / 4.7 |
| Sound pressure level indoor unit (low / high) | 21 / 38 dB(A) |
| Sound pressure level outdoor unit Cooling / Heating | 50 / 51 dB(A) |
| Pipe connections Liquid + Gas | 6 mm + 10 mm |
| Operating range Cooling / Heating | -10 to +46 °C / -20 to +24 °C |
| Dimensions indoor unit (WxDxH) | 798 x 245 x 299 mm, 10.5 kg |
| Dimensions outdoor unit (WxDxH) | 800 x 285 x 550 mm, 34 kg |
| WiFi / WiFi Module | built into the indoor unit |
Frequently asked questions
What cooling and heating capacity does the MSZ-AY42VGK have?
The cooling capacity is 4.2 kW, the heating capacity 5.2 kW, which corresponds to around 14,000 BTU. Both values are continuously adjustable via the inverter, from 0.9 kW in cooling mode and from 1.3 kW in heating mode. We can check which capacity class is right for your room upon request.
Is the installation set included in the price?
The installation set is an optional addition and is added via the variant selection. Without a selected installation set, the delivery exclusively includes the indoor unit, outdoor unit, and remote control. The set is available in lengths of 3 to 12 meters.
Does the air conditioner have WiFi and do I need additional accessories?
No, additional accessories are not necessary. The WiFi module, sometimes also referred to as a WiFi module, is already built into the MSZ-AY42VGK indoor unit. You only need a WiFi network at the installation site. An infrared remote control is also included.
How long can the line between the indoor and outdoor unit be?
The optional installation set is available in lengths of 3 to 12 m. We can check which line length is permissible for your installation situation upon request.
Can I use the unit to heat in winter?
Heating mode is possible down to minus 20 °C outdoor temperature. With 5.2 kW nominal and up to 6.0 kW at maximum, the heating capacity is significantly higher than the cooling capacity. The available capacity decreases as the outdoor temperature drops, which is why the system is suitable as a supplement to the existing heating system.
How loud is the unit?
The indoor unit operates between 21 and 38 dB(A) depending on the fan speed. For the outdoor unit, the manufacturer specifies 50 dB(A) in cooling and 51 dB(A) in heating.
Can I install the air conditioner myself?
The installation and commissioning of a split air conditioner is carried out by a certified specialist company. Self-installation is not intended.
Manufacturer Information
Manufacturer Information
Manufacturer/EU Representative: Mitsubishi Electric Europe B.V.
Postal address: Harman House, 1 George Street, Uxbridge, Middlesex, UB8 1QQ, United Kingdom
Email address: info@mecc.mee.com
Important Note
Important Note
Dear Customer, please note that by purchasing this product, the buyer/user confirms compliance with Regulation (EU) No 517/2014 of the European Parliament and of the Council of 16 April 2014 on fluorinated greenhouse gases and Regulation (EU) No 573/2024 of the European Parliament and of the Council of March 2024 on fluorinated greenhouse gases, which stipulates the following: The person who buys/uses the split air conditioner confirms that it will be professionally installed by certified professionals.
