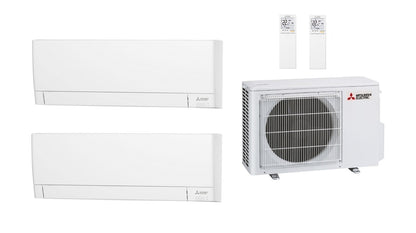

Two Mitsubishi Electric MSZ-AY25VGK indoor units, each with 2.5 kW, connected to one MXZ-2F42VF outdoor unit with 4.2 kW cooling and 4.5 kW heating capacity, in energy efficiency class A+++ for cooling and A++ for heating on the A+++ to D scale. The SEER is stated as 8.69, the SCOP as 4.60. The WiFi module is built into both indoor units, and the lowest fan speed is stated as 18 dB(A). As a guideline, each indoor unit is suitable for rooms of approximately 19 to 25 m²^*.

Performance and range of application

For the Mitsubishi Electric MXZ-2F42VF outdoor unit, cooling capacity of 4.2 kW and heating capacity of 4.5 kW are stated, adjustable from 1.1 to 4.4 kW and 1.0 to 4.8 kW, respectively. Each of the two MSZ-AY25VGK indoor units has a cooling capacity of 2.5 kW and a heating capacity of 3.2 kW. The total capacity of the indoor units is 5.0 kW, which is 0.8 kW above the capacity of the outdoor unit. Cooling operation is stated for outdoor temperatures from minus 10 to plus 46 °C, and heating operation from minus 15 to plus 24 °C. The pipe connections are stated as two 6 mm and two 10 mm.

The stated area of approximately 19 to 25 m²^* applies per indoor unit and is a guideline for standard room height and normal insulation standards, not a binding design. Room height, insulation standards, window areas, shading, and the number of people and devices are decisive. We will check the appropriate design for your property upon request.

* Guideline based on the cooling capacity stated by the manufacturer, at a standard room height of approximately 2.5 m, normal insulation standards, and average solar radiation. Different conditions on site, such as large window areas, sloped roofs, or a high number of people, may require a different performance class. The binding design is carried out on a property-specific basis. For a professional design of your property, please contact us.

The most important advantages at a glance

• Energy efficiency class A+++ for cooling and A++ for heating on the A+++ to D scale, with SEER 8.69 and SCOP 4.60.
• 18 dB(A) on the lowest fan speed per indoor unit, plus a night mode.
• WiFi module built into both indoor units, app control without an additional module.
• Two identical indoor units with 2.5 kW each for two rooms of approximately 19 to 25 m² each.
• Stepless control from 1.1 kW at the outdoor unit, heating capacity of 4.5 kW above the cooling capacity of 4.2 kW.
• Air purification filter with silver ion coating and V-Blocking filter in each indoor unit.
• Infrared remote control with weekly program and i-save button, one per indoor unit.
• Two identical sets of pipes, 6 and 10 mm on both connections.

Functions in detail

Energy efficiency class A+++

For cooling, class A+++ is stated, the highest level on the A+++ to D scale, with an SEER of 8.69; for heating, A++ with an SCOP of 4.60. Both values are above the thresholds that the manufacturer must meet for these classes, A+++ requires an SEER of at least 8.5 and A++ an SCOP of at least 4.6. The power consumption of the outdoor unit is stated as 0.98 kW in cooling and 0.88 kW in heating operation.

Built-in WiFi

Yes, without an additional module. According to the manufacturer, the MSZ-AY25VGK indoor units have the WiFi module built in, the K suffix in the model code stands for this version. It is operated via the manufacturer's app, the name of which this page does not state; we will provide it to you upon request. Two infrared remote controls with weekly programs are also included.

Multi Split principle

Two indoor units connected to one outdoor unit with two connections, each with its own refrigerant circuit and its own remote control. Outside, there is one space and one supply line. Both pipe routes are identical because both indoor units have the same connection dimensions.

Air quality

• Air purification filter with silver ion coating in the indoor unit
• Integrated V-Blocking filter
• Quad Connect Plasma filter optional as an accessory, not included in the delivery scope

Operating modes and comfort

• Cooling operation from minus 10 to plus 46 °C outdoor temperature
• Heating operation from minus 15 to plus 24 °C outdoor temperature
• Night mode with reduced fan speed and power
• i-save: a reduced setpoint temperature is stored and recalled at the touch of a button
• Horizontal air outlet for distribution in the room
• Matte white housing

Control

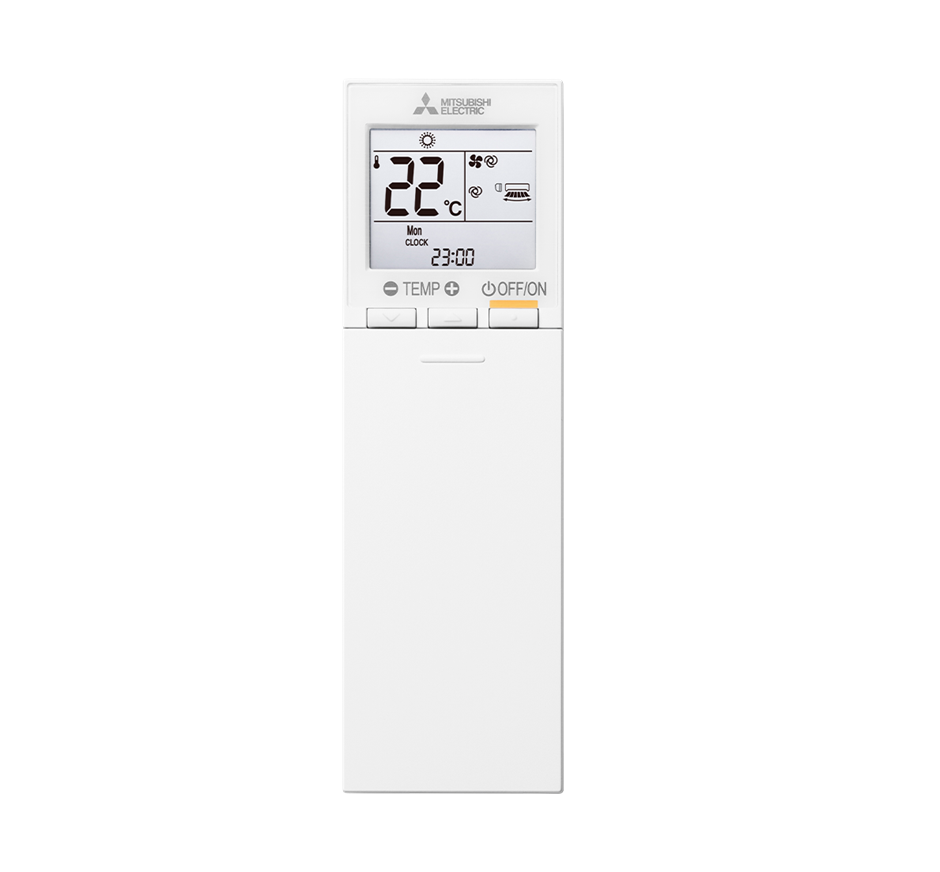

• Two infrared remote controls with weekly programs included
• WiFi module in each indoor unit, app operation

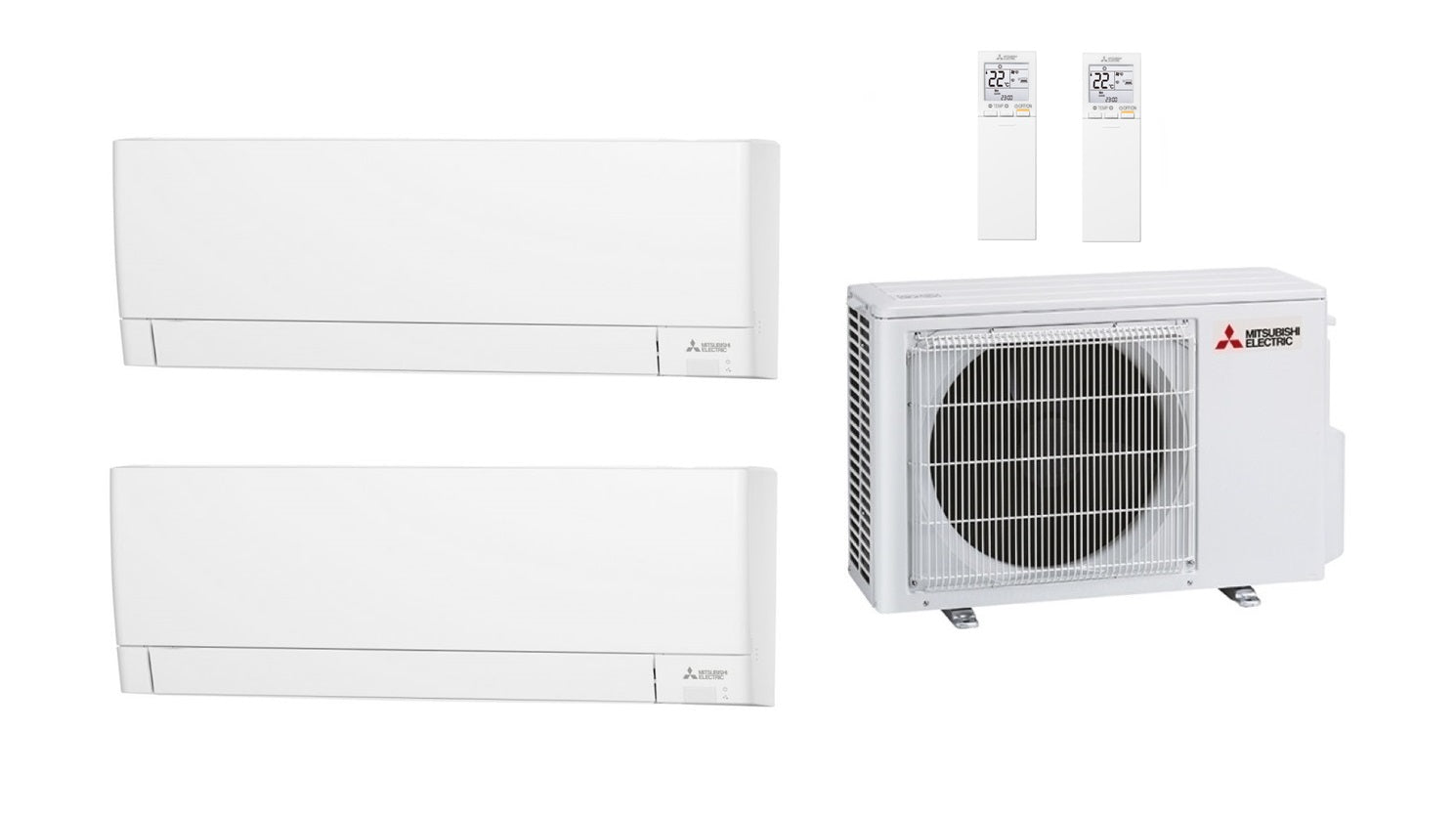

Scope of delivery

Included in the standard scope:

• 1x Mitsubishi Electric MXZ-2F42VF outdoor unit, 4.2 kW cooling capacity
• 2x Mitsubishi Electric MSZ-AY25VGK indoor unit, 2.5 kW cooling capacity each, built-in WiFi
• 2x infrared remote control with weekly program

What you need additionally

• Two sets of pipes with 6 and 10 mm, identical to each other
• Wall bracket or floor console for 37 kg
• Quad Connect Plasma filter, if desired
• Condensate pump, depending on the installation situation
• Electrical supply line and protection
• Installation and commissioning by a specialist company

A WiFi module is not necessary, as it is built into both indoor units.

Technical data

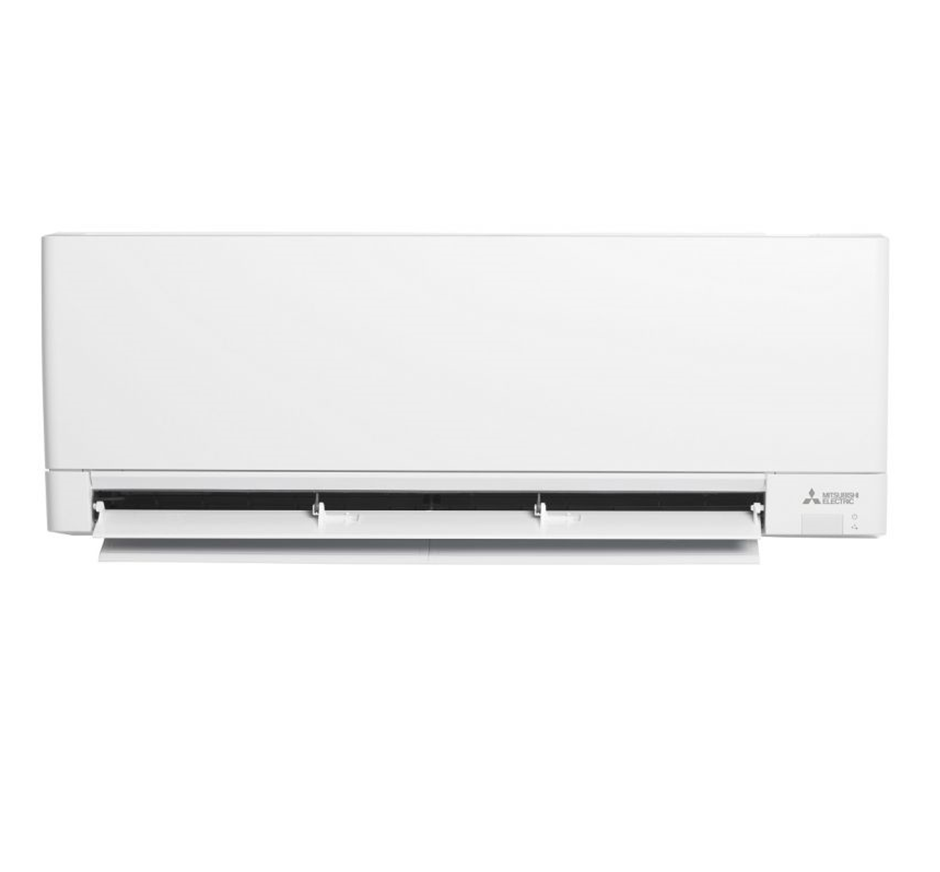

Indoor units

Model	2x Mitsubishi Electric MSZ-AY25VGK
Cooling capacity per indoor unit	2.5 kW, adjustable from 0.9 to 3.4 kW
Heating capacity per indoor unit	3.2 kW, adjustable from 1.0 to 4.1 kW
Sound pressure level	18 / 36 dB(A), low / high setting
Dimensions per indoor unit (WxHxD)	798 x 299 x 245 mm, 10.5 kg
Pipe connections Liquid + Gas	6 mm (1/4") + 10 mm (3/8"), two identical sets
WiFi	built-in, no additional module
Features	Air purification filter with silver ion coating, V-Blocking filter, night mode, i-save, horizontal air outlet, weekly program

Outdoor unit

Model	Mitsubishi Electric MXZ-2F42VF
Cooling capacity	4.2 kW, adjustable from 1.1 to 4.4 kW
Heating capacity	4.5 kW, adjustable from 1.0 to 4.8 kW
Power consumption Cooling / Heating	0.98 / 0.88 kW
Sound pressure level outdoor unit Cooling / Heating	44 / 50 dB(A)
Dimensions outdoor unit (WxHxD)	800 x 550 x 285 mm, 37 kg
Connections for indoor units	2, both occupied in this set

System

Energy efficiency class Cooling / Heating	A+++ / A++, scale A+++ to D
SEER / SCOP	8.69 / 4.60
Total cooling capacity of indoor units	5.0 kW
Cooling operating range	-10 to +46 °C
Heating operating range	-15 to +24 °C
Power supply	220 to 240 V, 50 Hz, 1 phase
Control	2x infrared remote control with weekly program, app via built-in WiFi

Frequently Asked Questions

What cooling and heating capacity does the set have?

For the MXZ-2F42VF outdoor unit, cooling capacity of 4.2 kW, adjustable from 1.1 to 4.4 kW, and heating capacity of 4.5 kW, adjustable from 1.0 to 4.8 kW, are stated. Each of the two MSZ-AY25VGK indoor units has a cooling capacity of 2.5 kW (0.9 to 3.4 kW) and a heating capacity of 3.2 kW (1.0 to 4.1 kW). The energy efficiency classes are stated as A+++ for cooling and A++ for heating, on the A+++ to D scale, with an SEER of 8.69 and an SCOP of 4.60.

What do A+++ and SEER 8.69 mean for this set?

For cooling, class A+++ is stated, the highest level on the A+++ to D scale, with an SEER of 8.69; for heating, A++ with an SCOP of 4.60. Both values are above the thresholds that the manufacturer must meet for these classes, A+++ requires an SEER of at least 8.5 and A++ an SCOP of at least 4.6. The power consumption of the outdoor unit is stated as 0.98 kW in cooling and 0.88 kW in heating operation.

Can I control the system via an app?

Yes, without an additional module. According to the manufacturer, the MSZ-AY25VGK indoor units have the WiFi module built in, the K suffix in the model code stands for this version. It is operated via the manufacturer's app, the name of which this page does not state; we will provide it to you upon request. Two infrared remote controls with weekly programs are also included.

How do two indoor units work with one outdoor unit?

Two separate refrigerant circuits, one per indoor unit, connected to a common outdoor unit with two connections. Each room has its own remote control and its own setpoint temperature; both can also be controlled remotely via the app.

Is the outdoor unit sufficient for both indoor units at the same time?

The two indoor units together are stated as 5.0 kW, the outdoor unit as 4.2 kW; the difference is 0.8 kW. If both rooms run at full load at the same time, each indoor unit gets about four-fifths of its rated capacity; if one runs alone, it has the full 4.2 kW. The outdoor unit regulates steplessly from 1.1 kW upwards, so it does not cycle at low load. Two rooms used simultaneously are possible with this set without restriction.

What rooms is this set suitable for?

According to the manufacturer, each indoor unit is designed for approximately 19 to 25 m²^*. Two identical indoor units fit two similarly sized rooms, and with 18 dB(A) on the lowest setting, this indoor unit is intended for bedrooms: bedroom and children's room, bedroom and study, two hotel rooms. We will carry out the binding design on a property-specific basis.

How many indoor units are included in the delivery scope?

Two MSZ-AY25VGK with 2.5 kW each, two remote controls, and the MXZ-2F42VF outdoor unit. Pipes, installation material, and the bracket or console for the outdoor unit are not part of the delivery.

Is an installation set required for each indoor unit?

Yes, two, and both are identical: the manufacturer states two 6 mm (1/4") on the liquid side and two 10 mm (3/8") on the gas side. Installation material is not included in this offer and is selected by the specialist company for the installation situation.

How large and how heavy are the units?

Each indoor unit measures 798 x 299 x 245 mm and weighs 10.5 kg. The outdoor unit measures 800 x 550 x 285 mm and weighs 37 kg; it can be mounted on a wall bracket, the load-bearing capacity is assessed by the specialist company on site.

How loud is the system?

For the indoor units, 18 dB(A) on the low setting and 36 dB(A) on the high setting are stated. For the outdoor unit, the manufacturer states 44 dB(A) in cooling and 50 dB(A) in heating operation. This page does not state a sound power level. In addition, there is a night mode that reduces the fan speed and power at night.

What filters does the indoor unit have?

An air purification filter with silver ion coating and an integrated V-Blocking filter are stated in each indoor unit. As an accessory, the manufacturer also states a Quad Connect Plasma filter, which is not included in the delivery scope. According to the manufacturer, the filters are cleaned regularly; this is part of the maintenance.

How far apart can the indoor and outdoor units be?

This page does not state the permissible pipe length and the permissible height difference; we will provide both values upon request. Two pipe routes are to be planned, both from the outdoor unit's location.

Can I heat with the system in winter?

Heating operation is stated for outdoor temperatures from minus 15 to plus 24 °C, cooling operation from minus 10 to plus 46 °C. In heating operation, class A++ applies on the A+++ to D scale with an SCOP of 4.60; the outdoor unit heats with 4.5 kW, each indoor unit with 3.2 kW, so each heats more than it cools. The i-save function stores a reduced setpoint temperature and recalls it at the touch of a button, for example for the night or absence. Whether the system is sufficient as the sole heating system, we will check upon request.

Can I install the air conditioner myself?

Installation and commissioning of a Multi Split air conditioner is carried out by a certified specialist company; self-installation is not intended. Two pipe routes and one 37 kg outdoor unit need to be planned.
