Mitsubishi PCA-M35KA 3.6 kW ceiling-mounted air conditioner

Mitsubishi PCA-M35KA 3.6 kW ceiling-mounted air conditioner

Mitsubishi Standard Inverter PCA-M35KA Split Deckenklimaanlage mit 3,6 kW Kühl- und 4,1 kW Heizleistung, als Orientierung für Räume von etwa 28 bis 36 m²*. Energieeffizienzklasse A++ im Kühlen und A+ im Heizen, Skala A+++ bis D. Innengerät PCA-M35KA als Deckenunterbaugerät, 23 cm hoch, mit Außenluftanschluss, vier Gebläsestufen und Modus für hohe Decken bis 4,2 m, Außengerät SUZ-M35VA, Fernbedienung nach Wahl (Infrarot, Kabel oder Touch mit Bluetooth).

Regular price €2.199,00
Regular price Sale price €2.199,00
Sale Sold out

incl. VAT + Shipping Costs

Taxes included. Shipping calculated at checkout.
Controller

Crowd

  • American Express
  • Diners Club
  • Discover
  • Google Pay
  • JCB
  • Mastercard
  • PayPal
  • Visa
  • Brand-name units from a specialist retailerOriginal products from leading manufacturers
  • Personal adviceBy phone, email or WhatsApp
  • Installation on requestBy specialist installers in your region
  • Secure paymentPayPal with Buyer Protection, credit card and more

Description

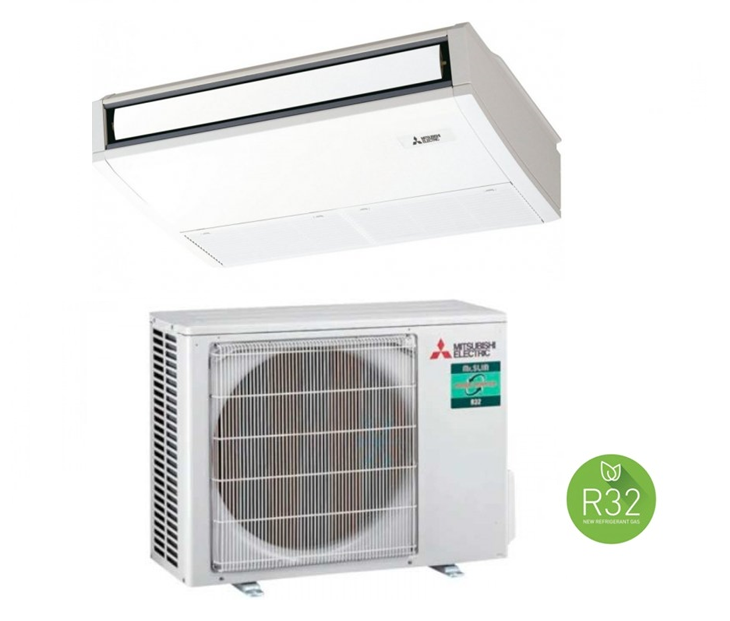

Split ceiling unit Mitsubishi Standard Inverter PCA-M35KA / SUZ-M35VA 3.6 kW

Included in delivery:

•

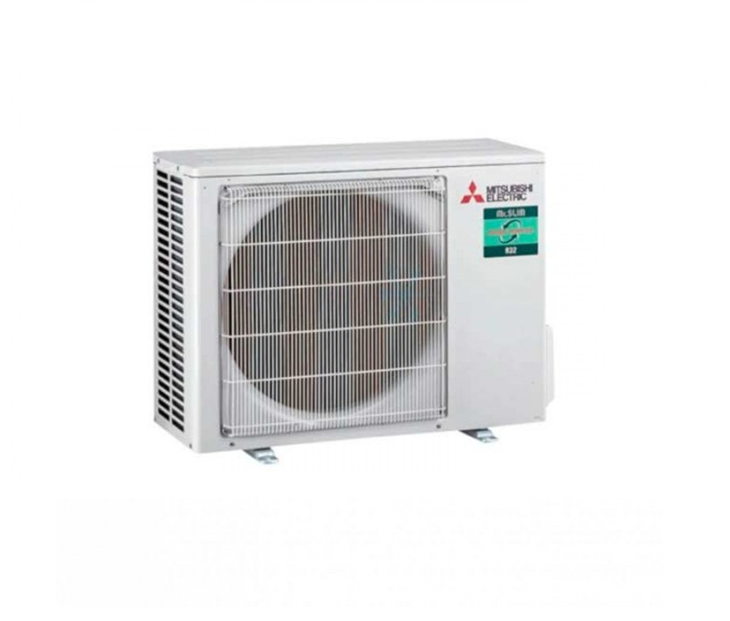

one outdoor unit SUZ-M35VA
•

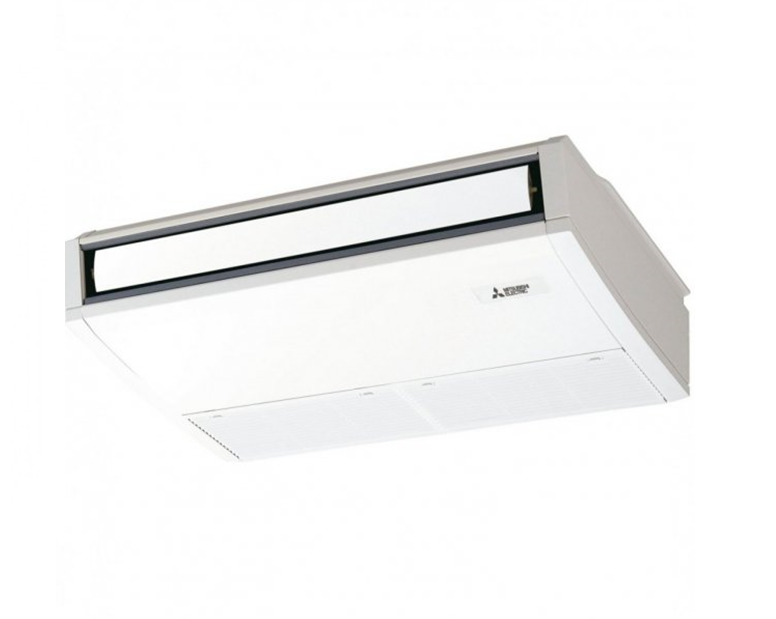

one indoor unit PCA-M35KA

• a remote control to choose from:

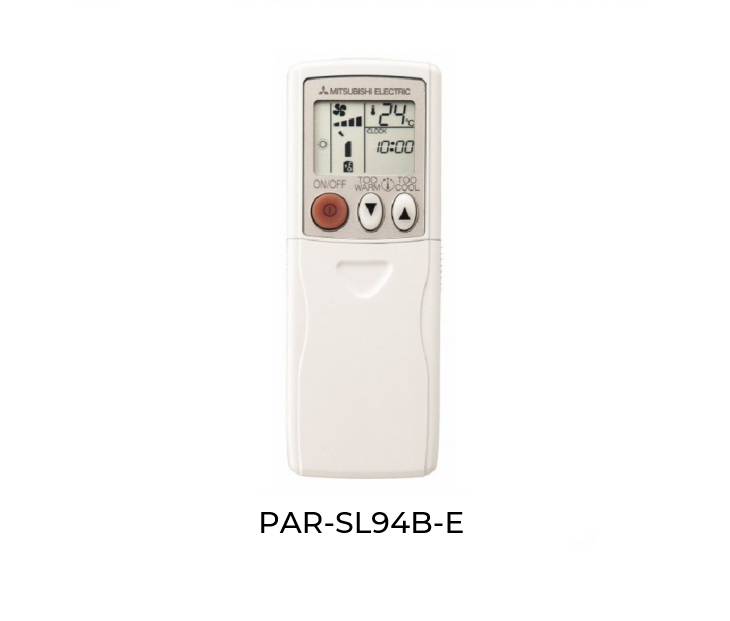

- Infrared remote control PAR-SL94B-E,

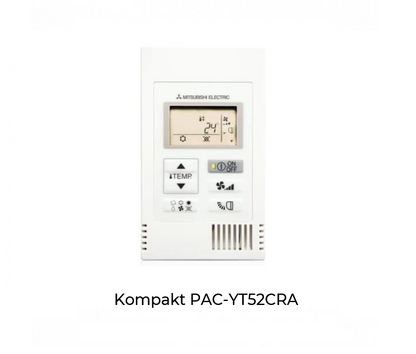

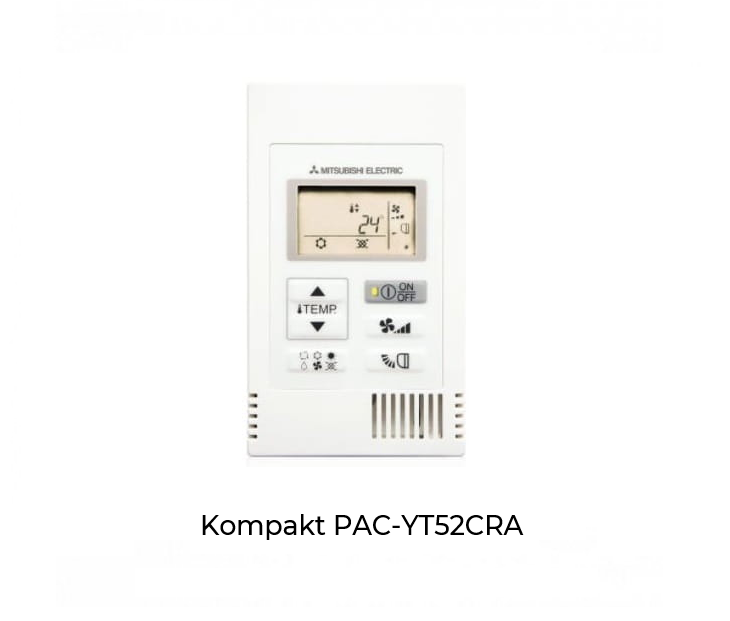

- Compact wired remote control PAC-YT52CRA,

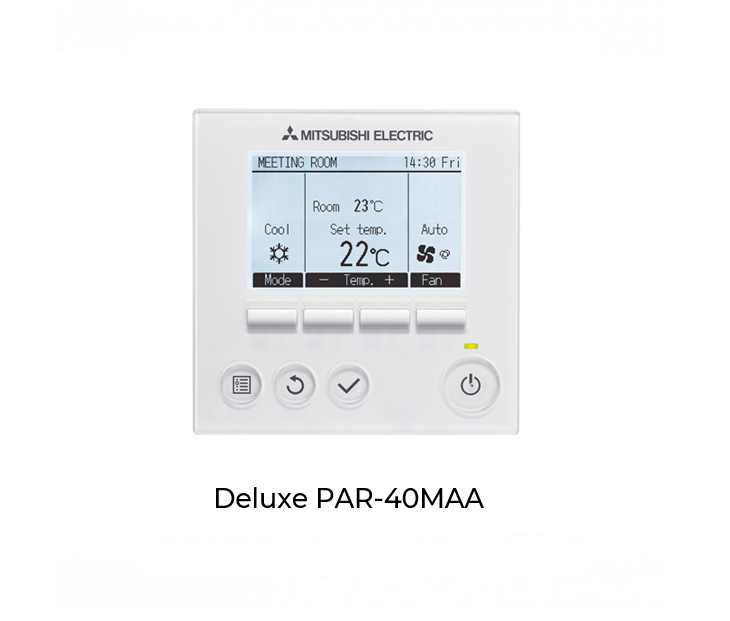

- Cable remote control Deluxe PAR-40MAA,

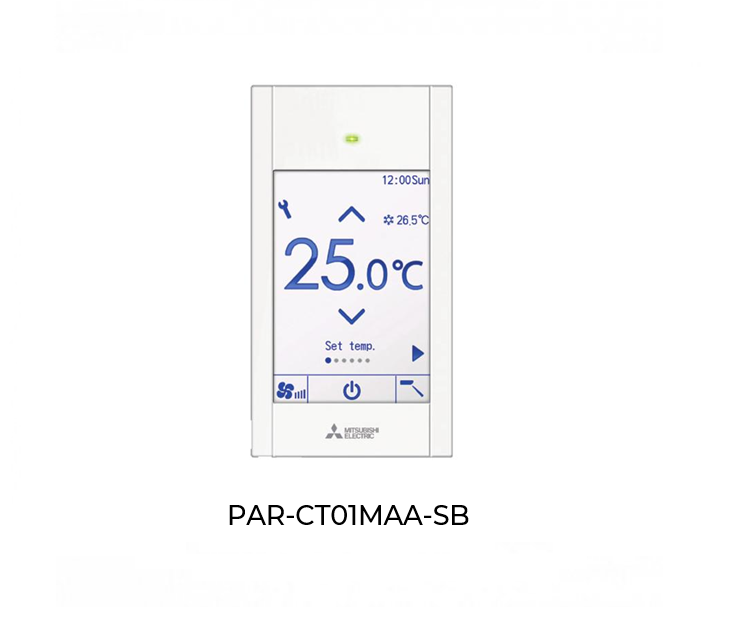

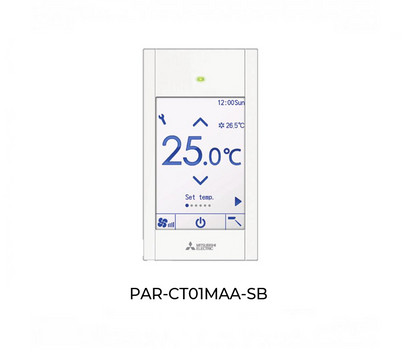

- Touch wired remote control PAR-CT01MAA-SB | Bluetooth | Color: white
- Touch-screen wired remote control PAR-CT01MAA-PB | Bluetooth | Color: black

Features:

This versatile ceiling-mounted unit is particularly well-suited for utility rooms thanks to its excellent air distribution and high sensible performance. Special combinations with up to 100% sensible performance are available for this purpose.

•
Cooling and heating
•
Split inverter
•
Modern housing in pure white
•
Only 23 cm high

• Durable filter
• * optional High-efficiency filter
• Outside air connection
• Automatic fan speed control
• 4 fan speeds
• High/low ceiling mode for ideal airflow at height (up to 4.2 m) or in low rooms
• Automatic restart after power failure
• Redundancy function
• Easy installation
• * Optional condensate pump
• Redundancy function (with PUHZ & PUZ)
• Long throwing distance
• High sensible cooling capacity
• Vertical swing

Specifications:

Cooling capacity (Nom (Min.-Max.)) : 3.6 (0.8-3.9) kW
Heating capacity (Nom (Min.-Max.)) : 4.1 (1.0-5.0) kW
Power consumption cooling/heating: 0.90/1.02 kW
Energy efficiency class cooling/heating: A++/A+
SEER/SCOP: 6.3/4.0
Sound pressure level indoor unit (N/M1/M2/H): 31/33/36/39 dB(A)
Sound pressure level outdoor unit cooling/heating: 48/48 dB(A)
Indoor unit dimensions (WxDxH): 960x680x230 mm (25 kg)
Outdoor unit dimensions (WxDxH): 800x285x550 mm (35 kg)
Power supply: 1 phase, 220-240 V, 50 Hz
Cooling/heating operating range: −10~+46/−10~+24 °C
Air volume flow indoor unit (N/M1/M2/H): 600/660/720/840 m3/h
Air volume flow outdoor unit cooling/heating: 2058/1962 m3/h
Refrigerant type: R32, GWP=675
Refrigerant pre-charge: pre-filled up to 7 m
Pipe connections liquid + gas: 6 mm (1/4") + 10 mm (3/8")
Total cable length: 20 m
Max. height difference: 12 m
Operating current cooling/heating: 4.77/4.97 A



*Important NOTE
Dear customer, you should bear in mind that with the purchase the buyer / user confirms compliance with “Regulation (EU) No 517/2014 of the European Parliament and of the Council of 16 April 2014 on fluorinated greenhouse gases and compliance with Regulation (EU) No 573/2024 of the European Parliament and of the Council of March 2024 on fluorinated greenhouse gases, which stipulates that: the person purchasing the split air conditioner / the user confirms that it will be professionally installed by certified professionals.

https://www.gesetze-im-internet.de/chemklimaschutzv/__9.html

Before purchasing, please contact us to confirm availability and delivery time!

Manufacturer Information

Manufacturer/EU Representative: Mitsubishi Electric Europe BV
Postal address:Harman House, 1 George Street, Uxbridge, Middlesex, UB8 1QQ, United Kingdom
E-mail address:info@mecc.mee.com

Important Note

Dear Customer, please note that by purchasing this product, the buyer/user confirms compliance with Regulation (EU) No 517/2014 of the European Parliament and of the Council of 16 April 2014 on fluorinated greenhouse gases and Regulation (EU) No 573/2024 of the European Parliament and of the Council of March 2024 on fluorinated greenhouse gases, which stipulates the following: The person who buys/uses the split air conditioner confirms that it will be professionally installed by certified professionals.

F-Gas Regulation Download Declaration
