Mitsubishi SEZ-M60DA 6.1 kW duct air conditioner

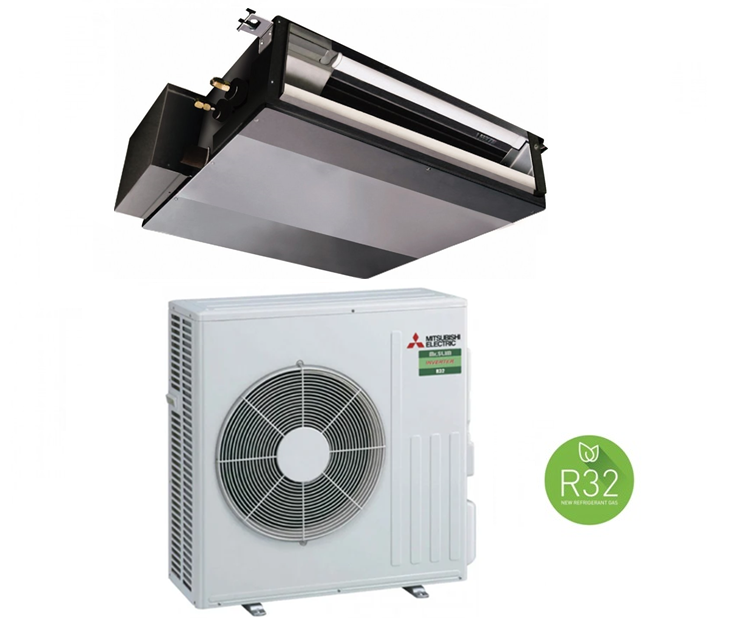

Split ducted air conditioner Mitsubishi SEZ-M60DA / SUZ-M60VA 6.1 kW
Included in delivery:

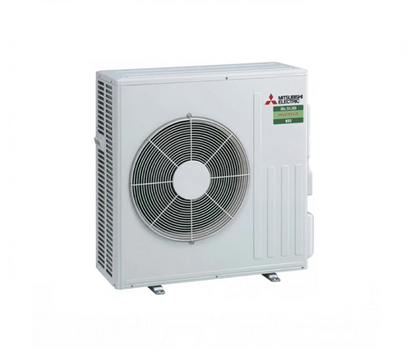

• one outdoor unit SUZ-M60VA

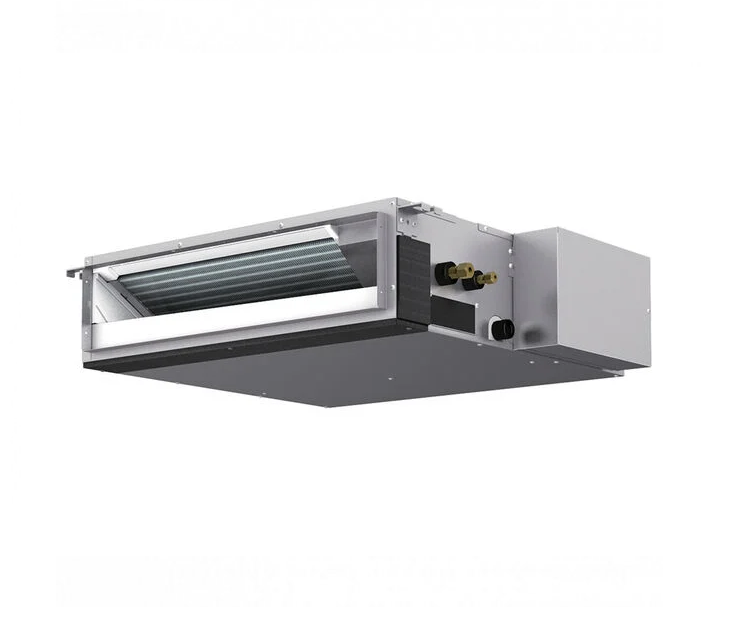

• one indoor unit SEZ-M60DA
• a remote control to choose from:

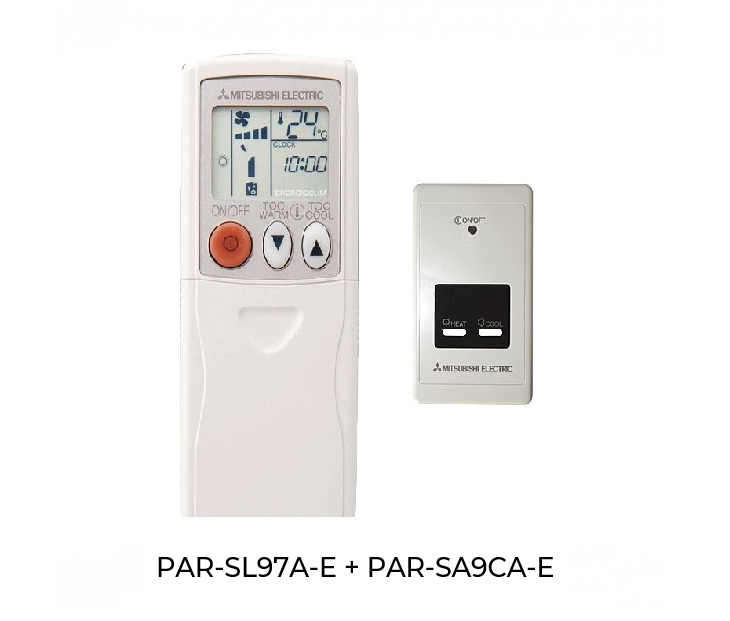

- Infrared remote control PAR-SL97A-E + PAR-SA9CA-E,

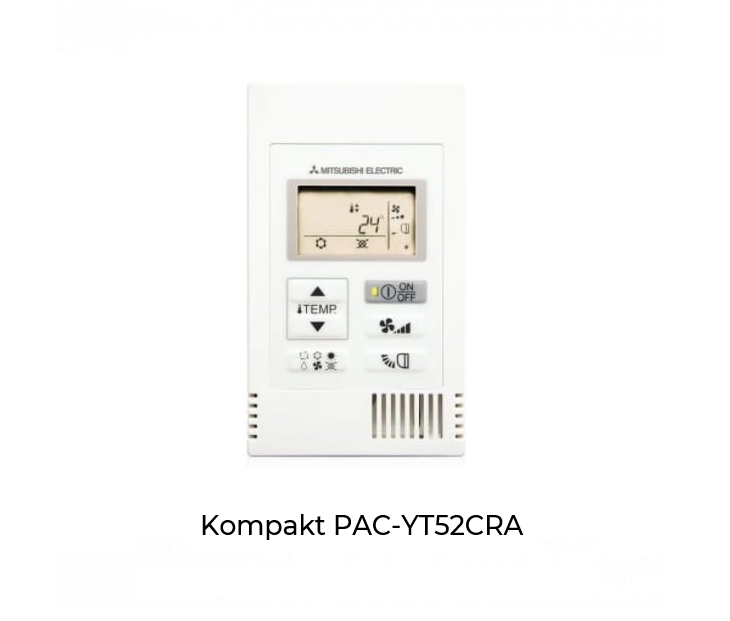

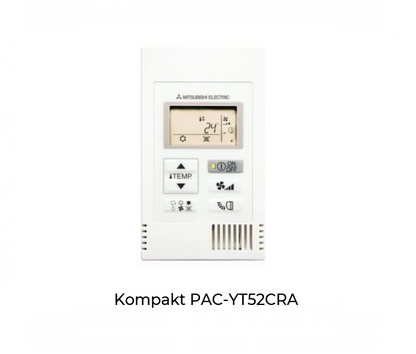

- Compact wired remote control PAC-YT52CRA,

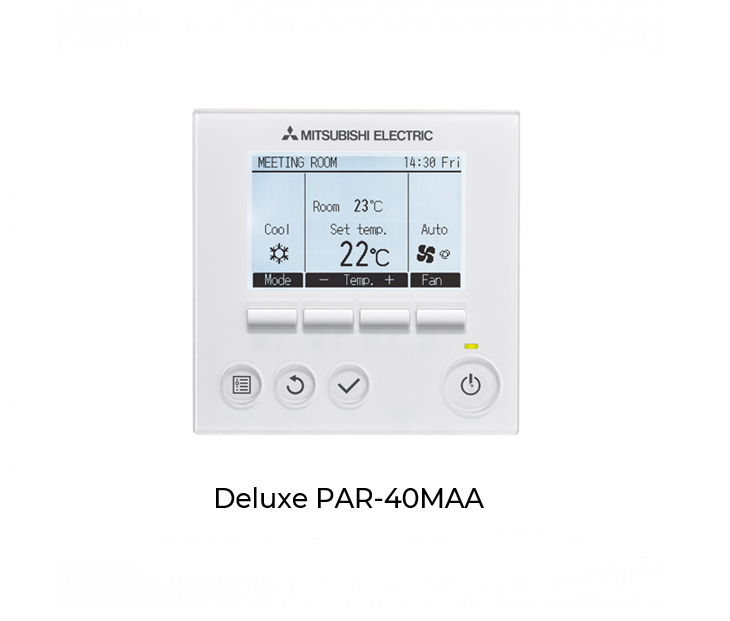

- Cable remote control Deluxe PAR-40MAA,

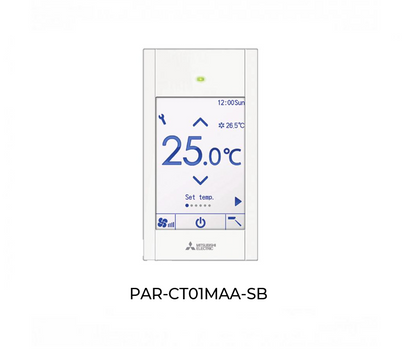

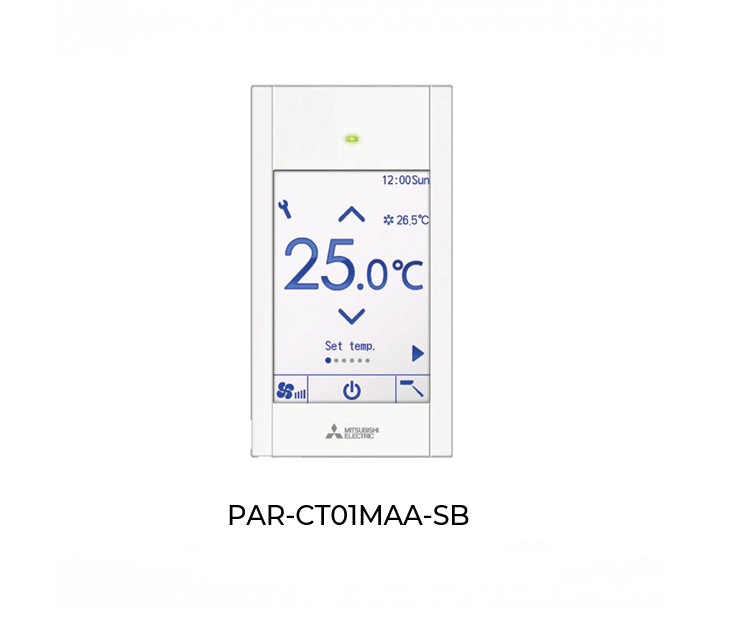

- Touch wired remote control PAR-CT01MAA-SB | Bluetooth | Color: white

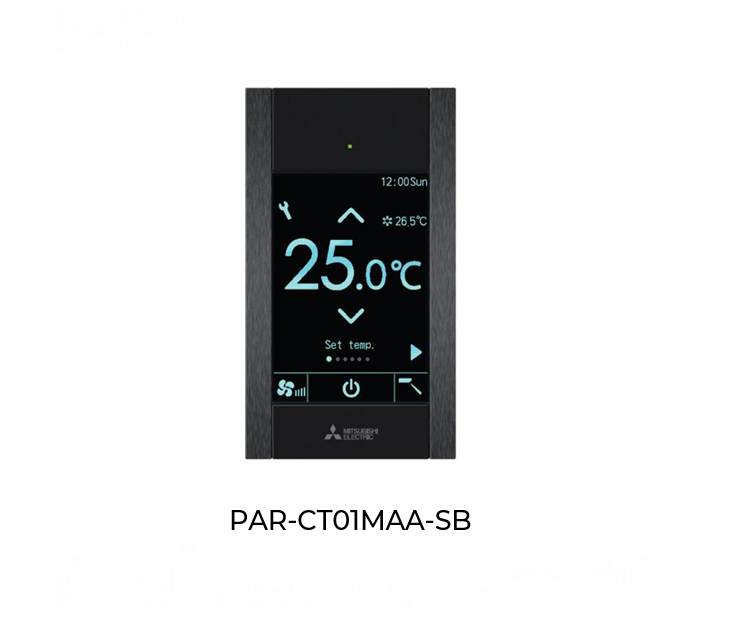

- Touch-screen wired remote control PAR-CT01MAA-PB | Bluetooth | Color: black
Features:

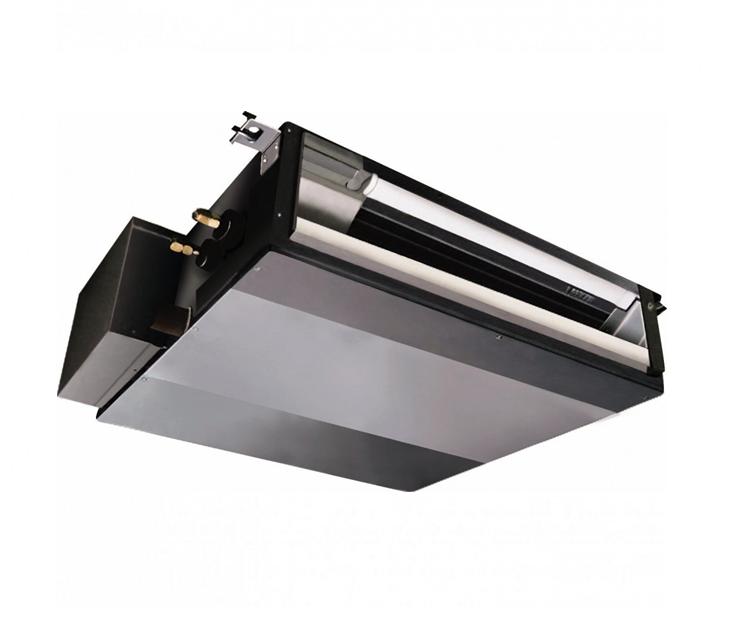

The SEZ-M duct-mounted unit is so compact that it can be retrofitted even in buildings with low ceiling heights. The unit can be installed in air ducts with a static pressure of up to 50 Pa.
• Air purification filter
• Integrated self-diagnosis system for convenient service
• Cooling and heating
• Split inverter
• Auto Restart
• * optional Plasma Quad Connect Filter
• Heating operation possible down to −10 °C
Specifications:
| Cooling capacity (Nom (Min.-Max.)) : | 6.1 (1.6-6.3) kW |
| Heating capacity (Nom (Min.-Max.)) : | 7.4 (1.6-8.0) kW |
| Power consumption cooling/heating: | 1.84/2.04 kW |
| Energy efficiency class cooling/heating: | A/A+ |
| SEER/SCOP: | 5.5/4.2 |
| Sound pressure level indoor unit (N/M/H): | 29/33/37 dB(A) |
| Sound pressure level outdoor unit cooling/heating: | 49/51 dB(A) |
| Indoor unit dimensions (WxDxH): | 1190x700x200 mm (27 kg) |
| Outdoor unit dimensions (WxDxH): | 840x330x880 mm (54 kg) |
| Power supply: | 1 phase, 220-240 V, 50 Hz |
| Cooling/heating operating range: | −15~+46/−10~+24 °C |
| Air volume flow indoor unit N/M/H: | 720/900/1080 m3/h |
| Air volume flow outdoor unit cooling/heating: | 3006/3006 m3/h |
| Refrigerant type: | R32, GWP=675 |
| Refrigerant pre-charge: | pre-filled up to 7 m |
| Pipe connections liquid + gas: | 6 mm (1/4") + 16 mm (5/8") |
| Total cable length: | 30 m |
| Max. height difference: | 30 m |
| Operating current: | 9.0 A |
*Important NOTE
Dear customer, you should bear in mind that with the purchase the buyer / user confirms compliance with “Regulation (EU) No 517/2014 of the European Parliament and of the Council of 16 April 2014 on fluorinated greenhouse gases and compliance with Regulation (EU) No 573/2024 of the European Parliament and of the Council of March 2024 on fluorinated greenhouse gases, which stipulates that: the person purchasing the split air conditioner / the user confirms that it will be professionally installed by certified professionals.
https://www.gesetze-im-internet.de/chemklimaschutzv/__9.html
Before purchasing, please contact us to confirm availability and delivery time!
