Mitsubishi MSZ-AY35VGK Split Air Conditioner 3.5 kW with Wi-Fi
Mitsubishi MSZ-AY35VGK Split Air Conditioner 3.5 kW with Wi-Fi
Mitsubishi MSZ-AY35VGK split air conditioner with 3.5 kW cooling and 4.0 kW heating capacity, suitable for rooms of approximately 30 to 35 m²*. 18 dB(A) at the lowest fan setting, Wi-Fi module built into the indoor unit. Heating operation down to minus 20 °C.
incl. VAT + Shipping Costs
Crowd
Couldn't load pickup availability
- Brand-name units from a specialist retailerOriginal products from leading manufacturers
- Personal adviceBy phone, email or WhatsApp
- Installation on requestBy specialist installers in your region
- Secure paymentPayPal with Buyer Protection, credit card and more
Description
Description
The Mitsubishi MSZ-AY35VGK heats down to outdoor temperatures of minus 20 °C and operates at 18 dB(A) on the lowest fan setting. With an SEER of 8.6, it is in energy efficiency class A+++ in cooling mode and, with an SCOP of 4.7, in A++ in heating mode, each on the scale from A+++ to D. The WiFi module is installed in the indoor unit from the factory. The power class is suitable as a guide for rooms of approximately 30 to 35 m²*.
Performance and range of application
The unit delivers 3.5 kW of cooling and 4.0 kW of heating capacity, which corresponds to around 12,000 BTU. The heating capacity is therefore higher than the cooling capacity. In cooling mode, the system operates between minus 10 and plus 46 °C outdoor temperatures, and in heating mode between minus 20 and plus 24 °C. Heating down to minus 20 °C thus also covers longer periods of cold weather.
The stated area of approximately 30 to 35 m²* is a guideline for standard room height and normal insulation standards, not a binding design. Which power class is right for your property depends on room height, insulation standards, window areas, shading, and the number of people and devices. A unit that is too small will run continuously at full load, while one that is too large will cycle and consume electricity unnecessarily. We can check the appropriate design for your property upon request.
* Guideline based on the cooling capacity specified by the manufacturer, with a standard room height of approximately 2.5 m, normal insulation standards, and average sunlight exposure. Different conditions on site, such as large window areas, sloped roofs, or a high number of people, may require a different power class. The binding design is carried out on a property-specific basis. For a professional design of your property, please contact us.
The most important advantages at a glance
- 18 dB(A) on the lowest fan setting.
- Energy efficiency class A+++ in cooling and A++ in heating on the scale from A+++ to D, with an SEER of 8.6 and SCOP of 4.7.
- Heating down to minus 20 °C outdoor temperatures.
- WiFi from the factory: the WiFi module is already installed in the indoor unit.
- 4.0 kW heating capacity with 3.5 kW cooling capacity, around 12,000 BTU.
- Air purification filter with silver ion coating and integrated V-Blocking filter in the indoor unit.
Detailed functions
Inverter and heat pump operation
The inverter compressor adjusts its speed to the actual demand. At startup, the system runs at high power to quickly bring the room to the desired temperature. Then it returns to the necessary partial load and maintains the temperature without constantly switching on and off. In heating mode, the unit operates as an air-to-air heat pump and uses the heat from the outdoor air down to minus 20 °C.
Operating modes
- Cooling: 3.5 kW nominal
- Heating: 4.0 kW nominal, operation down to minus 20 °C outdoor temperatures
- Night mode: reduced noise generation and lowered power at night
- Dehumidification: lowers the humidity without cooling the room significantly
- Ventilation: air circulation without cooling or heating operation
Control and comfort
The WiFi module, sometimes also referred to as a WiFi module, is built into the indoor unit and does not need to be retrofitted. For operation without an app, an infrared remote control with a weekly program is included.
- i-save: stores a reduced setpoint temperature and recalls it at the touch of a button
- Weekly program via the remote control: fixed operating times throughout the week
- Horizontal air outlet for even air distribution in the room
- Unit width 798 mm with a mounting depth of 245 mm
Filters in the indoor unit
- Air purification filter with silver ion coating
- Integrated V-Blocking filter
- Quad Connect Plasma filter, optionally available as an accessory

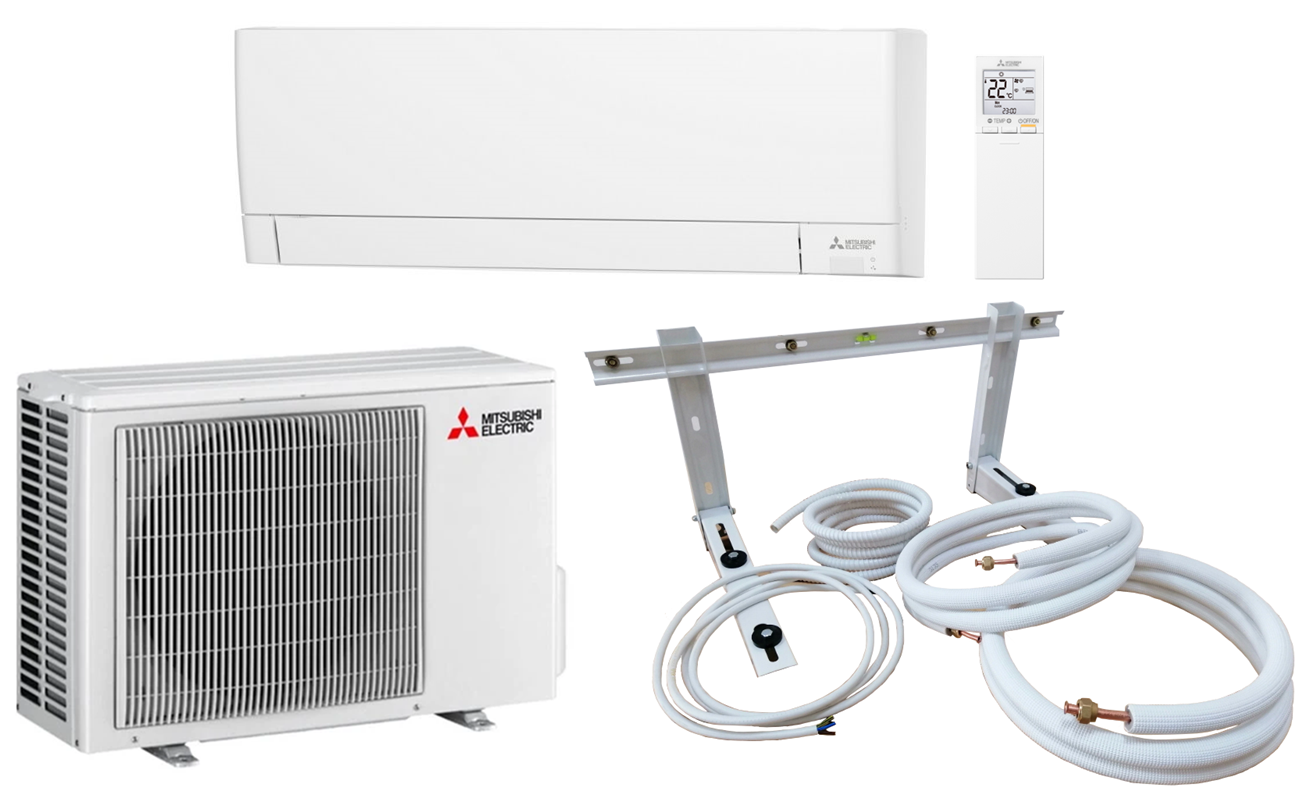

Scope of delivery
Included in the standard scope:

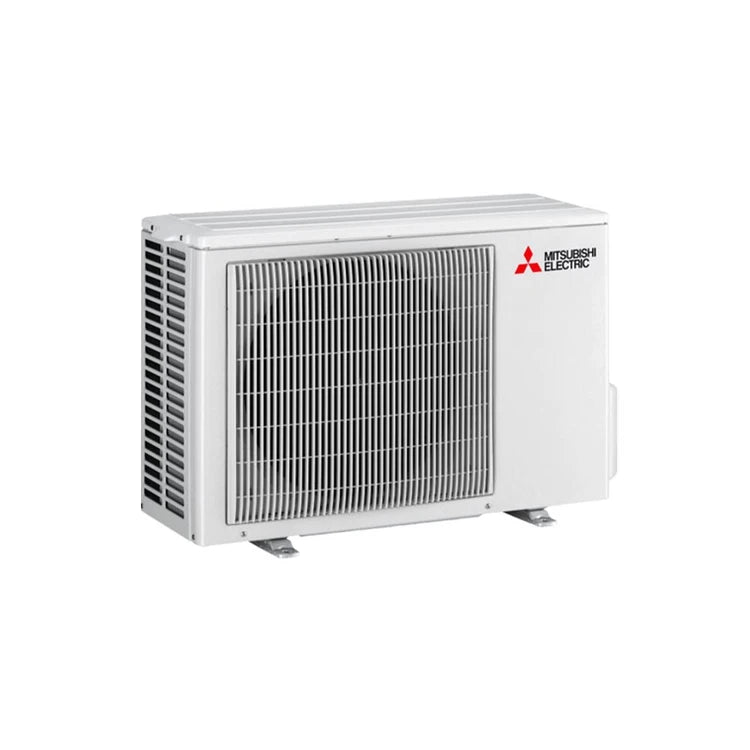

- 1x Mitsubishi MUZ-AY35VG outdoor unit

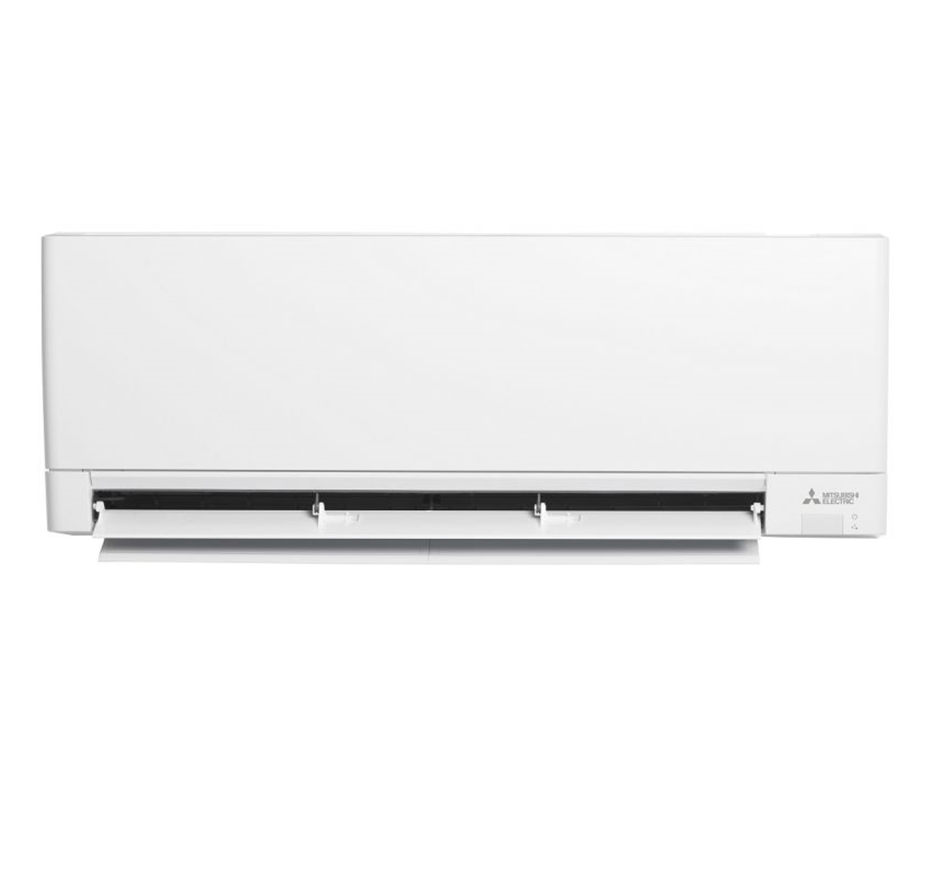

- 1x Mitsubishi MSZ-AY35VGK indoor unit with built-in WiFi module

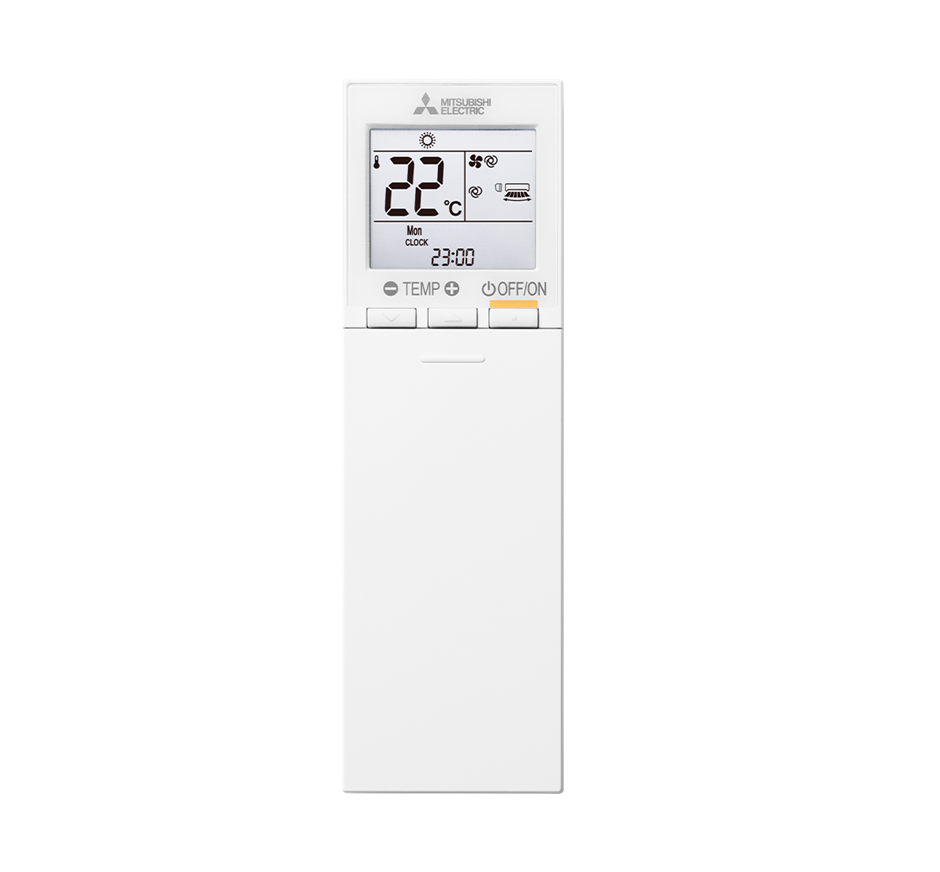

- 1x infrared remote control
Optional: Mounting set 3 to 12 meters
You can order the appropriate mounting set directly with the unit. It contains:
- Insulated copper lines
- Condensate hose
- Electrical and control cable
- Wall bracket for the outdoor unit
- Wall sleeve
What you need in addition
- Cables and mounting material, if you do not choose a mounting set
- Condensate pump, depending on the installation situation
- Electrical supply line and circuit breaker
- Installation and commissioning by a specialist company
Technical data
| Indoor unit | Mitsubishi MSZ-AY35VGK |
| Outdoor unit | Mitsubishi MUZ-AY35VG |
| Cooling capacity | 3.5 kW, around 12,000 BTU |
| Heating capacity | 4.0 kW |
| Energy efficiency class Cooling / Heating | A+++ / A++, scale A+++ to D |
| SEER / SCOP | 8.6 / 4.7 |
| Sound pressure level indoor unit (low / high) | 18 / 36 dB(A) |
| Sound pressure level outdoor unit Cooling / Heating | 49 / 50 dB(A) |
| Pipe connections Liquid + Gas | 6 mm + 10 mm |
| Operating range Cooling / Heating | -10 to +46 °C / -20 to +24 °C |
| Dimensions indoor unit (WxDxH) | 798 x 245 x 299 mm, 10.5 kg |
| Dimensions outdoor unit (WxDxH) | 800 x 285 x 550 mm, 28.5 kg |
| WiFi / WiFi module | built into the indoor unit |
Frequently asked questions
What cooling and heating capacity does the MSZ-AY35VGK have?
The cooling capacity is 3.5 kW, the heating capacity 4.0 kW, which corresponds to around 12,000 BTU. The inverter regulates both values continuously according to demand. We can check which power class is right for your room upon request.
Is the mounting set included in the price?
The mounting set is an optional addition and is added via the variant selection. Without a selected mounting set, the delivery exclusively includes the indoor unit, outdoor unit, and remote control. The set is available in lengths of 3 to 12 meters.
Does the air conditioner have WiFi, and do I need additional accessories?
No, additional accessories are not necessary. The WiFi module, sometimes also referred to as a WiFi module, is already built into the MSZ-AY35VGK indoor unit. You only need a WiFi network at the installation site. An infrared remote control is also included.
How long can the cable between the indoor and outdoor unit be?
The optional mounting set is available in lengths of 3 to 12 m. We can check which cable length is permissible for your installation situation upon request.
Can I use the unit to heat in winter?
Heating mode is possible down to minus 20 °C outdoor temperatures. With 4.0 kW, the heating capacity is higher than the cooling capacity. The available power decreases as the outdoor temperature falls, which makes the system suitable as a supplement to the existing heating system.
How loud is the unit?
The indoor unit operates between 18 and 36 dB(A) depending on the fan setting. For the outdoor unit, the manufacturer specifies 49 dB(A) in cooling and 50 dB(A) in heating.
Can I install the air conditioner myself?
The installation and commissioning of a split air conditioner is carried out by a certified specialist company. Self-installation is not intended.
