The installation kit contains the lines for connecting a split or multi-split air conditioning unit in the selected length of 1 to 25 meters. The copper lines have diameters of 3/8" on the liquid side and 5/8" on the gas side. The kit is suitable for indoor and outdoor units with exactly these pipe connections. You can find out which connections your unit has in its technical data.

Scope of delivery

Included in the kit, each in the selected length:

• Insulated copper line 3/8" and 5/8"

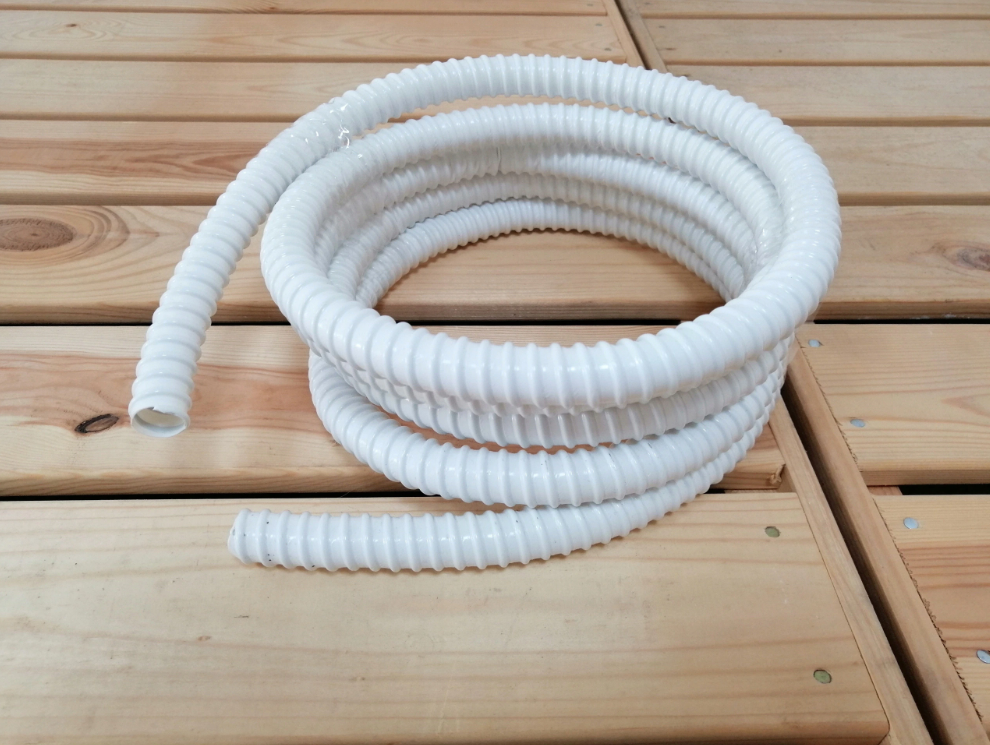

• Condensate hose 16 mm
• Electrical and control cable 5 x 1.5 mm²

Additionally included:

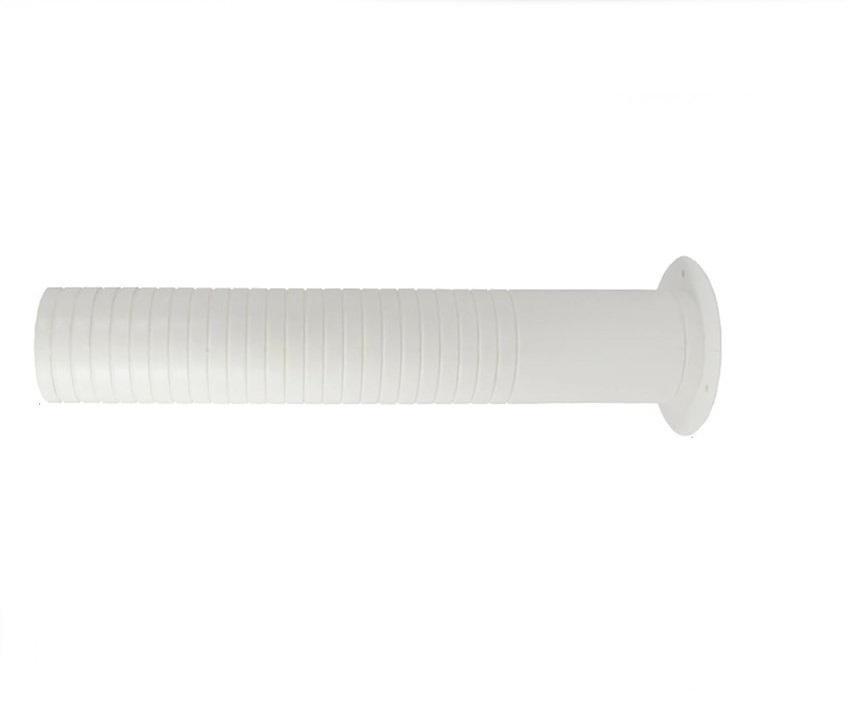

• 1x wall sleeve

What else you need

• Wall bracket for the outdoor unit, depending on the installation situation
• Condensate pump, depending on the installation situation
• Installation and commissioning by a specialist company

Suitable units

The kit is intended for split and multi-split air conditioning units with pipe connections of 3/8" (9.52 mm) on the liquid side and 5/8" (15.88 mm) on the gas side. For multi-split systems, each indoor unit requires its own kit, suitable for its connections. Units with a 1/4" liquid connection require a kit with a different line diameter.

Choose the length based on the route between the indoor and outdoor unit. You can find the minimum and maximum permissible line length of your unit in its technical data.

Technical data

Copper line liquid / gas	3/8" (9.52 mm) / 5/8" (15.88 mm), insulated
Length	1 to 25 meters, selectable in the variant selection
Condensate hose	16 mm, in the selected length
Electrical and control cable	5 x 1.5 mm², in the selected length
Other components	1 wall sleeve

Frequently asked questions

What is included in the installation kit?

Included are insulated copper lines 3/8" and 5/8", a 16 mm condensate hose and a 5 x 1.5 mm² electrical and control cable, each in the selected length, as well as a wall sleeve.

For which air conditioners is the kit suitable?

For split and multi-split air conditioning units with pipe connections of 3/8" on the liquid side and 5/8" on the gas side. For multi-split systems, select a separate kit for each indoor unit. You can find the connections of your unit in its technical data.

Which length should I choose?

The route between the indoor and outdoor unit is the deciding factor. Make sure that the selected length is within the minimum and maximum line length specified by the manufacturer of your unit.

Is a wall bracket for the outdoor unit included?

No. The kit includes a wall sleeve, but no wall bracket for the outdoor unit.

Can I install the air conditioner myself using the kit?

The installation and commissioning of an air conditioner are carried out by a certified specialist company. Self-installation is not intended.
